Upgrade Your Automation Project with an All-in-One Control Solution
Tired of managing separate controllers and drivers for your stepper motors? Our Integrated Stepper Motor Driver Controller is engineered to streamline your setup, offering professional-grade control in a single, user-friendly module. Perfect for hobbyists, engineers, and manufacturers looking to enhance precision and reliability in CNC routers, 3D printers, automated fixtures, and custom machinery.
Why Choose Our Integrated Driver Controller?

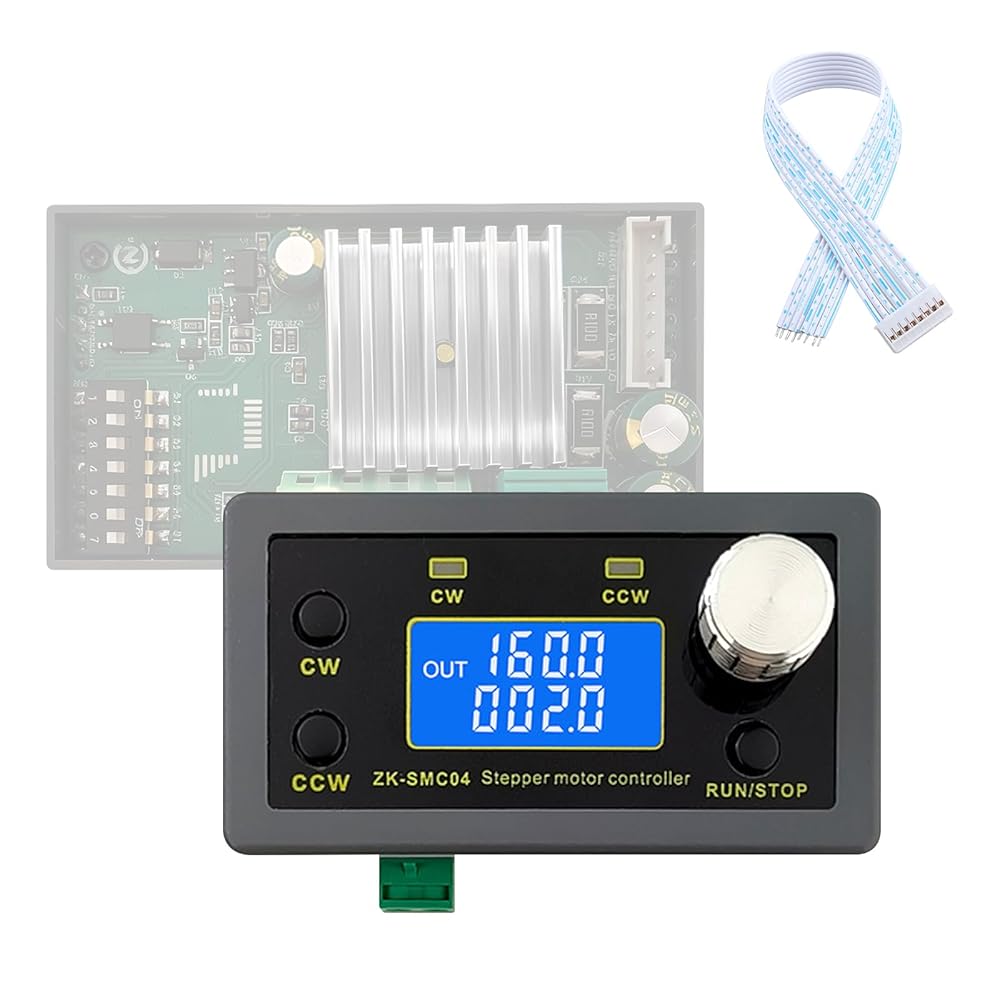

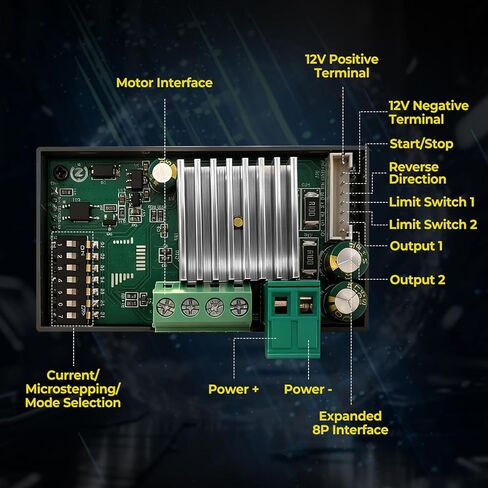

Simplify Your Design: By integrating the controller, driver, and an operational LCD display into one compact unit (79*43*41mm), we reduce wiring complexity, save panel space, and accelerate your prototyping and production process.

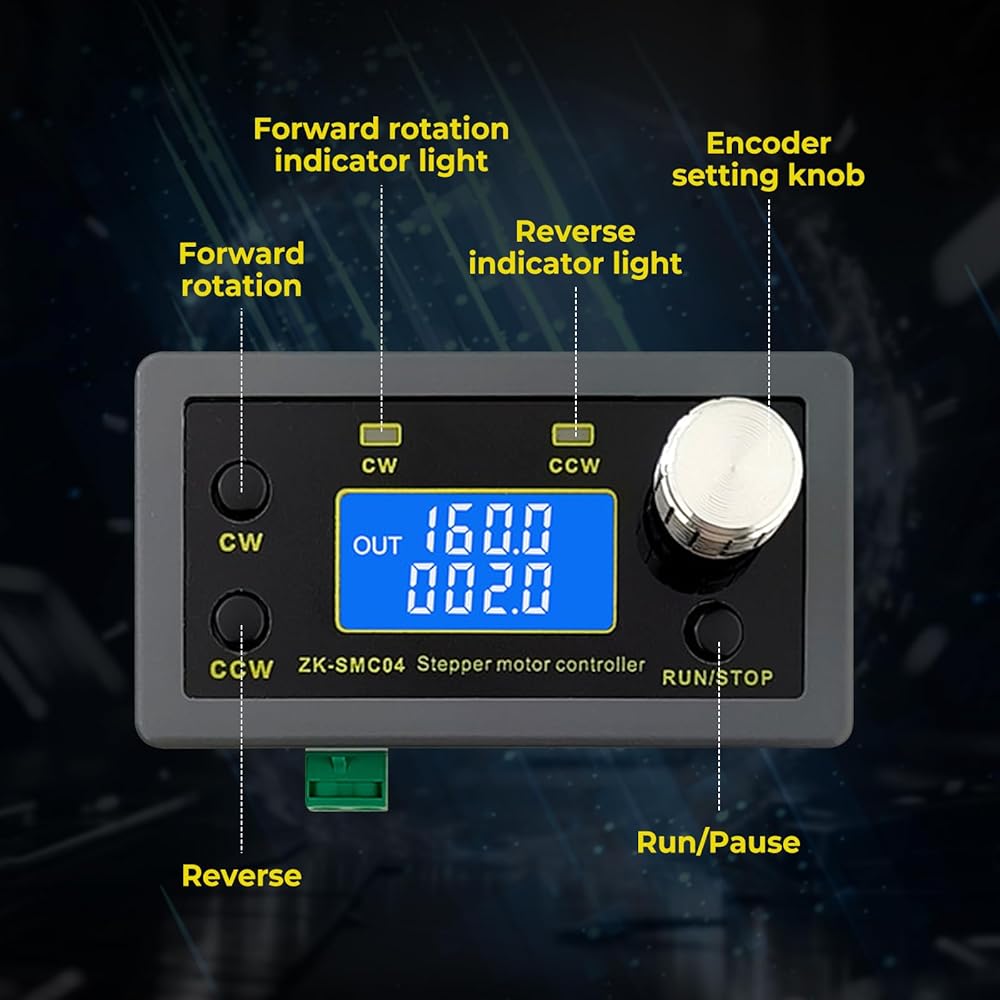

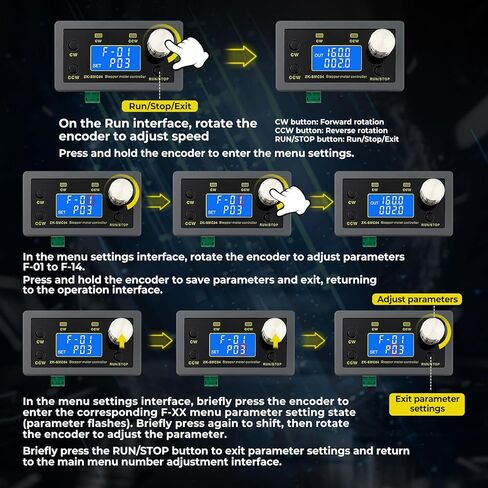

Control at Your Fingertips: The high-resolution LCD clearly displays speed, delay, cycle counts, and active mode. Adjust settings on the fly with the intuitive button interface or take full command remotely via the TTL serial port for advanced automation.
Power Where You Need It: The 6.6A peak current output and wide 10-30V DC input range ensure you have the torque and compatibility to drive popular Nema 17, 23, and 34 stepper motors reliably, even under load.
Built for Demanding Environments: With features like input reverse polarity protection and a stable operating temperature range, this module is built to withstand the rigors of daily use in workshops and industrial settings.

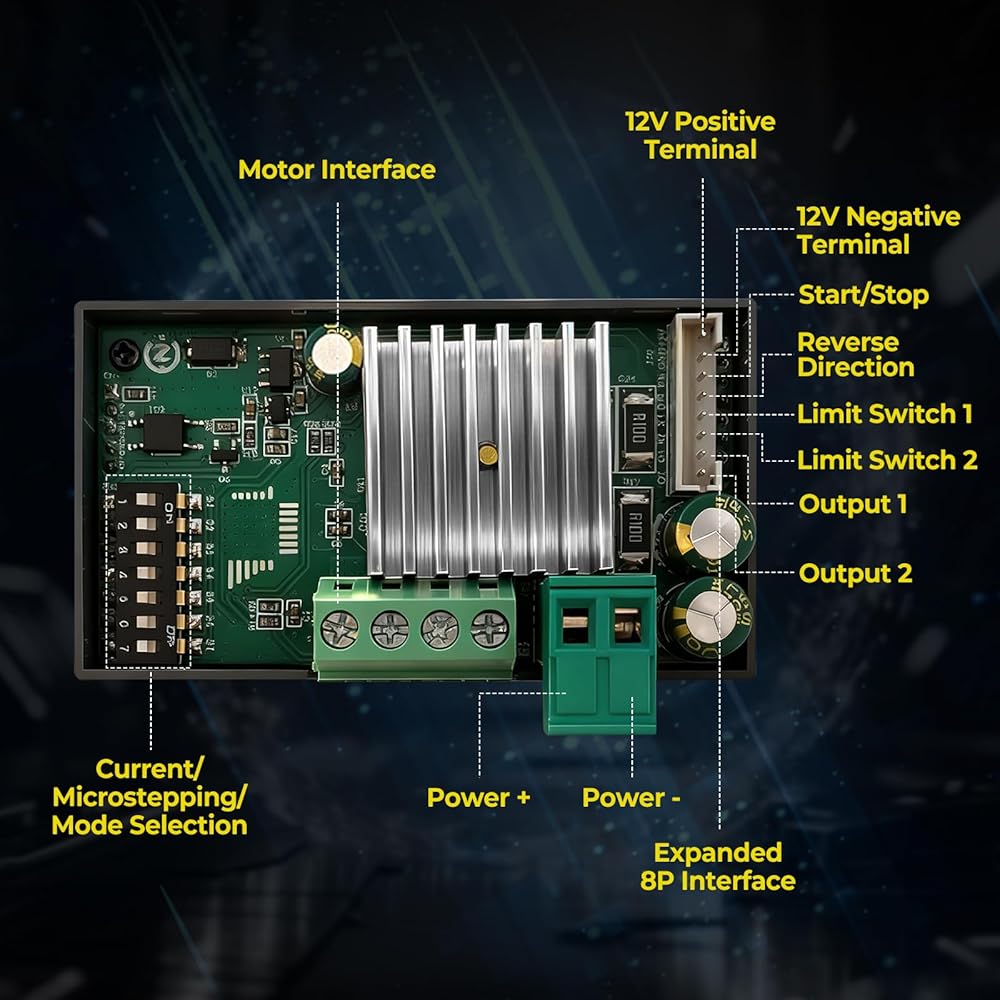

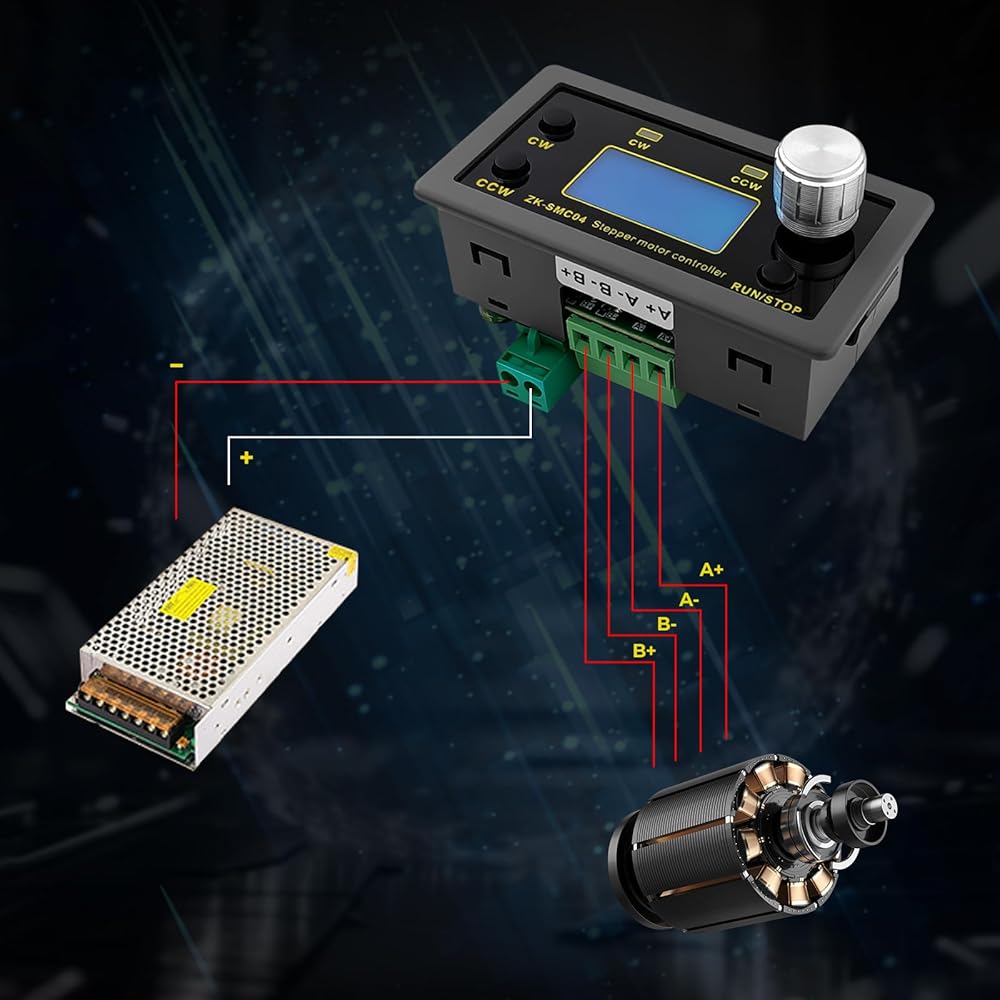

Complete Technical Specifications:Motor Compatibility: 2-Phase, 4/6/8-wire 42, 57, 86 Series (Nema 17, 23, 34) Stepper Motors
Control Modes: Standalone (Button & LCD), TTL Serial Port Remote Control
Peak Drive Current: 6.6A
Supply Voltage: DC 10-30V
Micro-stepping Resolution: 8, 16, 32, 64 Selectable
Max Pulse Frequency: 200 KHz

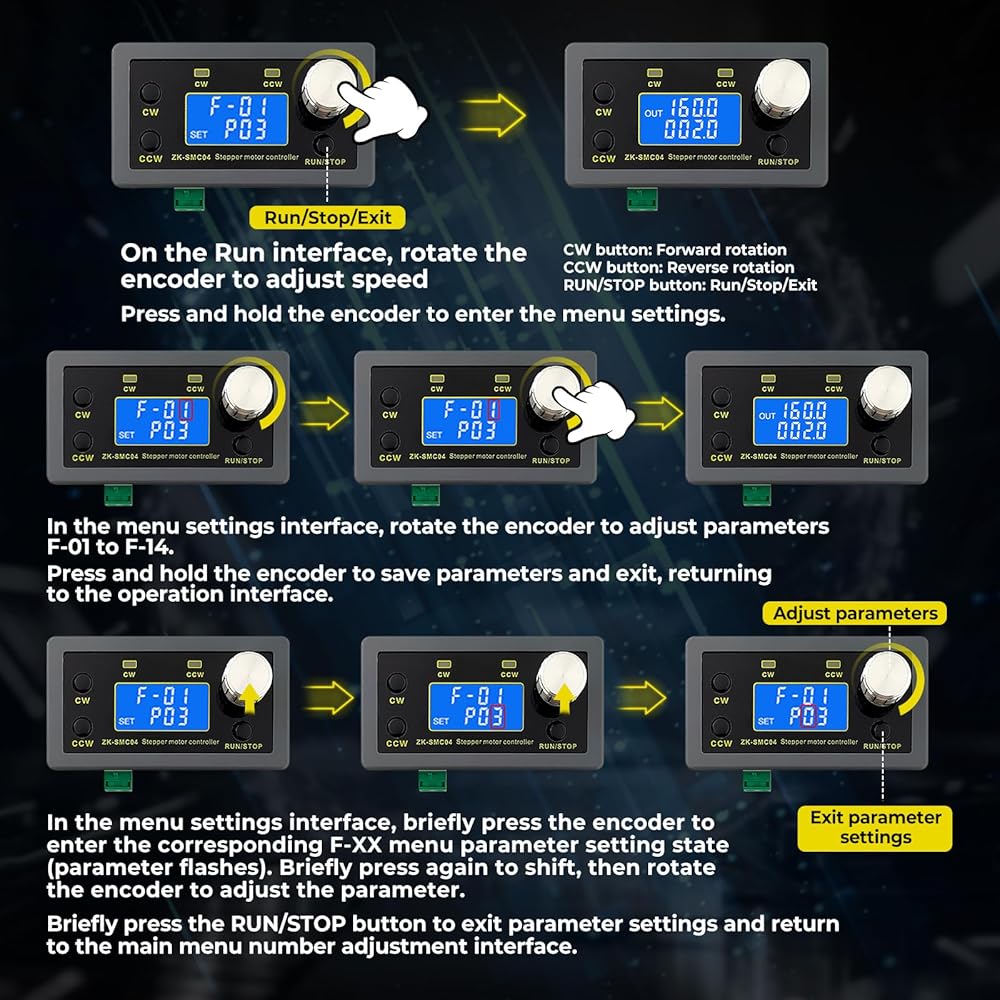

Key Functions: 15 Pre-set Modes, Speed (0.1-999 rpm), Delay, Cycle Control, Position Control (1-9999999 pulses)
Communication Interface: TTL Serial (3.3V/5V Logic)

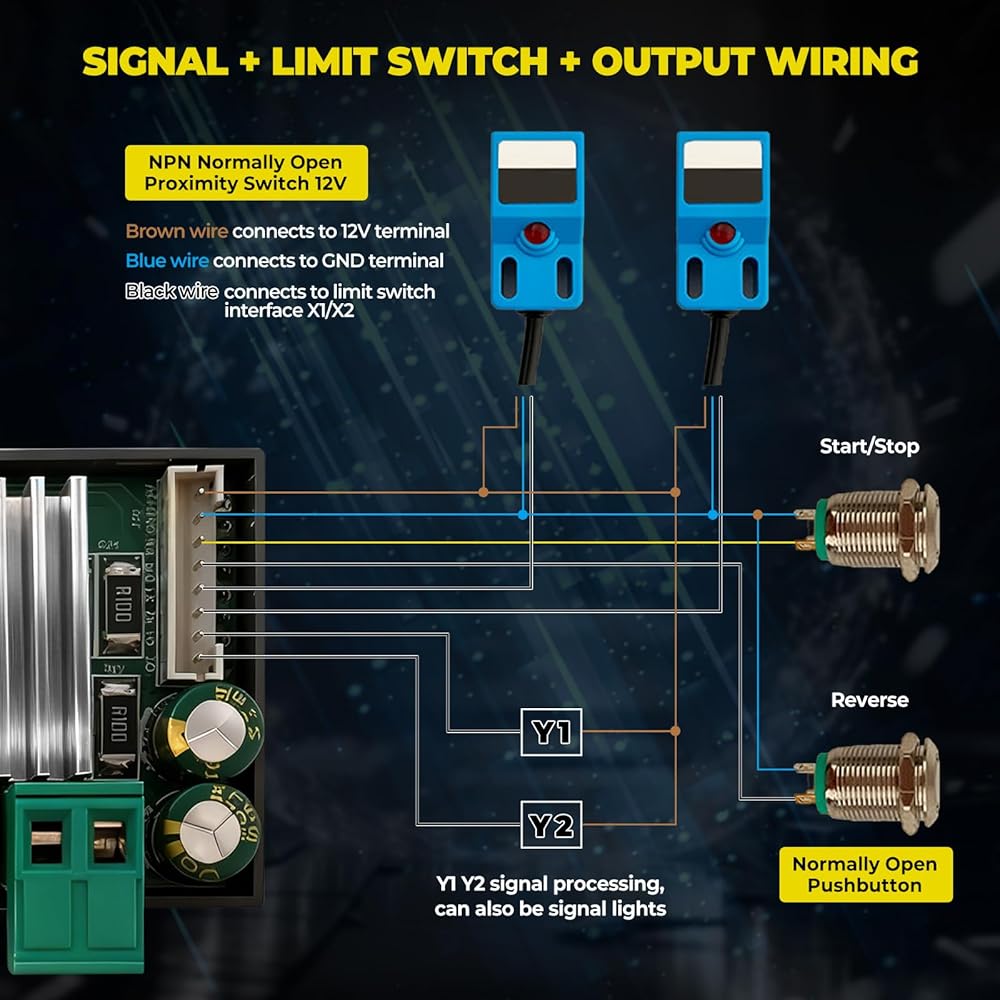

Protection: Input Reverse Polarity Protection
Operating Temperature: 10°C ~ 60°C (Non-condensing)

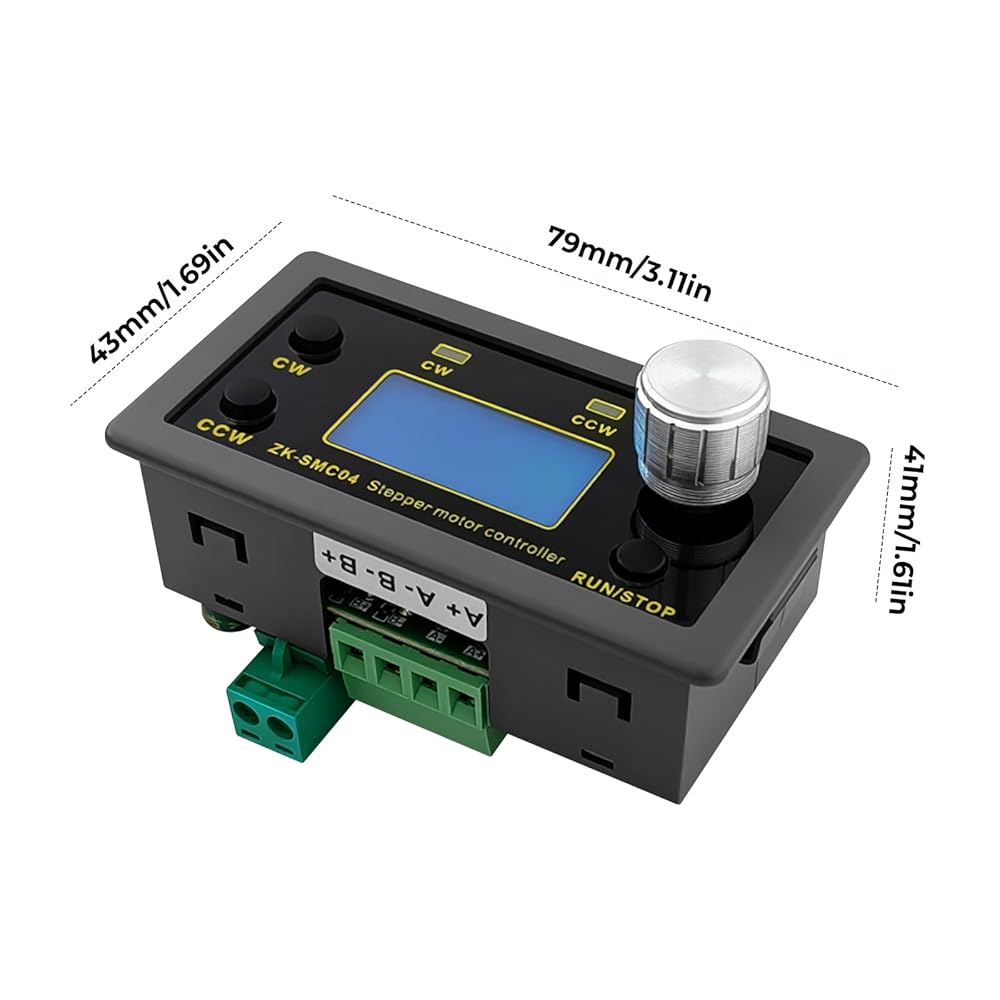

Dimensions: 79mm * 43mm * 41mm
Ideal for a Wide Range of Applications:CNC Machinery: Router spindles, las-er cutters, engravers
3D Printing & Additive Manufacturing: Extruder control, axis movement
Automation & Robotics: Conveyor belts, linear actuators, robotic arms
Industrial Equipment: Packaging machines, sorting systems, test fixtures
DIY & Prototyping: Camera sliders, telescope mounts, custom automation projects
Order today and experience the simplicity and power of an integrated control solution!
