Audio Transformers

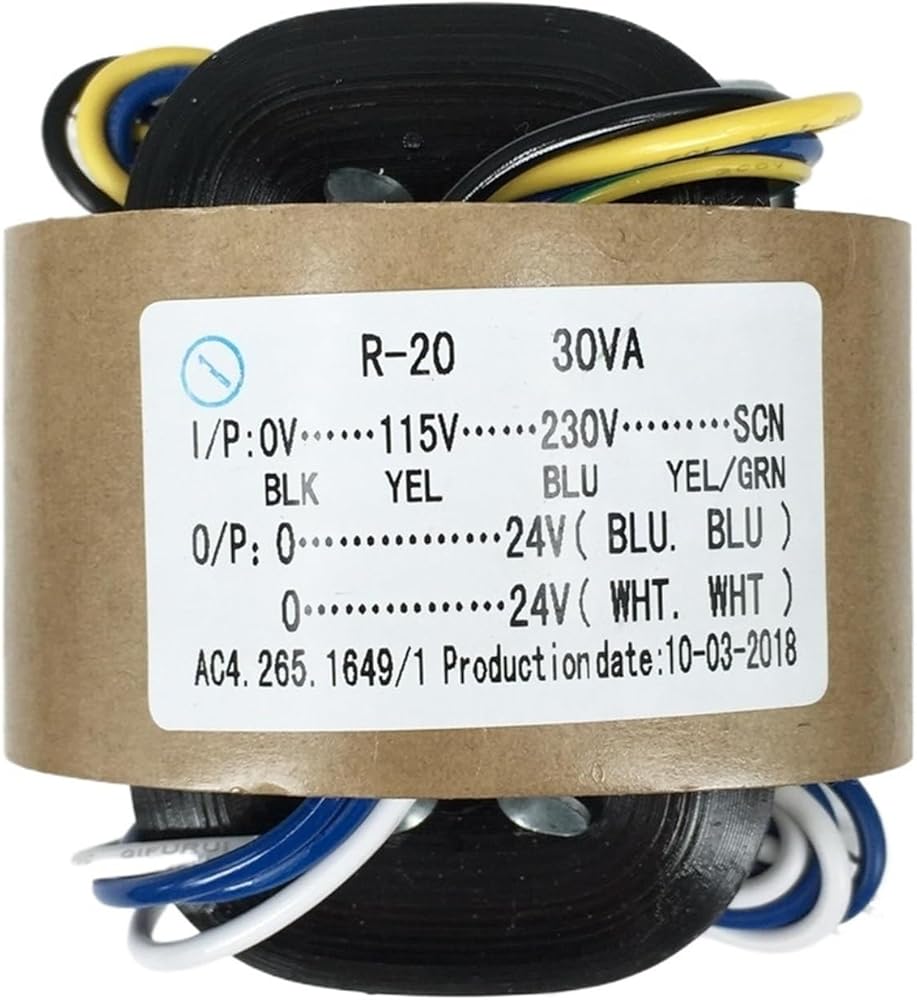

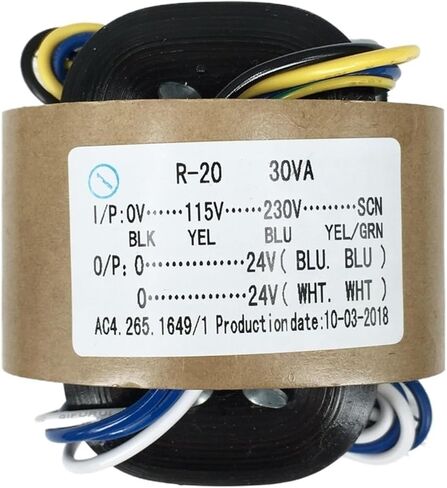

Size: 80×68×40 (mm) Weight about 0.5 kg
Input voltage: (international voltage ~ global universal!)
Primary: 0V-115V-230V-shielded wire (total 4 wires)
Secondary: Dual 24V (0.62A 4 wires)
Specifications are available:
0-15V 1A, 0-15V 1A, 2 groups (4 wires)
Primary: 0V-115V-230V
0-12V1.25A, 0-12V 1.25A, 2 groups (4 wires)
Primary: 0V-115V-230V
0-9V1.6A, 0-9V1.6A, 2 groups (4 wires)
Primary: 115V 2 groups
The double group is 4 wires. If you want to use 3 wires, after the double group of wires are tiled, take the middle two wires of different colors and merge them, which is 0V
SCN green and yellow two-color wire is the ground wire
BLU blue/WHT white/VIO purple
BRV brown/GRY gray/ORG orange
RED red/YEL yellow/GRN green
