STEPPERONLINE MGL Series Planetary Gearbox Gear Ratio 50:1 Backlash 45arc-min for φ8mm Shaft Standard Nema 23 Stepper Motor (Shaft Length 20-25mm) in Saudi Arabia STEPPERONLINE MGL Series Planetary Gearbox Gear Ratio 50:1 Backlash 45arc-min for φ8mm Shaft Standard Nema 23 Stepper Motor (Shaft Length 20-25mm) in Saudi Arabia STEPPERONLINE MGL Series Planetary Gearbox Gear Ratio 50:1 Backlash 45arc-min for φ8mm Shaft Standard Nema 23 Stepper Motor (Shaft Length 20-25mm) in Saudi Arabia STEPPERONLINE MGL Series Planetary Gearbox Gear Ratio 50:1 Backlash 45arc-min for φ8mm Shaft Standard Nema 23 Stepper Motor (Shaft Length 20-25mm) in Saudi Arabia STEPPERONLINE MGL Series Planetary Gearbox Gear Ratio 50:1 Backlash 45arc-min for φ8mm Shaft Standard Nema 23 Stepper Motor (Shaft Length 20-25mm) in Saudi Arabia

STEPPERONLINE MGL Series Planetary Gearbox Gear Ratio 50:1 Backlash 45arc-min for φ8mm Shaft Standard Nema 23 Stepper Motor (Shaft Length 20-25mm)

SAR 224
– 1 +

Special Features

  • High torque Long life usage Durable Low noise
  • Gearbox Type: Planetary, Material: Metal, Quantity: 1 piece, Flange: 57mm, Gear Ratio: 50:1, Backlash at No-load: ≤45arcmin
  • In contrast to the MG series, the MGL series is specially designed to support standard Nema 23 motors with standard shafts and therefore offers greater flexibility in the combination of motor and gearbox.
  • This in-line planetary gearbox is equipped with a built-in input shaft coupling that ensures compatibility with standard 8mm diameter shafts used in Nema 23 stepper motors, brushless DC motors and brushed DC motors.

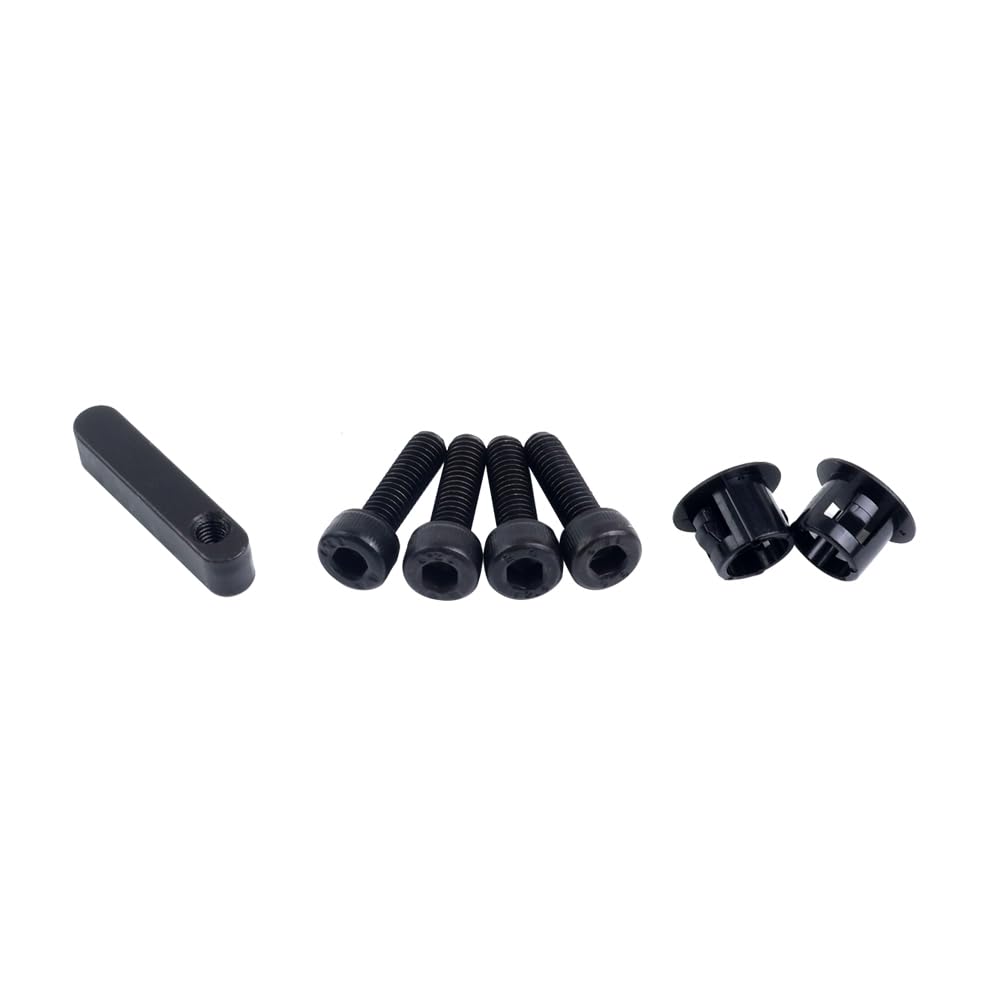

  • Included: 1pc x Planetary Gearbox 4pc x Screws

Description

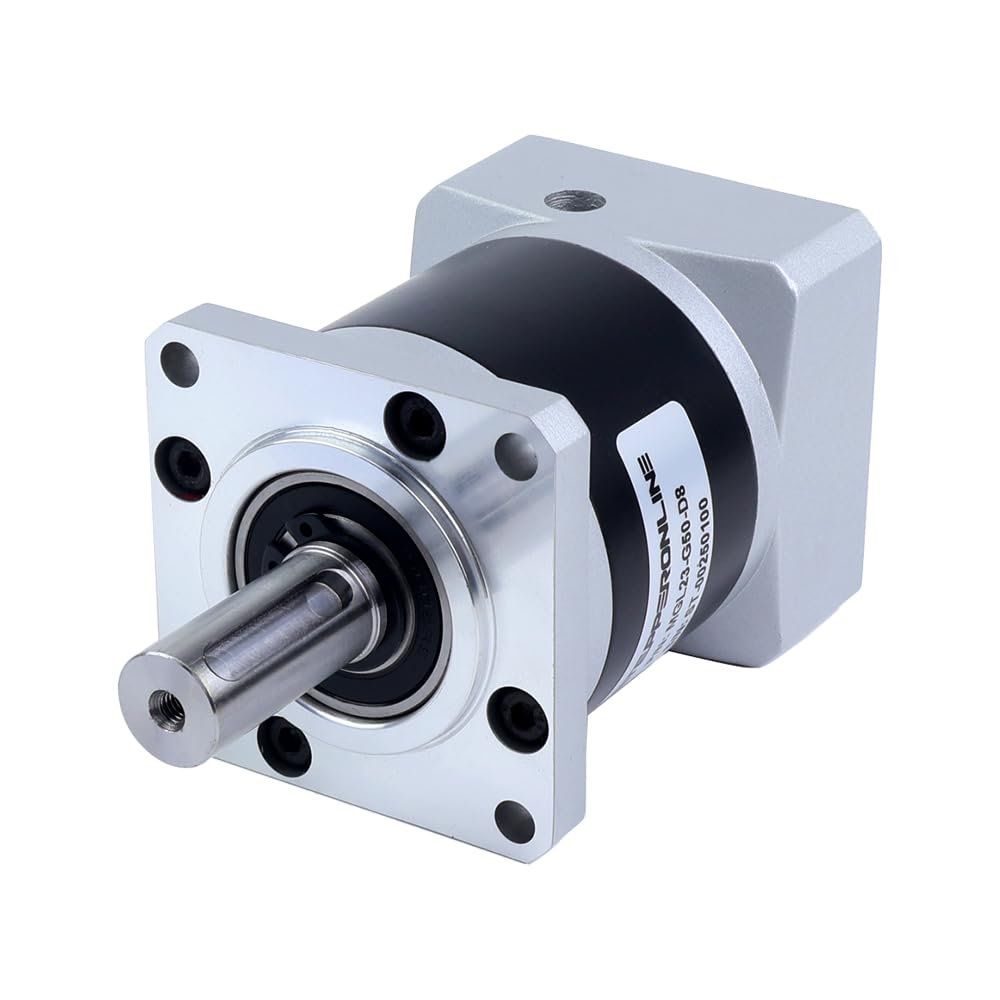

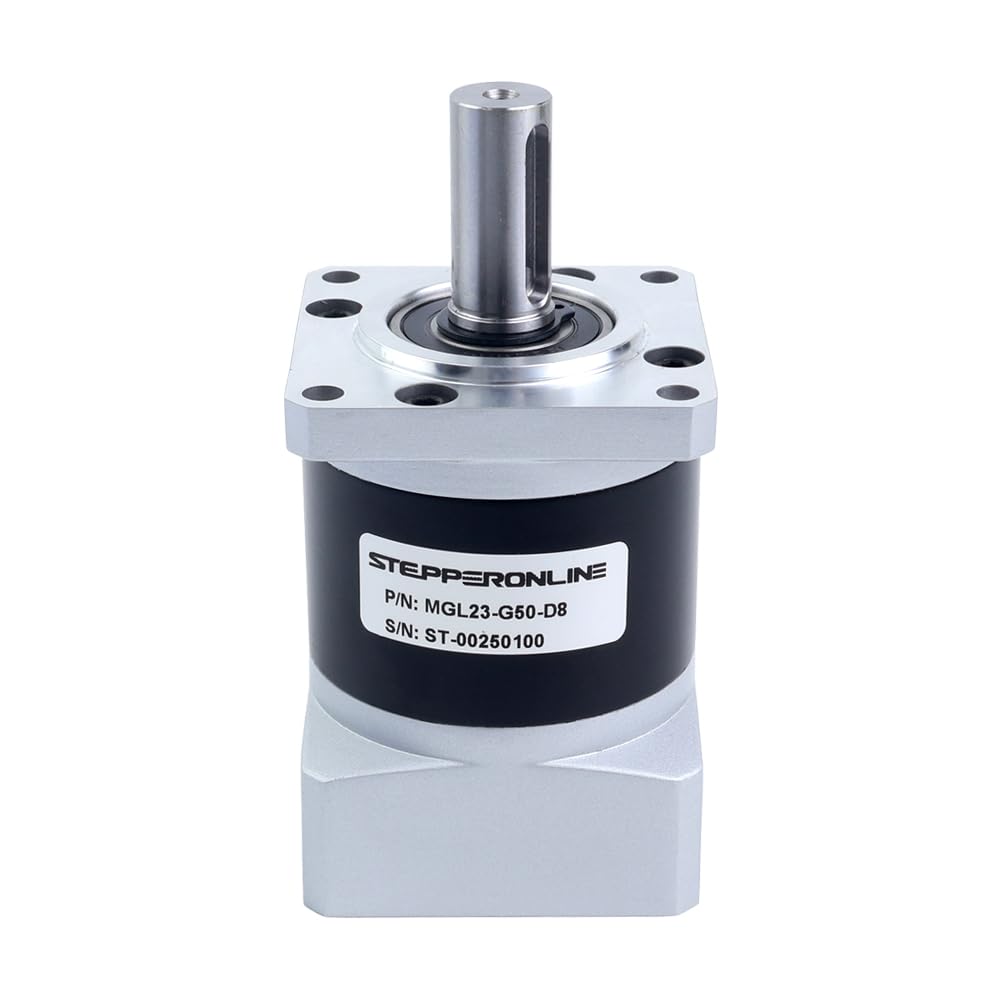

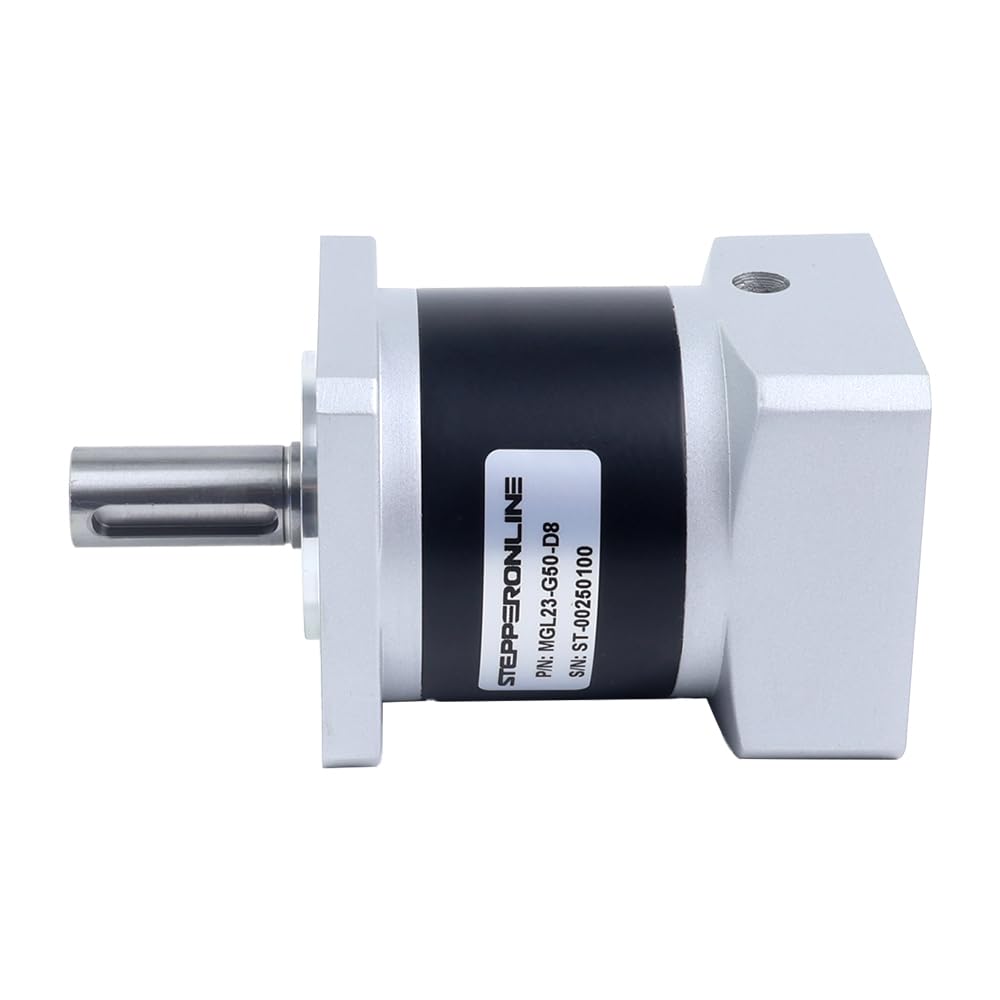

The MGL series high-precision planetary gearbox features a gear ratio of 50:1 and a maximum backlash of 45arc-min. Different with MG series gearboxes, the MGL series is designed to accommodate standard Nema 23 motors with standard shafts. This allows for more flexibility in the motor matching gearbox.

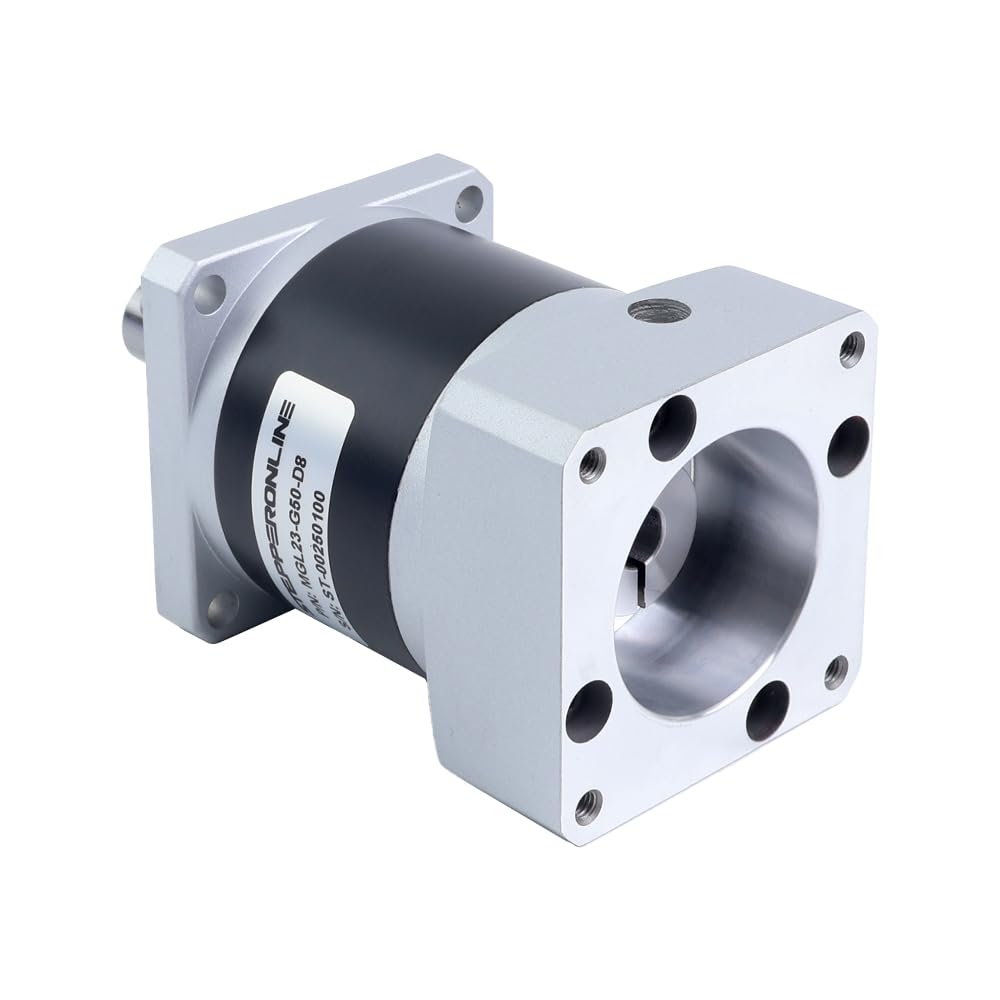

This inline planetary gearbox comes with a built-in input shaft coupling, making it compatible with standard 8mm diameter standard shafts of Nema 23 stepper motors, brushless DC motors, and brushed DC motors.

Gearbox Specifications

Part Number: MGL23-G50-D8
Gearbox Type: Spur Planetary
Gear Material: Powder Metallurgy
Gear Ratio: 50:1
Efficiency: 80%
Rotor Inertia: 0.03kg·cm²
Backlash at No-load: ≤45arcmin
Maximum Permissible Torque: 20Nm(177.02lb-in)
Moment Permissible Torque: 40Nm(354.04lb-in)
Shaft Maximum Axial Load: 100N
Shaft Maximum Radial Load: 300N
Noise: ≤55dB
Waterproof Rating: IP54
Lifetime: 20000hours

Physical Specifications

Frame Size: 57 x 57mm
Gearbox Length: 78.8mm
Rated Input Speed: 1000rpm
Maximum Input Speed: 2000rpm
Output Shaft Type: KeyWay
Output Shaft Diameter: φ14mm
Output Shaft Length: 34mm
Input Shaft Diameter: φ8mm
Input Shaft Length: 20-25mm
