Welcome to ShengTeng Pressure Switch Store

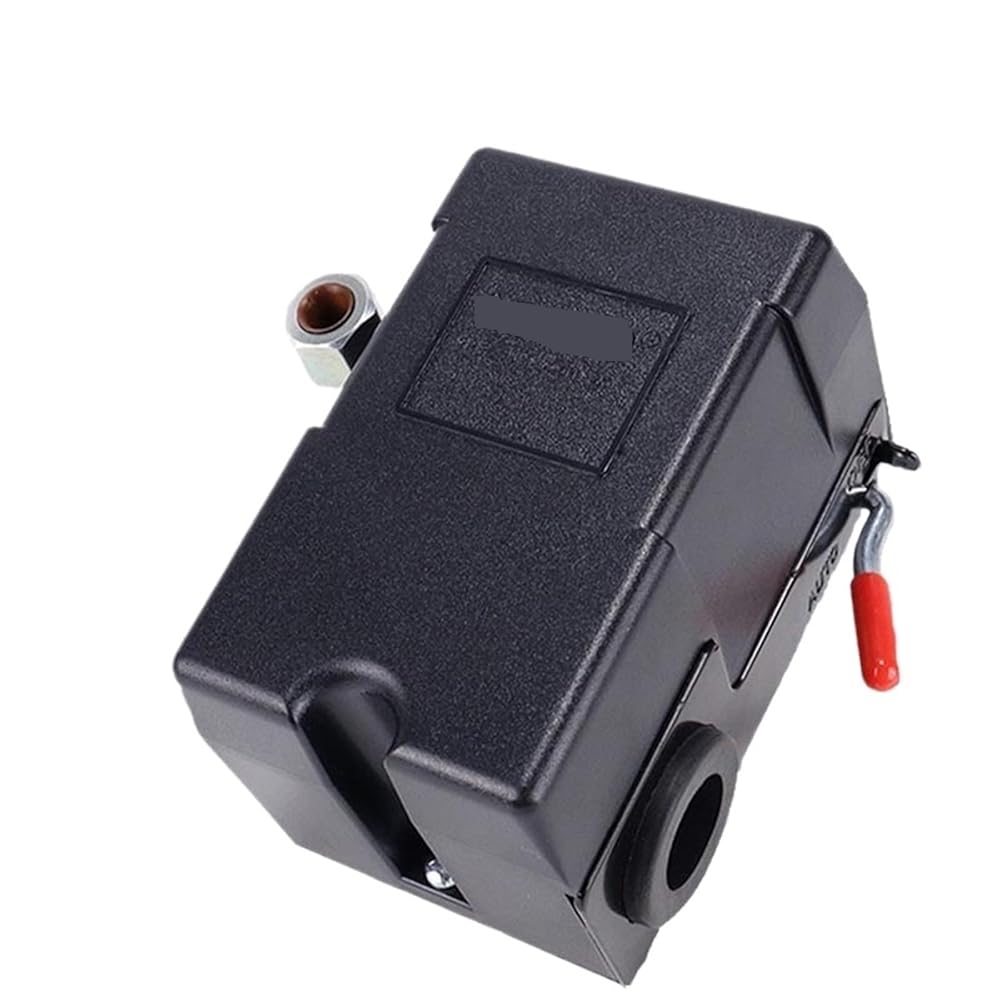

1. The LF10 series of pressure switches, designed for use in air compressors or air pumps, provide automatic control, protection, and manual control options.
2. The pressure switches are equipped with an unloading relief valve, which can be used in various types of compressors, such as piston, oil-free and silent compressors. They help to prevent overload and automatic starting. ensuring the safety of the machine. The LF10A pressure switch features a manual control handle, allowing users to stop the machine as needed.
3. The pressure switch can be directly connected to the motor line. It can be adjusted, or control the pressure in the air tank to start or stop the machine automatically.
4. The LF10A switch can handle more current and its contacts allow for extended use without the risk of burning out. There are two connector options available: one with a single connector and another with four connectors.
Description:
Item No.: LF10 / LF10A
Voltage: 110V/240V
Current: LF10: 12A, 20A, LF10A: 26A
Connect type: NC
Connector: 1/4 Female Thread; 1 or 4 ports
Pressure Rang: 0.5-1.25 MPA
Overload Capacity: 240V,26A; Can be started directly
Controller: There has two models of control.The first: it can be started and stopped automatically. Second,stop manually.
Application:Air compressor, air pump, piston compressor, oil-free air pump
Transformation:
1KG/CM²=14.2Psi=0.1Mpa=1Bar
