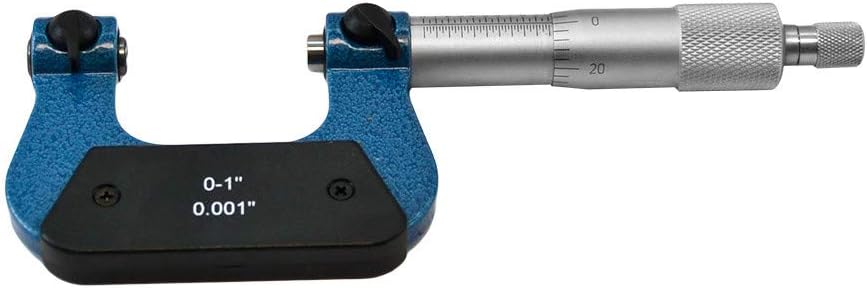

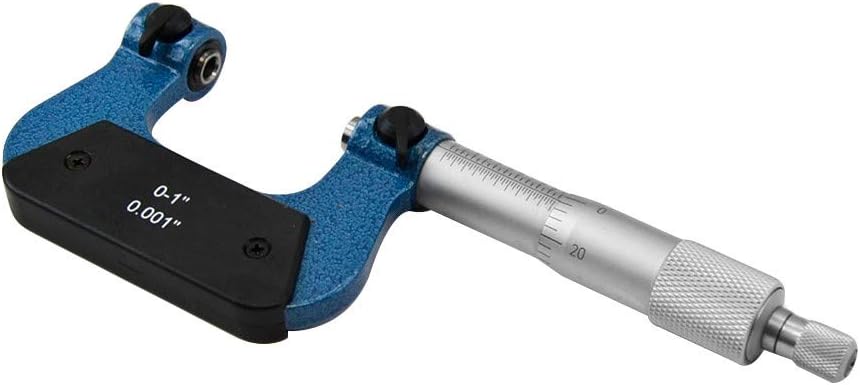

0-1" Range Screw Thread Micrometer Kit With 5 Pairs Of Anvil 60 Degree
Range:
0 - 1''
Pitch:
64 - 5 TPI / 0.4 - 5.0mm
Graduations:
.001''
Accuracy:
.00016''/0.004mm

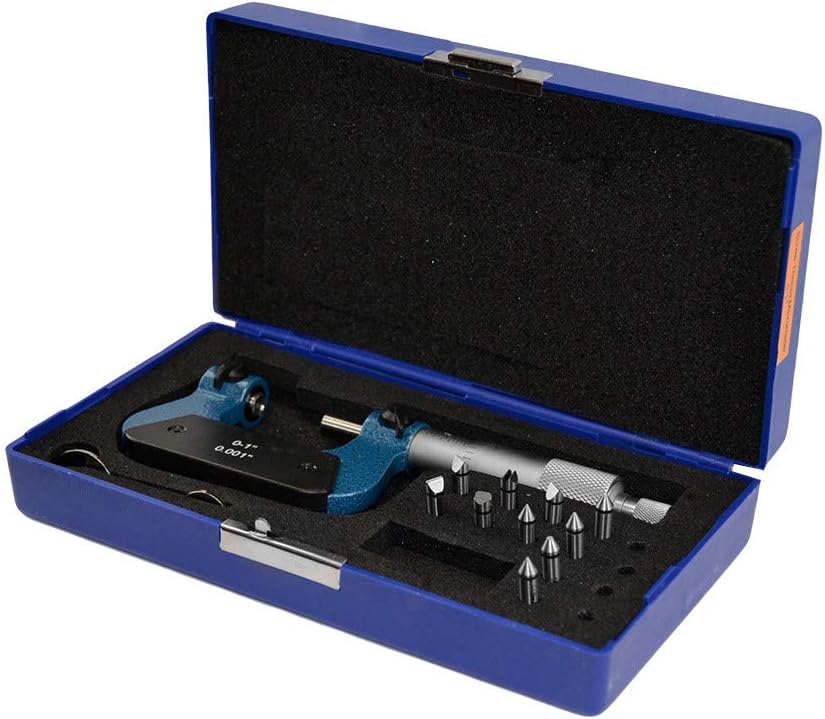

5 Pairs Of Anvil # 1-5:
Anvil Pair #1: 64-48 TPI (Thread Per Inch) , 0.4 - 0.5mm (Metric)
Anvil Pair #2: 44-28 TPI, 0.6 - 0.9mm
Anvil Pair #3: 24-14 TPI, 1.0 - 1.75mm
Anvil Pair #4: 13-9 TPI, 2.0 - 3.0mm
Anvil Pair #5: 8-5 TPI, 3.50 - 5.0mm
Interchangeable 60 Degree V-anvil And Conical Spindle Are Made Of A High Grade Steel, Precision Ground And Hardened
Use To Measure Pitch Diameter Of Metric And 60 Degree Unified Screw Threads
Forged Steel Frame With Heat Insulated In Baked Enamel Finished To Isolate Heat From Operator's Hand
Advanced Spindle Design In Hardened And Precision Ground Lead Screw Threads Give Reliable And Accurate Reading
Rotating The Thimble Sleeve When The Inspection Piece Is Between The Spindle And Anvil Activate The Ratchet Mechanism To Tap The Spindle And Apply Uniform Measuring Force To The Inspection Piece. Also Easier To Use In One-Hand Operation And Improves Measurement Repeatability Than Ratchet-Stop Style Micrometer
Case Dim L x W x H (in):
7-5/8 x 4 x 1-3/4 *Estimated*
Unit Weight:
10 Ounce
Shipping Weight:
1.10 Lbs
Quantity: 1
