Linear Motion Lead Screws
Product Description
Type: T8 lead screw
Material: Stainless steel
Diameter: 8 mm
Pitch = 1mm, lead = 1mm (the nut moves 1mm per turn)
Pitch = 2mm, lead = 8mm (the nut moves 8mm per turn)
Pitch = 2mm, lead = 2mm (the nut moves 2mm per turn)
Pitch = 2mm, lead = 4mm (the nut moves 4mm per turn)
Pitch = 2mm, lead = 12mm (the nut moves 12mm per turn)
Pitch = 2mm, lead = 14mm (the nut moves 14mm per turn)
(Pitch is the distance between threads. Lead is the distance the nut travels after one rotation.)
Length: 100/150/200/250/300/350/400/450/500/600mm
Lead meaning: refers to the axial distance between the corresponding points of two adjacent teeth on the same spiral line
Pitch meaning: refers to the axial distance between two adjacent teeth on the thread

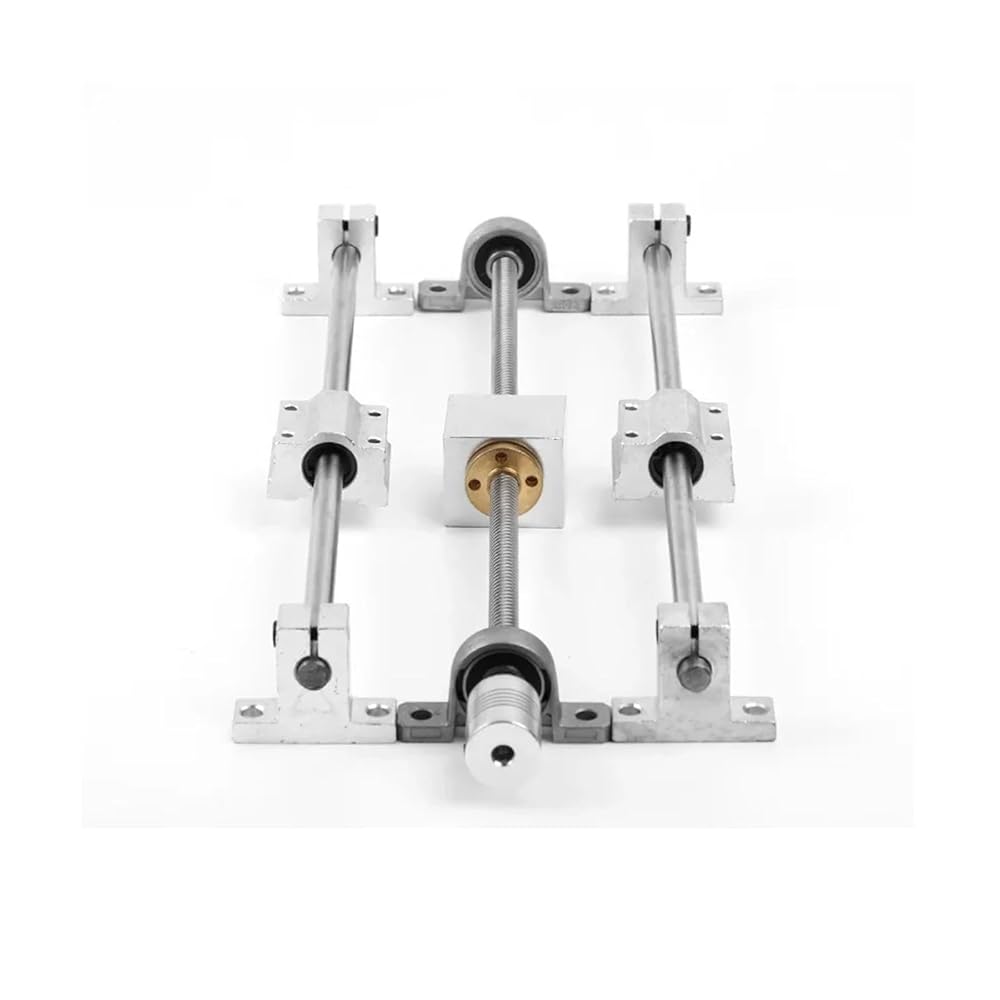

packing list:
1pc T8 lead screw (please choose the length you need)
2 pieces KP08 bearing bracket
1PC copper nut
1PC Nut Housing Bracket
1PC Coupler D19L25 5mm x 8mm
2pcs chrome plated shaft
2PCS SCS8UU Linear Bearing Seat
4PCS SK8 Aluminum End Supports
==========
Rail width or diameter: 8mm
Origin: Mainland China
