UNI-T UPO2204HD 12-Bit 2 to 4 Ch Analog Channel High Definition Oscilloscope 2.5GSa/s 100Mpts 1,000,000wfms/s Ultra Phosphor 3.0 UART I2C SPI CAN LIN 10.1" Touchscreen (200MHz 4Channel) in Saudi Arabia

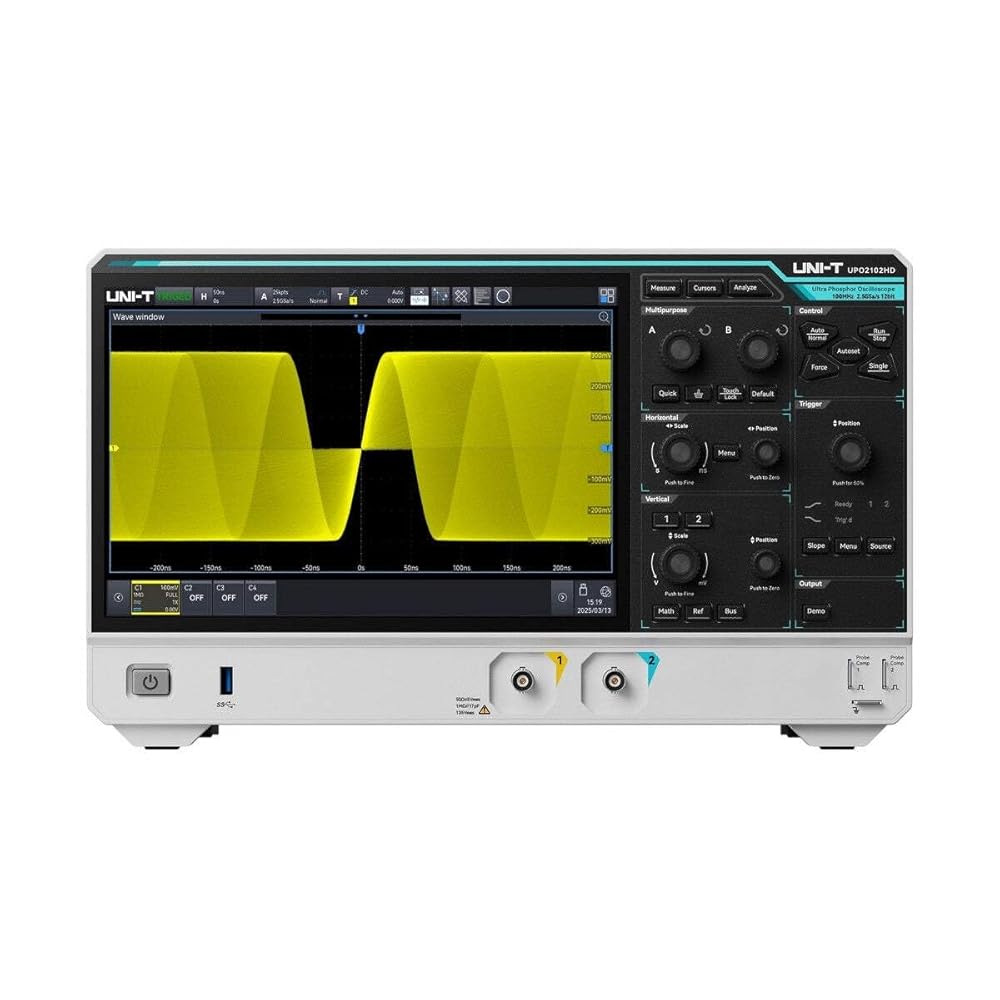

UNI-T UPO2102HD 12-Bit 2 to 4 Ch Analog Channel High Definition Oscilloscope 2.5GSa/s 100Mpts 1,000,000wfms/s Ultra Phosphor 3.0 UART I2C SPI CAN LIN 10.1" Touchscreen (100MHz 2Channel)

SAR 4,183
Brand
UNI-T
Color100MHz 2Channel
– 1 +

Special Features

  • 5 YEARS LIMITED WARRANTY. 12-Bit High Resolution – Delivers 4096 quantization levels for superior signal detail and accuracy, ideal for power validation, analog sensor analysis, and embedded system development
  • Ultra-Fast Waveform Capture – 100,000 wfms/s standard rate, up to 1,000,000 wfms/s in sequence mode with 256-color intensity grading reveals intermittent glitches and anomalies
  • Deep Memory & Fast Sampling – 100 Mpts memory depth with 2.5 GSa/s sample rate enables long-duration captures while maintaining high-resolution detail on rapid signal transitions
  • Built-In Protocol Analysis – Integrated UART, RS-232, RS-422, RS-485, I²C, SPI, CAN, CAN-FD, LIN, FlexRay, SENT, and Audio decoding with time-correlated waveform display simplifies embedded system debugging and validation
  • 6-in-1 Multi-Function Tool – Combines oscilloscope, digital voltmeter, spectrum analyzer, frequency counter, protocol analyzer, and power analyzer in one 10.1 inch touchscreen instrument

Description

Experience professional-grade signal analysis with the UNI-T UPO2000HD oscilloscope. This advanced instrument features 12-bit resolution providing 4096 quantization levels for exceptional signal detail and accuracy. With an impressive 100 Mpts memory depth and 2.5GSa/s sampling rate, it captures long-duration signals while maintaining pristine resolution on fast transitions. The scope achieves an outstanding 1,000,000 waveforms per second in sequence mode, utilizing 256-color intensity grading to reveal subtle signal anomalies. The 10.1-inch touchscreen interface delivers smooth operation while comprehensive protocol analysis capabilities (UART, RS-232, RS-422, RS-485, I²C, SPI, CAN, CAN-FD, LIN, FlexRay, SENT, and Audio) streamline embedded system debugging. This versatile 6-in-1 instrument combines an oscilloscope, digital voltmeter, spectrum analyzer, frequency counter, protocol analyzer, and power analyzer in one powerful package. Whether you're working on power validation, analog sensor analysis, or embedded system development, this oscilloscope provides the precision and functionality needed for demanding applications.
