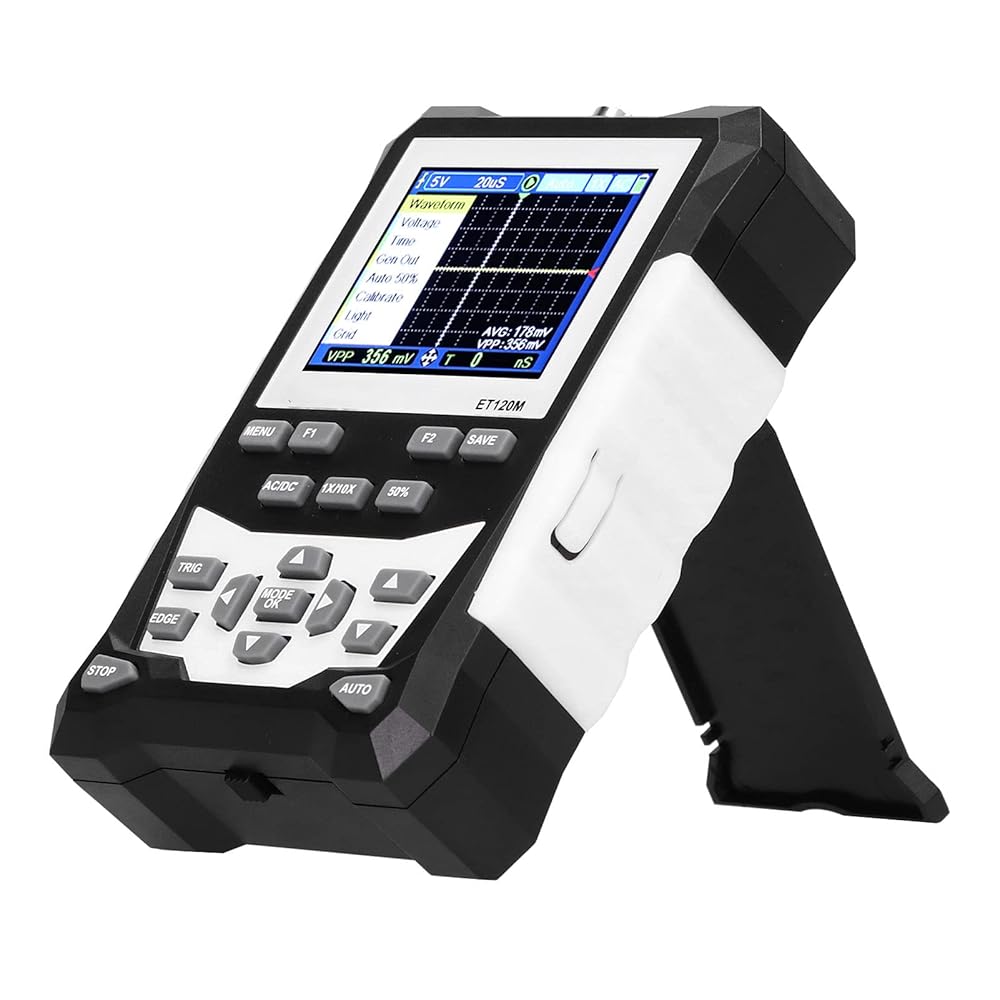

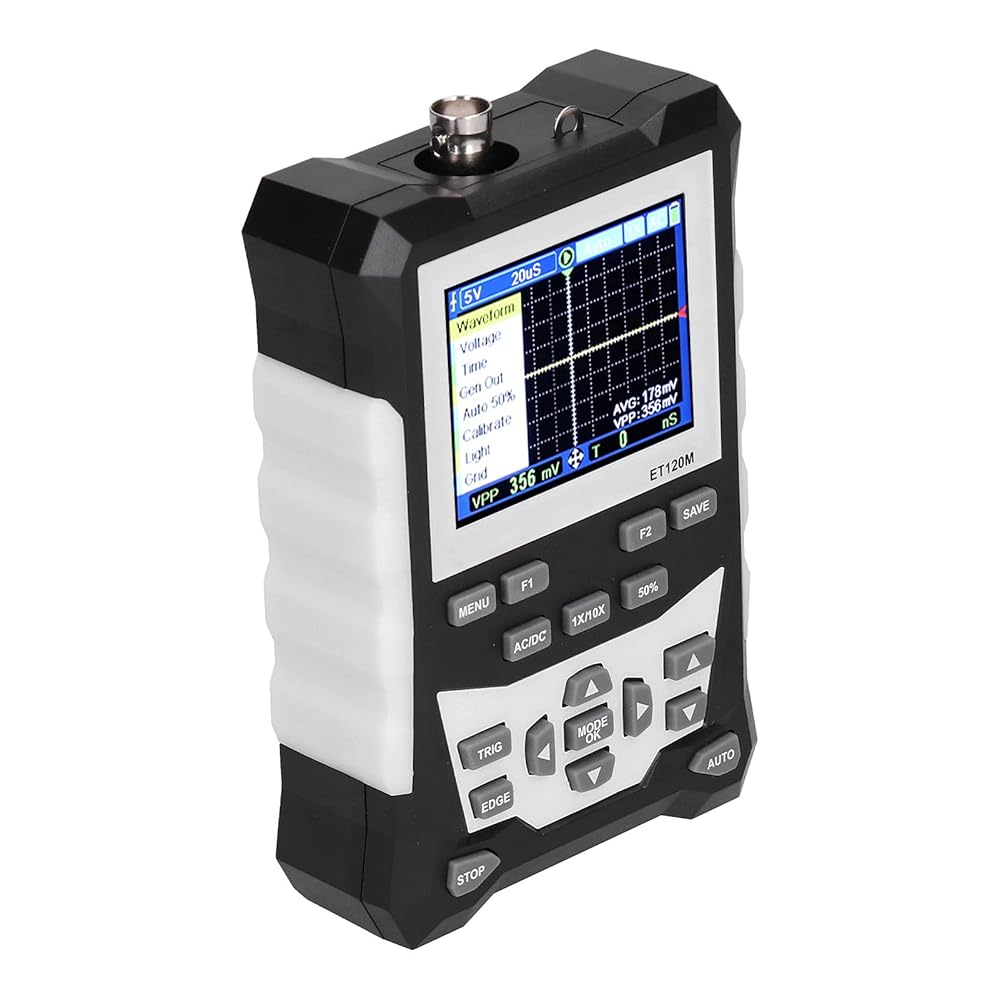

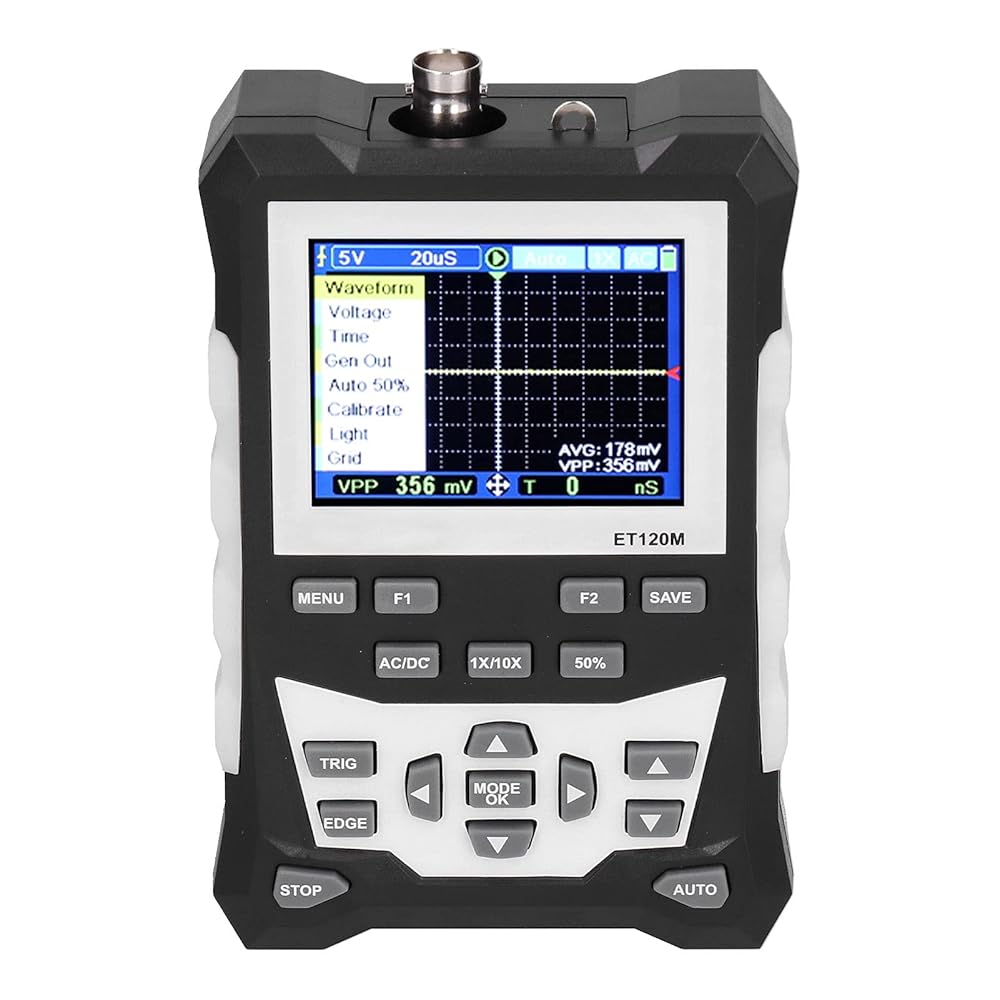

ET120M Hand Held Oscilloscope Portable 120MHZ Colorful Digital Simulation Oscilloscope

SAR 371
Brand
Srliya
Weight
383 g
– 1 +

Special Features

  • Three waveform scanning modes (auto, single, normal), waveform bandwidth up to 120MHz, equivalent sampling rate 500MSps.
  • Waveform one‑key Auto automatically adapts to the screen, no need to adjust parameters, waveform parameters can be set by yourself.
  • 1kHz, 10kHz, 100kHz, 1MHz four-speed square output, can store 2500 waveforms.
  • The handheld oscilloscope support many functions, such as thumbnail browsing, waveform deletion, etc.
  • ABS material, backlight brightness adjustable from 1 to 8 levels, standby time up to 8 hours.

Description

Specification:
Item Type: Handheld Oscilloscope
Model: ET120M
Material: ABS
Power Supply: 2000mA rechargeable lithium battery (Battery Included)
Application: Automatic power measurement
Model ET120M Maximum Test Voltage 1X: 80Vpp 10X: 800Vpp
Number Of Channels 1 Source Output 1KHz, 10KHz, 100KHz, 1MHz
Screen Size 2.4 inch color screen Scan Mode Support
Screen Resolution 320 x 240 One-click Auto Support
Display Process Waveform Storage Store Up to 2500 Waveforms
Waveform Bandwidth 120MHz Manager Support
Maximum Sampling Rate 500MSa/S Voltage Accuracy 10%
Rise Time ＜3nS Frequency Accuracy 1%
Storage Depth 12.8div Measurement Parameters 12 Kinds in Total
Input 1MΩ Battery Capacity 2000mA
Vertical Sensitivity 50mV~100V Standby Time 8 Hours
Time Base Range 6nS~50S Backlight Brightness 1~8 level adjustable
Trigger Mode Auto/Normal/Single Charging Requirements DC5V/1A/2A
Trigger Rising /Falling Product SizeApprox. 124 x 80 x 35 mm / 4.9 x 3.1 x 1.4 in
Coupling Method DC/AC

How to Use:
1. Zoom in the waveform: Press the [MODE/OK] key to set t
