Boat part number 1106766 is a new reed array fuel sender from Moeller Marine Products, part number 035791-10 .

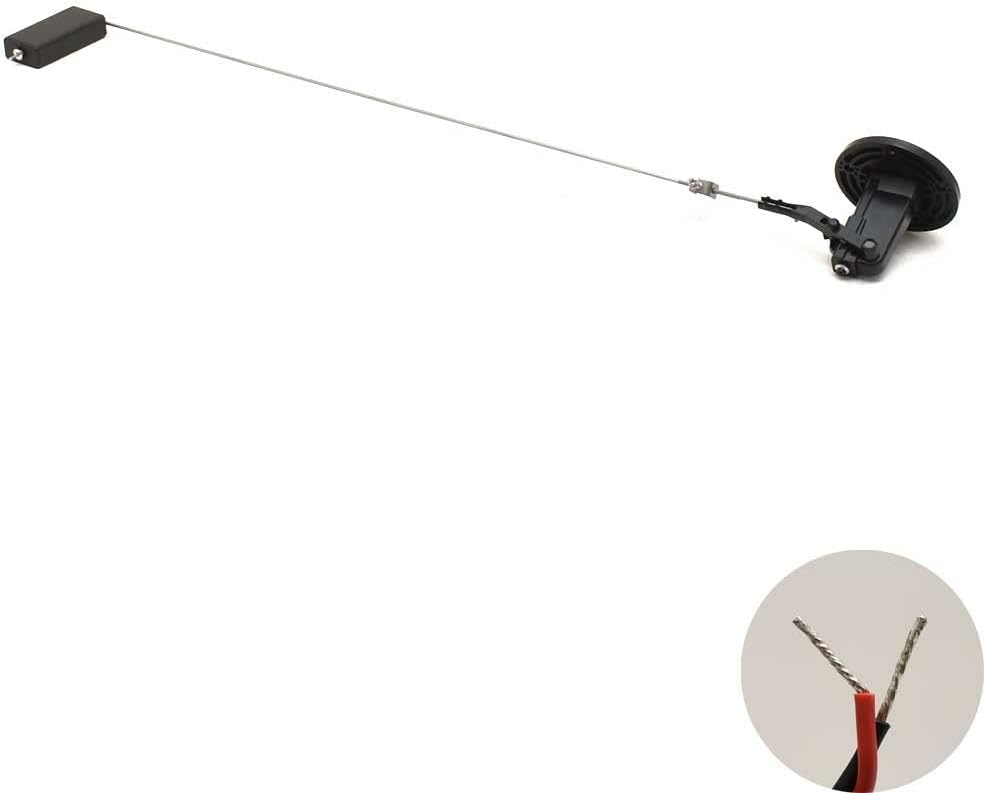

This reed array fuel sender is constructed out of aluminum. The manufacturer states this is meant for tank depths between 6" and 24" and we measure this to be approximately 2 3/4" Dia. x 2 1/2" H overall. Requires an approximate 1 1/4" L x 3/4" W cutout. Mounts with (5) 3/16" Dia. holes set apart 1 1/4" center to center. Uses (2) raw wire connections. Features a 19" L adjustable arm. Calibrated to an industry standard of 33-240 Ohms.

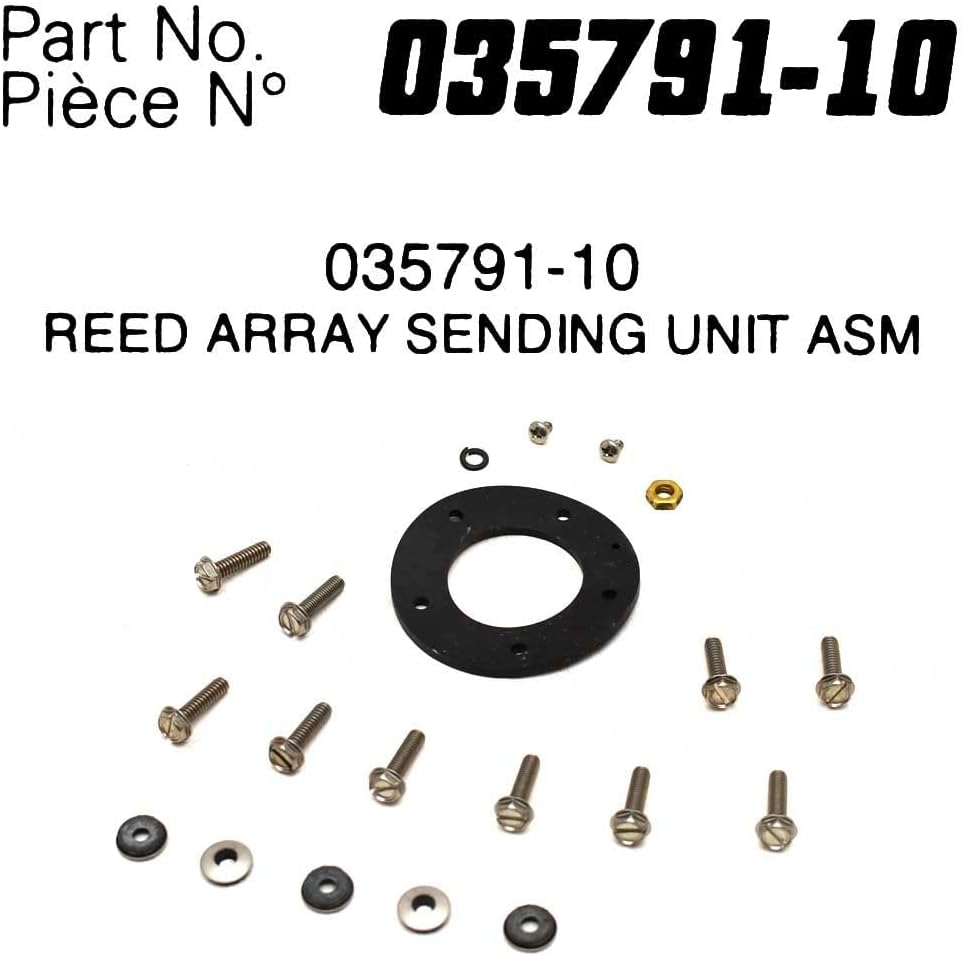

Mounting hardware included.
Specifications:
Part Manufacturer: Moeller Marine Products
Part Number: 035791-10
UPC: 739729014011
Material: Aluminum
Calibration: 33-240 Ohms
Flange: 2 3/4" Dia.
Manufacturer Size: 6" - 24" D
Overall Dimensions: 2 3/4" Dia. x 2 1/2" H
Cutout: 1 1/4" L x 3/4" W
Mounts: (5) 3/16" Dia. holes set apart 1 1/4" CTC
Connections: (2) raw wire
Sold as seen in pictures. Customers please note every computer shows colors differently. All measurements are approximate.
Instruction / installation manual not included.
