1. Versatile Application: This marine trim gauge accurately displays boat trim for all types of vehicle modification, ensuring convenience for sailors, suitable for boat, yacht, fishing boat.
2. IP67 Design: With excellent and dust proof rating, this trim balance gauge can withstand bad weather conditions without any worries.
3. High Accuracy: The trim balance gauge meter effectively shows the tilt angle of yachts, enabling sailors to manage the boat balance in real time for safe navigation.
4. Reliable Performance: This trim gauge tilt indicator is suitable for all stepping gauges with low power consumption, long lifespan, and high accuracy, ensuring long lasting and reliable performance.
5. Easy Installation: Each trim tilt indicator comes with a comprehensive manual on installation, wiring, and functions, ensuring ease of use after purchase, saving your time and effort on installation process.

Spec:

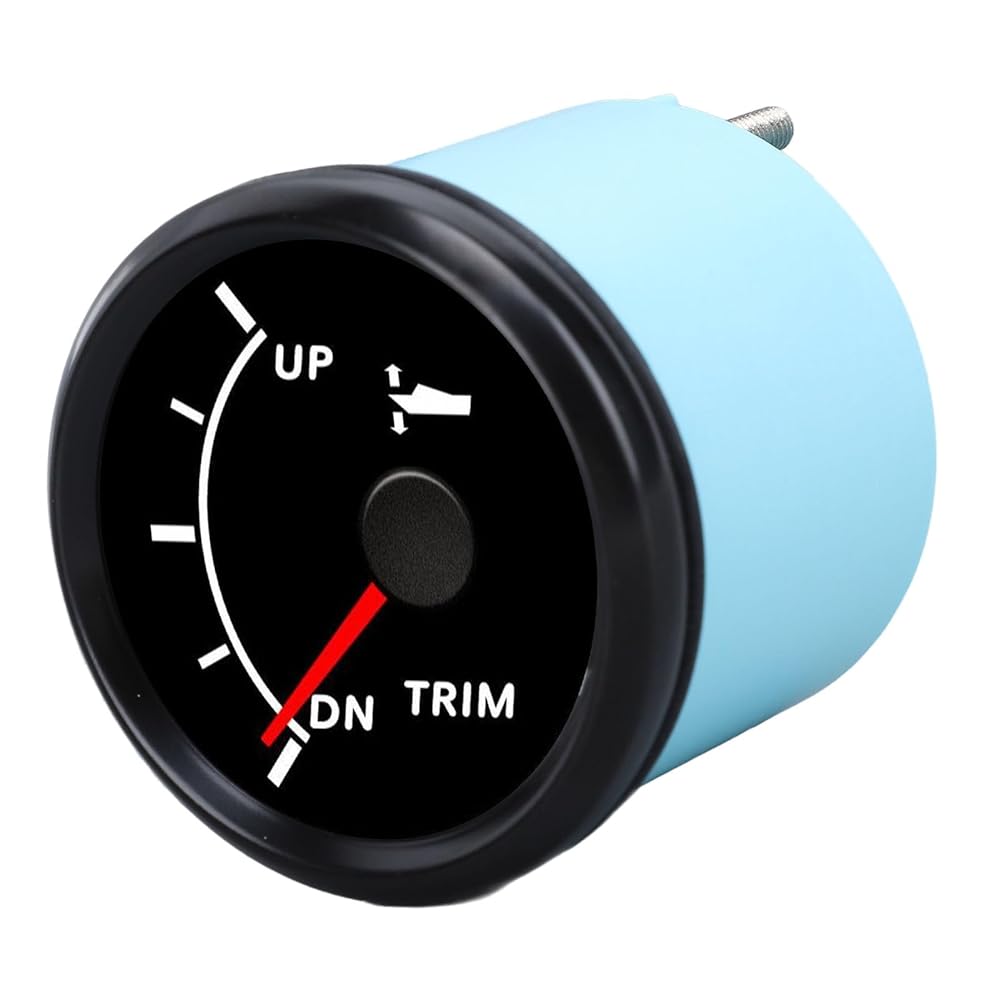

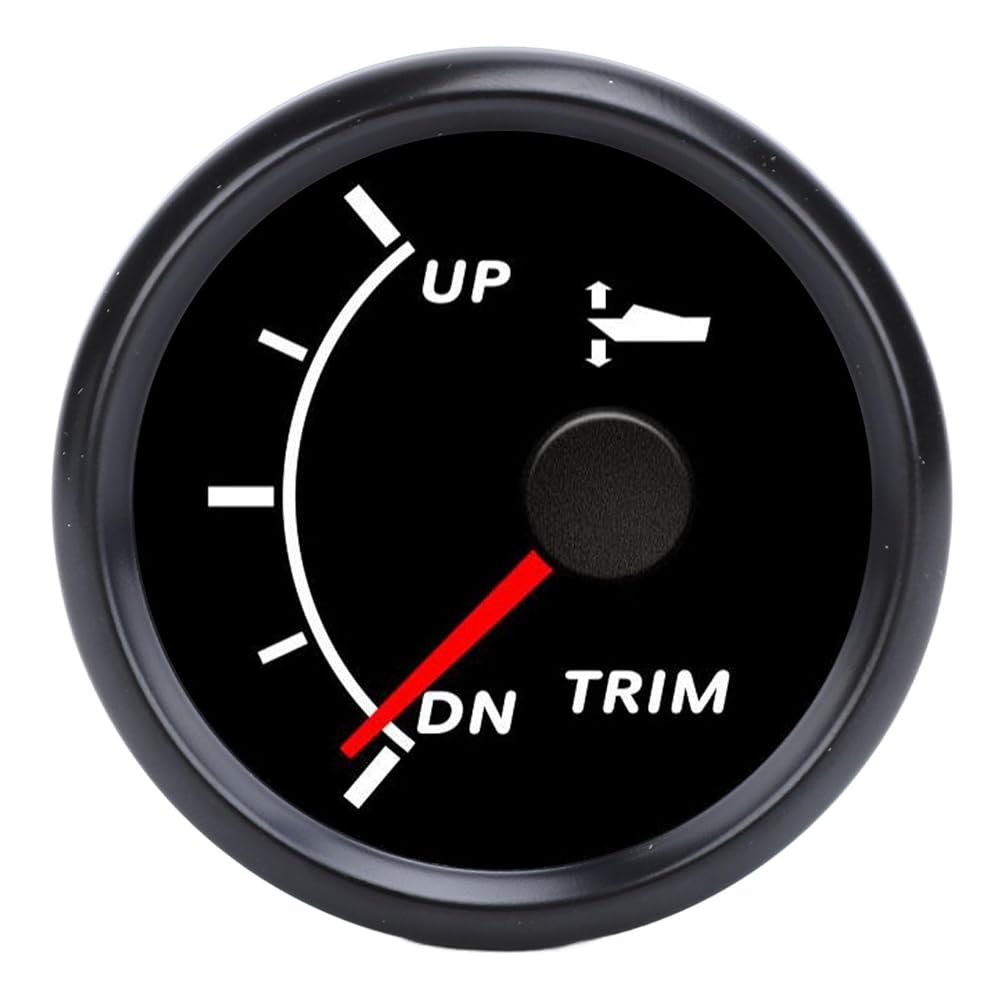

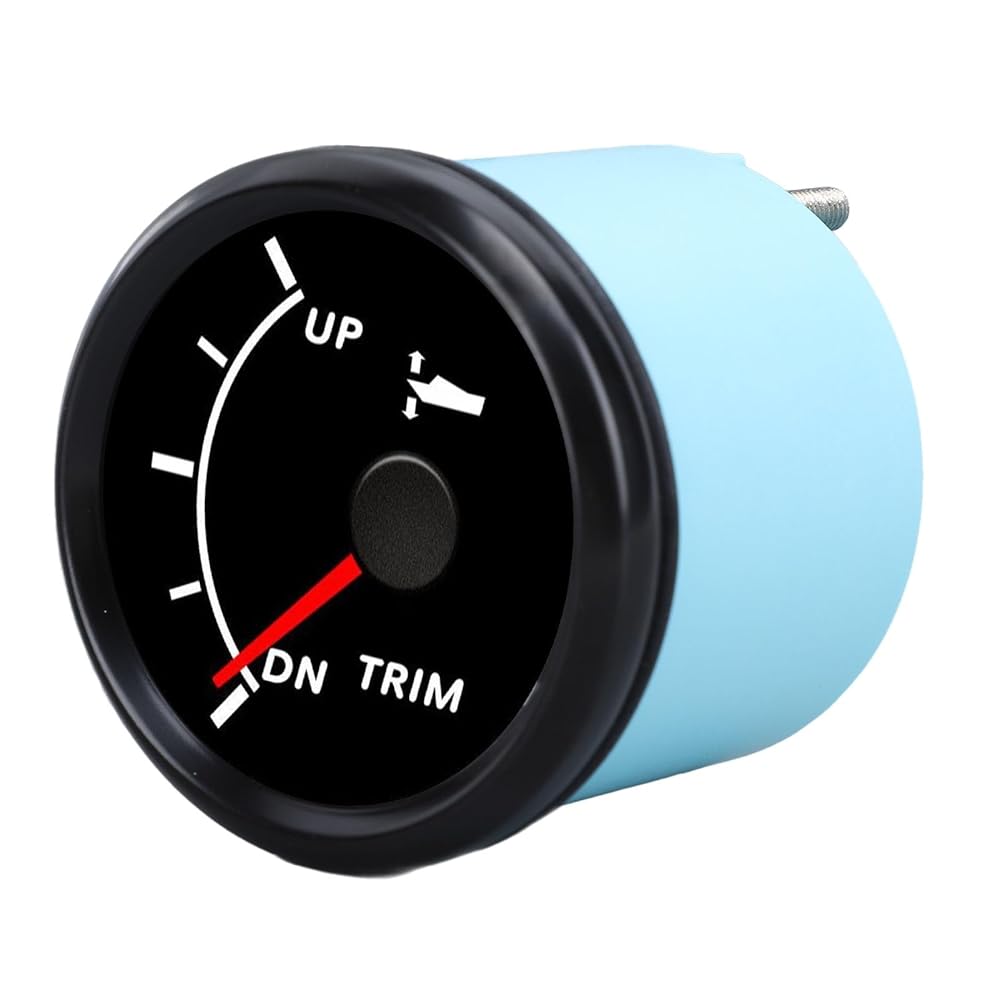

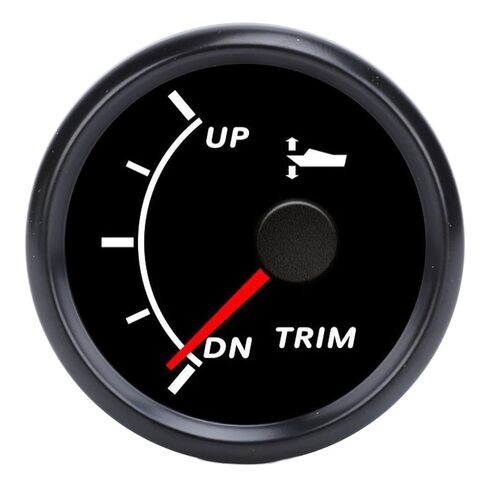

Item Type: Marine Trim Balance Gauge

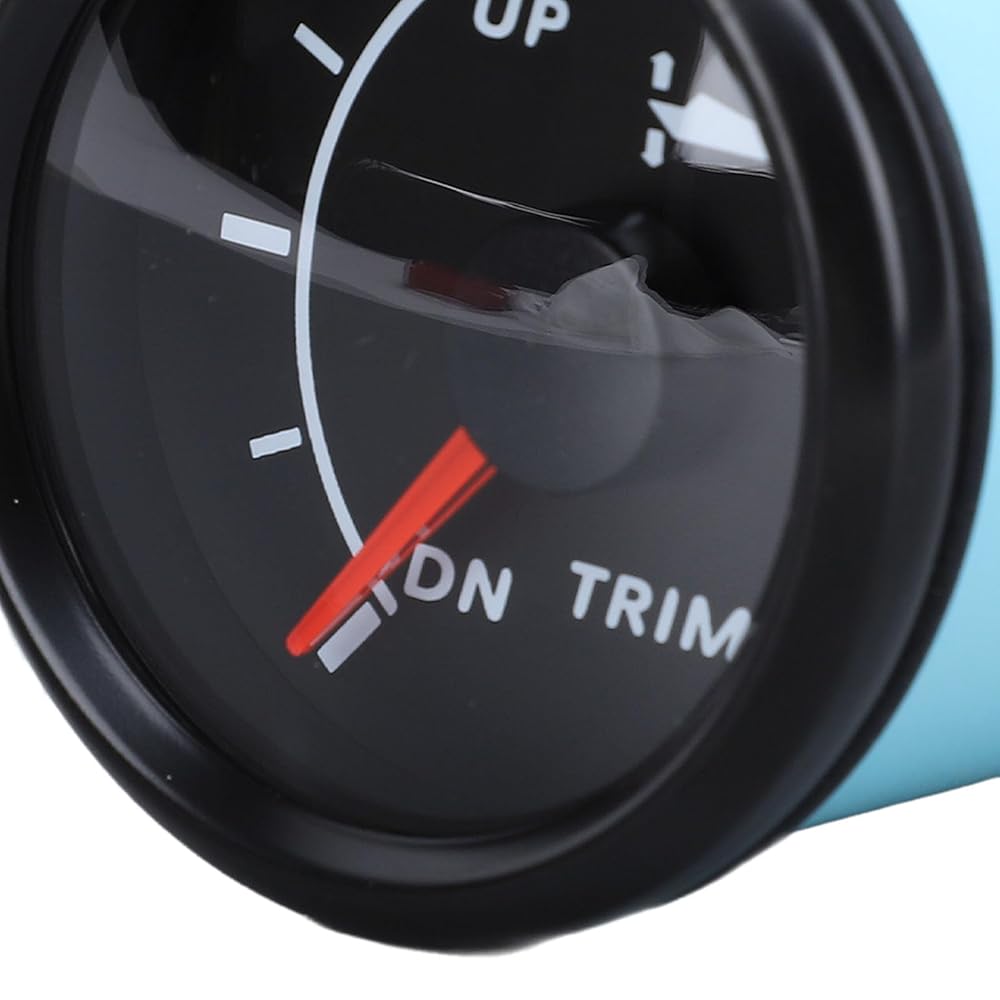

Material: Stainless Steel 316L Bezel, Anti Fog Glass
Protection Rating: IP67, Fully ; Excellent Anti Fog Function
Indication Range:
Working Voltage: 9-32VDC
Working Current: ≤70mA (24V)
Working Temperature: -30℃ to +70℃
Storage Temperature: -40℃ to +85℃

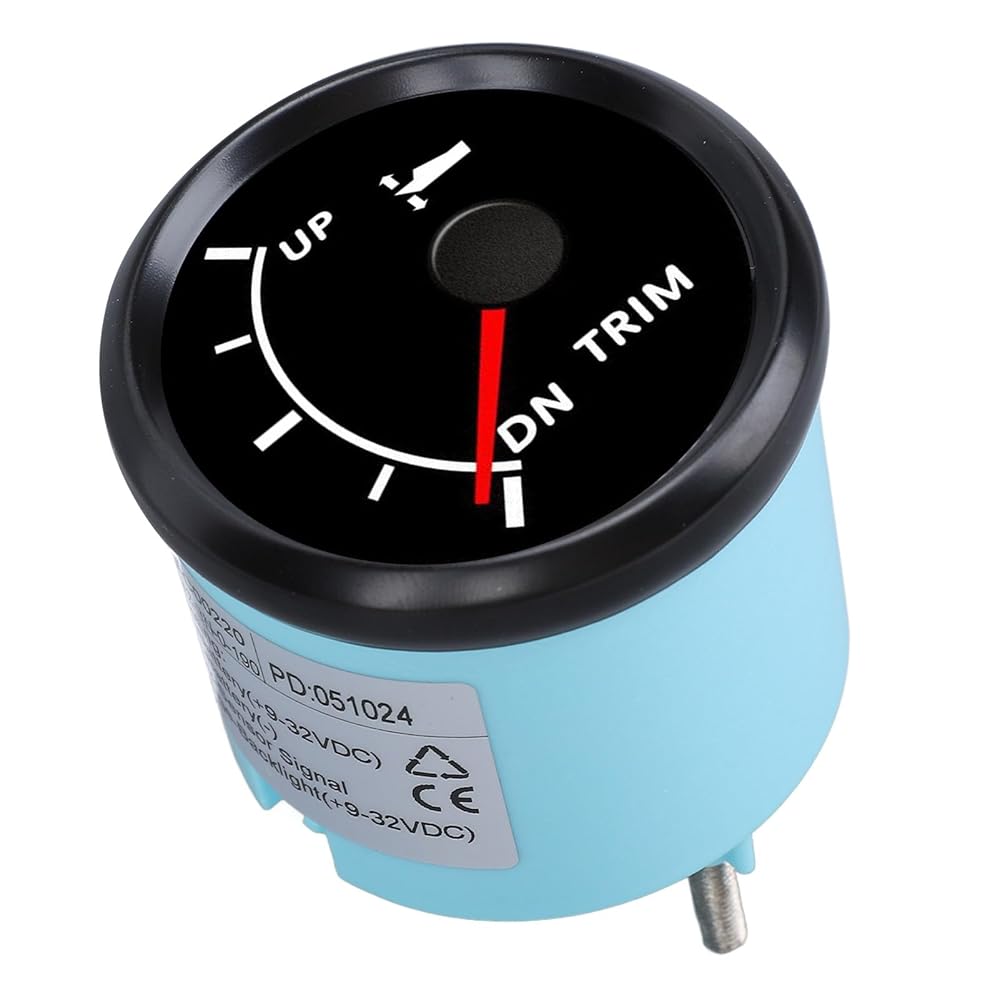

Wiring:
1. Red Wire: +9-32VDC
2. Black Wire: Sensor Signal
3. Orange wire: Backlight (+)
4. Blue Wire: Power Supply Negative (-)

How to Use:
Installation Steps:
Step 1: Cut a 52‑53mm diameter hole in your central control unit or other pre installed location, ensuring at least 70mm of space behind!
Step 2: Insert the gauge into the hole.

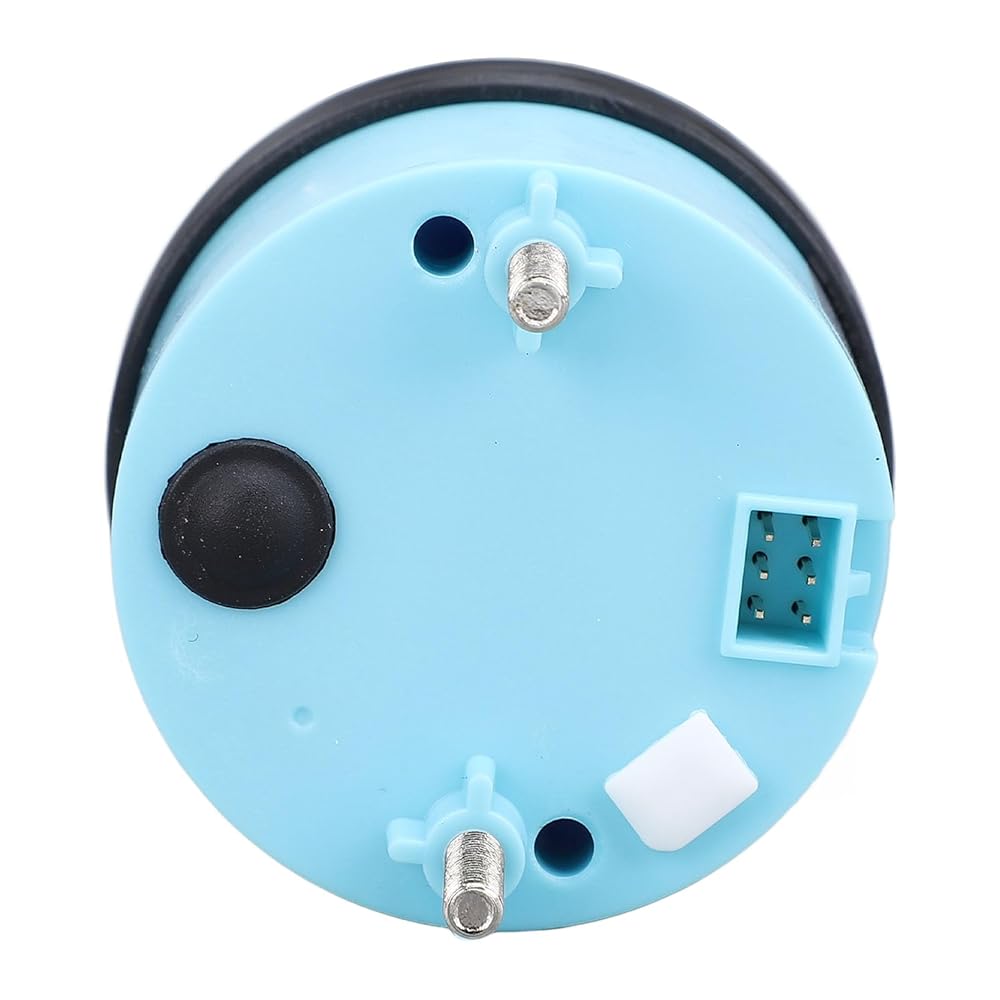

Step 3: Align the bracket screw holes with the screws on the back of the gauge, then tighten the screws to secure the bracket and bezel to the panel.
Step 4: Plug the power harness directly into the back of the gauge, then connect the corresponding sensor and wire harness according to the provided instructions, and power on the device.

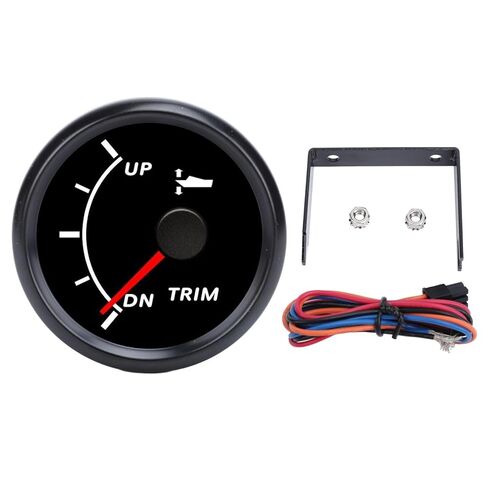

packing list:
1 x Marine Trim Balance Gauge
1 x Wiring
1 x Fixing Clamp/Holder
2 x Nut
1 x User Manual

Notice:
Ensure there is at least 70mm of space behind the opening after installation.
