Special Features

37 - Pin Precision Connectivity: With 37 precisely engineered pins, it offers comprehensive electrical connectivity. Exhibiting high conductivity and high dielectric strength, this connector ensures efficient signal transfer while maintaining insulation integrity, making it suitable for a wide range of electrical systems, from sensitive avionics to heavy - duty industrial setups.
User - Friendly Application: Its bayonet coupling mechanism ensures convenient connection and disconnection, enabling quick plugging and unplugging even in tight or hard - to - reach spots, saving you valuable time during installation and maintenance. The bayonet coupling design ensures a quick and firm connection, minimizing the risk of accidental disconnections during operation.
Compact & Lightweight Design: Boasting a small volume and light weight, this connector is easy to handle and install, making it perfect for applications where space and weight constraints are crucial, such as in aerospace and portable industrial equipment.
Excellent Sealing & Resistance: With outstanding sealing performance and resistance , it provides a protected electrical interface, safeguarding against moisture, dust, and other environmental factors that could otherwise disrupt signal transmission.
Durable Plugging/Unplugging: Engineered with high durability in mind, it can withstand repeated plugging and unplugging cycles without wear or damage, guaranteeing a reliable connection over the long term and reducing the need for frequent replacements.

Description

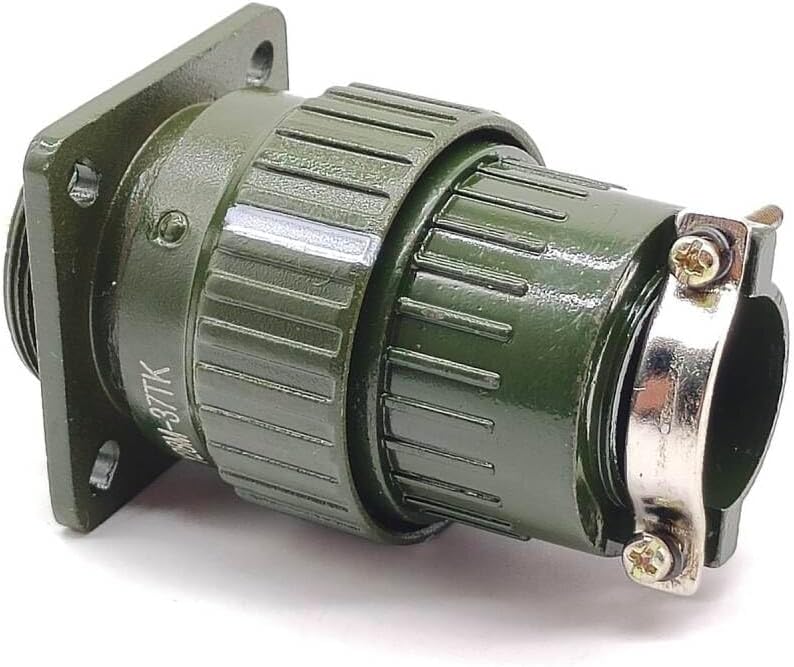

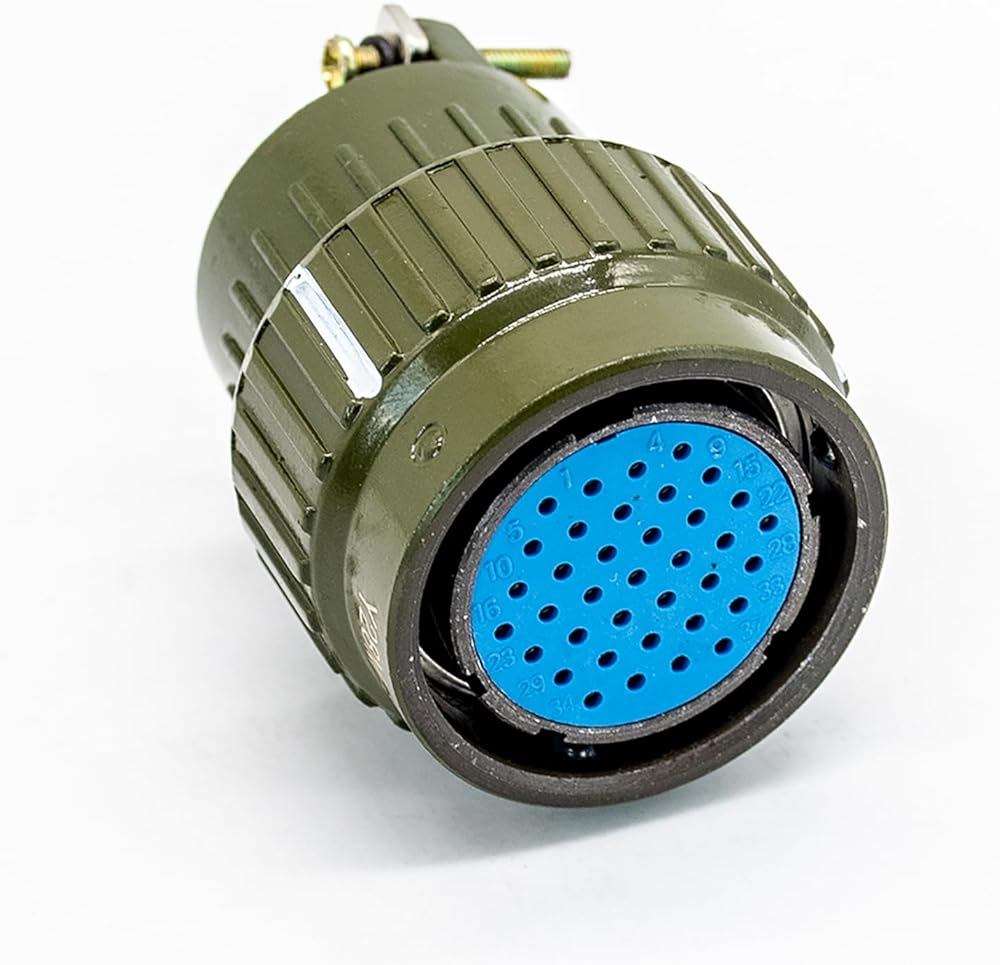

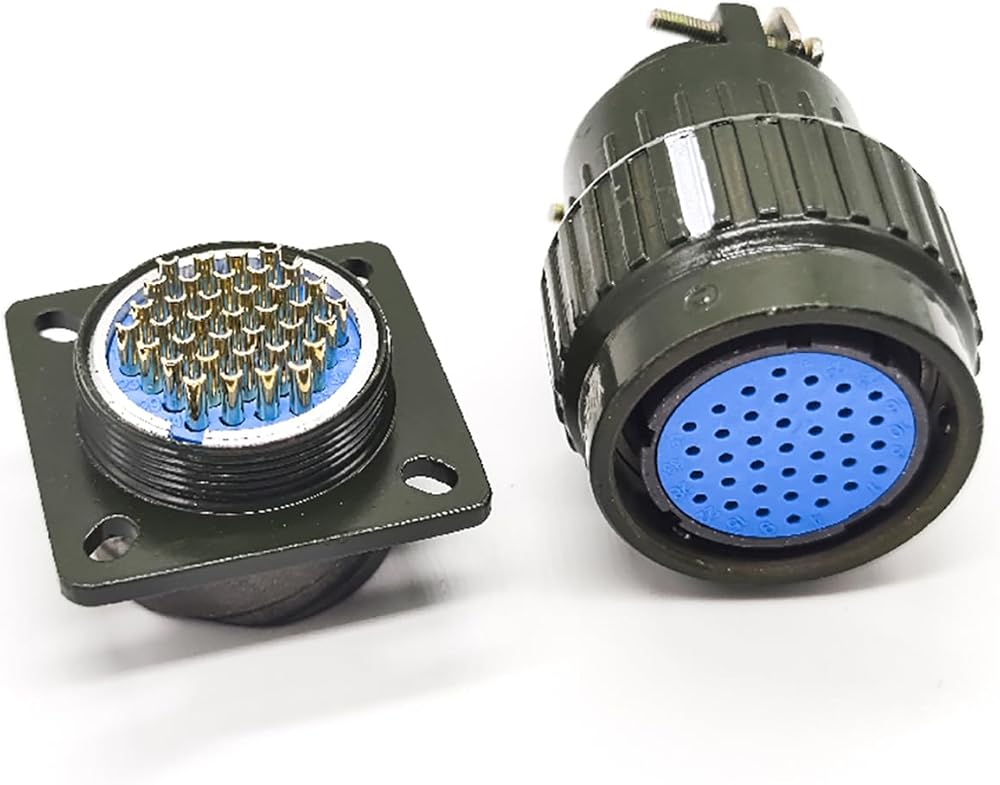

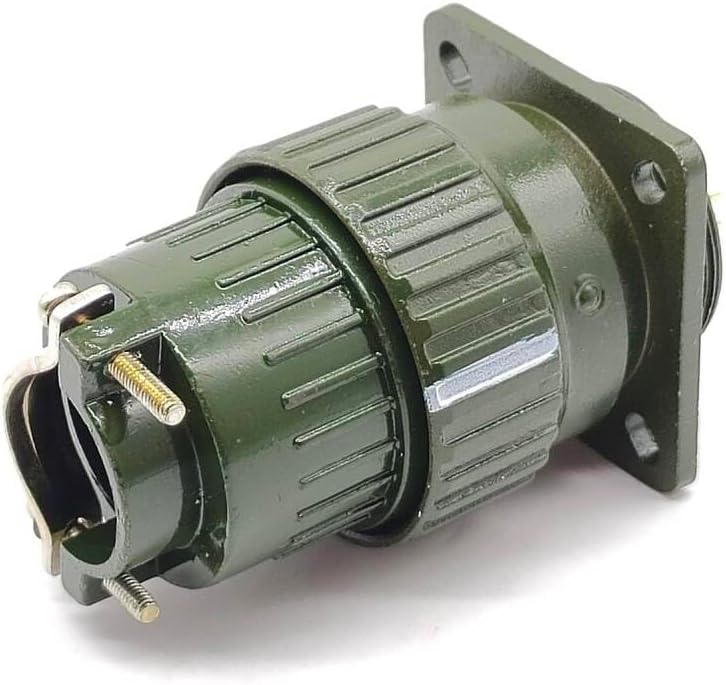

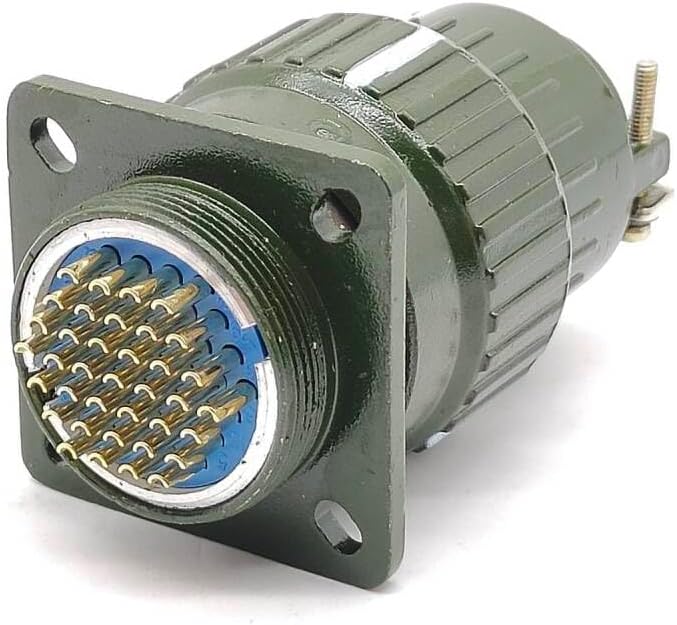

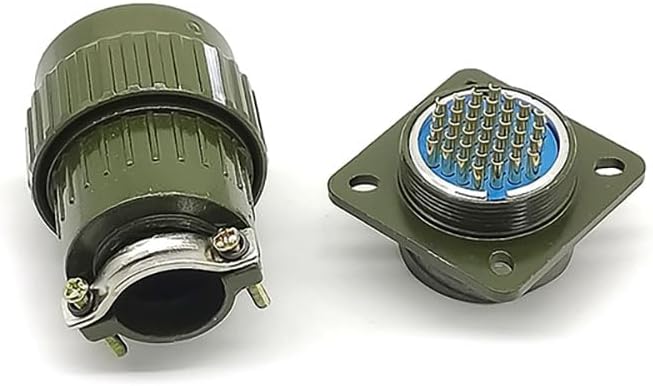

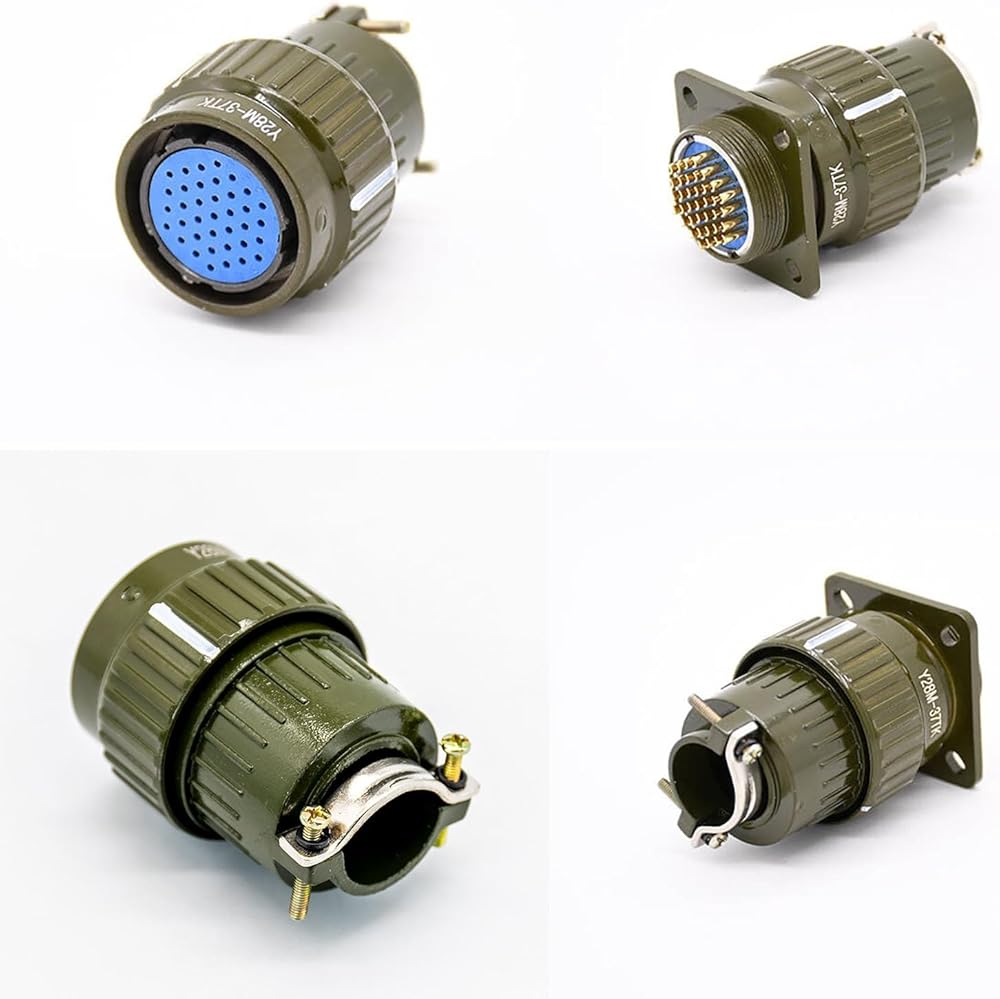

The Y28M - 37TK 28mm Aviation Connector is a cutting - edge solution designed to meet the exacting requirements of the aerospace and industrial fields.
In terms of its physical design, the small volume and light weight characteristics set it apart. The bayonet coupling system is intuitive and efficient, allowing for smooth engagement and disengagement of the connector.
Built to last, it can endure numerous mating cycles without showing signs of degradation.
When it comes to environmental protection, the excellent sealing performance seals out unwanted elements.
Finally, its electrical properties are truly remarkable. The high conductivity guarantees that signals, be they power, data, or control signals, flow smoothly and without loss.
Whether you're an aerospace engineer looking to upgrade avionics connections or an industrial technician in need of a dependable connector for machinery, the Y28M - 37TK 28mm Aviation Connector is the answer.
Electrical Characteristics
Relative humility: 92-98% at 40±2℃
Insulation resistance: ≥1000MΩ
Contact Resistance: 1MΩ/3MΩ/5MΩ
Frequency Range: 10-2300Hz,180m/s2
Voltage: 250V
Current: 5A/10A/25A
Mechanical Characteristics
Mating Type: Bayonet coupling
Termination : Solder
Durability(mating): 500 cycles
Environmental Characteristics
Temprature Range: -40°C ~ +85°C
Atomosphere: 100KPa-100Pa

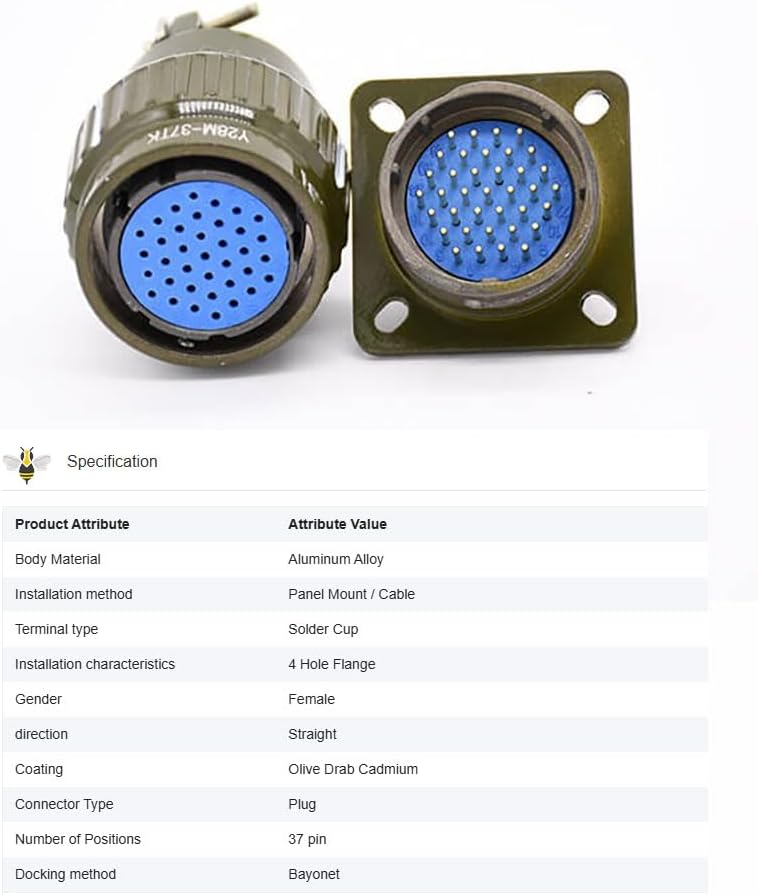

Material:
Shell: Aluminum Alloy
Contact: Copper,Gold Plated
