5 pcs Digital 38khz Ir Receiver Sensor Module + 5 pcs 38khz Ir Transmitter Sensor Module with Dupont Cable for Arduino Electronic Building Block

SAR 36
Brand
DKARDU
– 1 +

Special Features

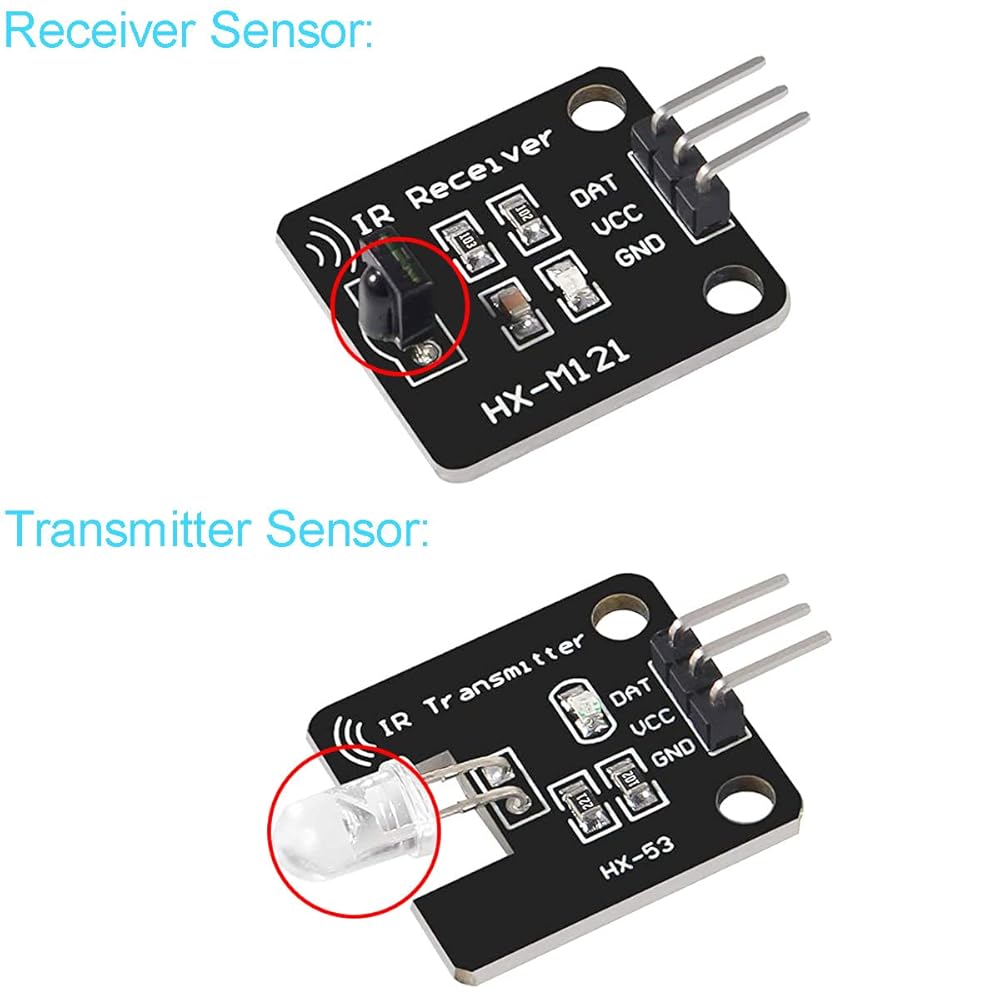

  • Transmitter sensor: This ir transmitter sensor module is directly launched by a single tube, it requires waveform modulation through the program.
  • Receive sensor: Adopt 1838 remote control receiver with high sensitivity, with this IR receiver, the for Arduino project is able to receive command from any IR remoter controller if you have the right decoder.
  • Pin Definitions:(1) Output (2) Vcc (3) GND; With signal indicating LED, easy to observe and debug.

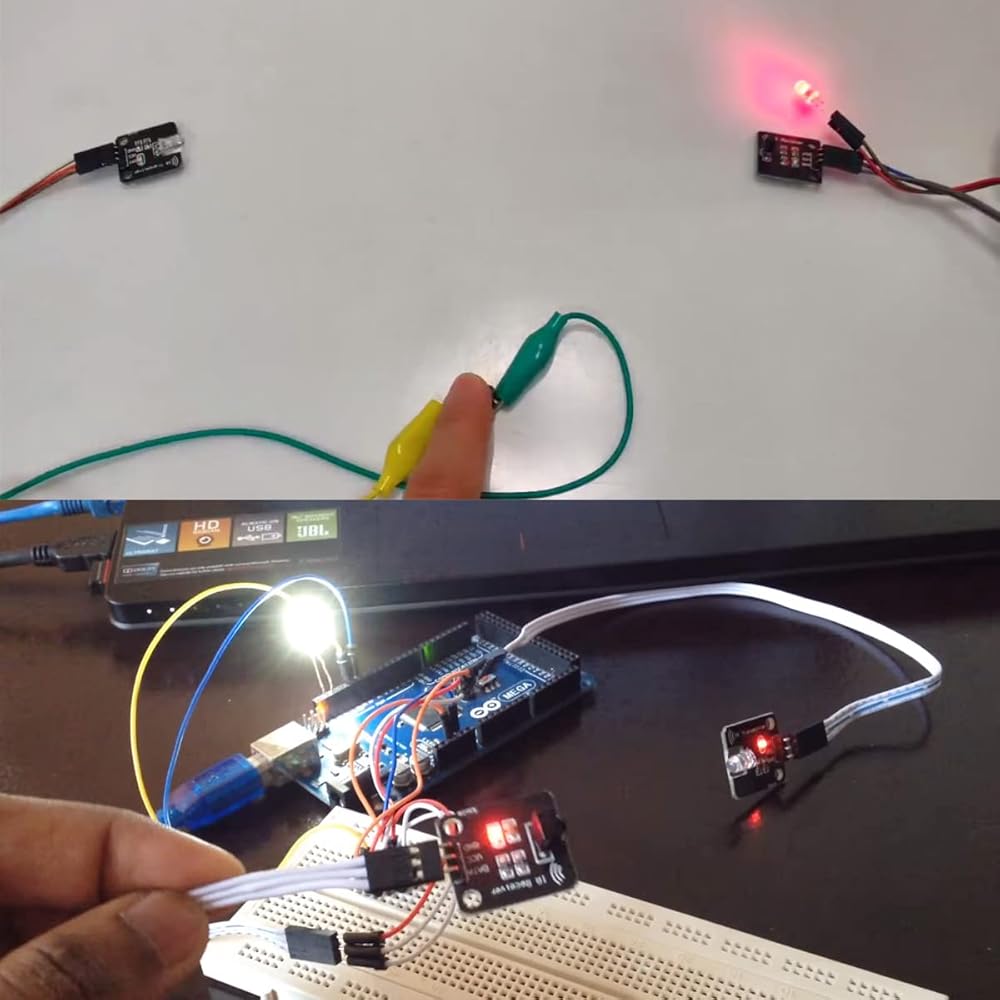

  • Application: Widely used in infrared communication, infrared remote control, apply to a variety of platforms including for Arduino/for Raspberry pi/51/AVR/ARM.
  • Note: The white smudge is not corrosion damage, it's flux, can wipe it off with a rag, does not affect the use of the module

Description

Product Description

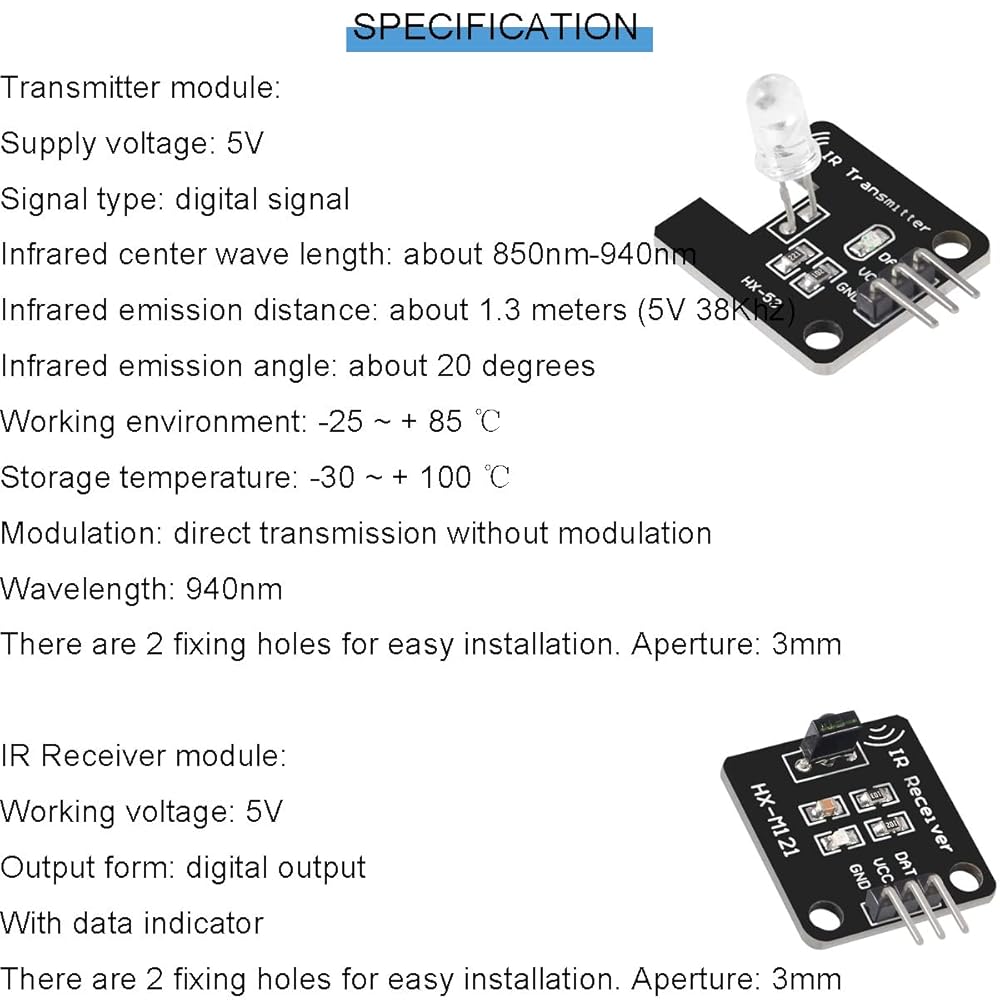

Transmitter module specifications:
Supply voltage: 5V
Signal type: digital signal
Infrared center wave length: about 850nm-940nm
Infrared emission distance: about 1.3 meters (5V 38Khz)
Infrared emission angle: about 20 degrees
Working environment: -25 ~ + 85 ℃
Storage temperature: -30 ~ + 100 ℃
Modulation: direct transmission without modulation
Wavelength: 940nm
There are 2 fixing holes for easy installation. Aperture: 3mm

IR Receiver module specifications:
Working voltage: 5V
Output form: digital output
With data indicator
There are 2 fixing holes for easy installation. Aperture: 3mm

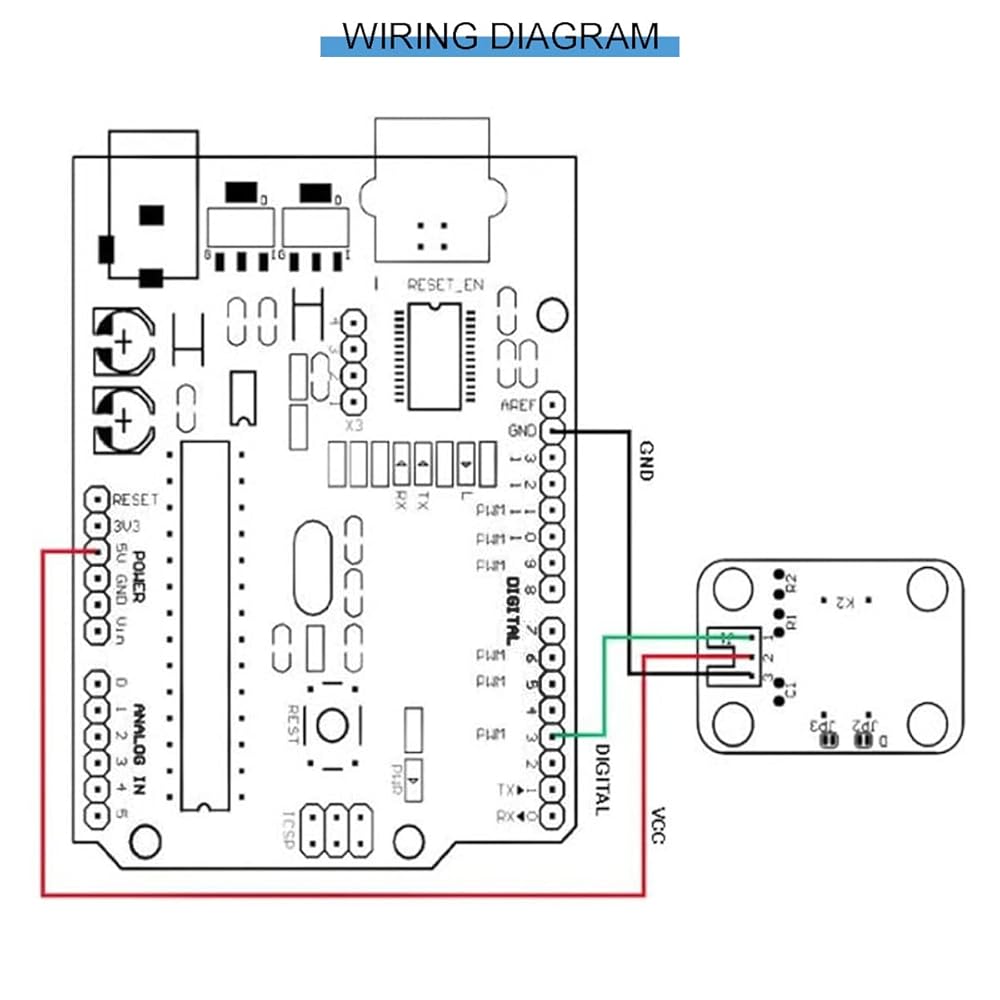

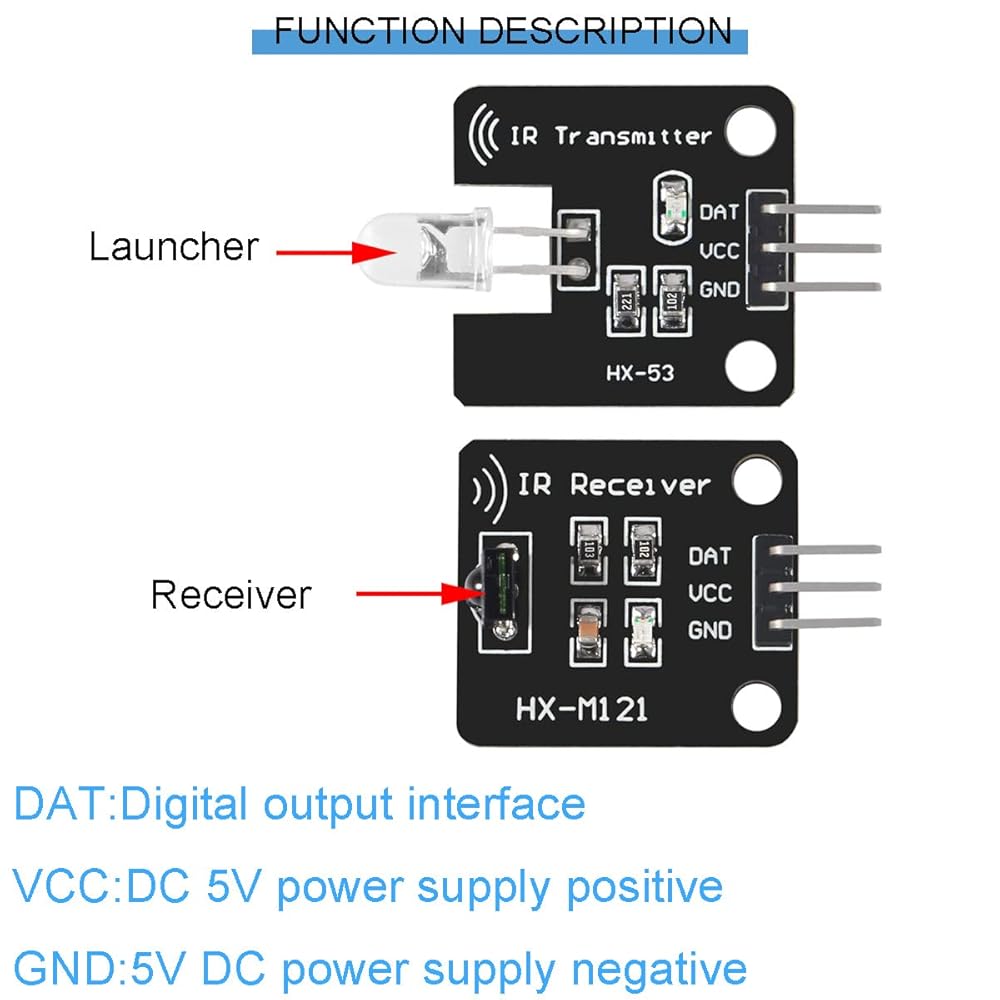

Wiring Instructions:
DAT: digital output interface
VCC: 5V DC power supply positive
GND: 5V DC power supply negative

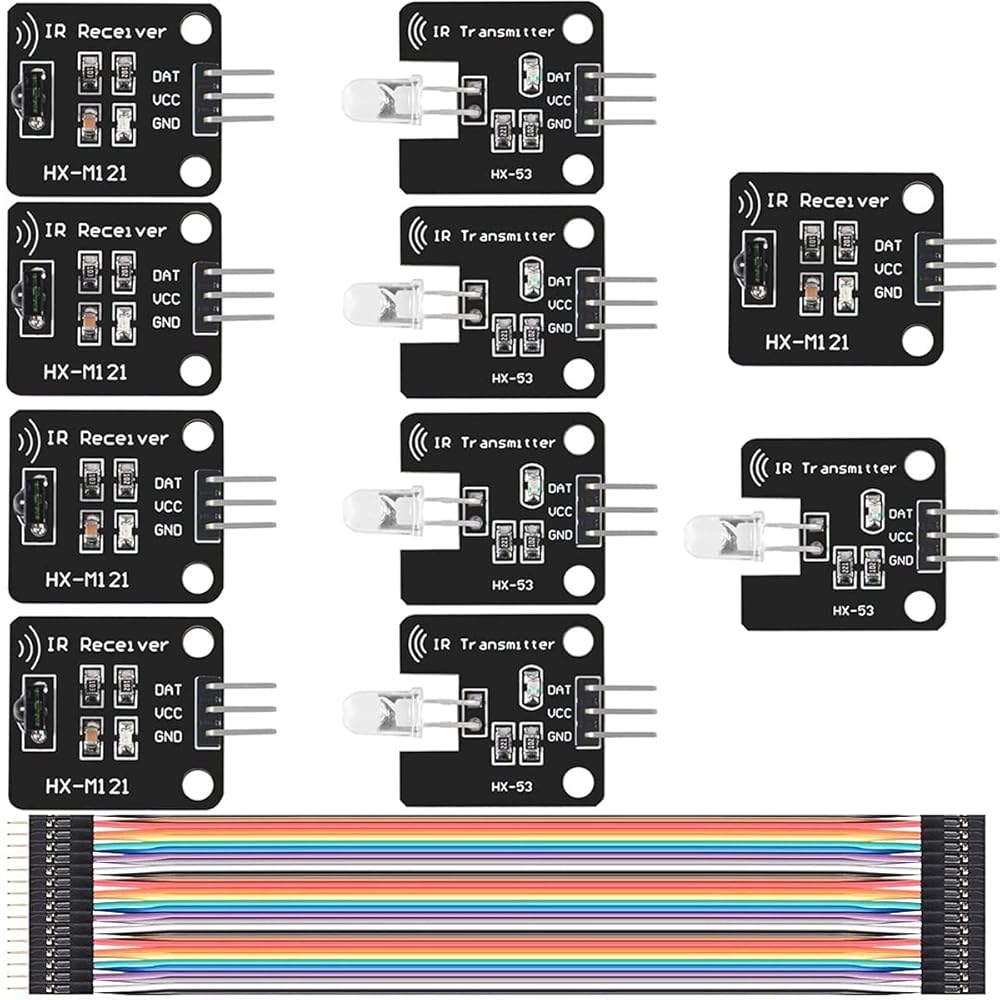

Package Includes:
5 x Infrared transmitter module
5 x Infrared receiver module
1 x 30-pin Male and female DuPont cable
