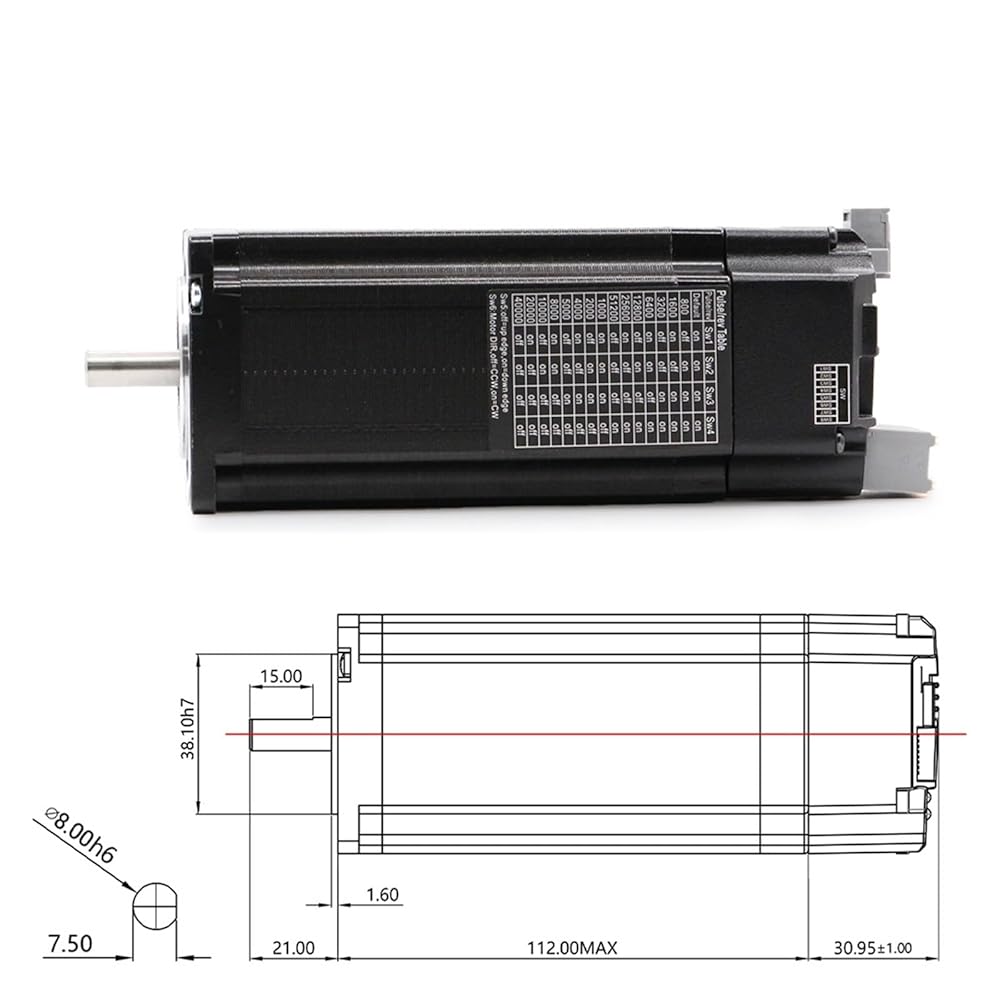

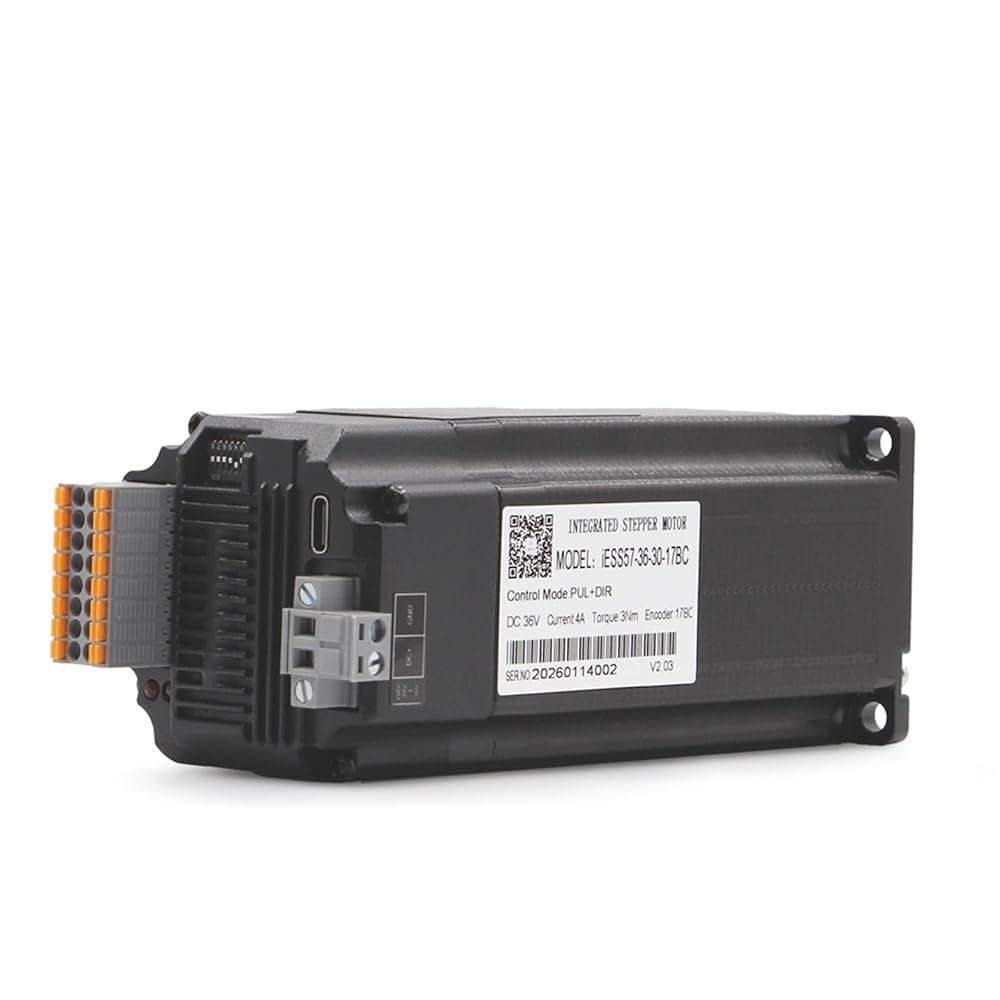

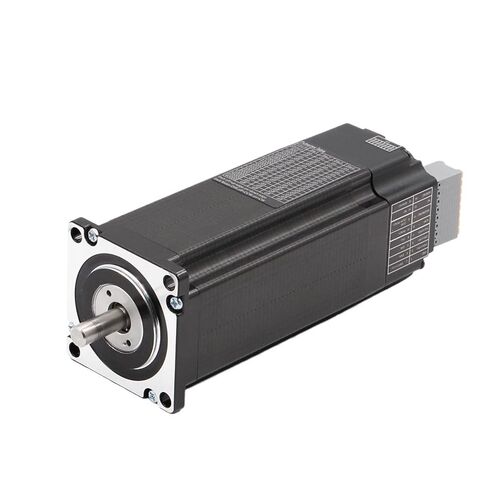

NEMA23 3.0N.m 4A 36V 17-bit Absolute Value Integrated Closed Loop Stepper Motor with Encoder IESS57-36-30-17BC 1Pcs

SAR 2,135
Color8mm
– 1 +

Special Features

  • Pneumatic Motors

Description

Pneumatic Motors

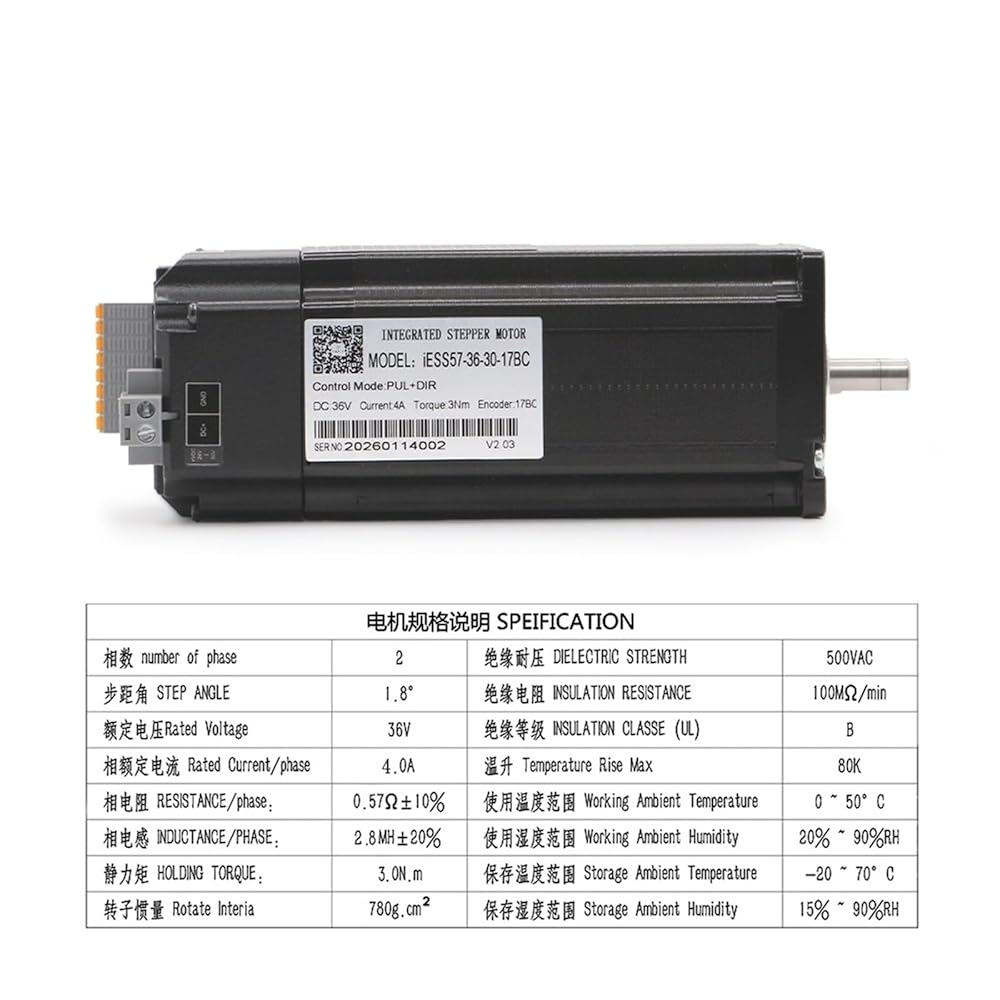

Basic parameter:
Number of Phase: 2
Step angle: 1.8°
Rated voltage: 36V
Rated Current/ Phase: 4.0A
Resistance/ Phase: 0.57±10%
Inductance/ Phase: 2.8MH±20%
Holding Torque: 3N.m
Rotate Interia: 780g.cm²
Dielectric strength: 500VAC
Insulation Resistance: 100M/min
Insulation Classe (UL): B
Temperature Rise Max: 80K
Model Number : iESS57-36-30-17BC
Number of phase : 2
STEP ANGLE : 1.8°
Rated Voltage : 36v
Rated Current/phase : 4A
Resistor/phase : 0.57±10%
Inductance/phase : 2.8MH±20%
Holding Torque : 3N.m
Rotate Interia : 780G.CM2
Dielectric strength : 500VDC
