Description:
1.KSD9700 temperature control switch is applicable to all kinds of home appliances and electronics products, Such as low-power fractional horsepower motors, computer communications, fans, air conditioners, electric heaters, motors, etc.
2.Temperature controller has the characteristics of small size, quick action, accurate temperature control, large current control and long service life. KSD9700 temperature control switch is light and compact, with high accuracy of disconnection and reset, and reliable operation.
3.KSD9700 uses a square bimetal as a temperature-sensing body. When the temperature rises to a certain value, the square piece jumps, the transmission contact moves quickly, and the circuit is disconnected.
4.When the temperature drops to a certain value, the bimetal resets and the contact Also to the original state, to achieve the purpose of making the circuit.

Specification:
Product Name: Thermostat
Action Temperature: 30℃
Action Type: N.C (Normal Close)
Power: 250V 2A
Pin Type: 2 Wires
Total Length: 85mm/3.35 inch
Shell Dimension: 15x5.4x2.4/ 0.59x0.21x0.09 inch
Main Body Material: Plastic

Package Content :

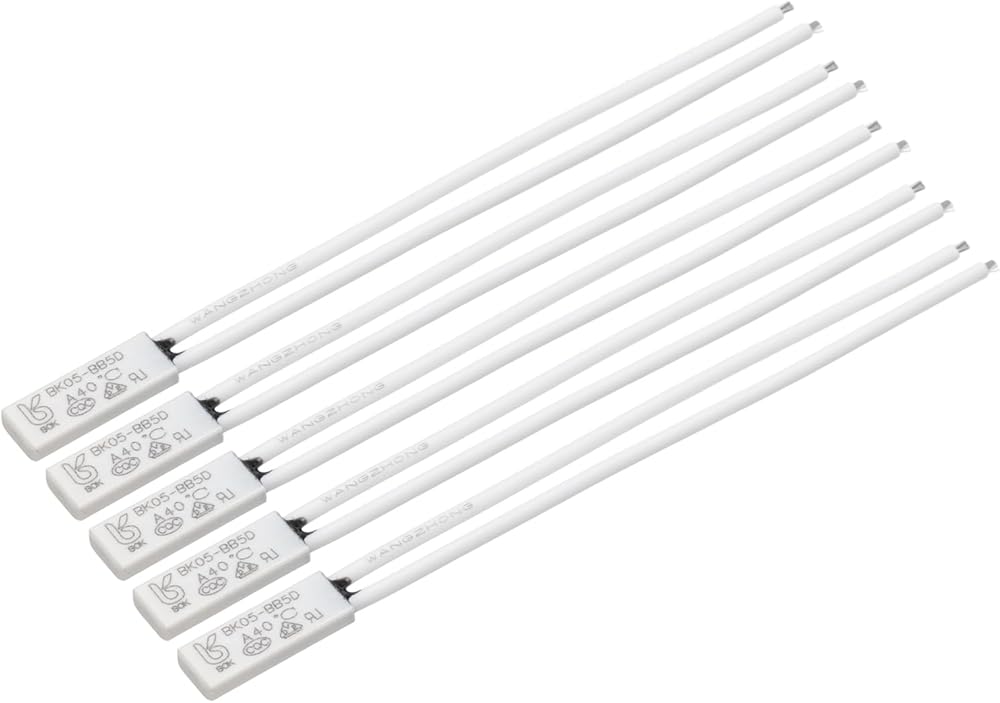

5 x thermostat switch.
