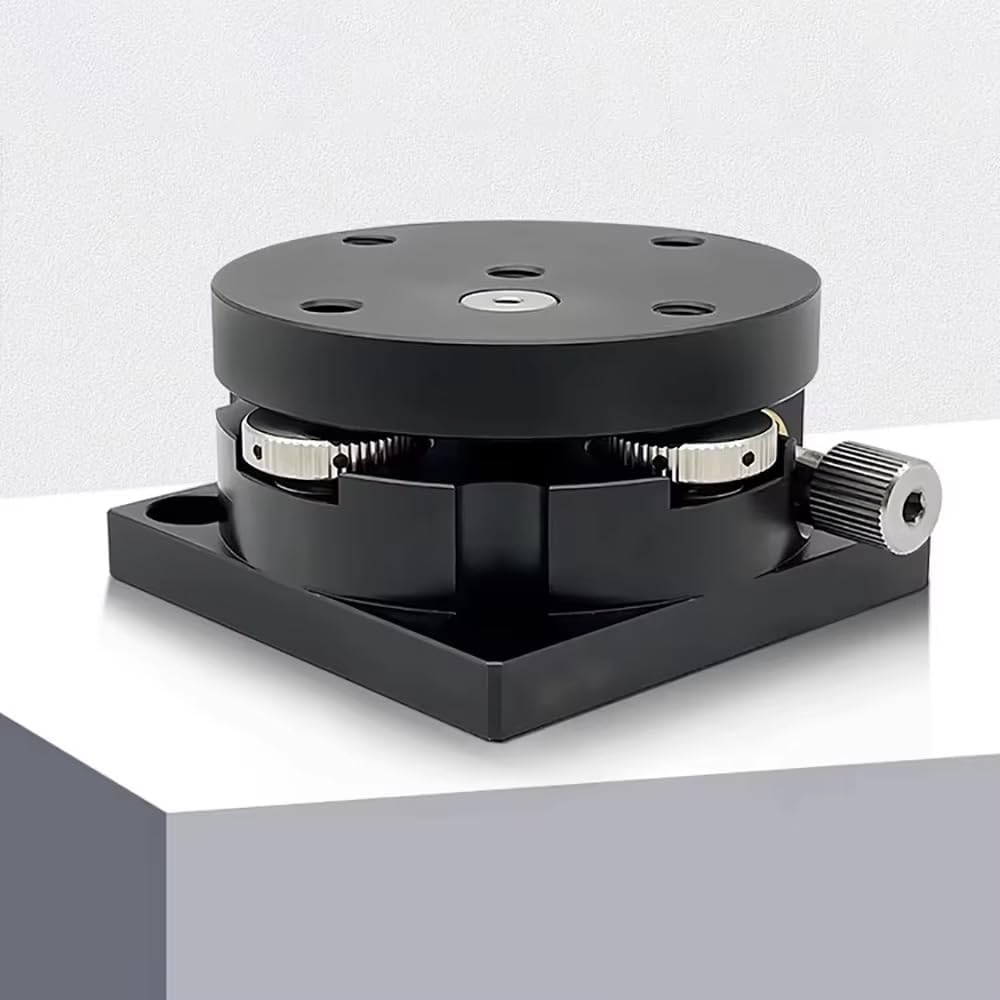

R-Axis Manual Tilt & Rotation Precision Stage, Optical Angle Adjustment Platform LSD-BD-656-M6
Description:

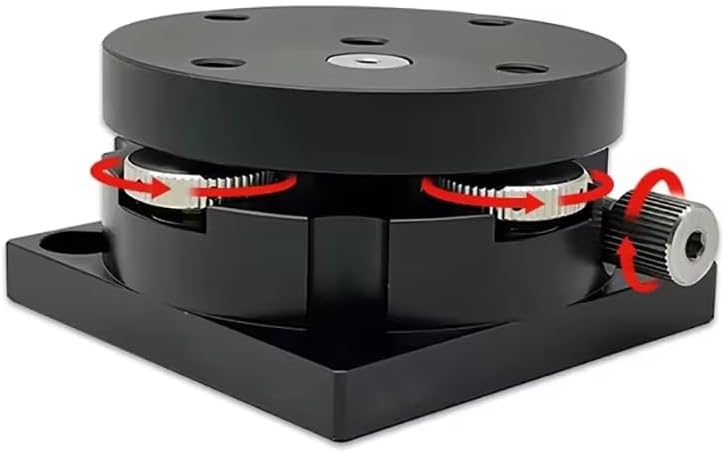

This compact R-axis manual stage enables precise adjustment with two swivel angles and one rotation angle.
Designed for light loads, it offers ±3° adjustment range across three axes in an ultra-compact form factor.
Specification:
Material: Aluminum Alloy
Surface Finish: Anodized
Axis Type: R-Axis

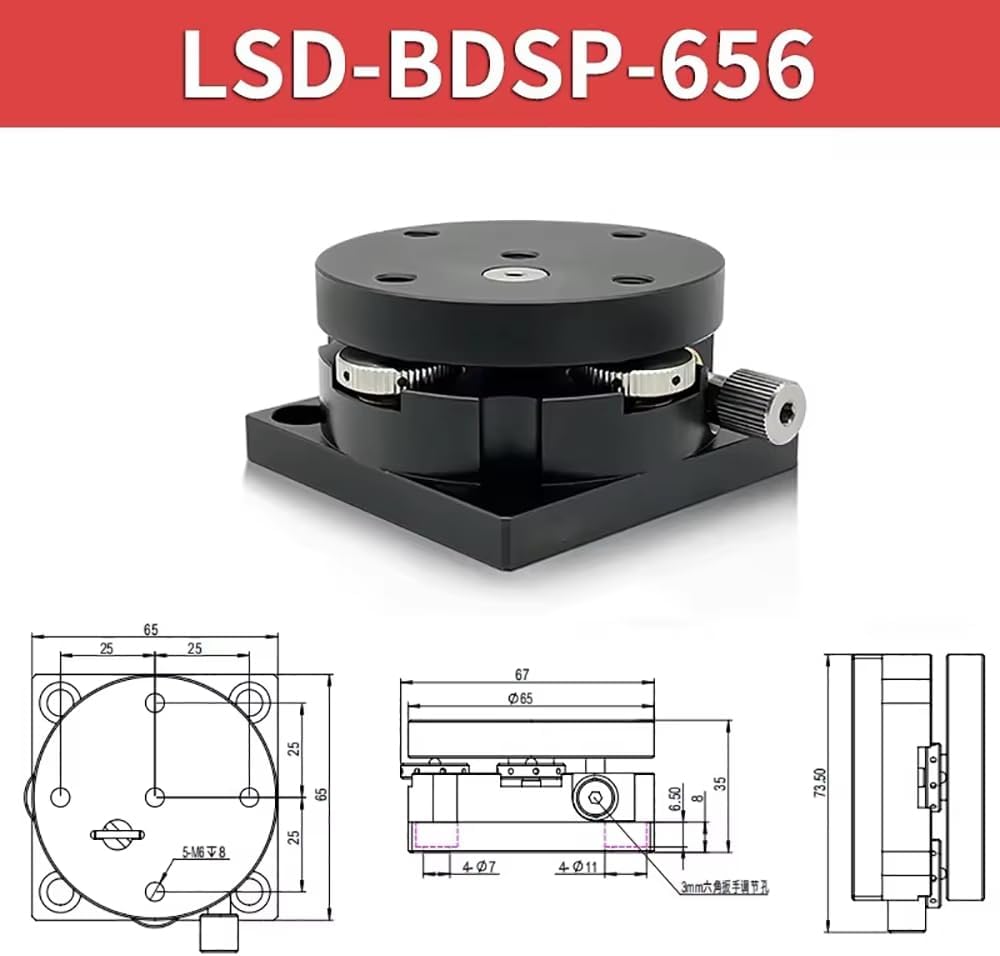

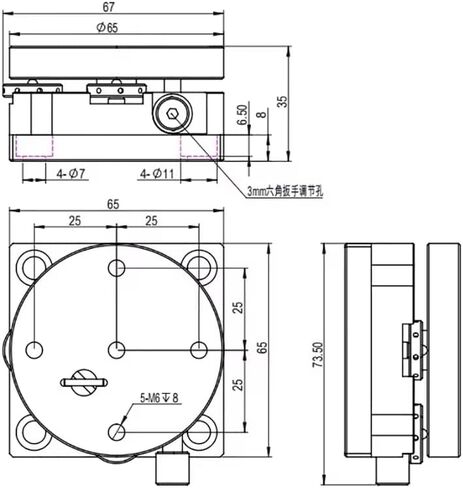

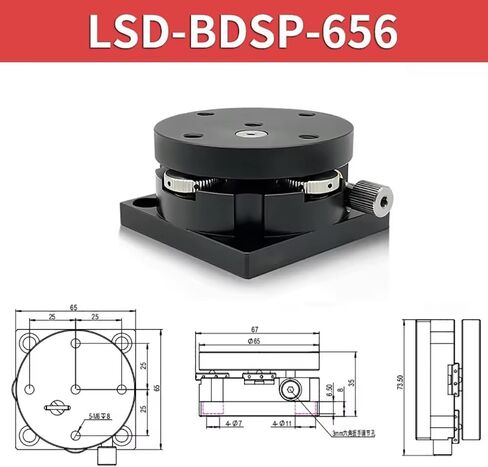

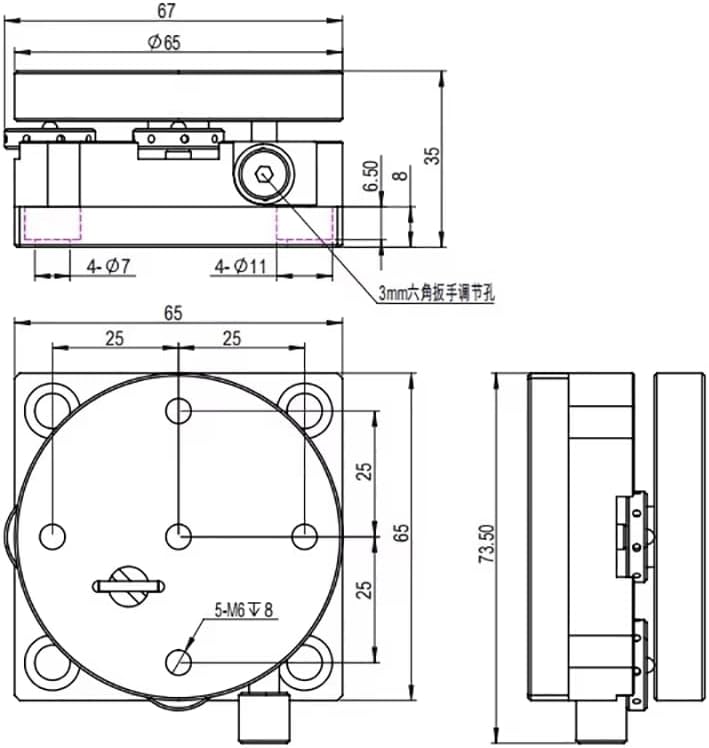

Stage Size: 65 x 65 mm
Mounting Hole: M6 Thread
Adjustment Range (3 Axes): ±3°
Drive Mechanism: Lead Screw
Load Capacity: 4.9N (0.5kg)
Weight: 0.3kg
Features:

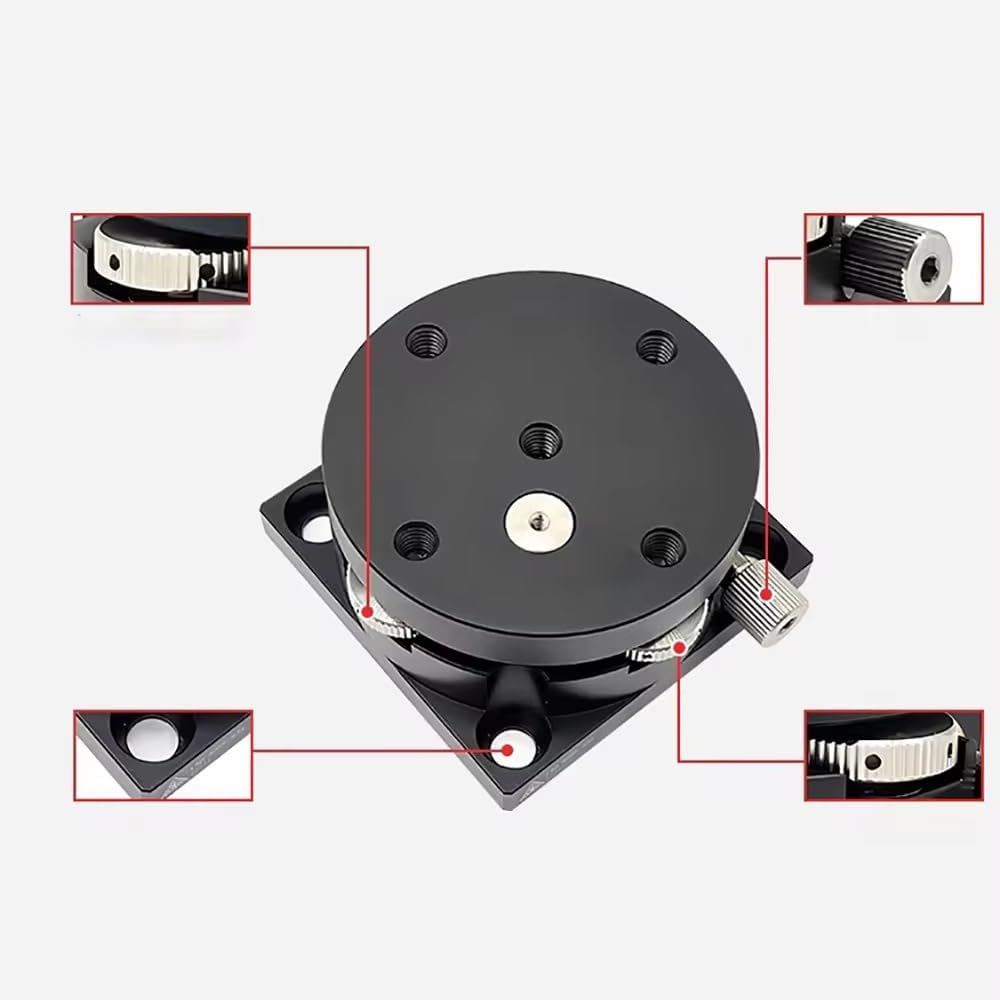

Triaxial adjustment (two tilt angles + one rotation angle)
Compact structure ideal for lightweight applications
Fine-tuning capability with lead screw drive
Durable anodized aluminum construction
Package included:
1 x R-Axis Manual Tilt & Rotation Precision Stage
