Description:
Material - Made of carbon steel, the T slot drop-in bolts have certain strength and hardness, corrosion resistance, wear resistance, are strong and durable, and have a long service life.
Feature - These hammer head bolts have a smooth surface and clear threads, Able to withstand high-intensity torque, not easy to slip off or over-tighten, these T-shaped bolts are fixed between aluminum profiles and accessories, and are used with T-nuts, knobs or T-tracks to create a variety of projects.
Easy to Install - T shape stud sliding screws are easy to install. First, confirm the size of your aluminum profile or T-slot. When installing, place the screw head into the profile slot and rotate 90 degrees to clamp.
Wide Application - T-slot embedded bolts are widely used in aluminum alloy, rack assembly, clamping locks, T-slot guide rails, etc. They can also be used in furniture assembly, papermaking machines, etc. They are most commonly used in the assembly of lifting, metallurgy, mechanical equipment, and power mechanical equipment, as well as the fixing of mechanical equipment.

Specification:
Material: Carbon Steel
Color: Black
Applicable Aluminum Profile: 40 Series
Screw Thread Diameter: M8
Screw Rod Size: 8 x 20mm /0.31" x 0.79"(D*L)
Pitch: 1.25mm / 0.05"
Screw Head Size: 18 x 8 x 5.5mm/ 0.71" x 0.31" x 0.22"( L*W*T)
Nut Size: 7 x 16.5mm/ 0.28" x 0.65"

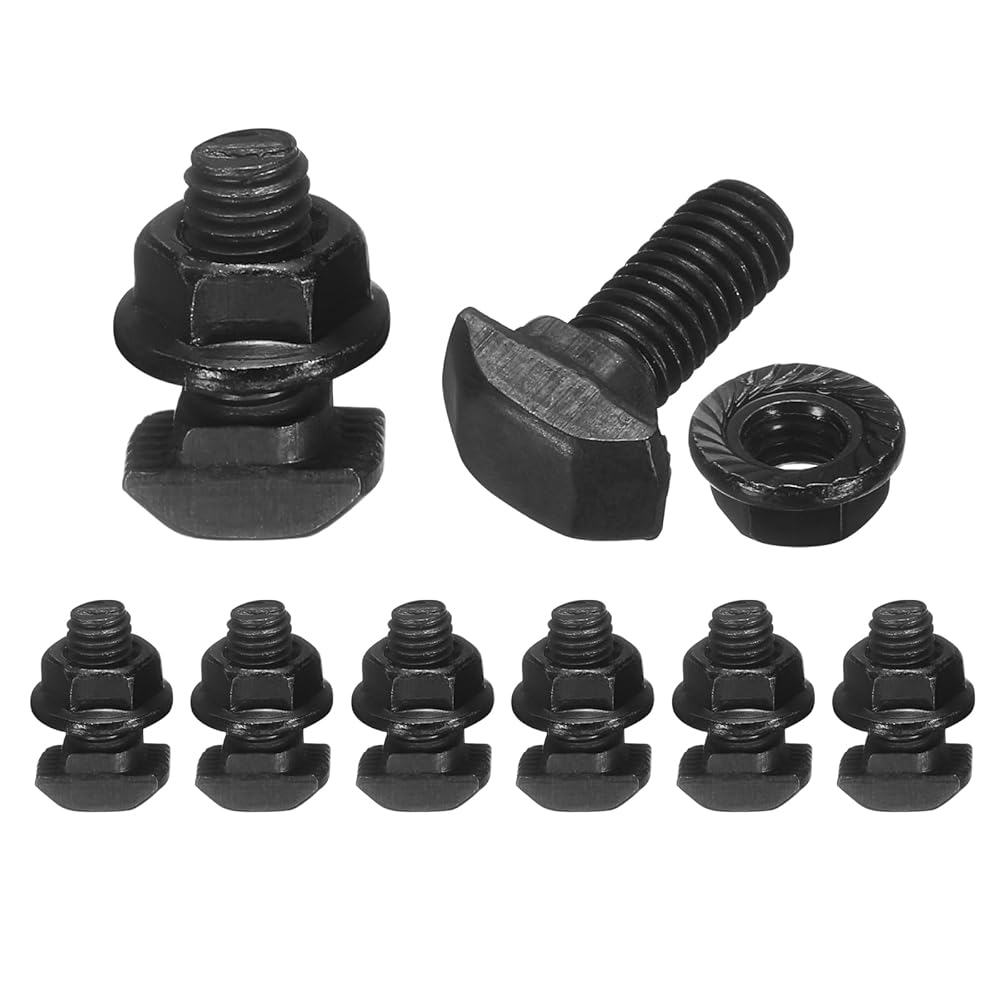

Package Content: 8 Piece x T Slot Drop-in Bolts and 8 Piece x Hexagon Flange Nuts
