Specification:

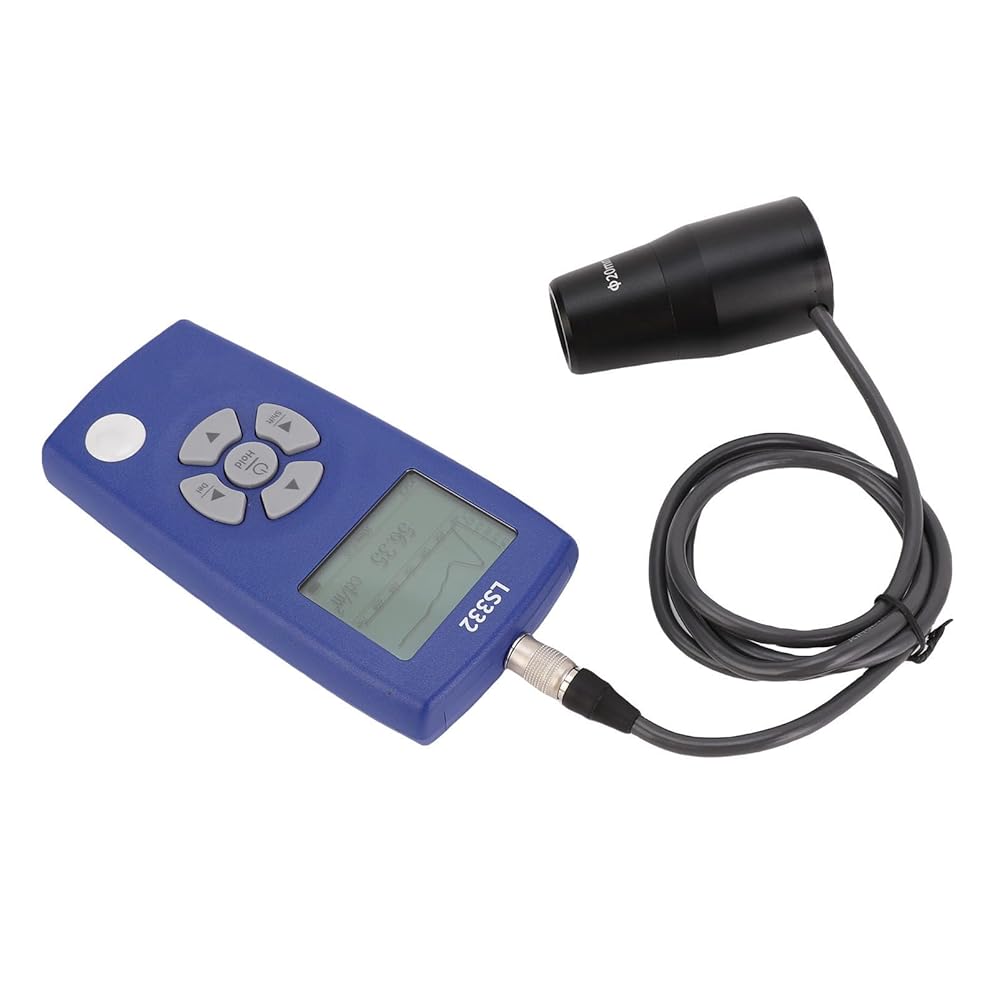

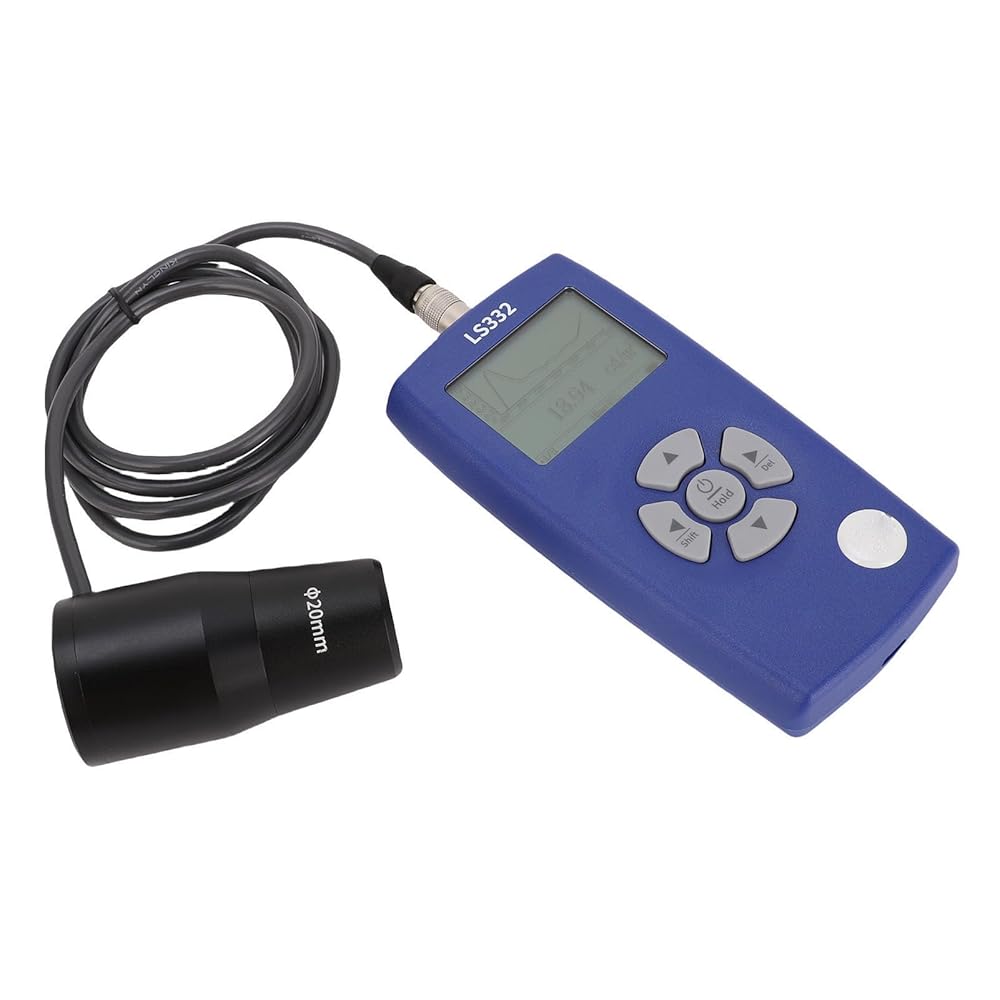

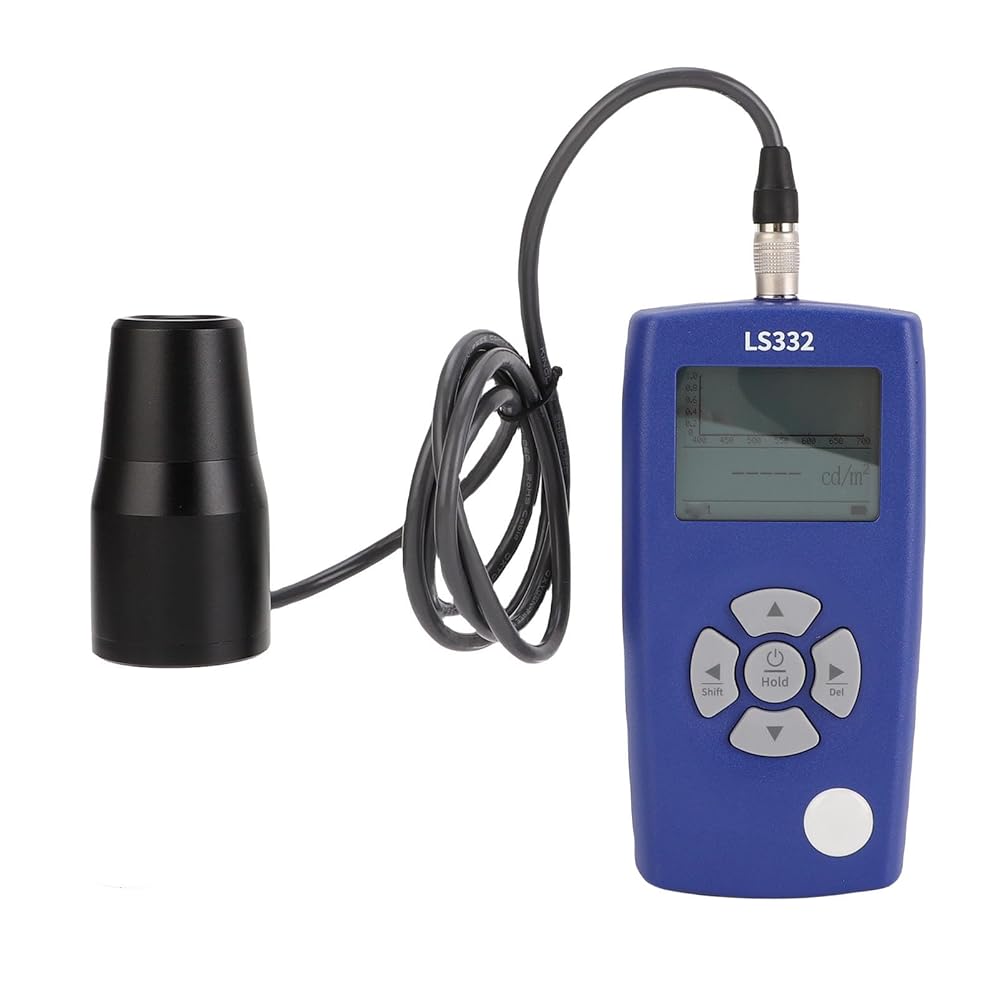

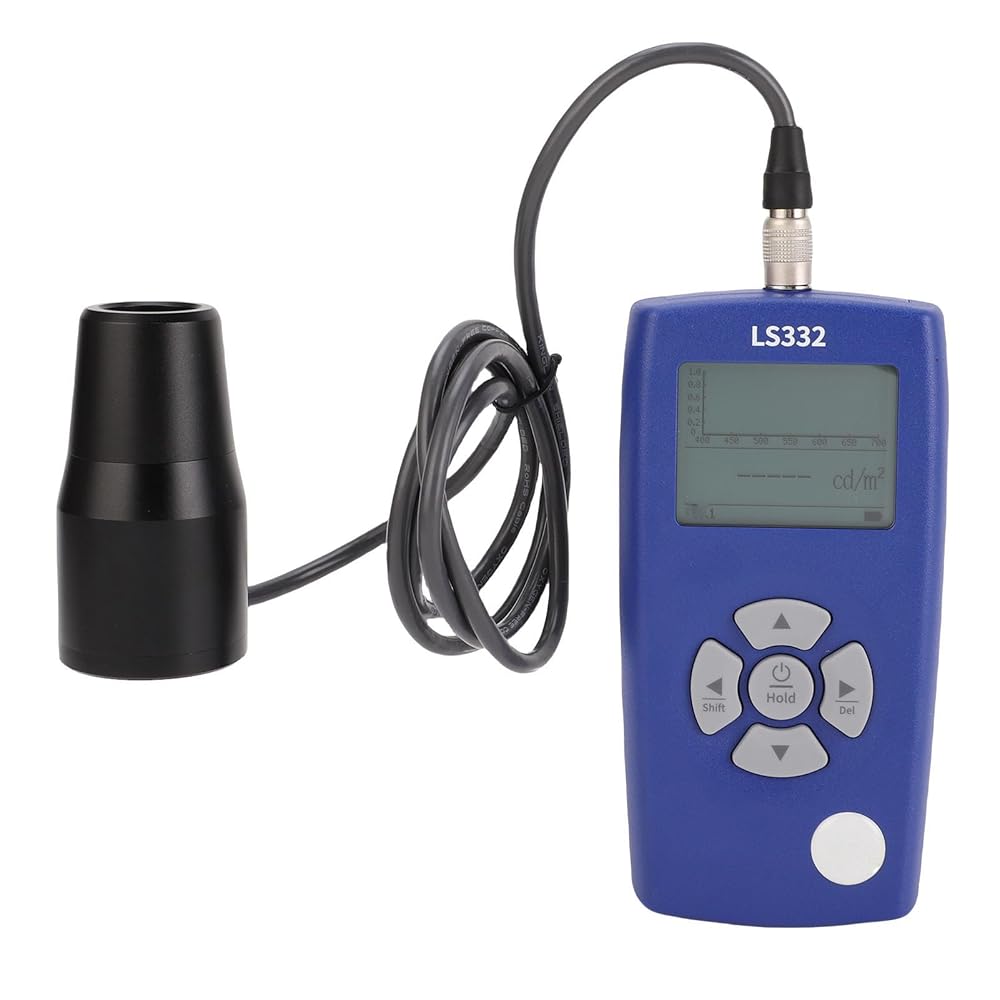

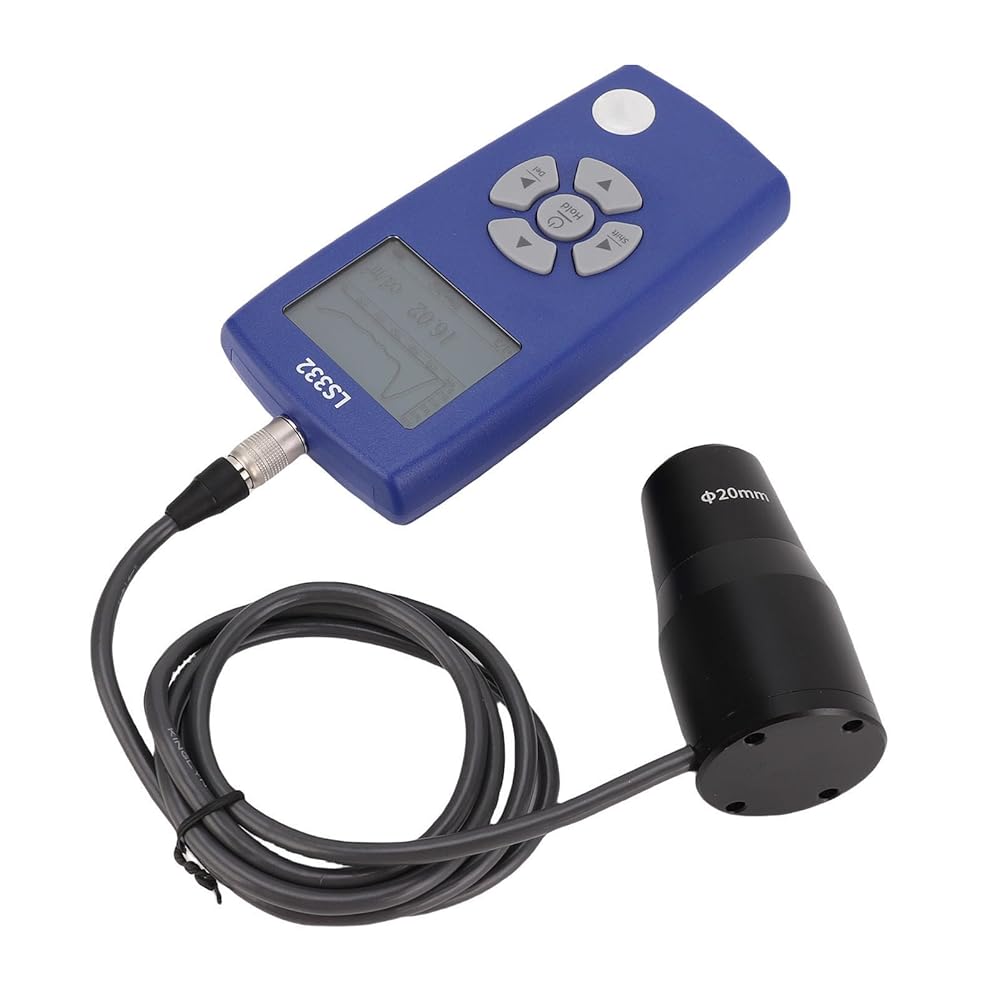

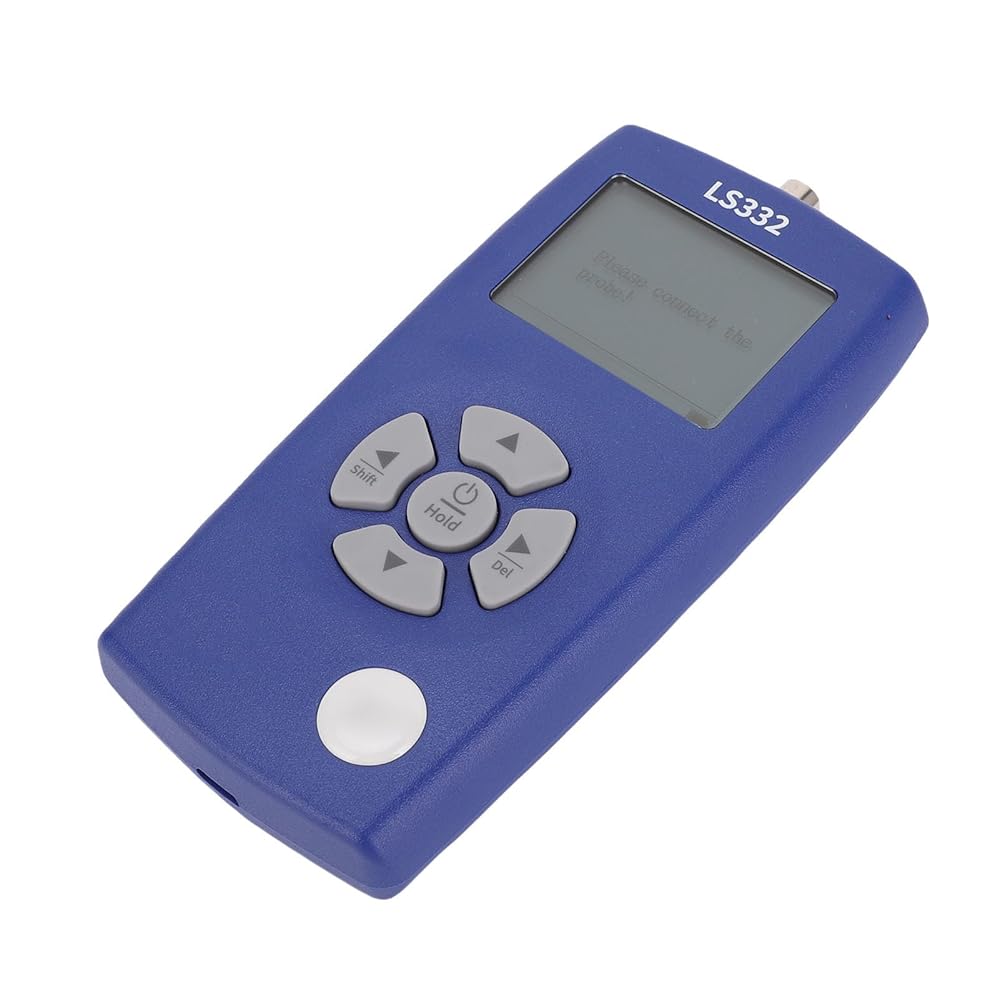

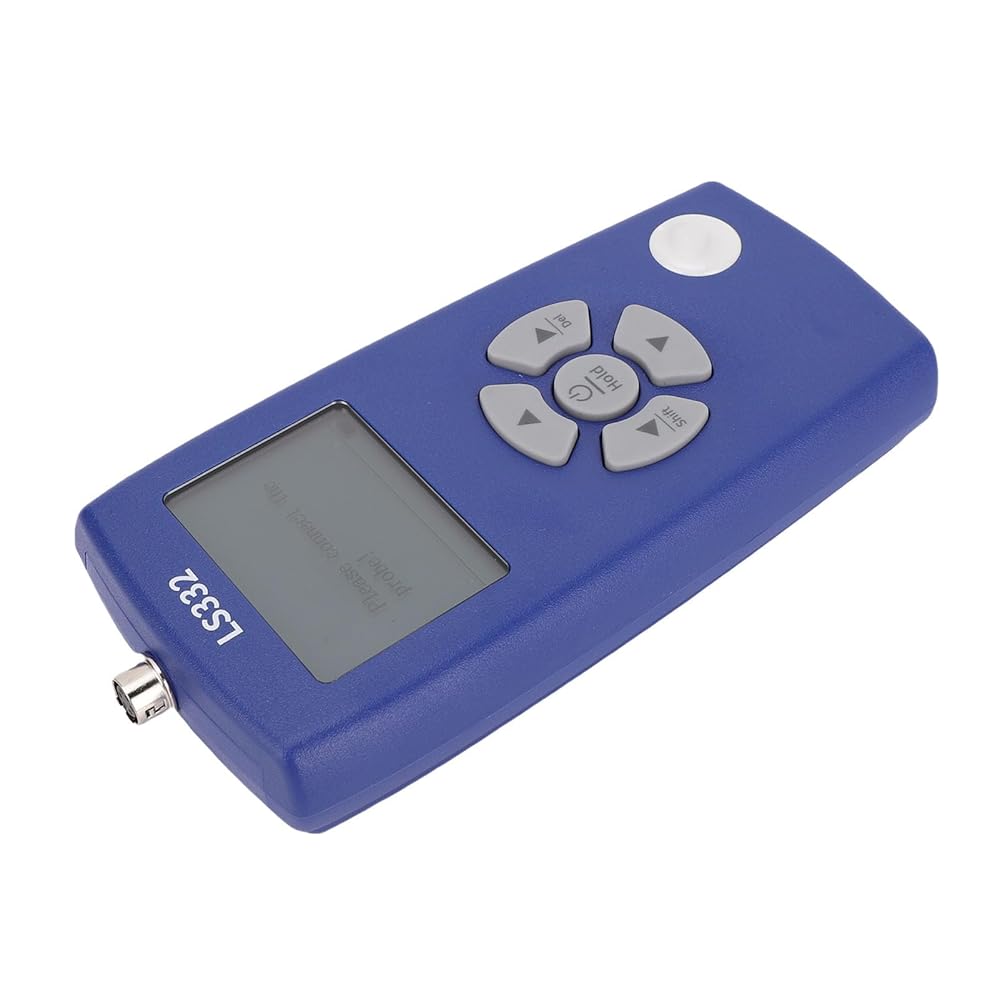

Item Type: Luminance Meter

Material: ABS

Luminance Wavelength Range: 400nm-700nm

Luminance Wavelength Interval: 10nm

Luminance Measurement Distance: ≤1m

Luminance Measurement Range: 1 – 1000000cd/m²

Luminance Resolution: 0.01cd/m²

Luminance Measurement Accuracy: ≤±(5%H+2cd/m²) H indicates standard value (calibrated under CIE standard A light source)

Luminance Optional Unit: cd/m² (default), fL

Correlated Color Temperature Measurement Range: 1000 – 100000K

Correlated Color Temperature Measurement Accuracy: ±5% (calibrated under CIE standard A light source)

Color Rendering Index Measurement Range: 0 – 100

Color Rendering Index Measurement Accuracy: ±2 (calibrated under CIE standard A light source)

Flicker Frequency Measurement Range: 10 - 500HZ

Flicker Frequency Measurement Distance: ≤0.1m

Flicker Frequency Measurement Accuracy: ±5%

Test Light Aperture Diameter: Approx. 10mm / 0.39in, 20mm / 0.79in

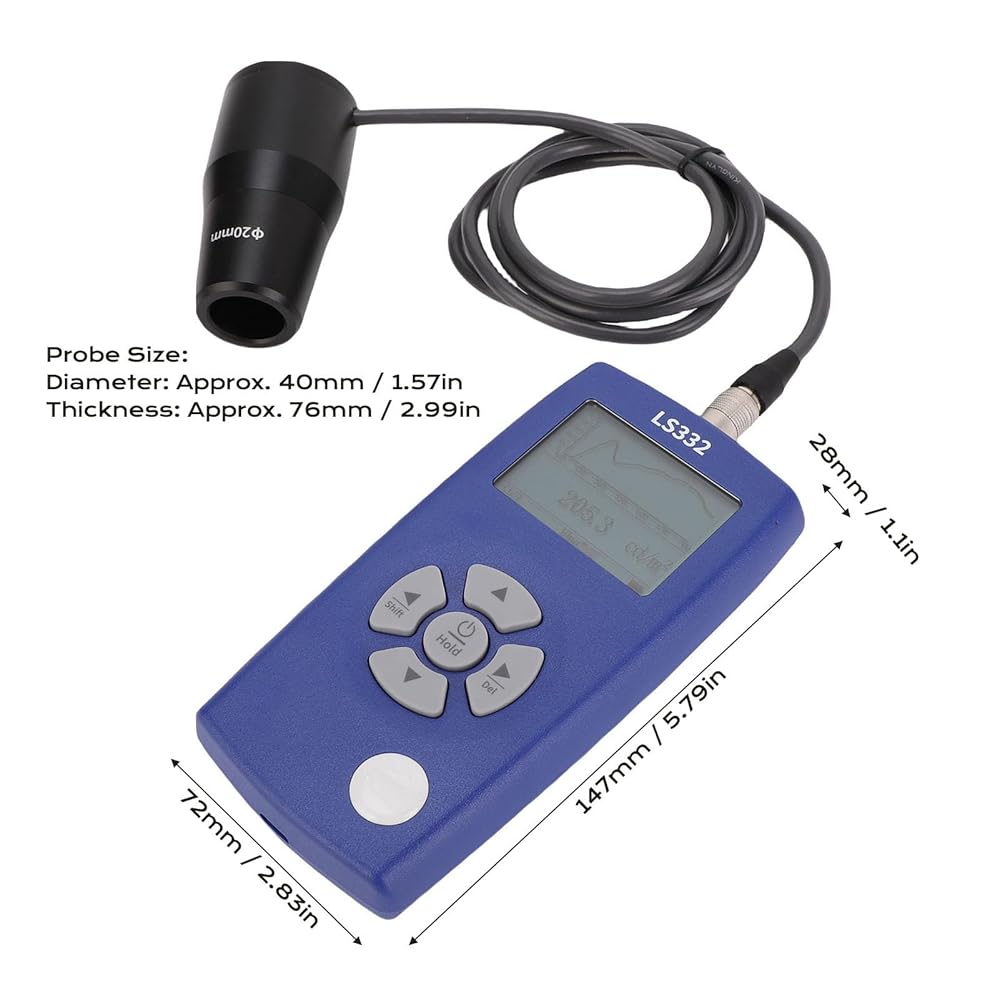

Probe Size:

Diameter: Approx. 40mm / 1.57in

Thickness: Approx. 76mm / 2.99in

Display: 240x160 Dot LCD

Battery: 2 x AA Batteries [Batteries not included]

Operating Environment: Temperature (0 to 40)℃, Humidity

How to Use:

Adjustment by Button

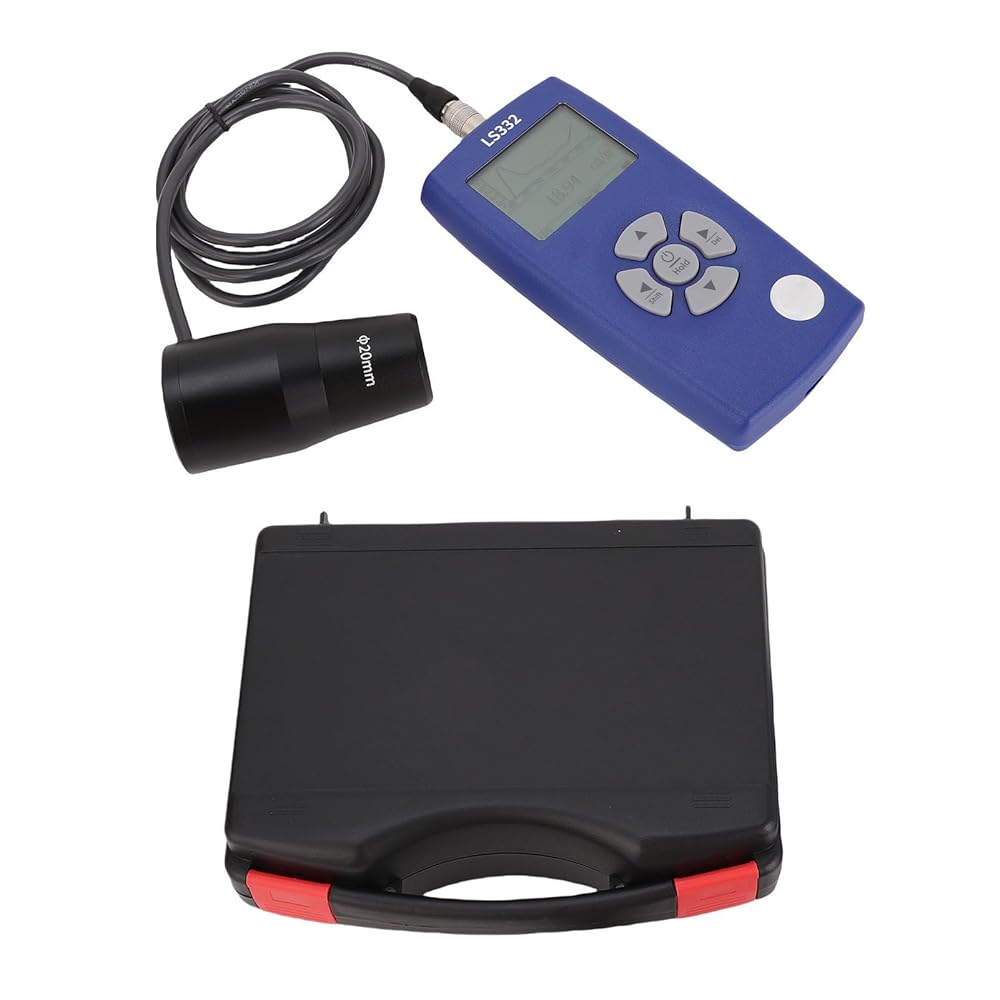

packing list:

1 x Luminance Meter

1 x Test Head

1 x Replacement Test Head

1 x User Manual

1 x Storage Box
