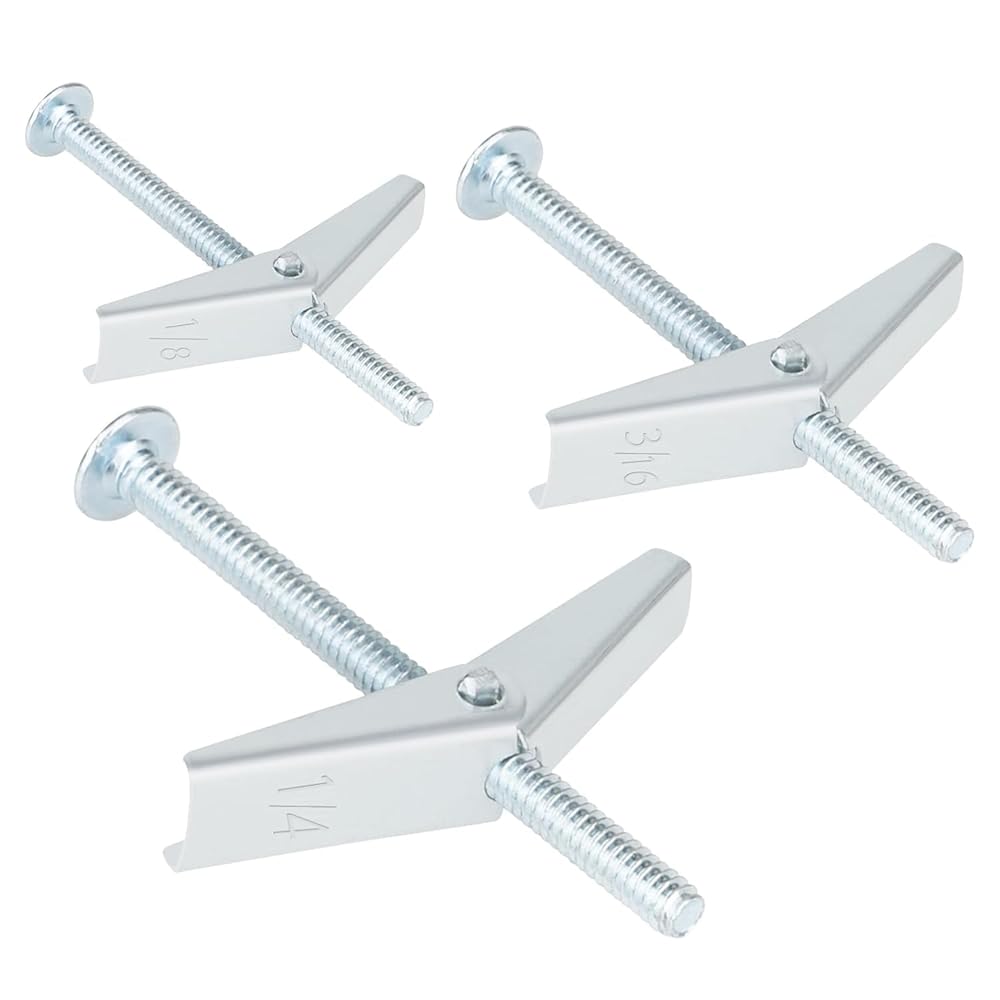

Hollow Wall Toggle Blot Anchors – Zinc Plated Steel Toggle Anchor W/Heavy Gauge Wing & Nut for Fastening into Wallboard Drywall Block and Other Hollow Materials - Wide Bearing Arms (Mix-32Pcs) in Saudi Arabia

Hollow Wall Toggle Blot Anchors – Zinc Plated Steel Toggle Anchor W/Heavy Gauge Wing & Nut for Fastening into Wallboard Drywall Block and Other Hollow Materials - Wide Bearing Arms (1/4" 15Pcs)

SAR 42
Brand
Woyuyanok
Category
Fasteners
– 1 +

Special Features

  • Excellent Fastener Hardwares: Toggle Bolt is an ideal anchor for fastening into any hollow material. This fastener is made out of high quality zinc plated steel, and has wide bearing arms that creates excellent load transfer on the back of the base material.
  • Heavy Duty Toggle Blot Anchors: The Standard Wing Toggle anchor is a two-part hollow wall anchor consisting of a machine bolt and a spring wing toggle. The snap-open action eases installation and spreads the working load over a greater surface area. This can provide better fixed support force
  • Easy Install: 1st, Drill appropriate size hole. 2nd,Insert blot through the fixture and thread into wing. 3rd,Push toggle wing through the drilled hole and fasten tight. Adjustable to accommodate various wall thicknesses
  • Wide Application: These toggle anchors are easy to use and works in a variety of hollow base materials, including hollow wall, gypsum board, drywall, plaster, concrete, wallboard, plywood and ceiling. Either you're installing lighting fixtures, replace curtains for your living space, or DIY picture frames on wall
  • Value Pack: Package includes 15 pcs 1/4 inch toggle blots and 15 pcs 3 inch screws. The pre-drilled hole diameter should be 11/16 inch.
  • NOTE：Always wear safety glasses. Normal safety precautions should be observed when drilling the holes to avoid electrical installations, other utilities and reinforcement bars.

Description

Standard Toggle Bolt

The Standard Wing Toggle anchor is a two-part hollow wall anchor consisting of a machine bolt and a spring wing toggle. The snap-open action eases installation and spreads the working load over a greater surface area. They are designed for use in wallboard/ drywall, block and other hollow base materials.
Product Description
The WOYU Toggle Bolt is an ideal anchor for fastening into any hollow material.

This fastener is made out of high quality zinc plated steel, and has wide bearing arms that creates excellent load transfer on the back of the base material.

________________________________________ WOYU toggle bolt anchors are available in 1/8" to 3/8" diameters and with bolt lengths up to 6".

The truss combination head is suitable for Square socket or slot drivers.
Heavy Duty Nut (IMPROVED wing and spring)
Fully Assembled Unit
Built for Fastening into Hollow Base Materials

Product Specifications
Vendor Part #: tog384

Screw Drive Type: Combination (Phillips/Slotted)
Head Type: Truss (Mushroom)
Material: Steel
Plating: Zinc
Performance Date Allowable Loads (lbs.) - Wallboard Blot Dia. (in.) Drill Bit Dia. (in.) 3/8" Wallboard 1/2" Wallboard 5/8" Wallboard 3/4" Wallboard Tension Shear Tension Shear Tension Shear Tension Shear 1/8" 1/2" 30 30 35 35 45 45 55 55 3/16" 9/16" 35 35 45 45 60 60 70 70 1/4" 11/16" 55 55 60 60 65 65 75 75 3/8" 1" 60 60 65 65 75 75 85 85 *Allowable load capacities are calculated using an applied safety factor of 4:1 Ultimate Loads (lb.) - Wallboard Blot Dia. (in.) Drill Bit Dia. (in.) 3/8" Wallboard 1/2" Wallboard 5/8" Wallboard 3/4" Wallboard Tension Shear Tension Shear Tension Shear Tension Shear 1/8" 1/2" 120 120 140 140 180 180 220 220 3/16" 9/16" 140 140 180 180 240 240 280 280 1/4" 11/16" 220 220 240 240 260 260 300 300 3/8" 1" 240 240 260 260 300 300 340 340 *Allowable load capacities are calculated using an applied safety factor of 4:1 Ultimate and Allowable Loads(lbs.) - Hollow Concrete Masonry Blot Dia. (in.) Drill Bit Dia. (in.) 1,500 psi 　 Tension Shear Tension Shear 1/8" 1/2" 45 40 180 160 3/16" 9/16" 55 60 220 240 1/4" 11/16" 65 125 260 500 3/8" 1" 130 150 520 600 *Allowable load capacities are calculated using an applied safety factor of 4:1
