بيت / WENBIXIA / منتجات الحركة الخطية

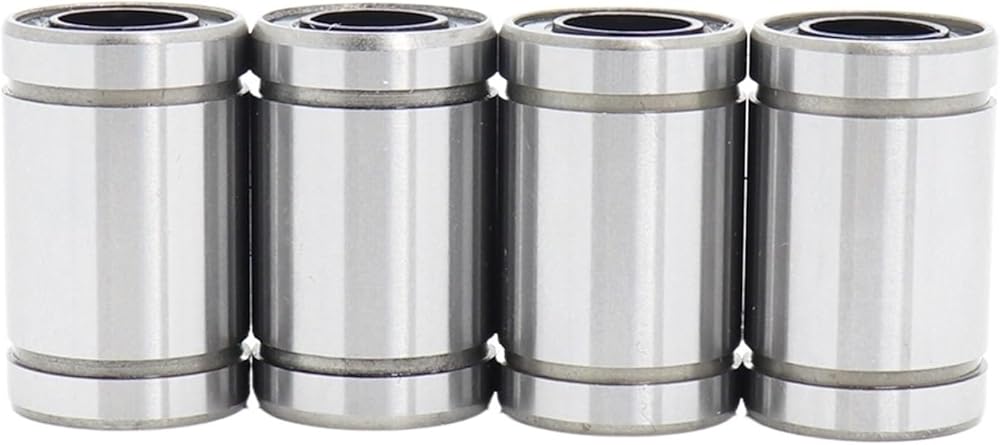

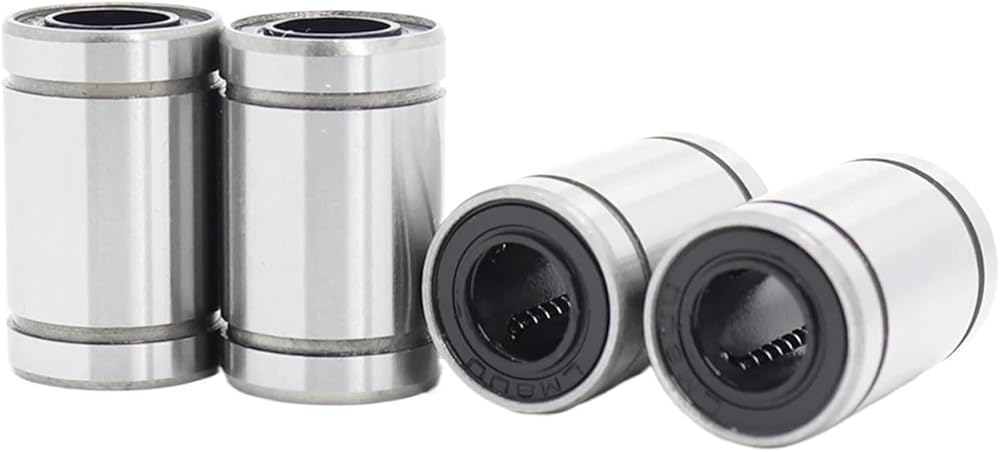

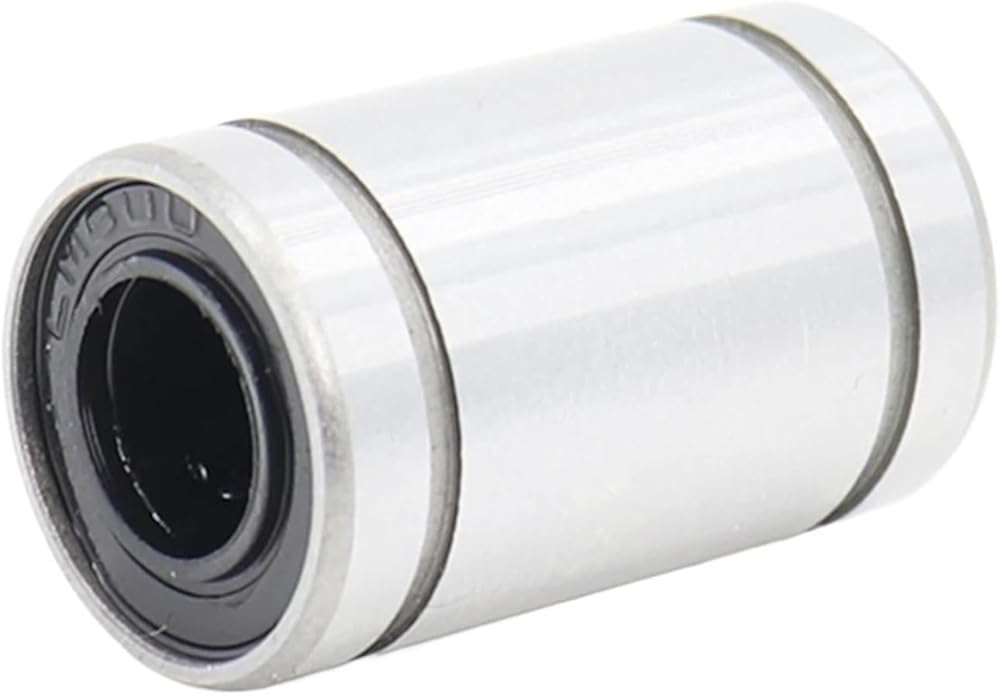

LM40UU محامل الحركة الخطية 40 * 60 * 80 مم (2 قطعة) محامل خطية قياسية LM40 LM 40 مم LM40 UU in Saudi Arabia LM40UU محامل الحركة الخطية 40 * 60 * 80 مم (2 قطعة) محامل خطية قياسية LM40 LM 40 مم LM40 UU in Saudi Arabia LM40UU محامل الحركة الخطية 40 * 60 * 80 مم (2 قطعة) محامل خطية قياسية LM40 LM 40 مم LM40 UU in Saudi Arabia

LM40UU محامل الحركة الخطية 40 * 60 * 80 مم (2 قطعة) محامل خطية قياسية LM40 LM 40 مم LM40 UU

SAR 199
SAR 318
ماركة
WENBIXIA
وزن
200 g
– 1 +

مميزات خاصة

  • 1.Linear bearings are part of linear motion systems, often used in conjunction with cylindrical shafts or guideways
  • 2.The linear bearing has good hardness and abrasion resistance, can provide stable and reliable operation under various working conditions.
  • 3.Low noise, smooth movement, low friction, high rigidity, and long service life.
  • 4.Have precise dimensions and manufacturing processes to provide highly consistent motion.This allows the bearings to provide smooth, shock-free motion, reducing energy losses and improving overall operating efficiency.
  • 5.Widely used in linear motion, linear tables, 3D printers, machines, equipment, food machinery, packaging machinery etc.

وصف

Structure and Features
Linear Bushing model LM is a linear motion used in combination with a cylindrical LM shaft to perform infinite straight motion. The balls in the loaded area of the nut are in point contact with the LM shaft. This allows straight motion with minimal friction resistance and achieves and smooth motion despite the small permissible load.

Details
Model:LM40UU
Number of Ball Rows: 6
Inner diameter: 40 mm
Outside diameter: 60 mm
Length: 80 mm
Dynamic Cr: 220 kgf
Static Cor: 410 kgf
Weight: 589 g
Quantity: 1 Lot = 2 PCS
