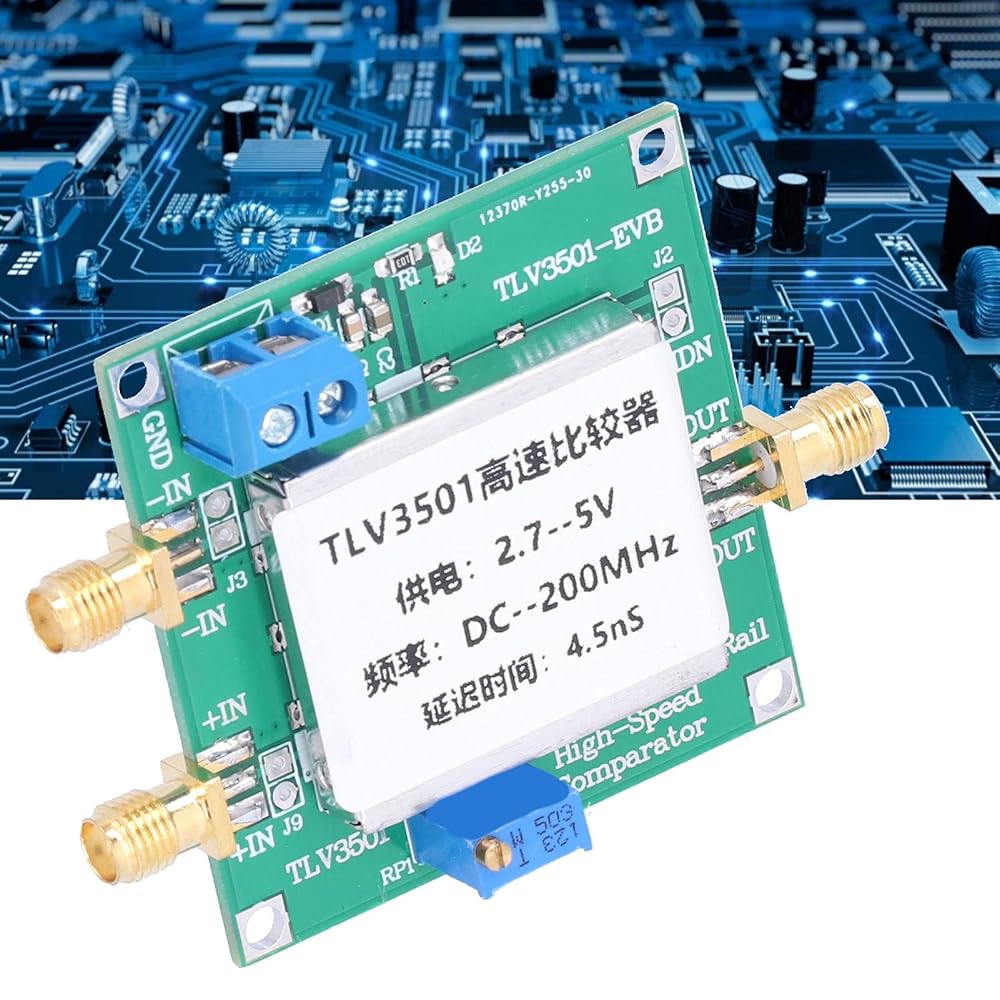

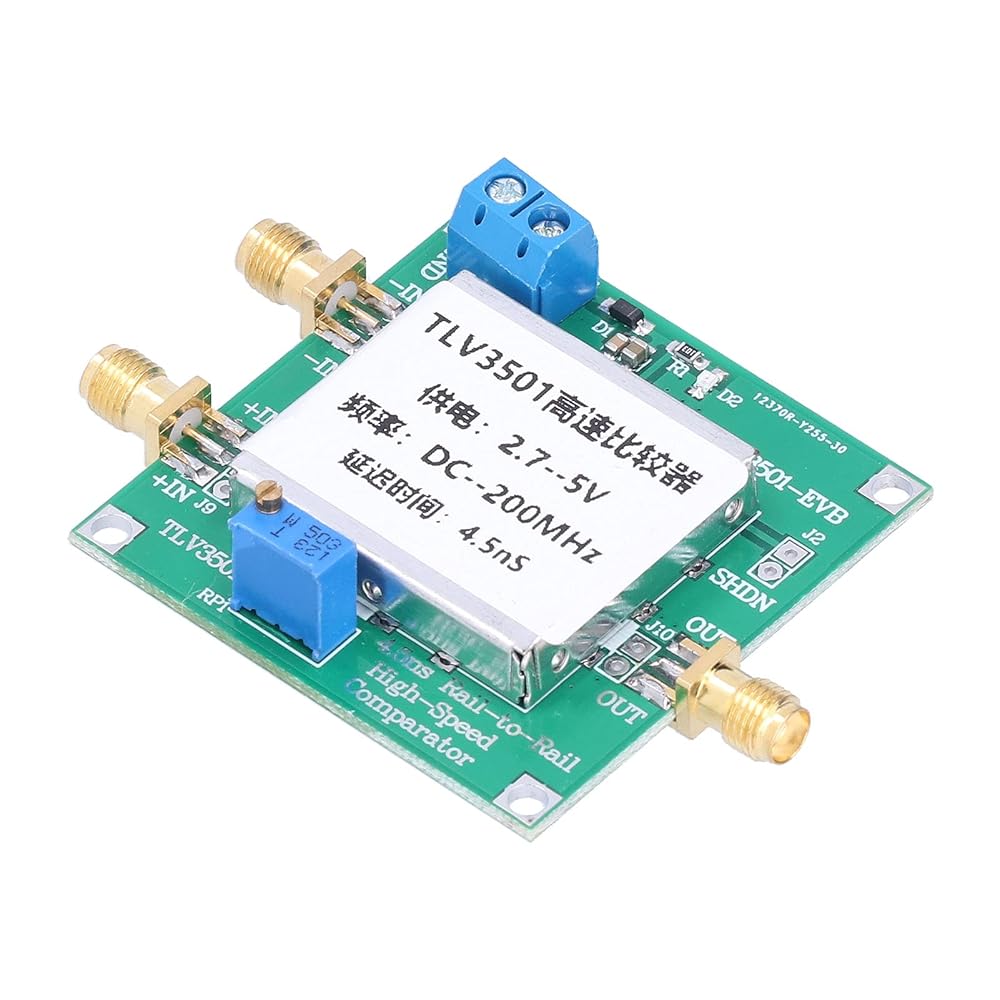

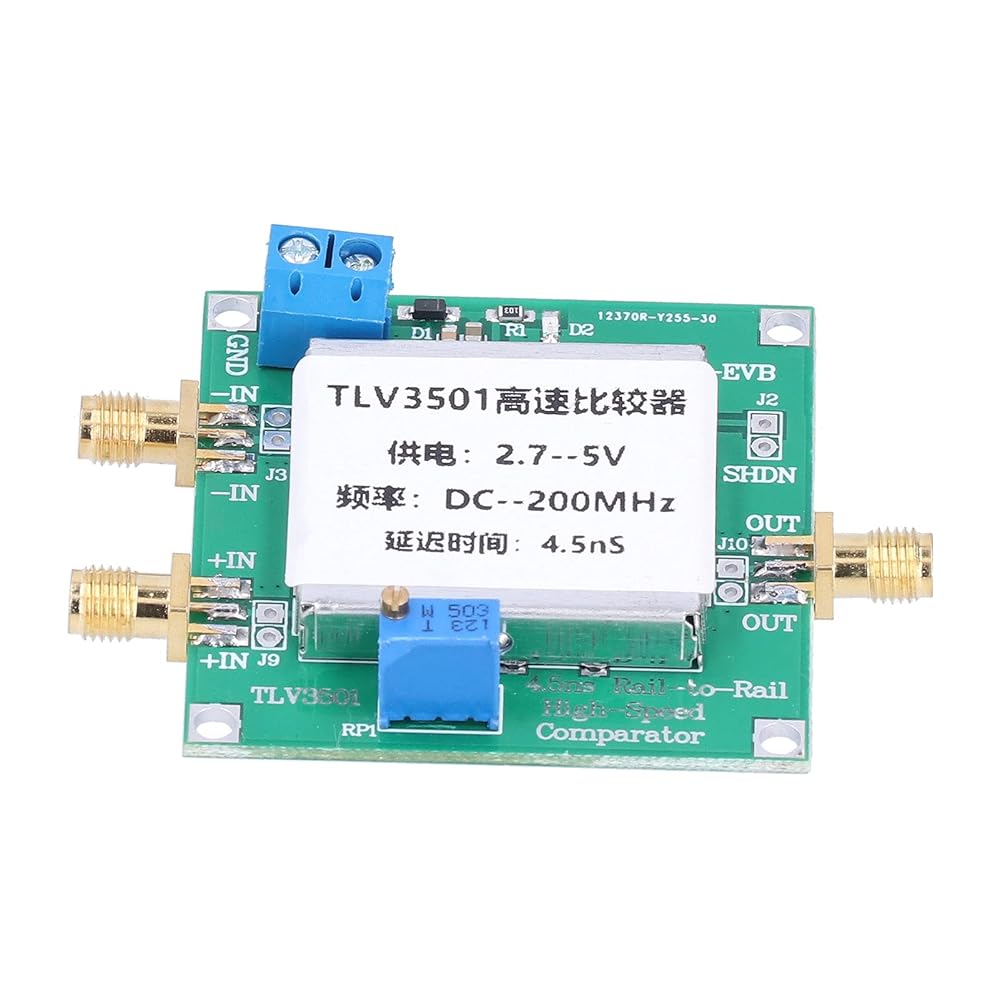

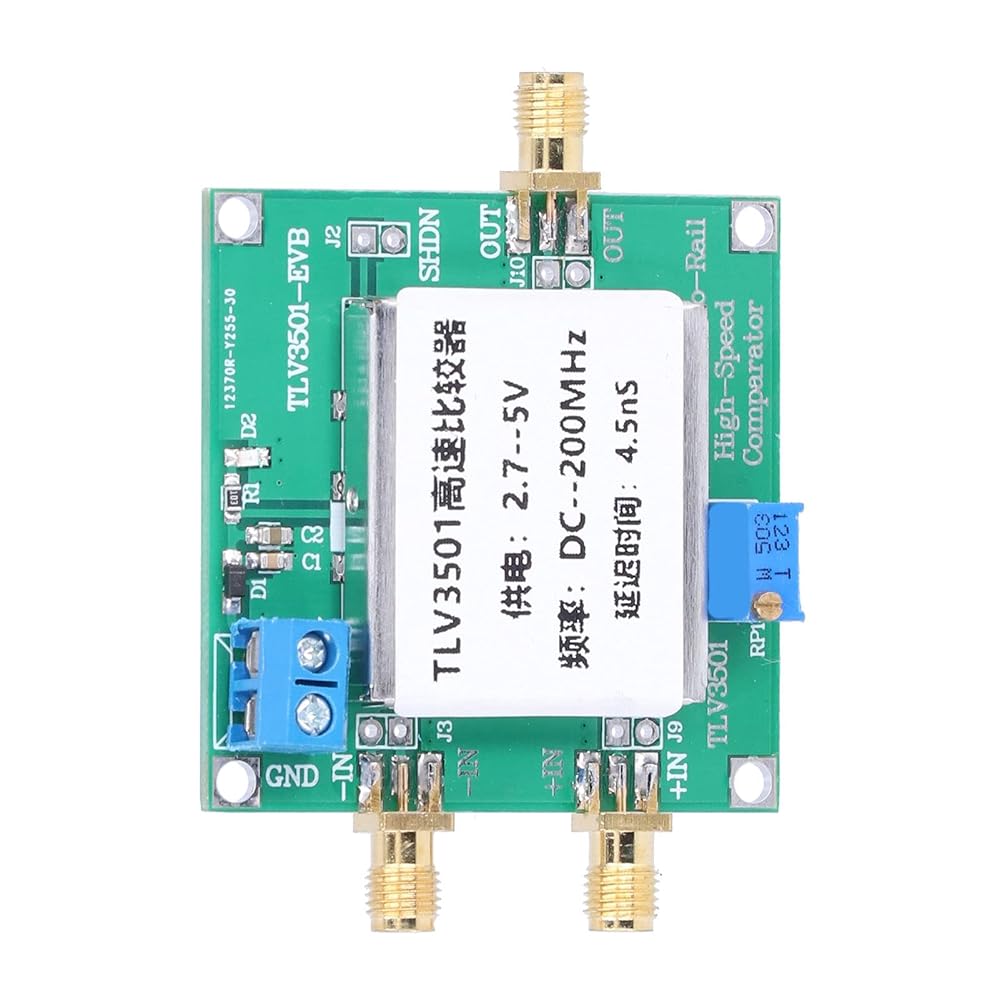

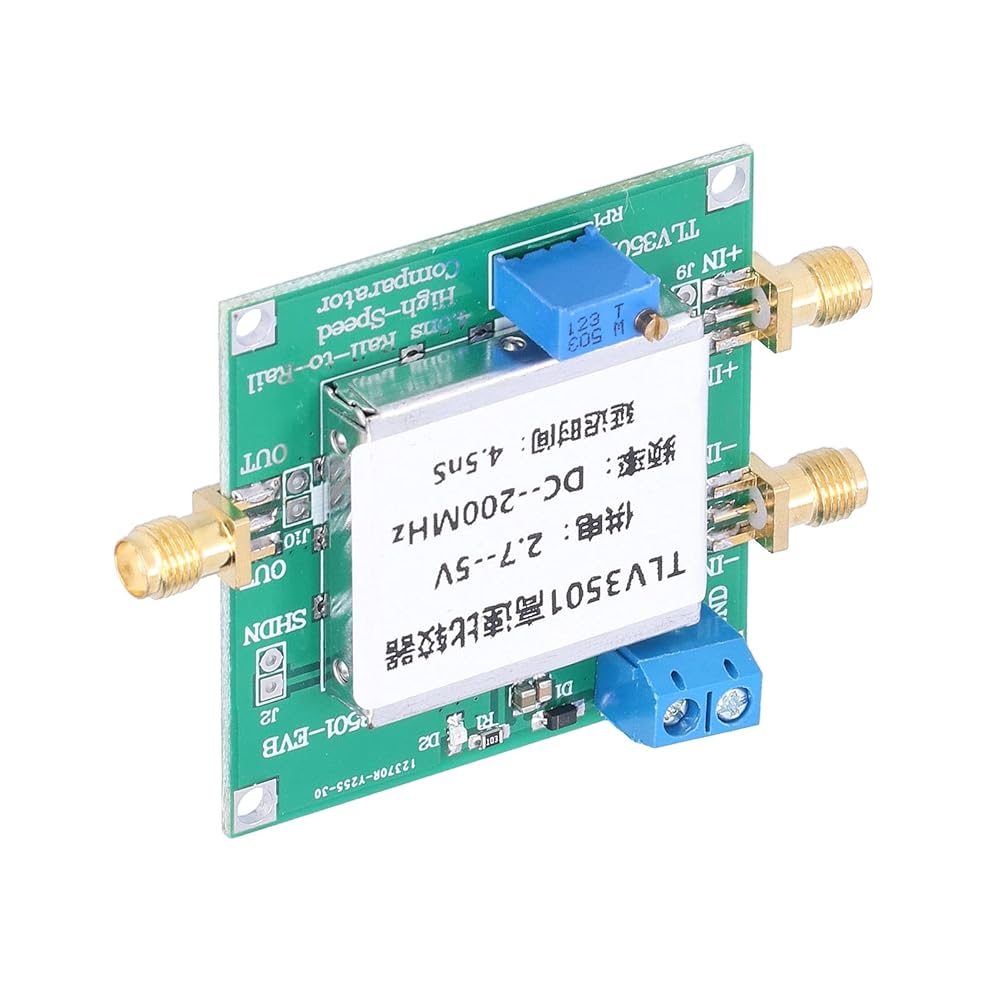

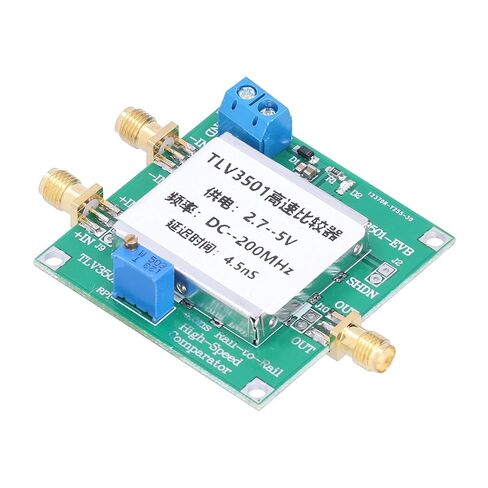

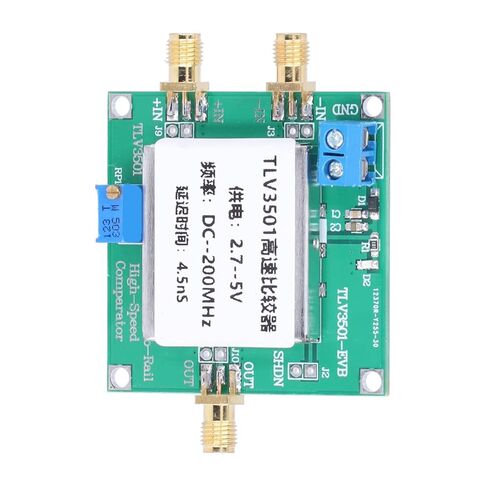

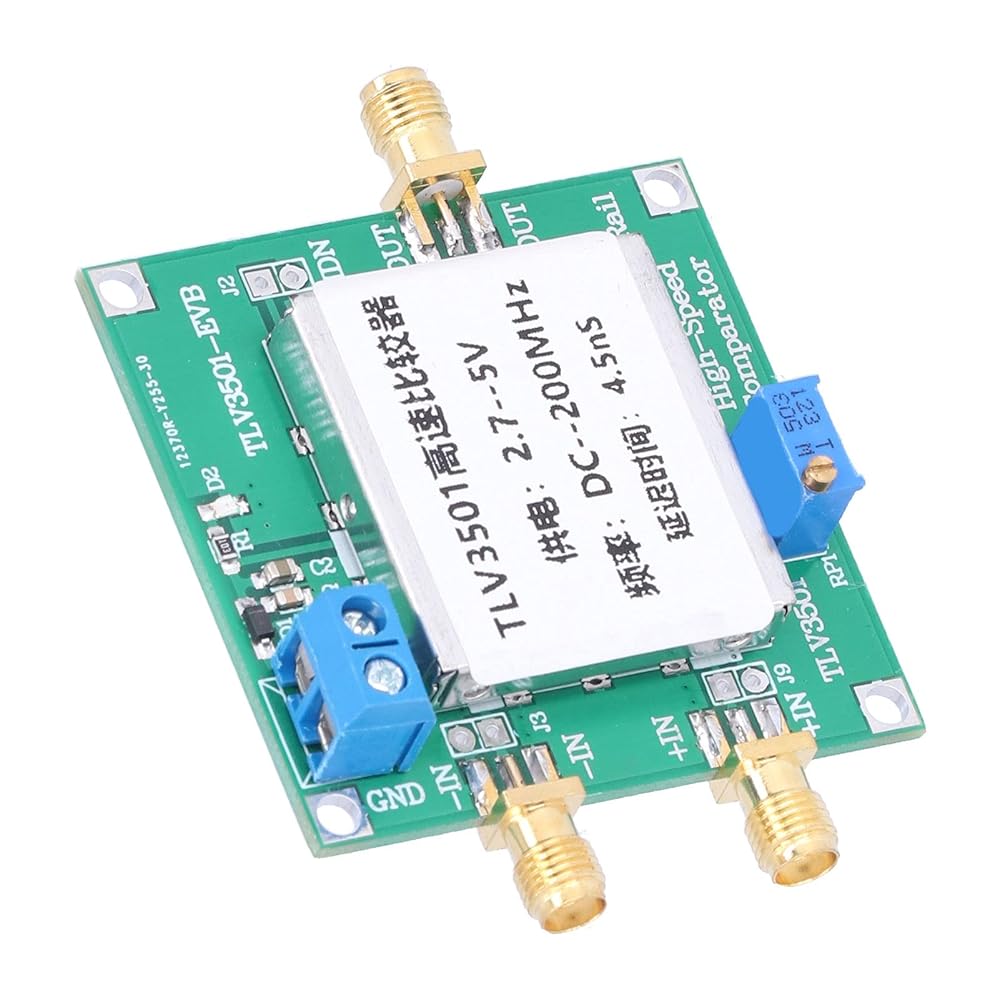

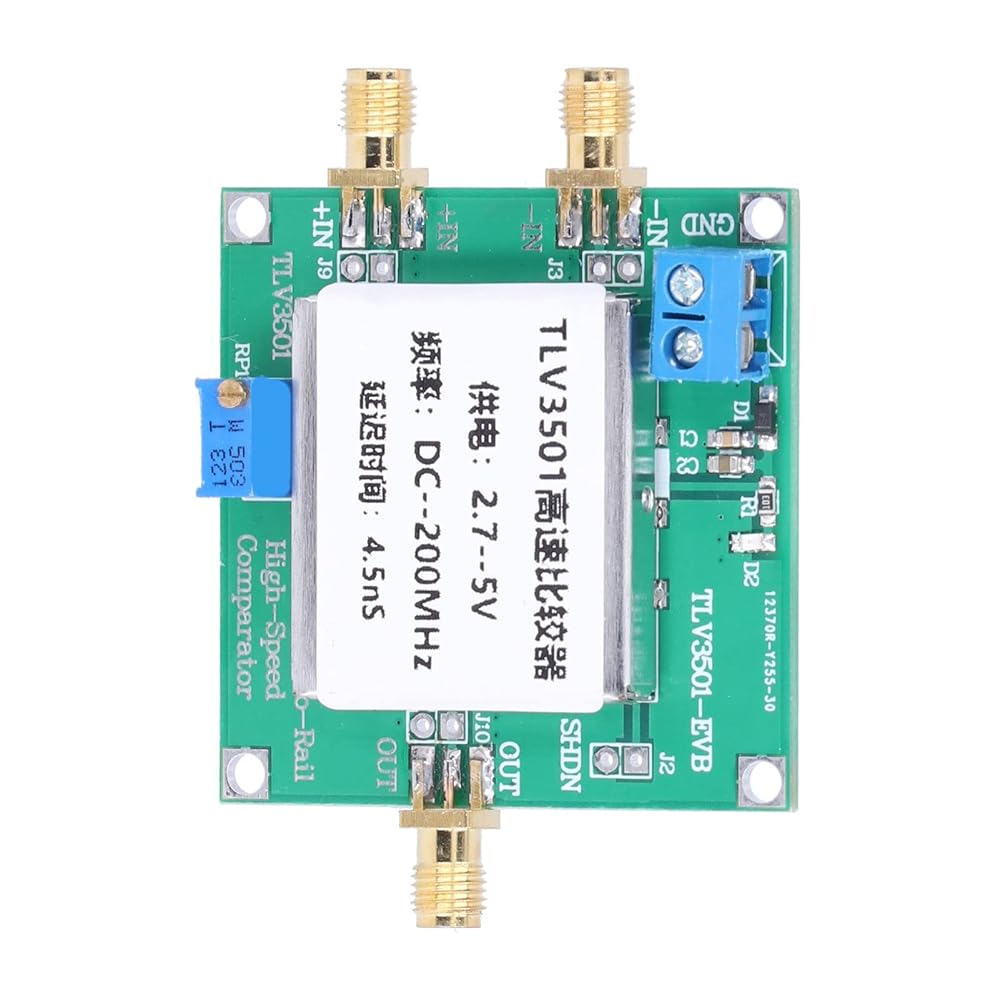

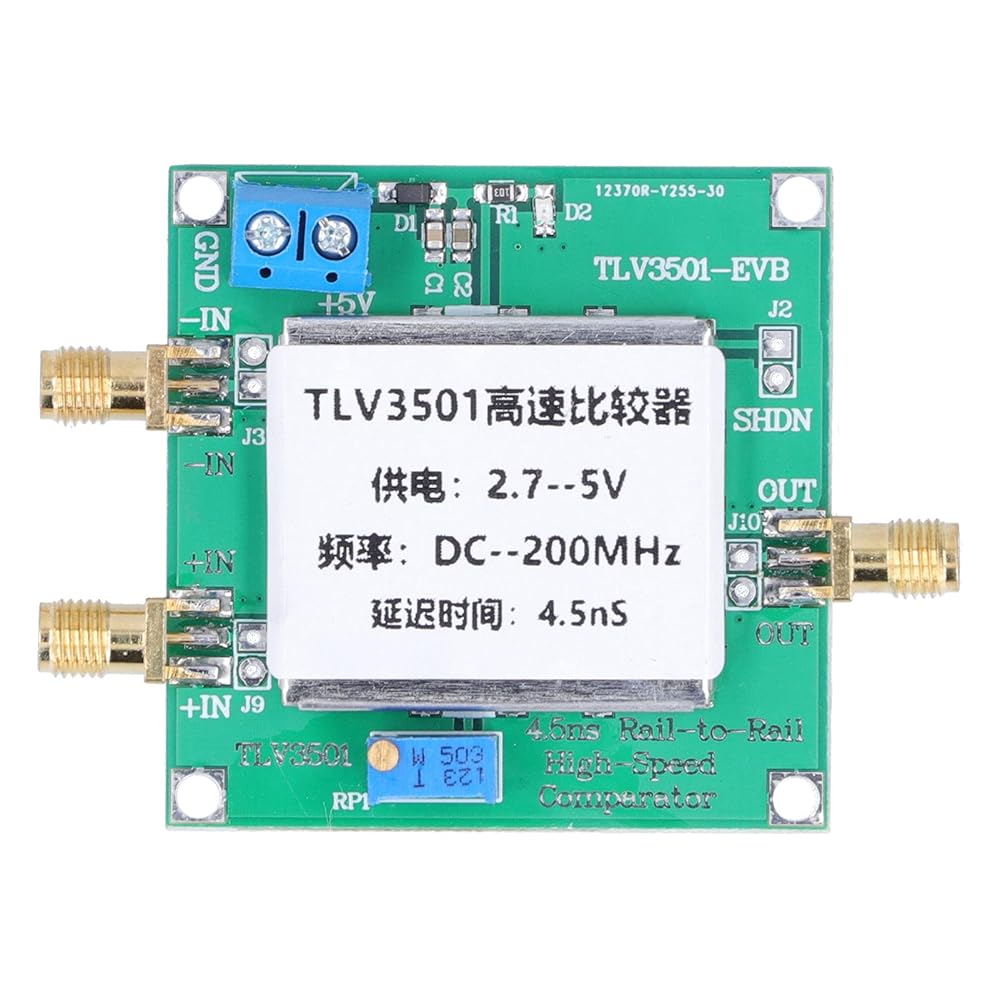

High Speed Comparator Module Wide Voltage TLV3501 Signal Shaping Circuit Digital Control Board for Frequency Meter Phase Measurement PCB Component

SAR 87
Brand
Cloimei
Weight
22 g
– 1 +

Special Features

  • [PRECISION SIGNAL PROCESSING] Our high-speed comparator delivers superior signal shaping with an impressive input range of 10-1000mV and frequency handling up to 200MHz DC. The advanced circuit design ensures accurate waveform conversion, making it for sensitive measurement applications where signal integrity is crucial.
  • [VERSATILE VOLTAGE COMPATIBILITY] Designed for broad compatibility, this module operates flawlessly across 2.7-5VDC while maintaining. The intelligent voltage adaptation system automatically adjusts to your power requirements, eliminating the need for additional regulation components in your circuit design.
  • [INDUSTRY-LEADING PERFORMANCE] Featuring a 50-ohm input impedance and SMA female interface, our comparator provides professional-grade signal transmission with minimal loss. The rail-to-rail output capability directly drives TTL/CMOS levels, simplifying your system integration while maintaining signal clarity.

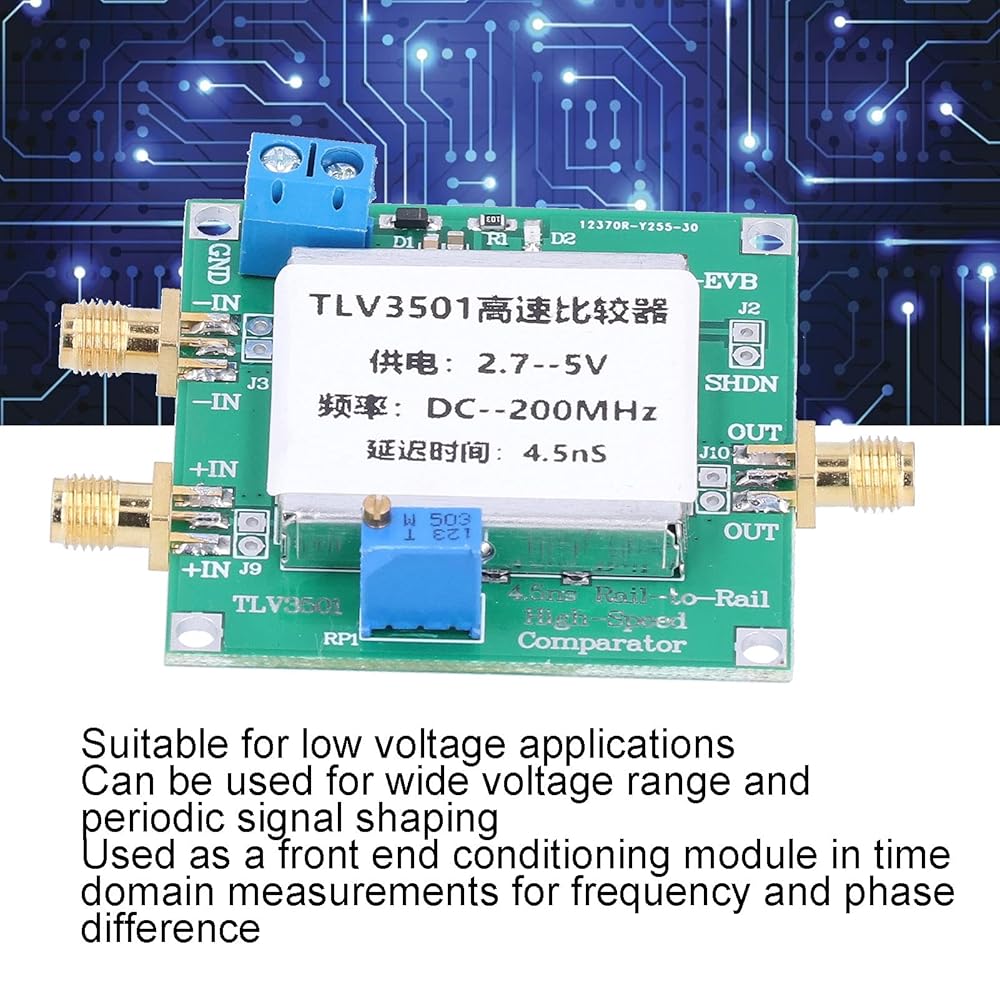

  • [TIME DOMAIN MEASUREMENT SOLUTION] Specially engineered for frequency and phase difference analysis, this front-end module delivers precise time-domain measurements. The optimized PCB layout reduces noise interference, ensuring reliable operation even in complex electronic environments with multiple signal sources.
  • [ROBUST PROTECTION DESIGN] Built with multiple safeguards including overload, overvoltage, and overcurrent protection circuits. The durable PCB construction withstands rigorous use while maintaining consistent performance, making it a dependable choice for both laboratory and industrial applications.

Description

Item Type: High Speed Comparator
Material: PCB
Model: for TLV3501
1. Power Supply Voltage: 2.7-5VDC
2. Input Voltage: 10-1000mV (Effective Value)
3. Output Level: Rail-to-rail Output, Can Directly Drive TTL / CMOS Level
4. Input Frequency: DC--200MHz
5. Interface Form: SMA Female
6. Input Impedance: 50 Ohms

Package List：
1 x

High Speed Comparator
Note:
1 Don't overload use
2 Do not use over pressure
3 Do not use over current
