Descriptions:

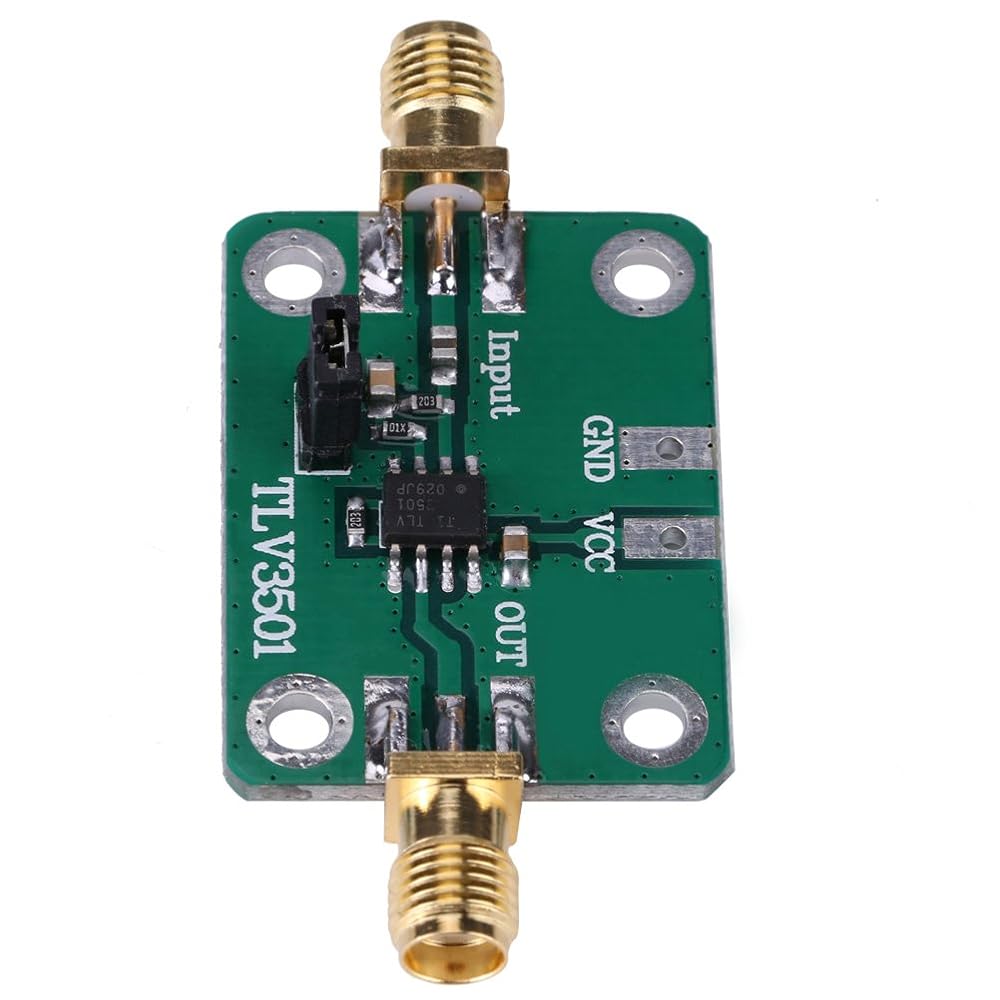

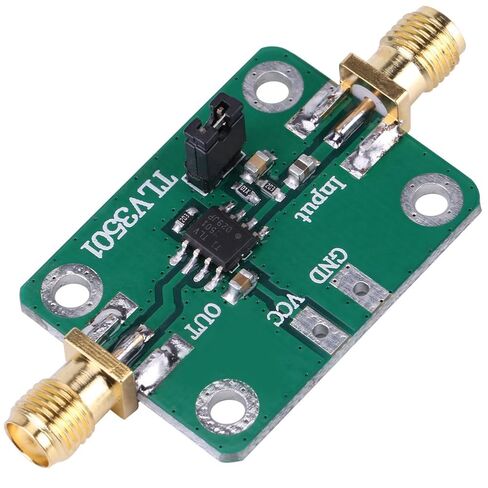

TLV3501 is a single-channel high-speed push-pull output comparator, delay is 4.5ns, supply voltage: + 2.7V to + 5.5V, has exceeded swing input common-mode range makes it ideally suited for low voltage applications. Rail-to-rail output can directly drive a CMOS or TTL logic. This module can be for a wide range of voltage signal shaping period, as the frequency, phase difference time domain measurements and other front-end conditioning module, can be used as the 2015 National Undergraduate Electronic Design Contest F digital frequency meter title front-end module.

Features:
TLV3501 is a single-channel high-speed push-pull output comparator, delay is 4.5ns, supply voltage: + 2.7V to + 5.5V.
This module can be for a wide range of voltage signal shaping period, as the frequency, phase difference time domain measurements and other front-end conditioning module.
Rail-to-rail output can directly drive a CMOS or TTL logic.

Without threshold setting, the sine wave, square wave and triangular wave can be transformed into square wave, which can be used easily without debugging.
At the same time, it has great extensibility, just change a small amount of the original.

Specifications:
Power supply voltage: 2.7-5VDC
Input voltage: 8-1000mV (effective value)
Output level: rail to rail output, can directly drive TTL/CMOS level
Input frequency: 1Hz-- 120MHz, Min.1Hz

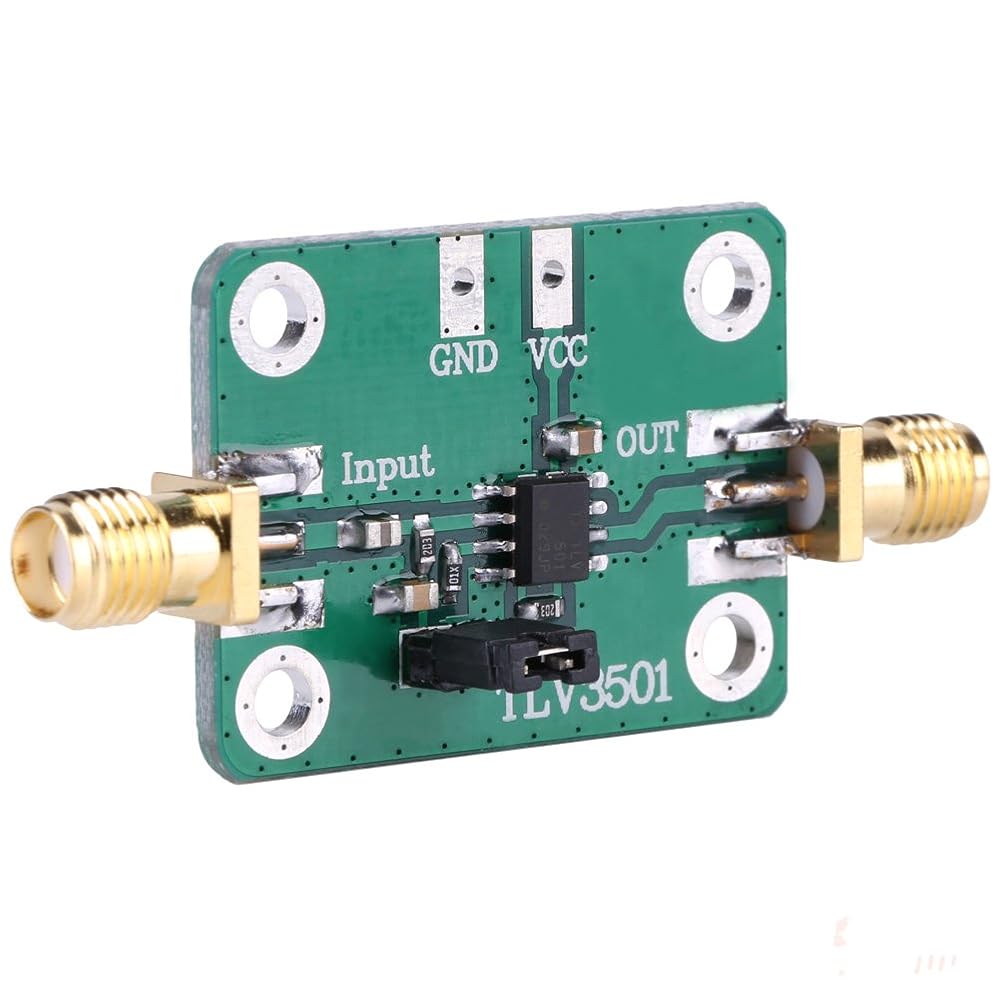

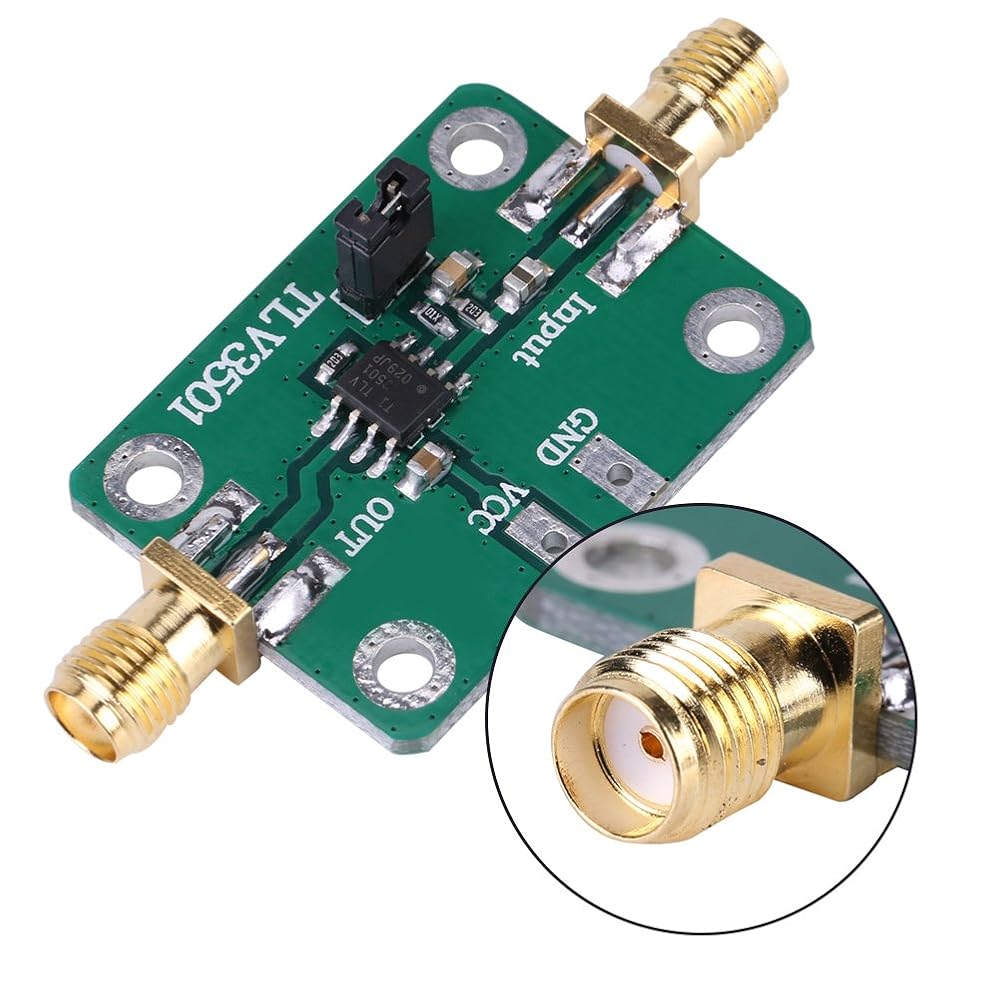

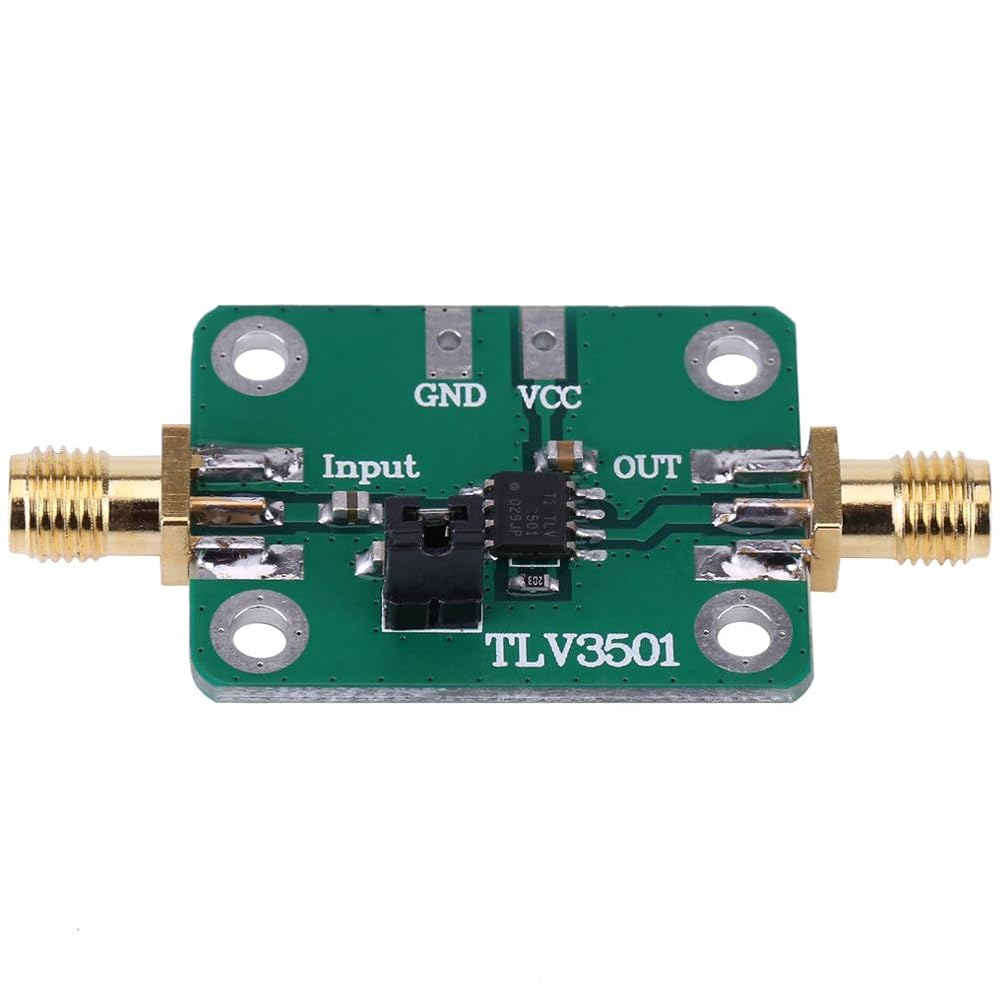

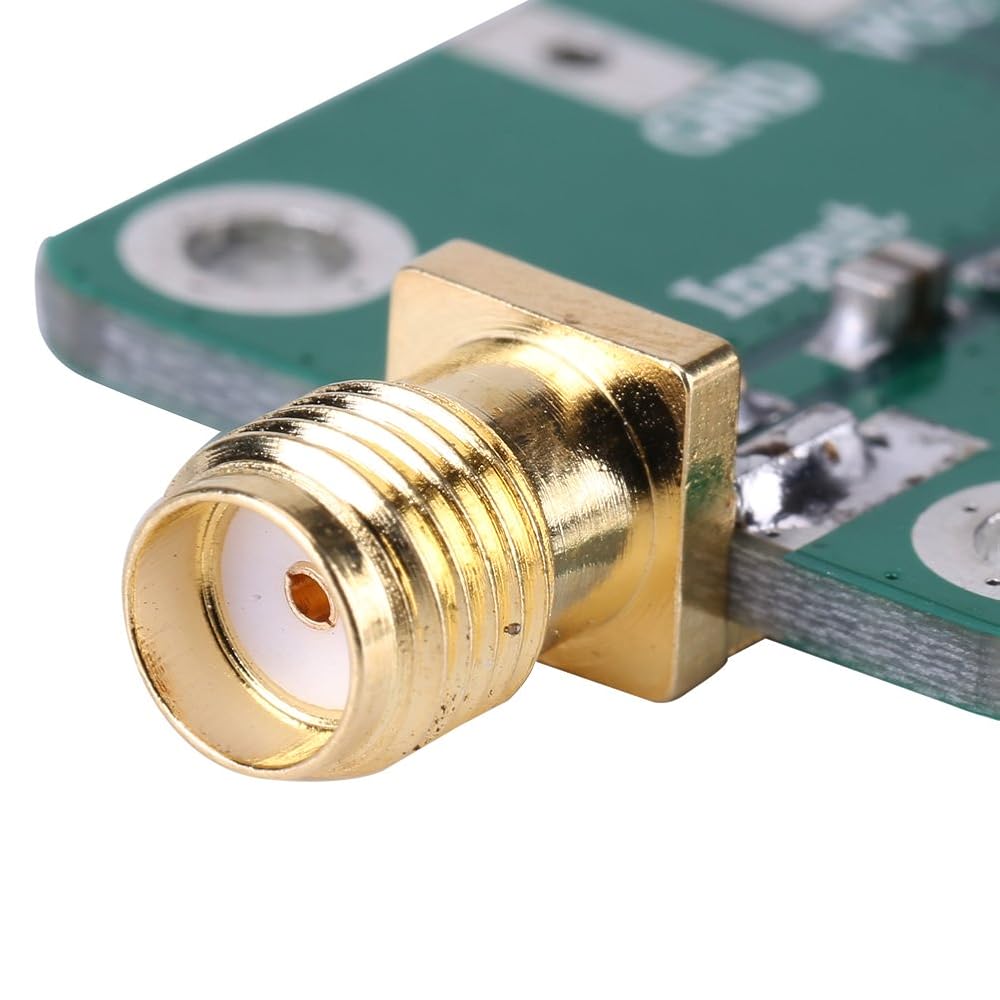

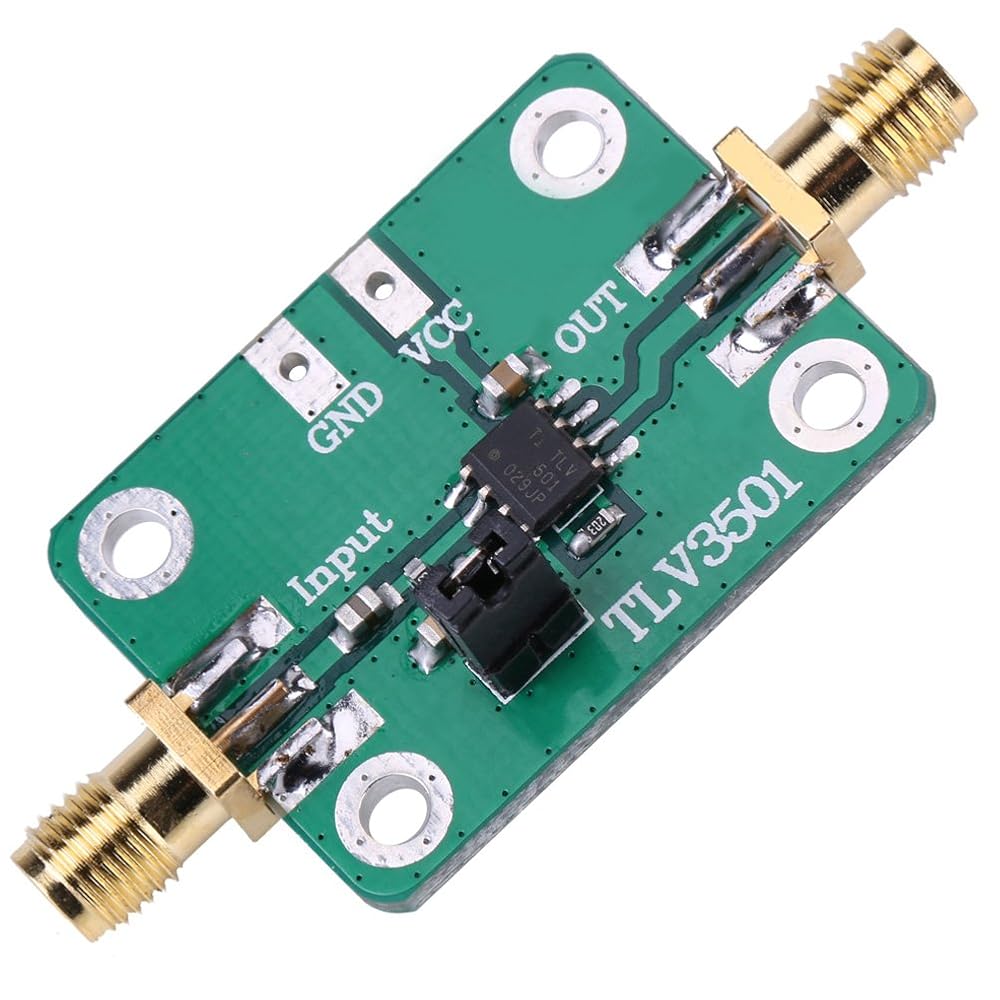

Interface form: SMA female head (external screw hole)
Input impedance: 20K ohm

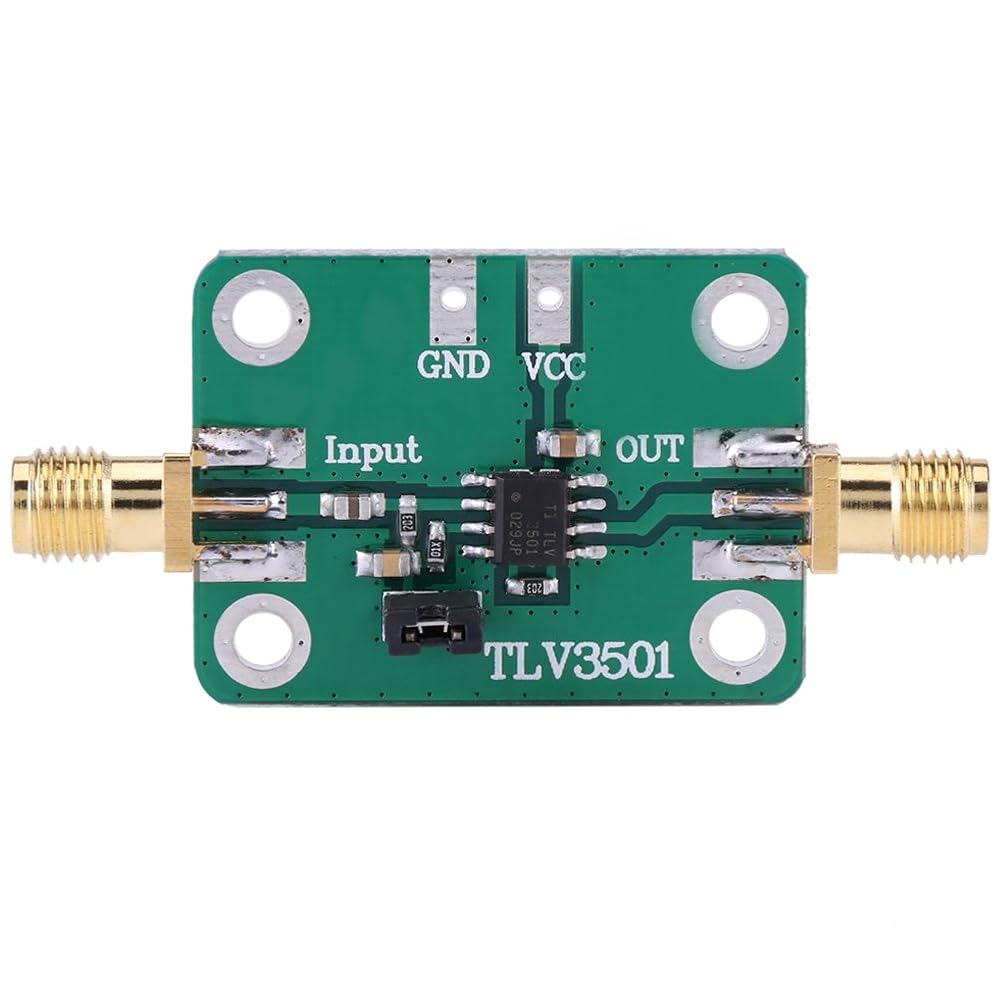

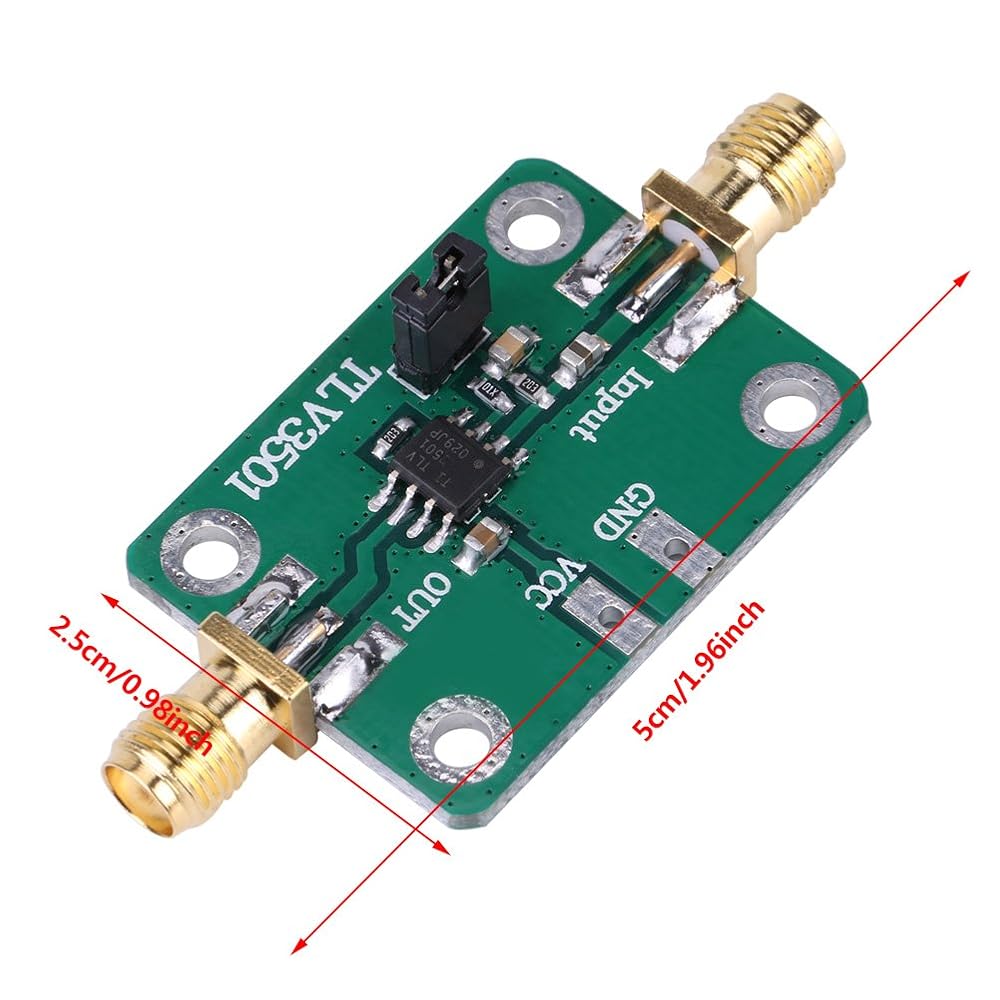

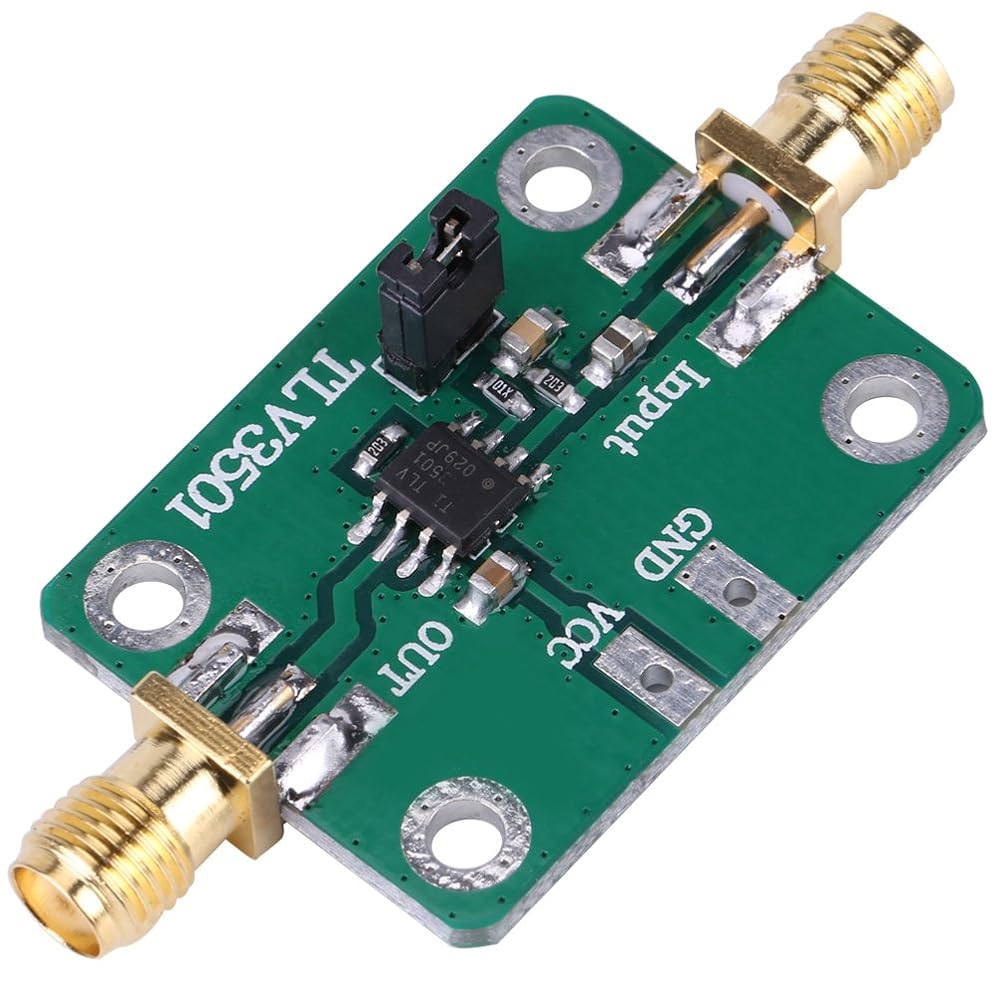

Size: 5 x2.5cm/1.96 x 0.98inch

Weight: 8g

Product Use:
1. Sine wave to square wave
2. The zero-crossing comparator
3. Universal comparator

Package Included:
1 x Frequency Meter Front Shaping Module
