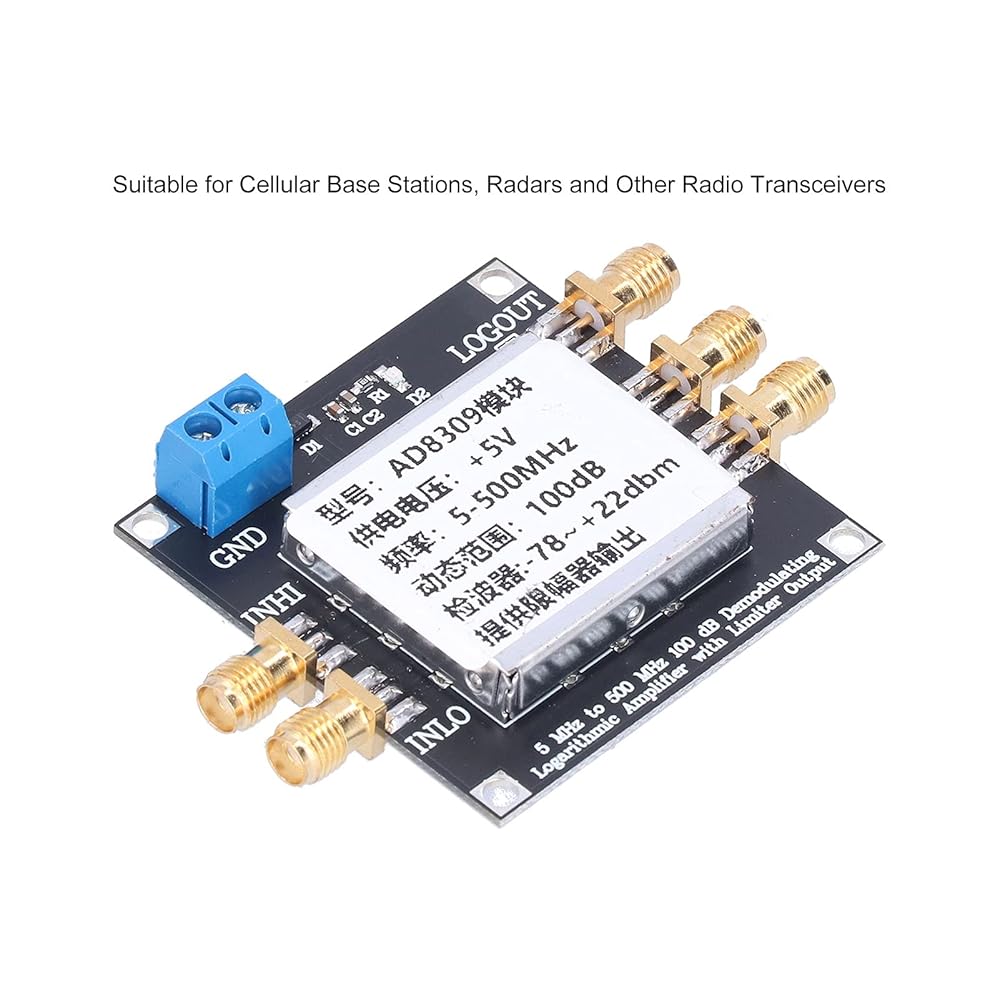

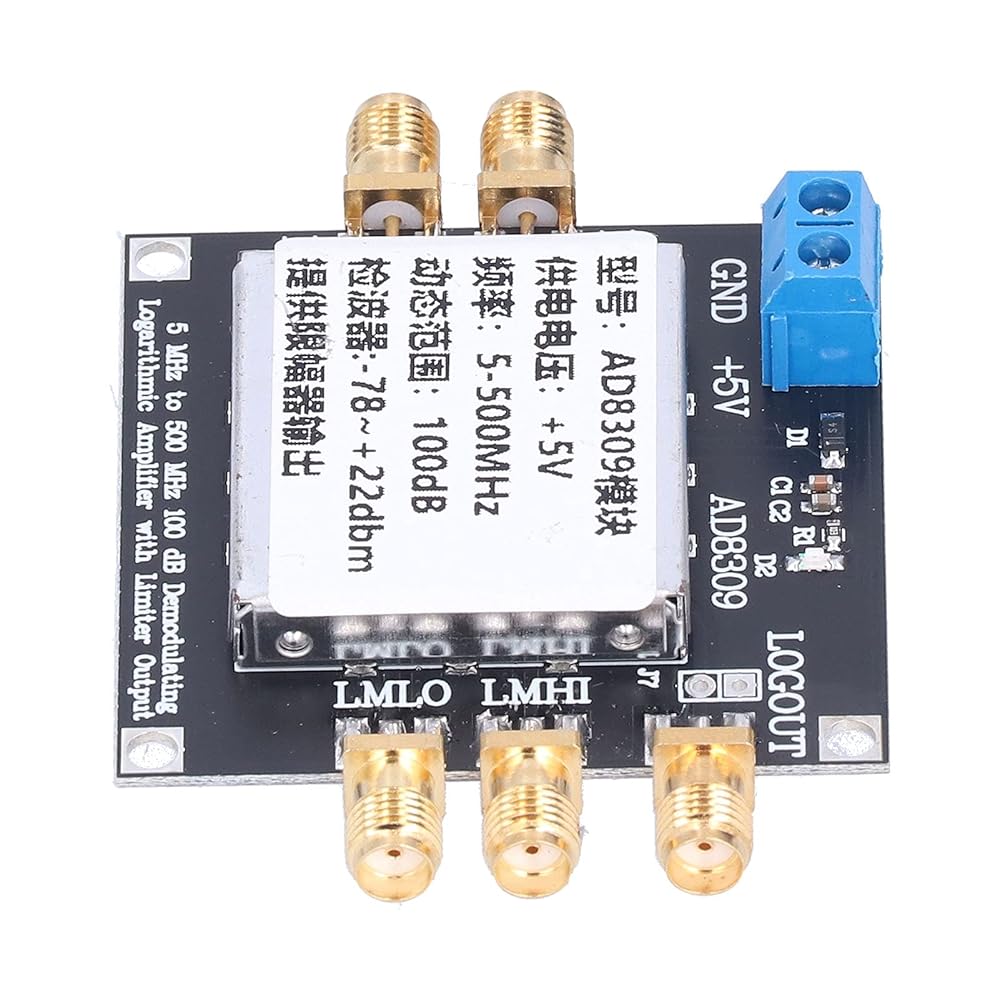

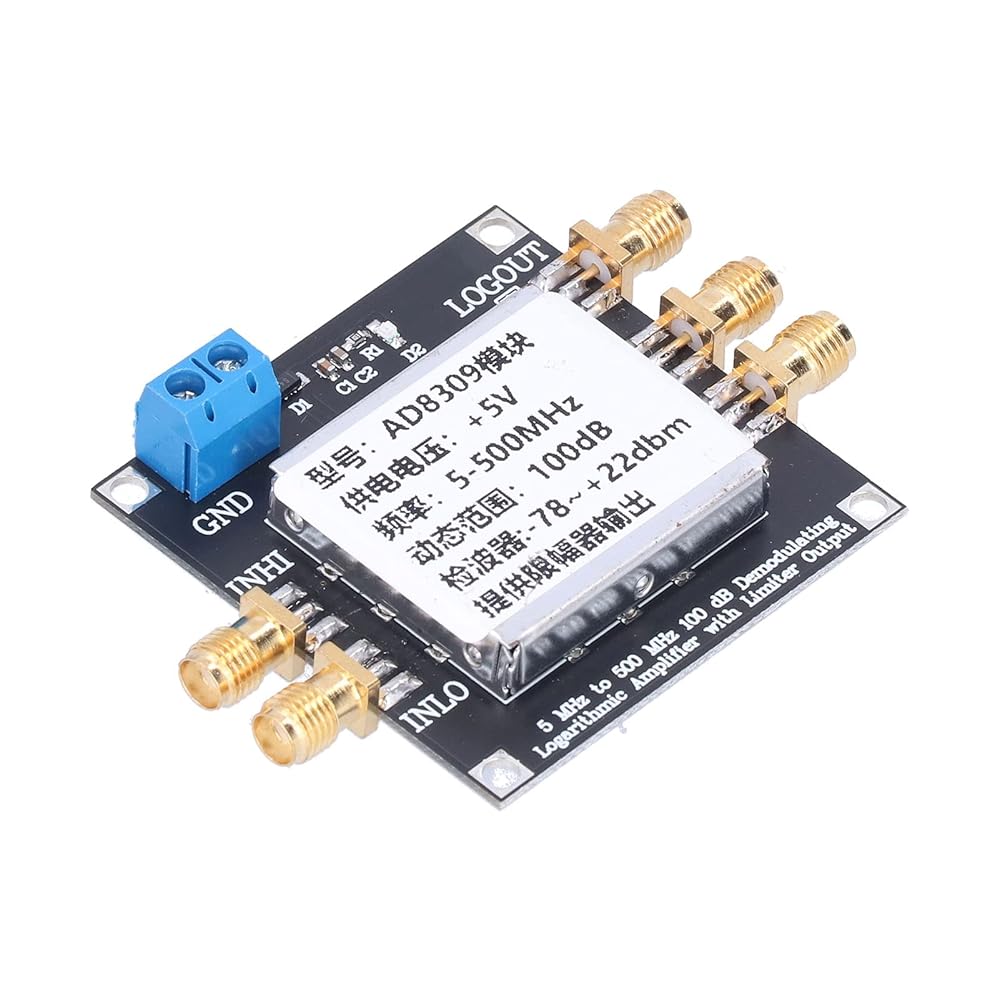

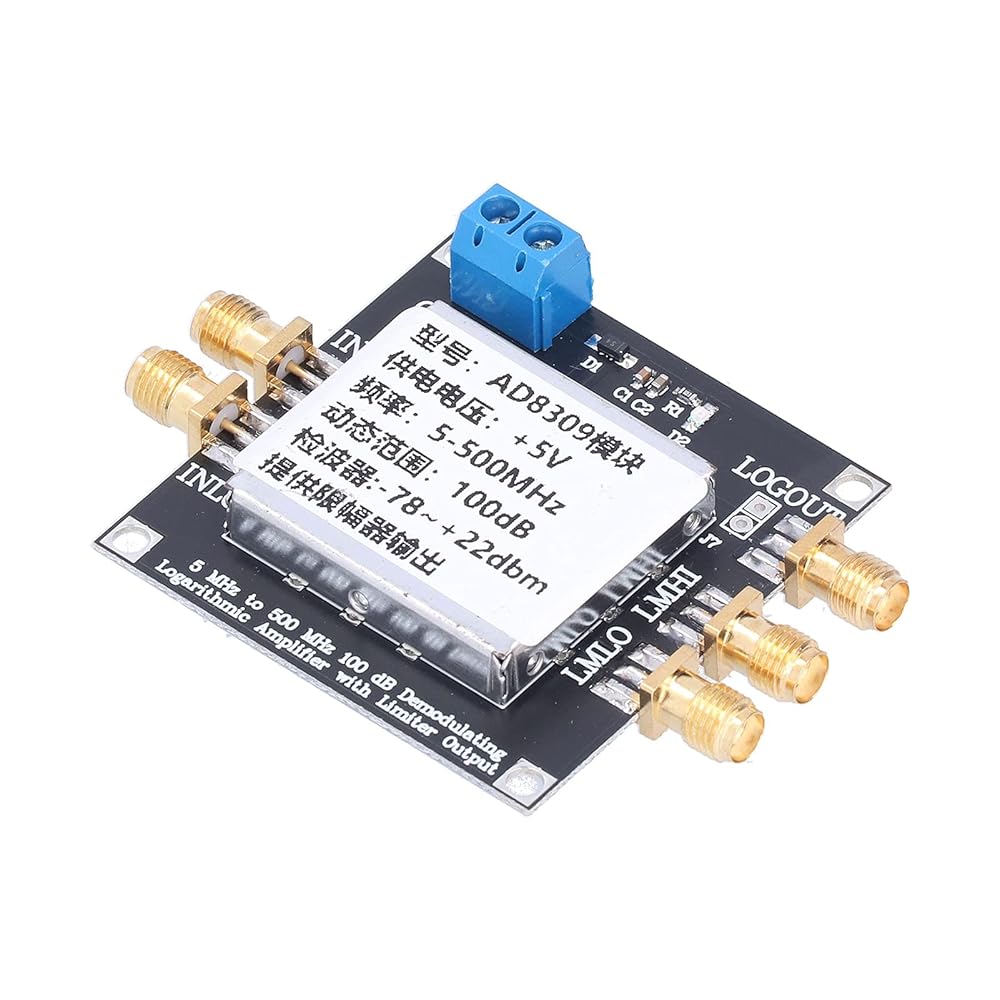

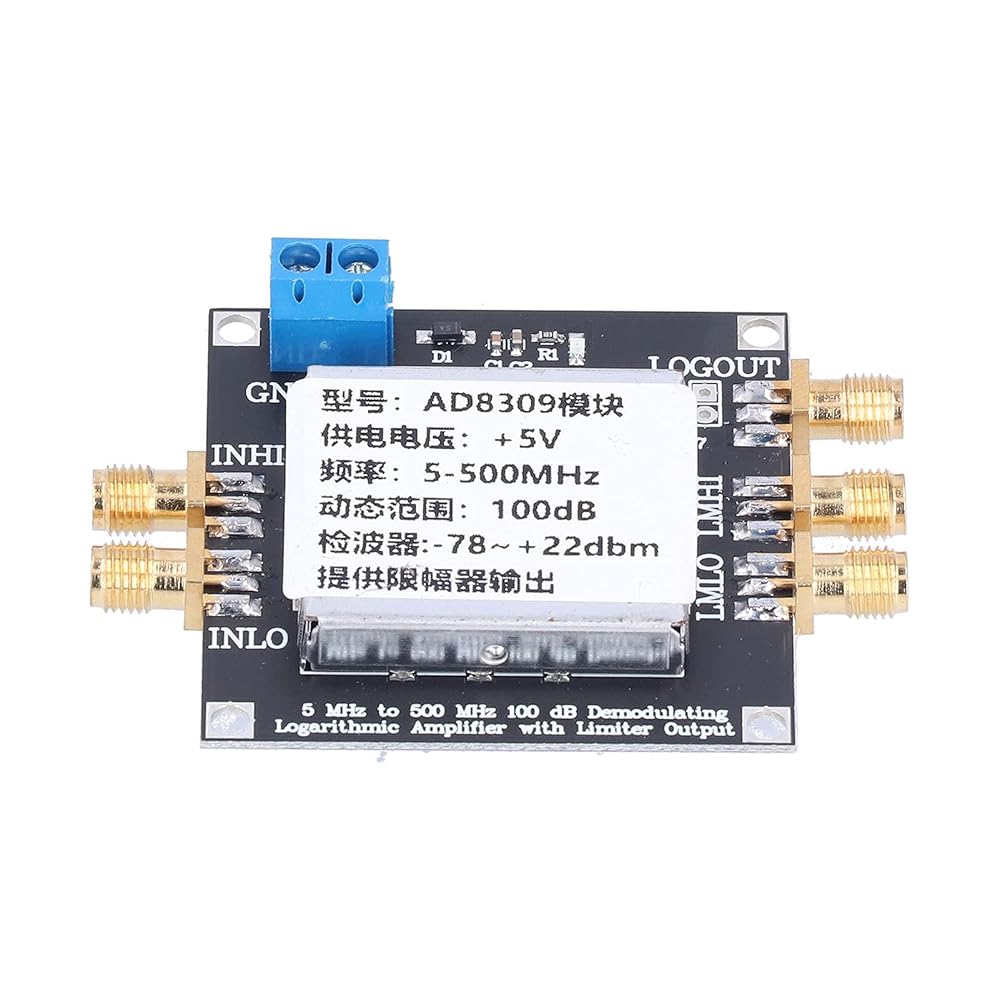

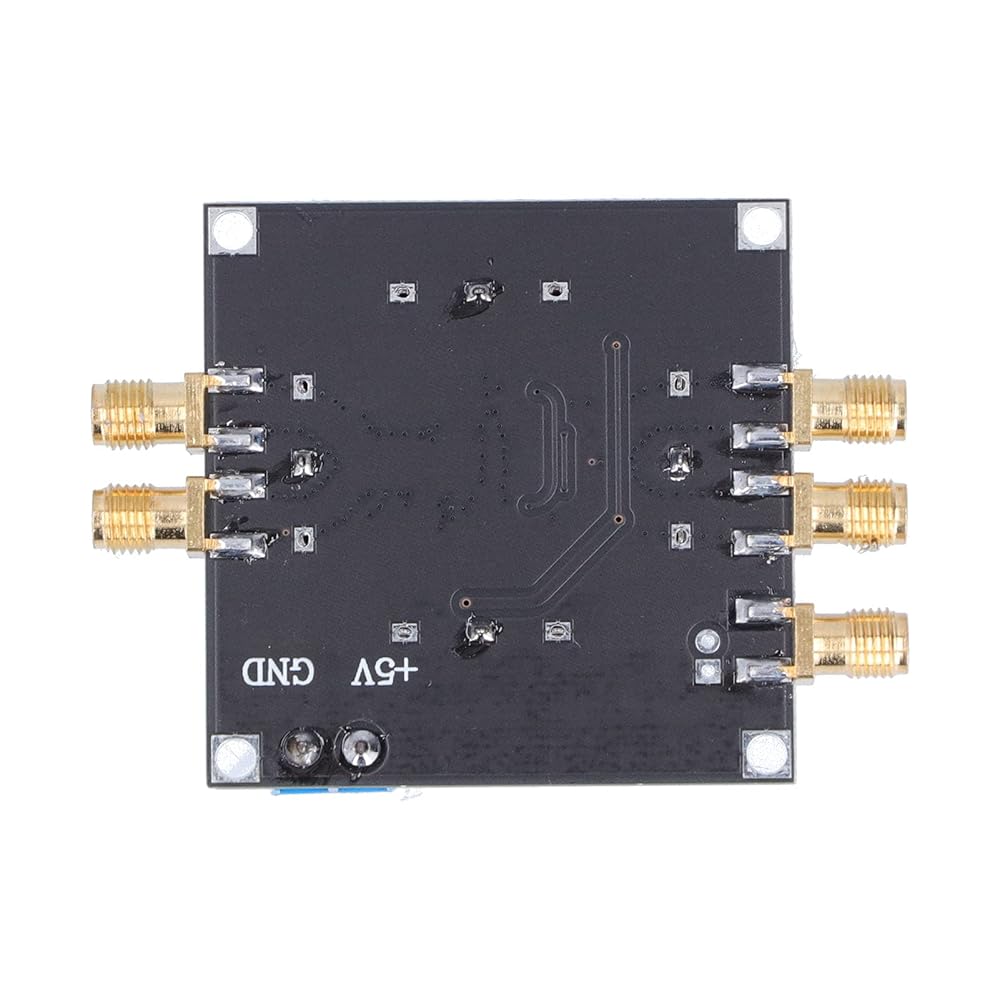

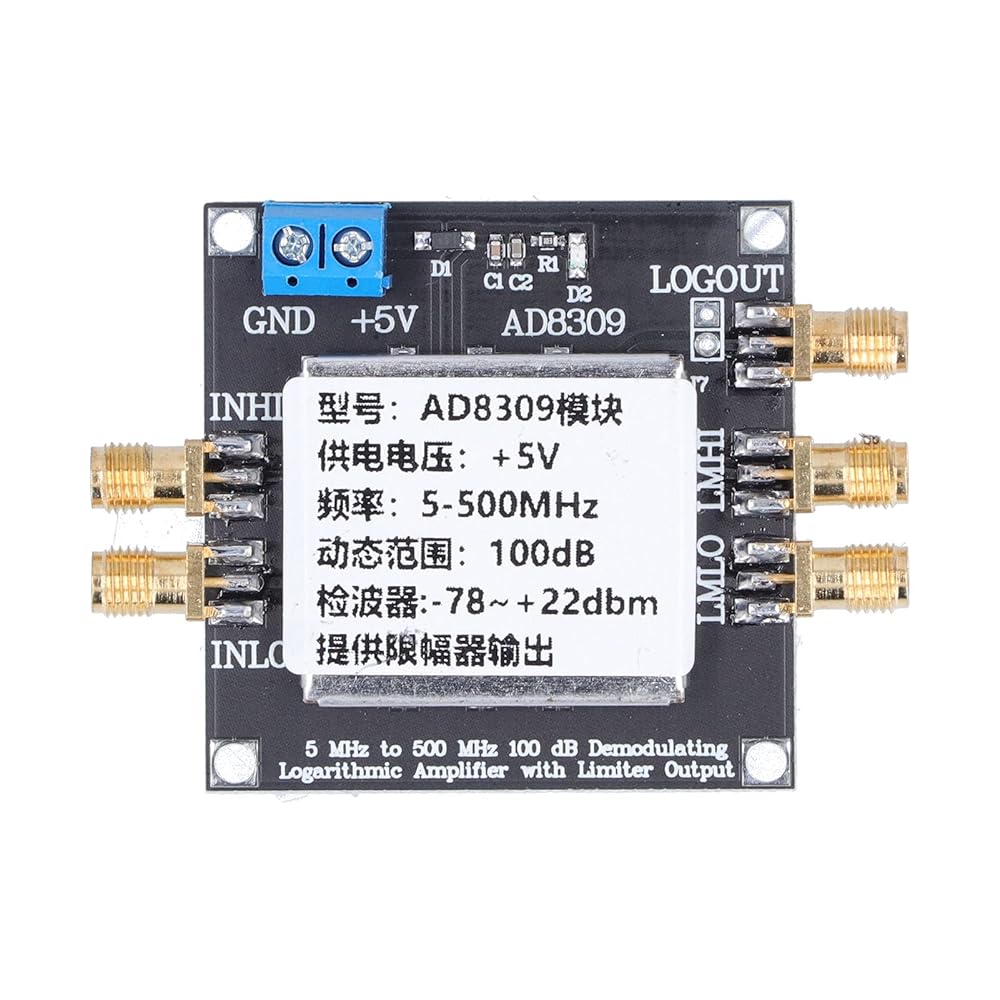

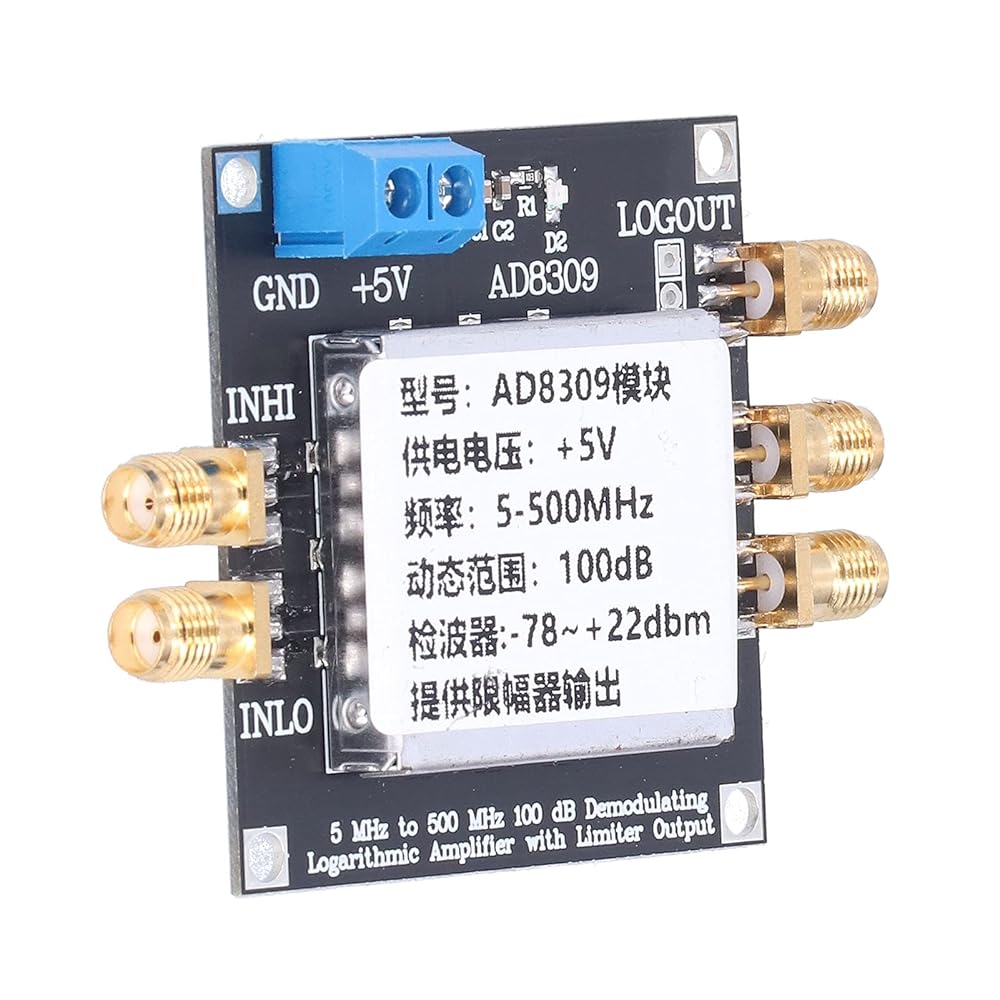

Eujgoov 16mA Logarithmic Amplifier Module, 100 DB Amplifier Board 5MHZ-500MHZ for FSK PSK Demodulation Reception for Phase Detection, SMA Female Interface, Cellular Base Stations

SAR 71
Brand
Eujgoov
Weight
26 g
– 1 +

Special Features

  • HIGH RSSI LINEARITY: This module features 0.4 dB RSSI linearity with no scale changes, ensuring accurate reception strength indicator (RSSI) readings
  • WIDE APPLICATION RANGE: Suitable for cellular base stations and radio transceiver applications, the logarithmic output is proportional to the input for precise phase detection

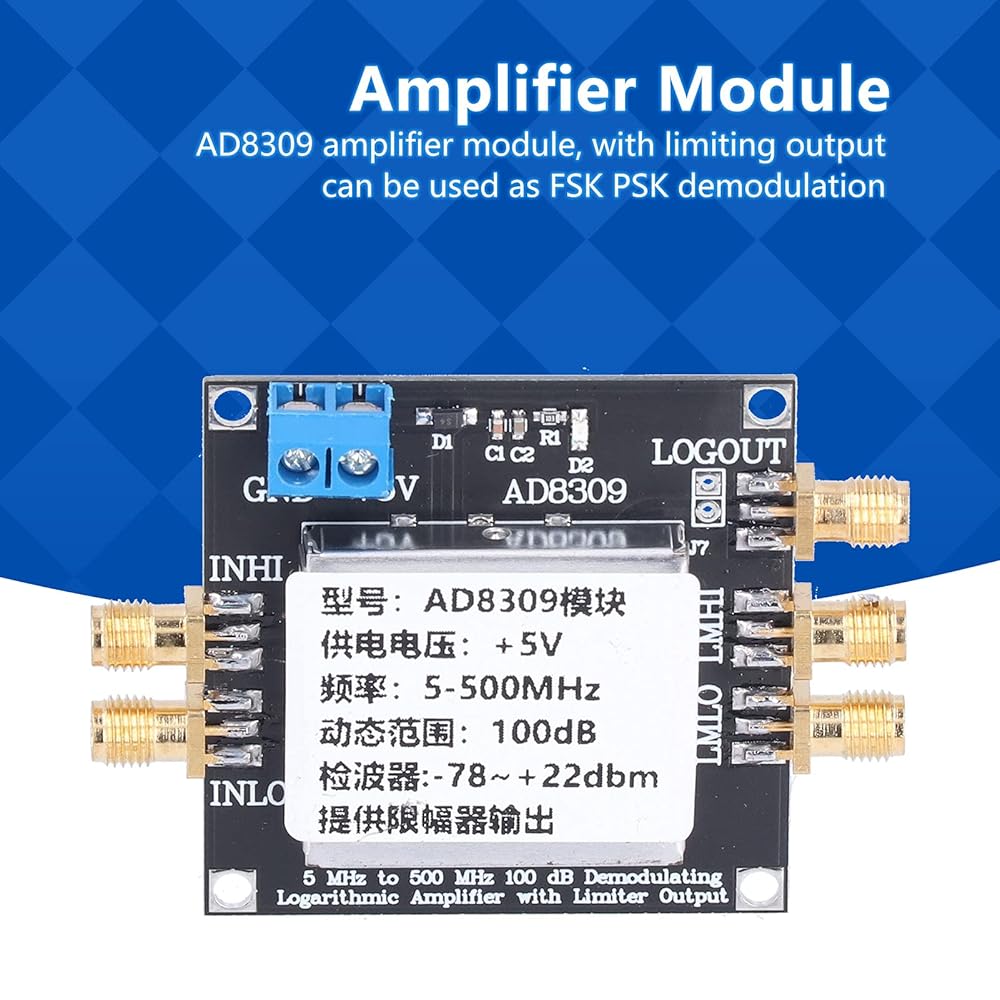

  • VERSATILE FUNCTIONALITY: With an AD8309 amplifier module, this device offers limiting output and can be used for demodulation reception
  • RELIABLE INTERFACE: Equipped with an SMA Female input and output interface, this module ensures secure and stable connections for optimal performance
  • HIGH PERFORMANCE PARAMETERS: Operating at 16mA current with a 20 mV/dB slope and 100 dB gain, this module offers a total gain of 100 dB and a bandwidth of 500 MHz
  • WIDE FREQUENCY RANGE: Supports a broad frequency range from 5MHz to 500MHz, making it suitable for various radio frequency applications and signal processing tasks
  • EXTENSIVE DYNAMIC RANGE: Features a 100 dB dynamic range from -78 dBm to +22 dBm referenced to 50 ohms, providing excellent signal detection capabilities across varying input levels

Description

Spec:
Item Type: Logarithmic Amplifier Module
Material: PCB
Model: AD8309
Current: 16mA
Slope: 20 mV/dB
–95 dBm
Input and Output Interface: SMA Female
Dynamic Range: 100DB
Frequency Range: 5MHZ-500MHZ;
RSSI Linearity: ±0.4 dB (to 200 MHz)
Dynamic Range: 100 dB -78 dBm to +22 dBm (Re 50 O)
Total Gain: 100 dB
Bandwidth: 500 MHz
Sleep Current:

PackageList:
1 x Logarithmic Amplifier Module

Notice:
1. Don't overload use
2. Do not use overvoltage
3. Do not use over current
