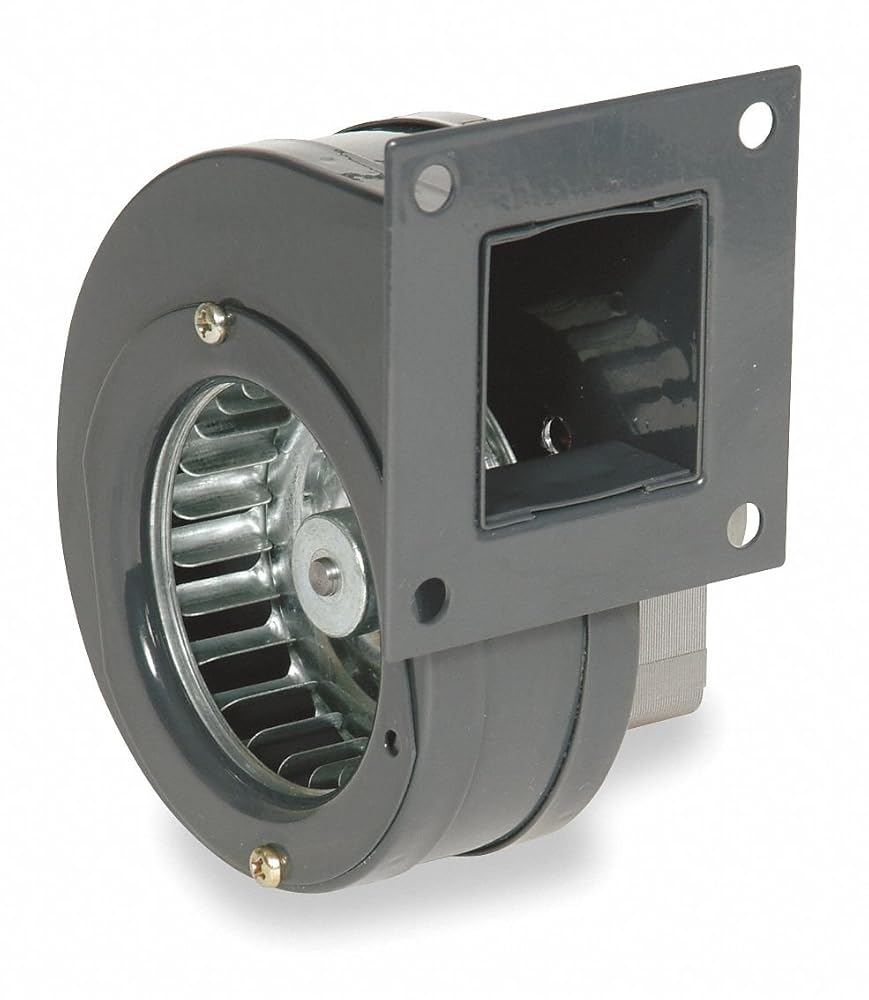

Acting as a direct replacement for many OEM blowers with the same physical footprint, this dynamically balanced blower provides smooth and quiet operation. Noise and vibration are held to a minimum to maintain CFM at higher static pressures. The motor has cast-aluminum end shields for greater heat dissipation and protection, resulting in less downtime and longer service life. The min./max. operating temperature range is -20° to 104°F.

Item: OEM Blower
Blower Outlet Shape: Rectangular
With Flange: Yes
Blower Wheel Diameter: 2-15/16"
Blower Wheel Width: 1-7/8"
Blower Item: OEM Specialty Blower
Blower Voltage: 115VAC
Blower Motor Type: Shaded Pole
Blower Thermal Protection: Auto
Blower Conduit Box: No
CFM @ 0.000-In. SP: 49
CFM @ 0.100-In. SP: 46
CFM @ 0.200-In. SP: 44
CFM @ 0.300-In. SP: 39
CFM @ 0.400-In. SP: 30
CFM @ 0.500-In. SP: 13
Hz: 60
Phase: 1
Full Load Amps: 0.50
RPM: 3034
Bearing Type: Ball
Motor Enclosure: Open
Motor Insulation: Class B
Lead Length: 13"
Max. Ambient Temp.: 104 Degrees F
Max. Inlet Temp.: 104 Degrees F
Inlet Dia.: 2-9/16"
Outlet Height: 1-5/8"
Outlet Width: 2"
Overall Height: 4-1/2"
Overall Width: 4-3/16"
Overall Depth: 4-1/2"
Wheel Type: Forward Curve
Drive Type: Direct
Mounting Position: All Position
Housing Finish: Enamel
Housing Material: Rolled Steel
Housing Color: Gray
Agency Compliance: UL Recognized US and Canada (E47479), CE
Replaces: 4C761
Includes: Discharge Mounting Flange
