This is a kind of fine quality CNC arbor, made of fine toughness and hardness material, can provides long service life. Fine low temperature impact toughness, improved the gloss of the cutting . It can the tool grinding cost and improve the cutting efficiency. You can have a try.

Warning:

Use precaution such as guards and eye-protect device before using the tool.

Exchange a tool when it occurs problem such as a noise, vibrations and a flame.

Specifications:

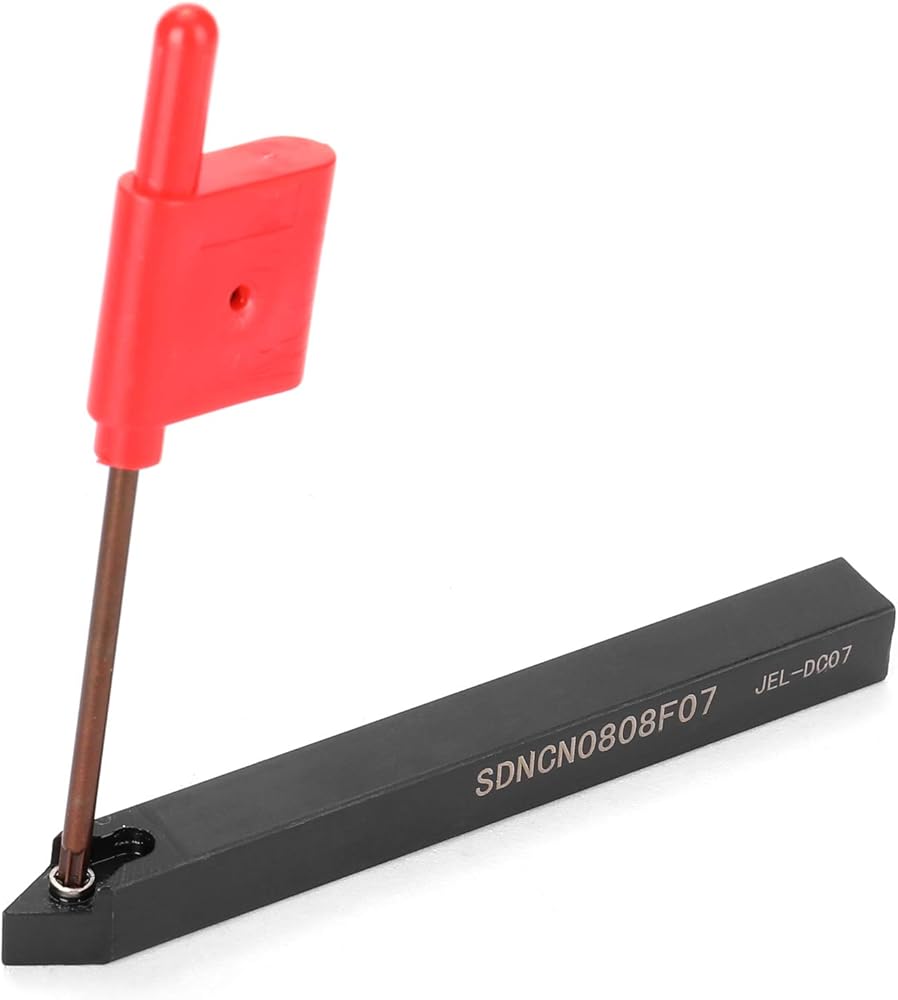

Name: Milling Tool Holder

Material: stainless steel + plastics

Model(turning tool+insert): S08K-12+SDUCR07, S08K+SCLCR06, SCMCN+0808F06, SCLCR+0808F06, SDJCR+0808F07, SDNCN+0808F07, MGEHR+0808-02(ALL)

Wrench:

MGEHR: T10

SDJCR: T8

S08K-12: T8

SDNCN: T8

SCLCR: T8

SCMCN: T8

S08K: T8

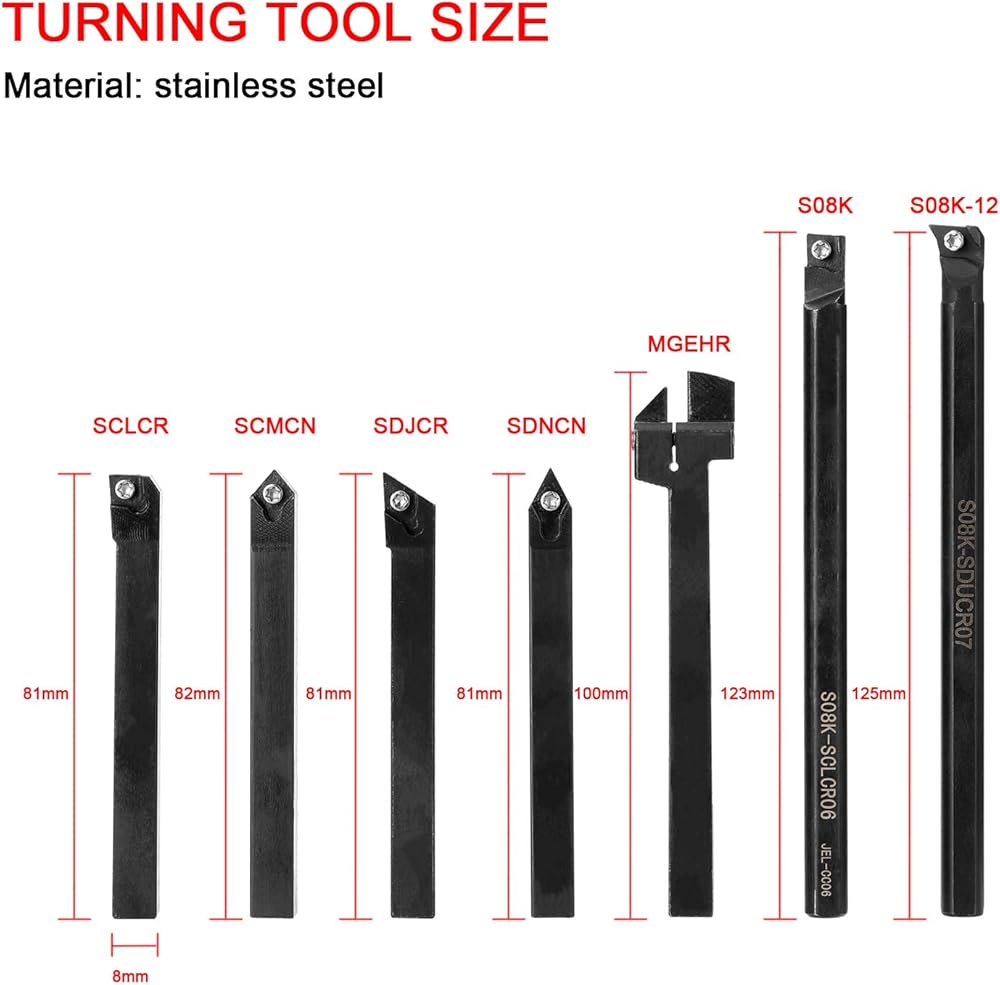

Turning tool size:

MGEHR: 100 * 8 * 8mm / 3.94 * 0.31 * 0.31in

SDJCR: 81 * 8 * 8mm / 3.19 * 0.31 * 0.31in

S08K-12: 125 * 8 * 8mm / 4.92 * 0.31 * 0.31in

SDNCN: 81 * 8 * 8mm / 3.19 * 0.31 * 0.31in

SCLCR: 81 * 8 * 8mm / 3.19 * 0.31 * 0.31in

SCMCN: 82 * 8 * 8mm / 3.23 * 0.31 * 0.31in

S08K: 123 * 8 * 8mm / 4.84 * 0.31 * 0.31in

Turning tool with box weight:

MGEHR: 72g / 2.54ounce

SDJCR: 60g / 2.12ounce

S08K-12: 71g / 2.50ounce

SDNCN: 60g / 2.12ounce

SCLCR: 63g / 2.22ounce

SCMCN: 61g / 2.15ounce

S08K: 65g / 2.29ounce

Insert with box weight: 20g / 0.71ounce

Package size: 222 * 150 * 45mm / 8.74 * 5.91 * 1.77in

Package weight: 542g / 19.12ounce / 1.19lb

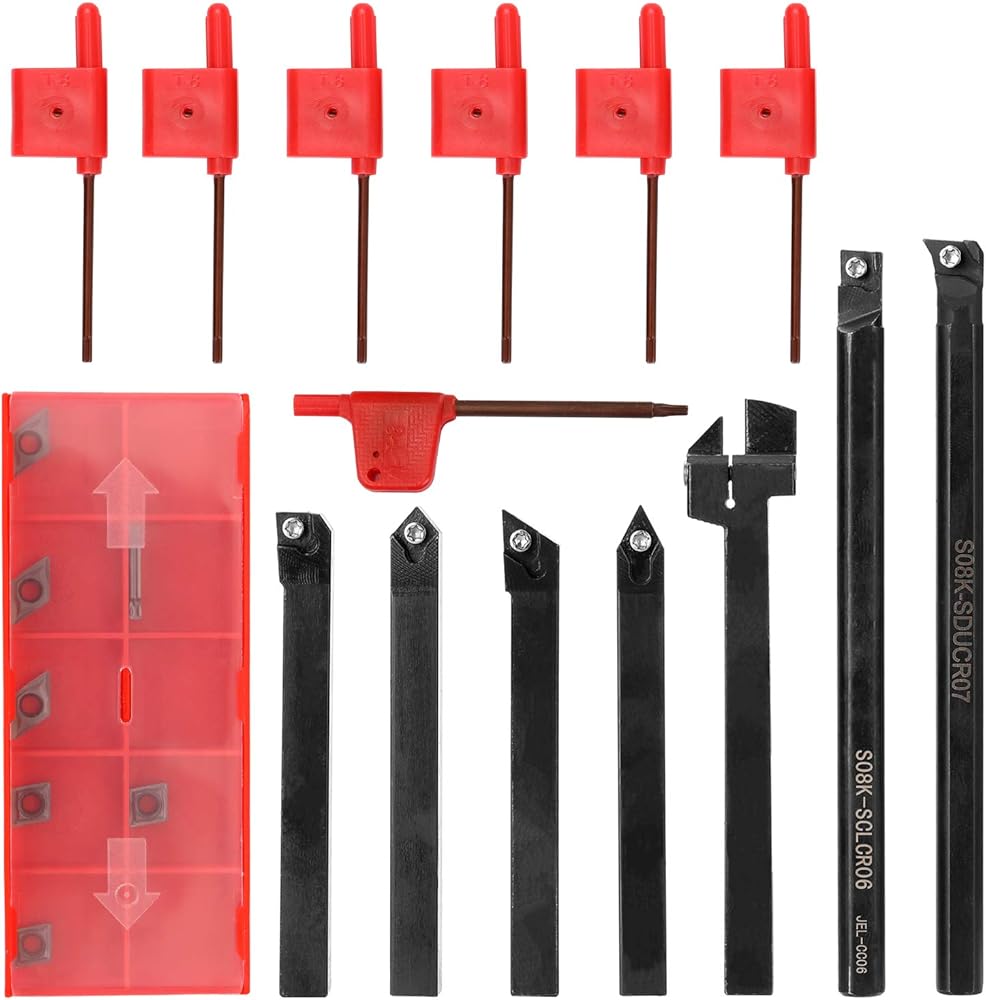

Packing List:

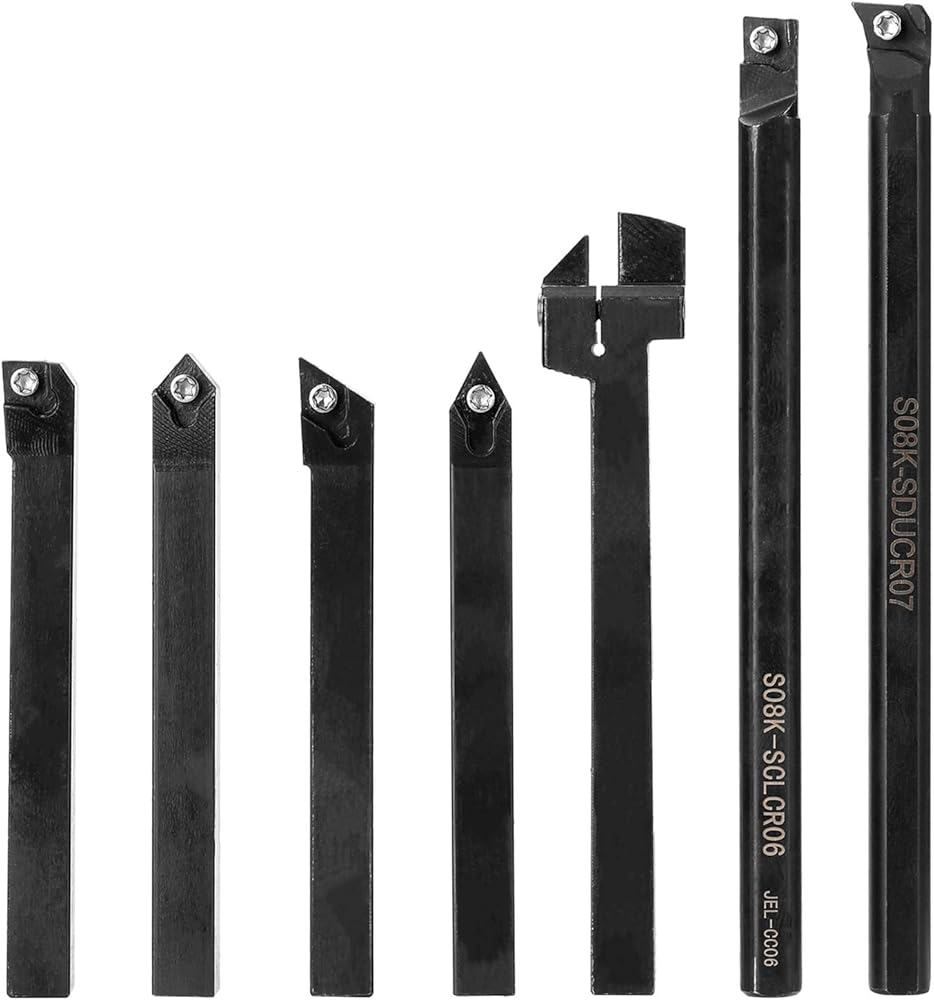

7 * 8mm Milling Tool Holder

7 * Wrench

7 * Insert
