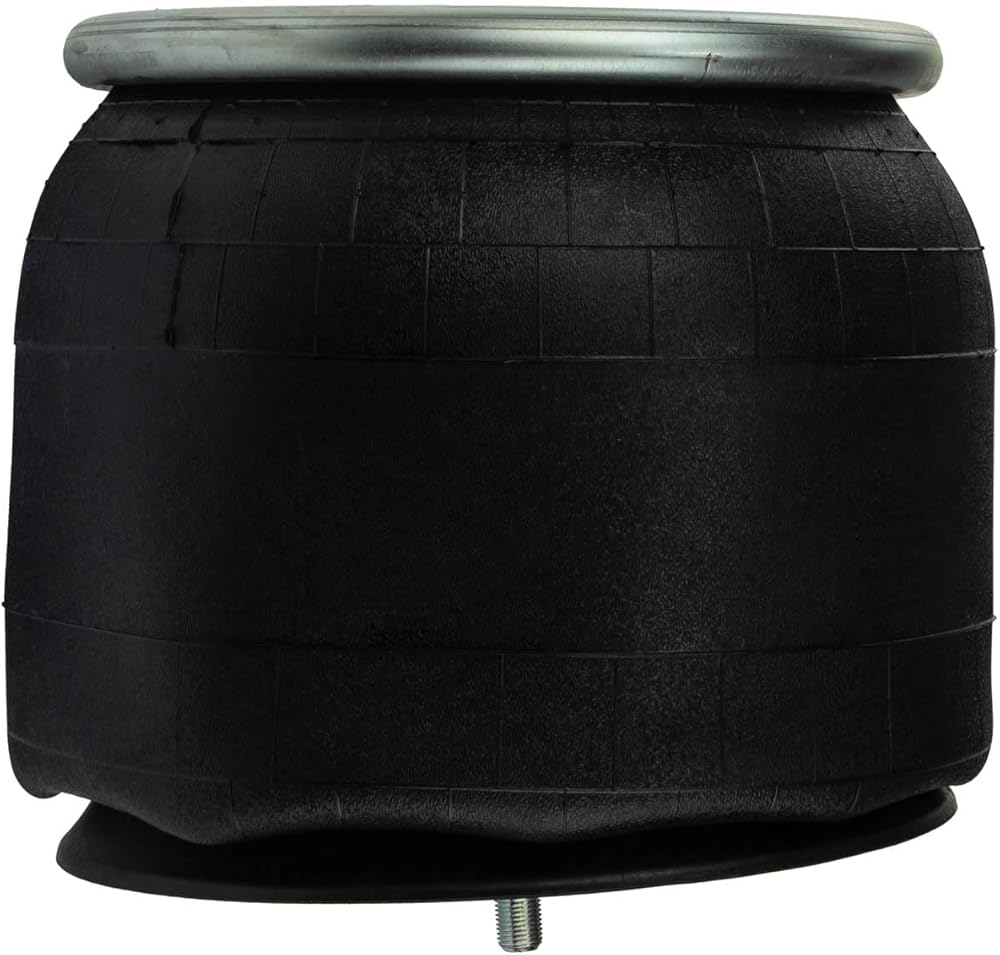

WA01-9069C World American Rolling Lobe Air Spring. Engineered for heavy duty tractor air suspension systems requiring consistent load handling and ride comfort. Designed as a direct OEM replacement for multiple Peterbilt, Volvo and cross reference applications.
SpecificationsAir Spring Type: Rolling Lobe
Compressed Height: 7.5 Inches
Extended Height: 18 to 21.1 Inches
Maximum Diameter: 10.12 Inches
Load Rating: 7,000 lbs @ 100 PSI
Load Rating: 5,570 lbs @ 80 PSI
Bottom Bolt Hole Quantity: 1 (2.25 Inch C/C)
Bottom Plate Diameter: 9.53 Inches
Top Bolt Hole Quantity: 2 (6.2 Inch C/C)
Top Plate Diameter: 9 Inches
Plate Alignment: Parallel
Replaces / Interchange Part NumbersPeterbilt: 03-01649, 03-02038, 03-02456, 03-04759, 03-06746, 03-07112, 03-10042
Goodyear: 1R12-1080, 1R12-669, 1R12-676, 1R12-069
Firestone: W01-358-9069, 9069, 99069
Continental ContiTech: 91014P312, 64274
Navistar: 554764C1
Volvo: 3130497
Meritor: FS9069
Triangle: 4324, AS-4324
Dayton Parts: 352-9069, 452-9069L
Automann: AB1DK23I-9069
Euclid: E-FS9069
Genuine Newstar: S-21846, S-23977
World American: WA01-9069
Important: Verify mounting configuration, bolt spacing and load requirements prior to installation to ensure proper fitment.
