[REAL-TIME TORSION AND SPEED DISPLAY] The sensor accurately shows the current measured torsion and speed values in real time, enhancing precision in industrial operations.
[DIRECT POWER CALCULATION] Easily calculate the current power value directly, providing efficient power management and control in various applications.
[HIGH-SPEED COMMUNICATION] Supports RS485 communication with an active upload protocol, enabling communication rates of up to 500 times per second for swift data transfer.
[DUAL OUTPUT SUPPORT] The transducer can output transformer current and transformer voltage simultaneously, offering flexibility and convenience in monitoring power dynamics.

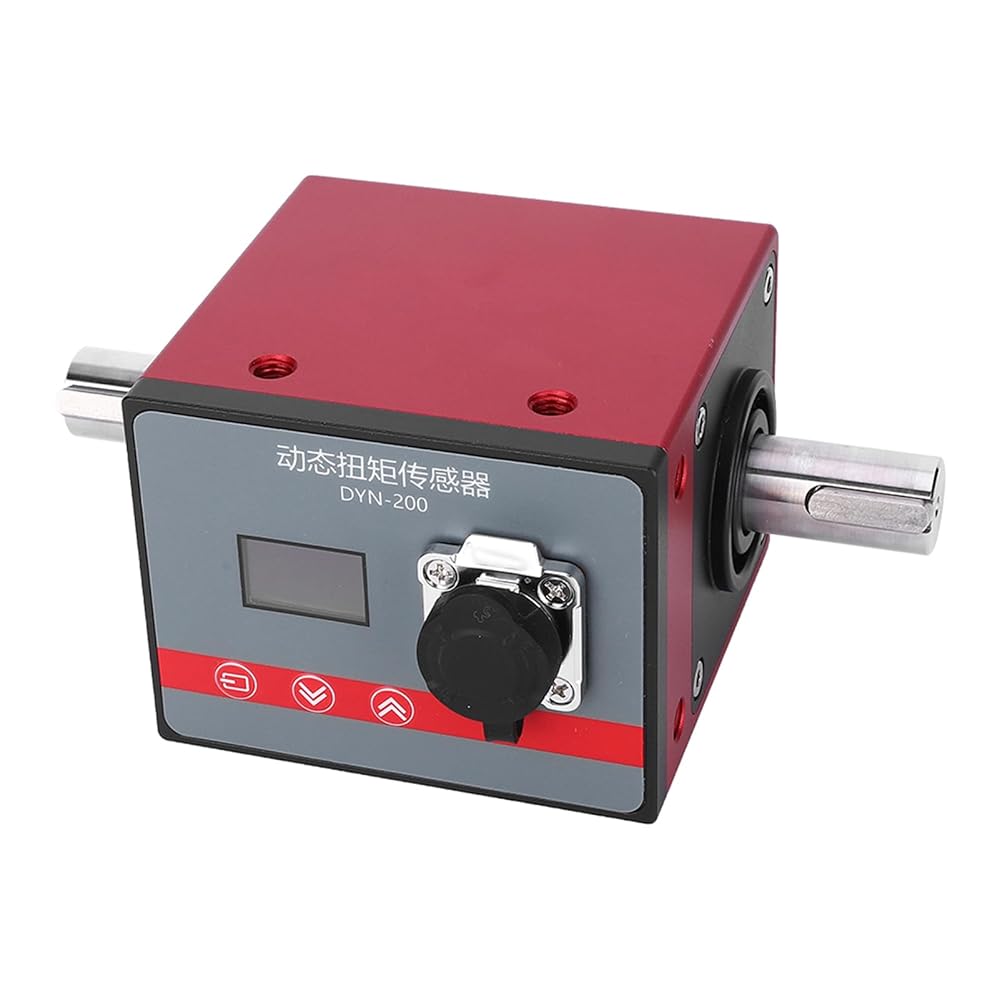

[CLEAR OLED DISPLAY] Equipped with an OLED display featuring a 128x64 resolution, ensuring clear visibility of data for quick and accurate readings in industrial settings.

Spec:

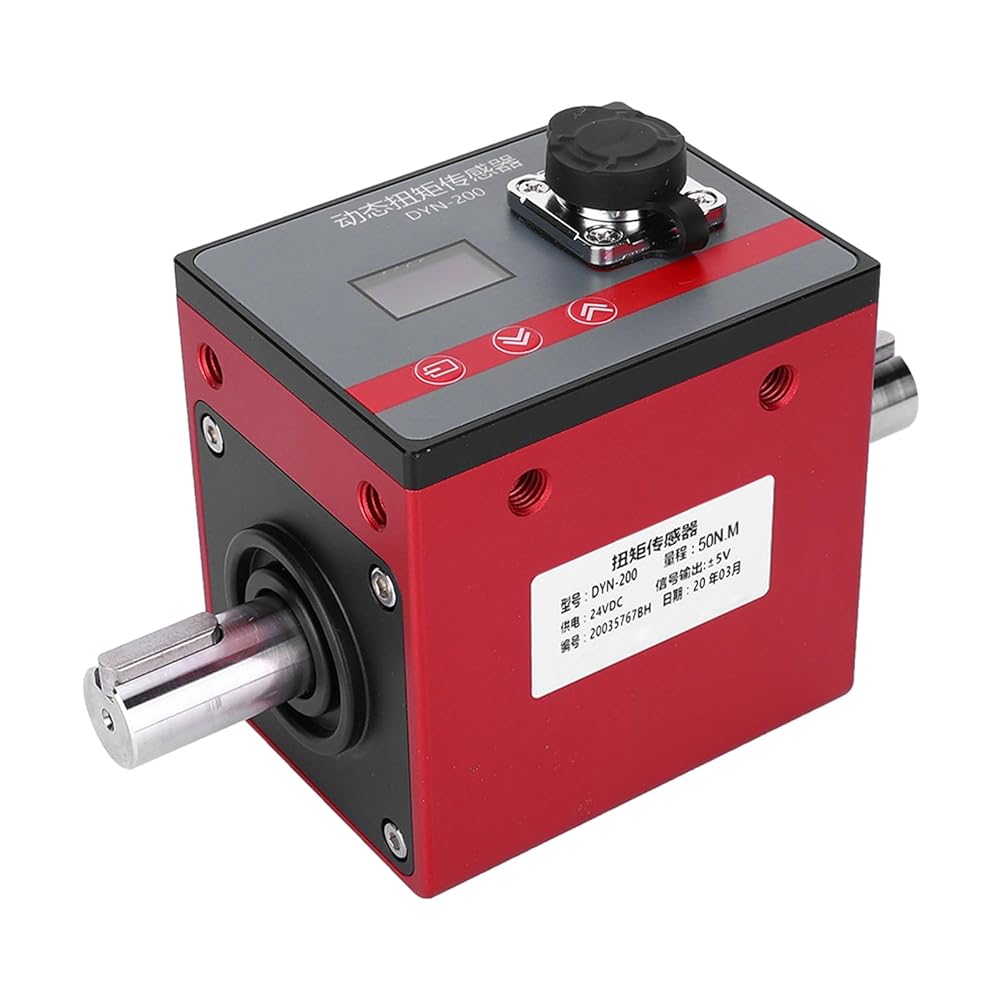

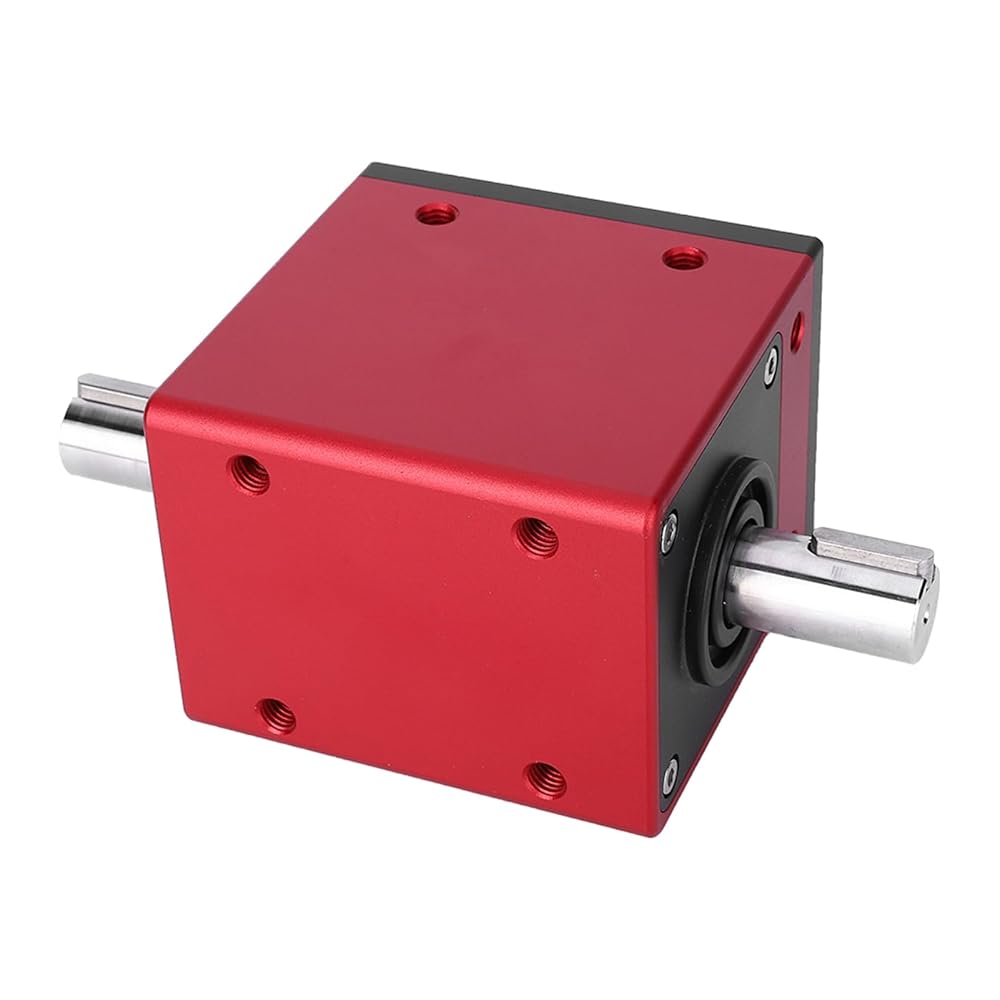

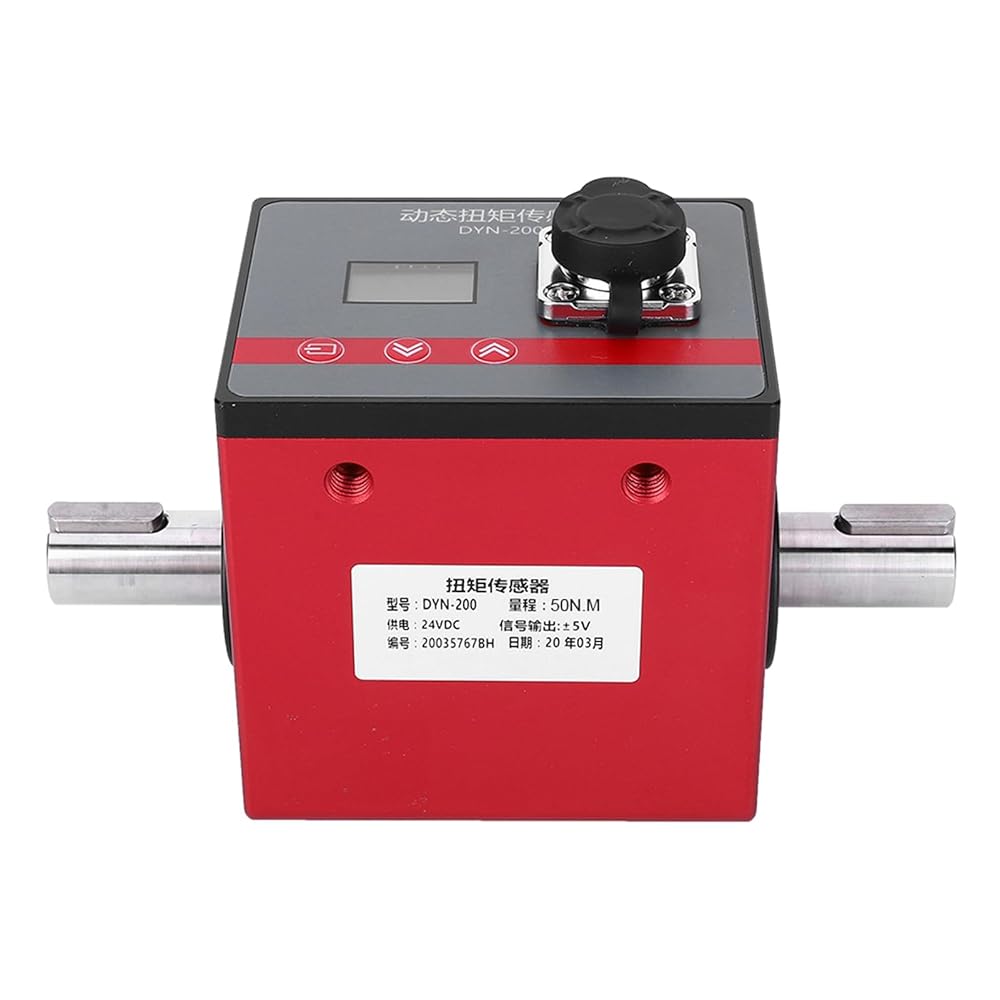

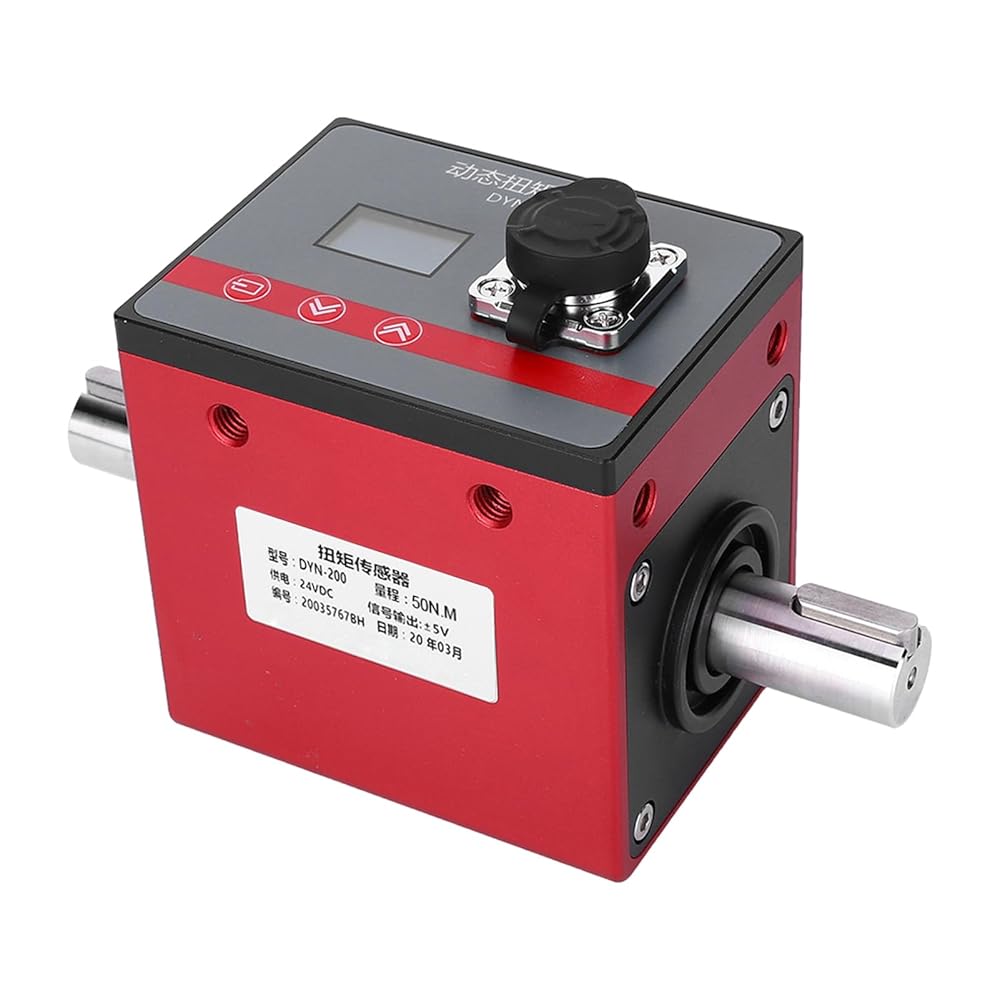

Item Type: Dynamic Torsion Sensor
Rated Capacity: ± 50N.m
Power Input: DC24V
Current Consumption: Below 150mA
Torsion Output: ± 5VDC
Speed Output: 120 pulses /
Response Performance: 1kHz
Load Resistance: 2kΩ or more
Signal Delay: 0.6ms (50% response)

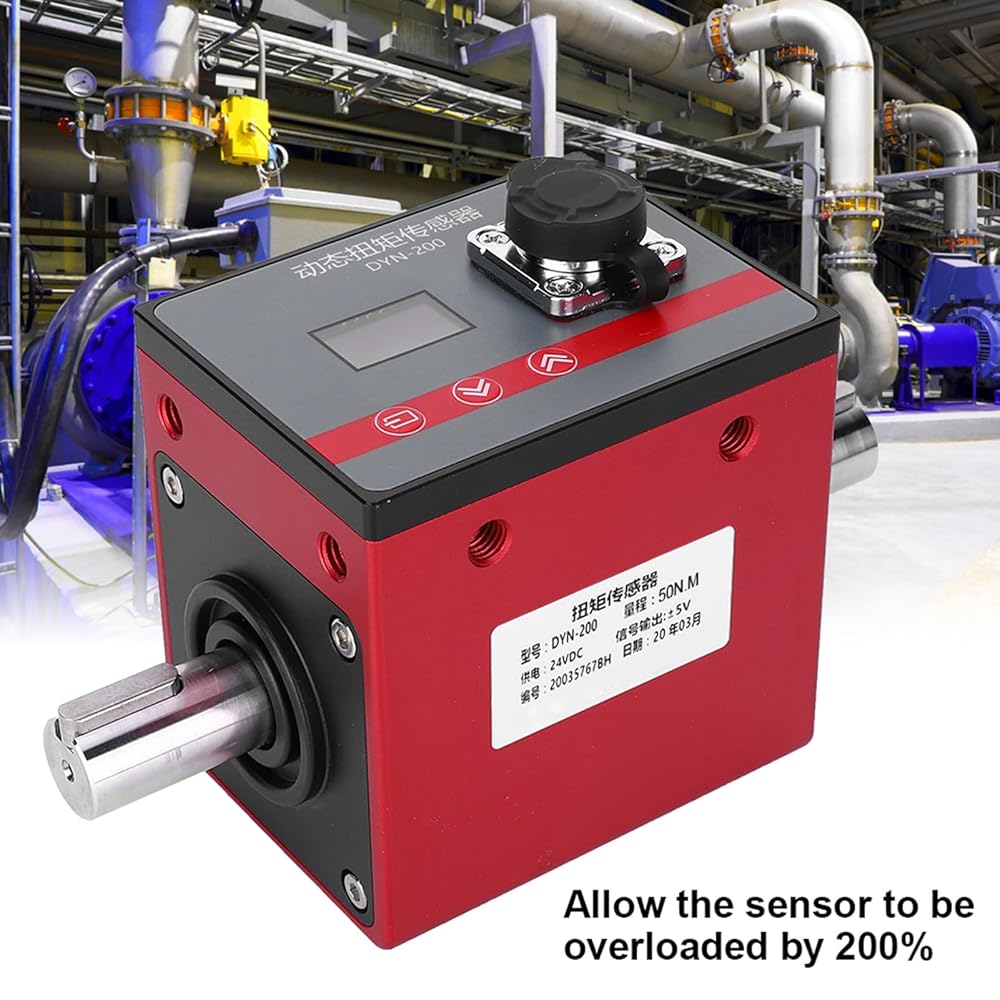

Allow Overload: 200% FS
Operating Temperature Range: -10 ~ + 50 ℃
Non-linearity: 0.1% FS
Repeatability: 0.03% FS
Lag: 0.03%
Temperature Effect Of Zero Point: 0.01% FS / C
Temperature Effect Of Output: 0.01% FS / C
Rated Speed: 8000rpm
The Fastest Rotation Speed: 15000rpm
Maximum Twisted Angle: 2.60 × 10rad (0.149 °)
Moment Of Inertia: 0.38kgcm
Vibration Frequency (rotor Part): 19.4kHz
Torsion Constant: 3.85 × 10Nm / rad

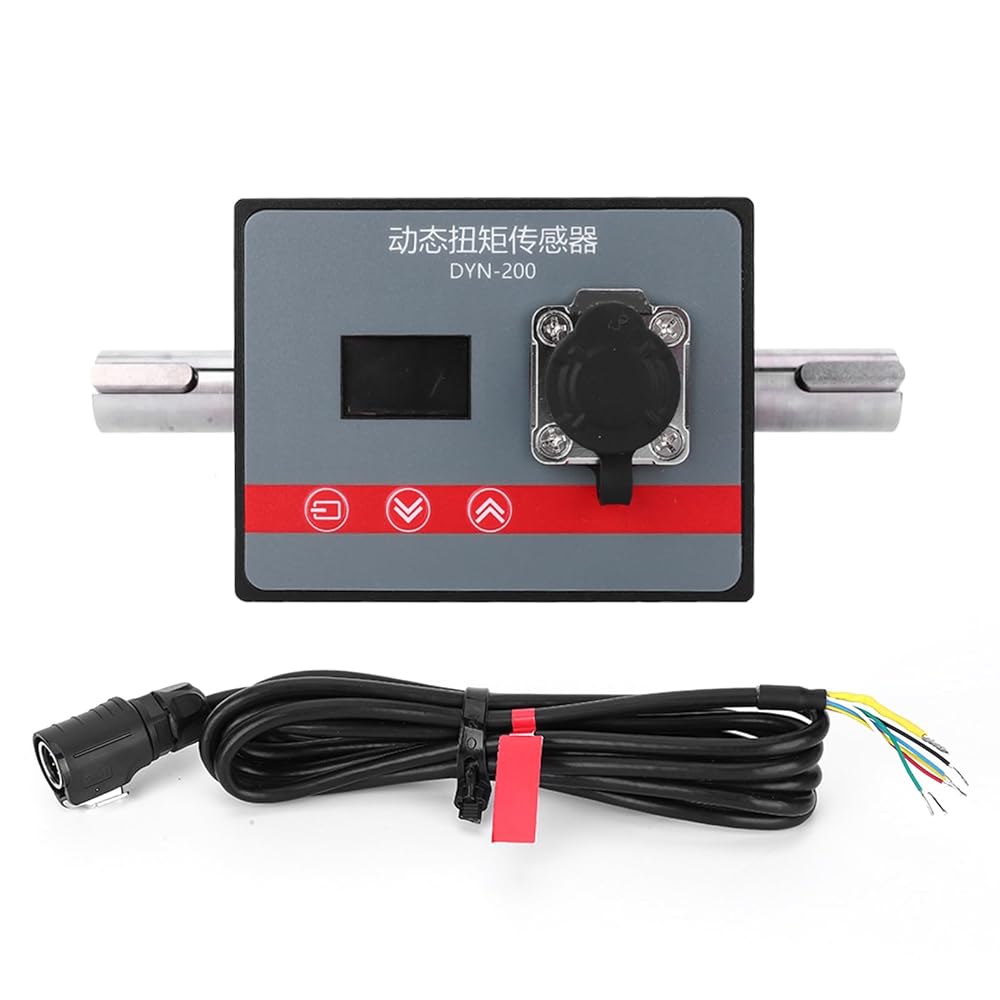

Package List：
1 x Sensor
1 x Line

Note：

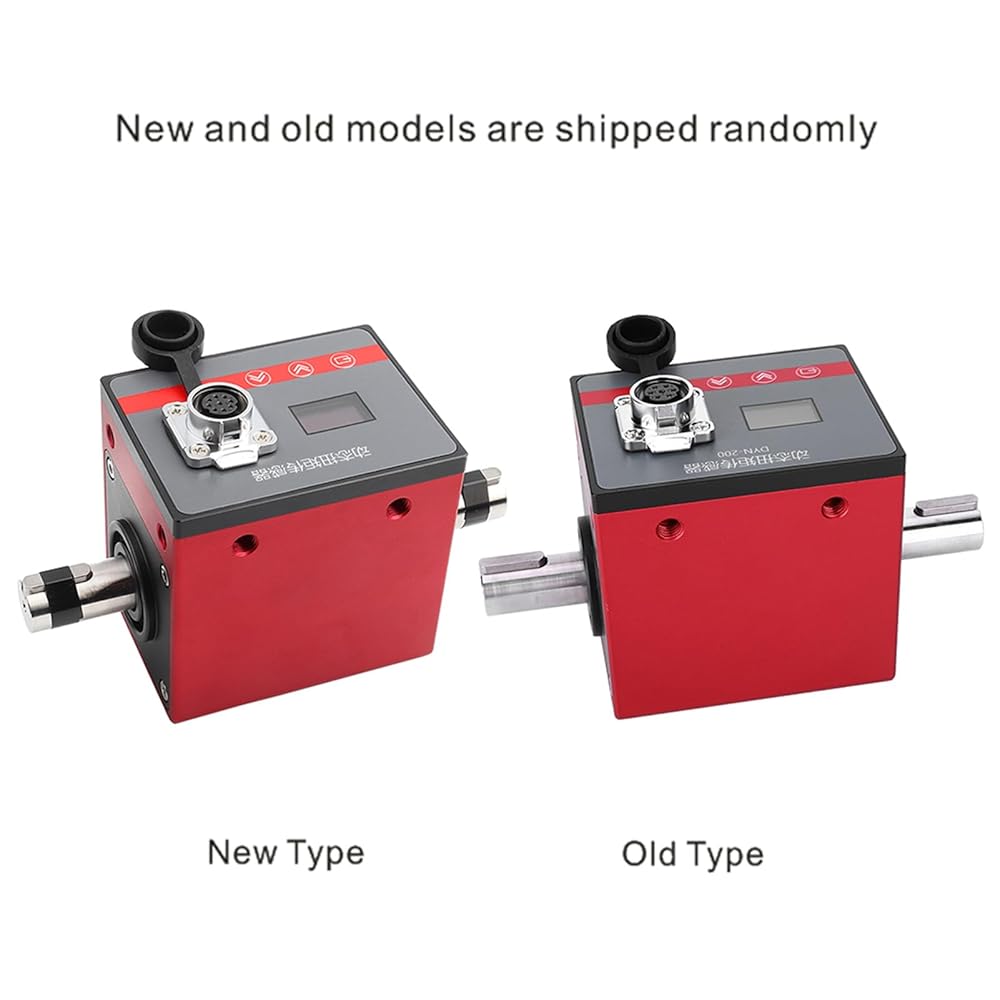

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
