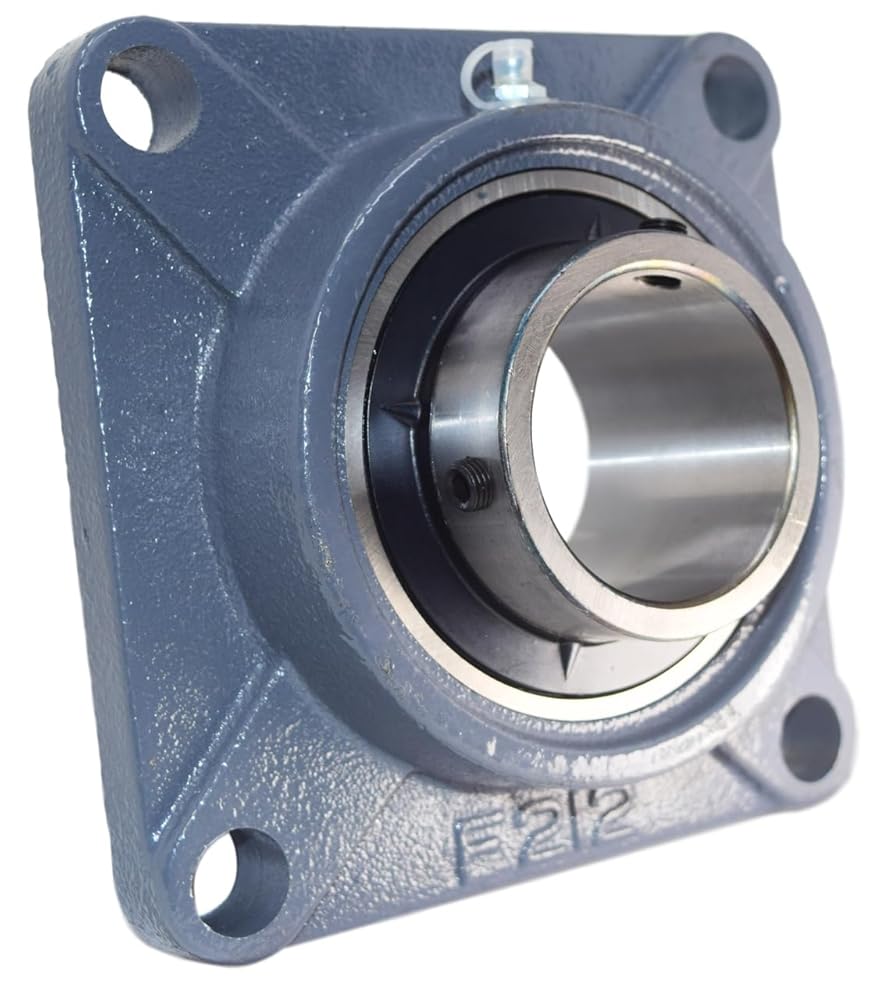

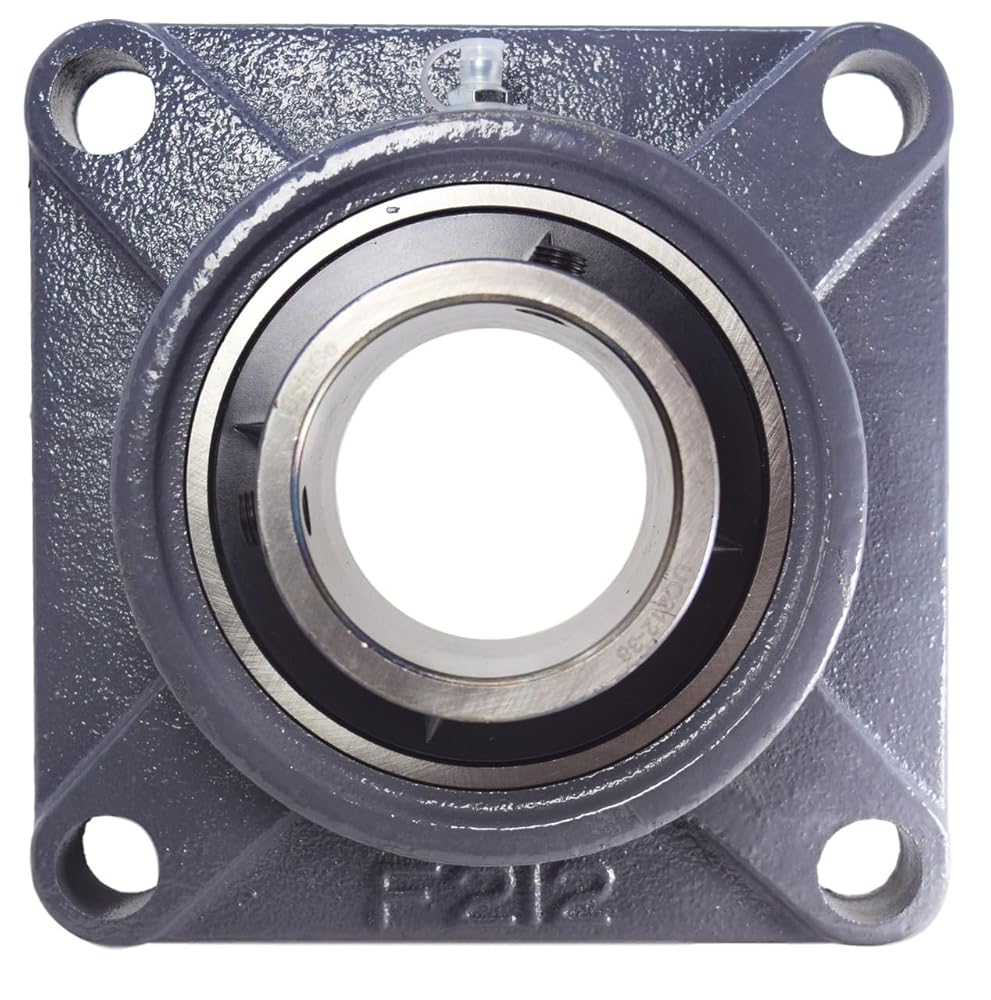

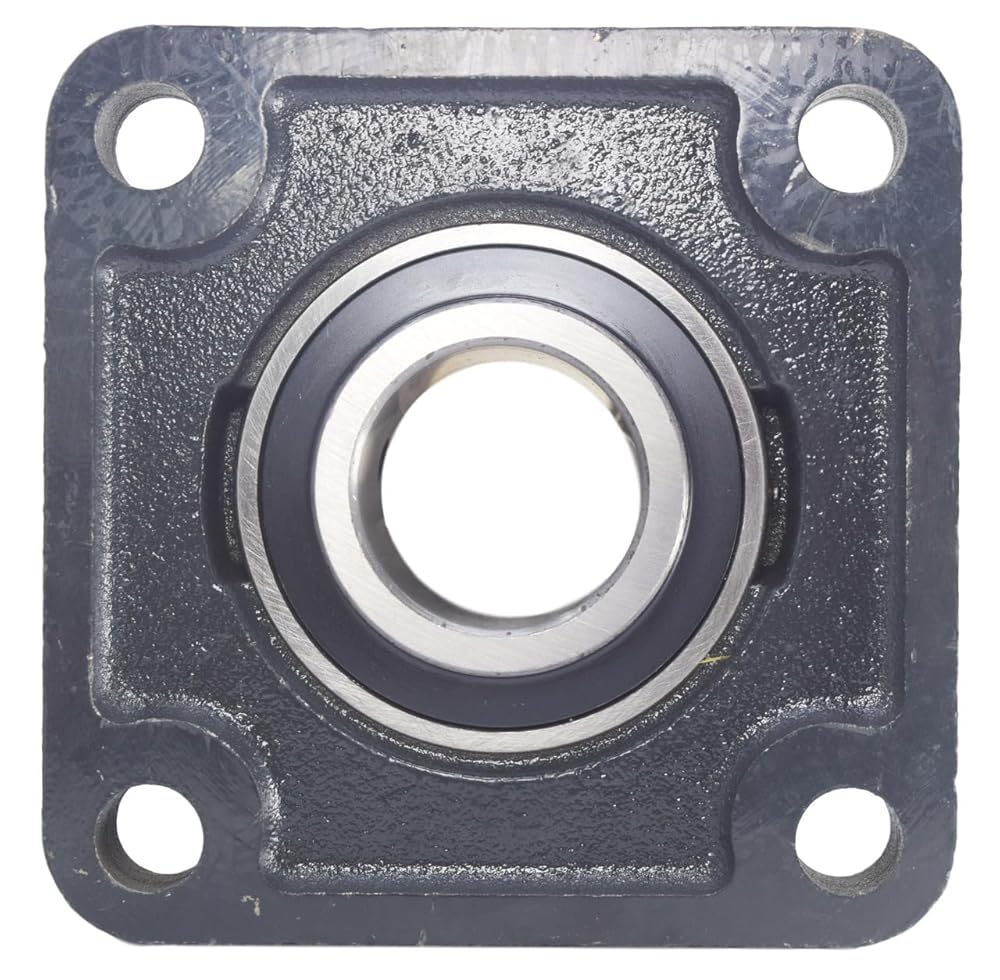

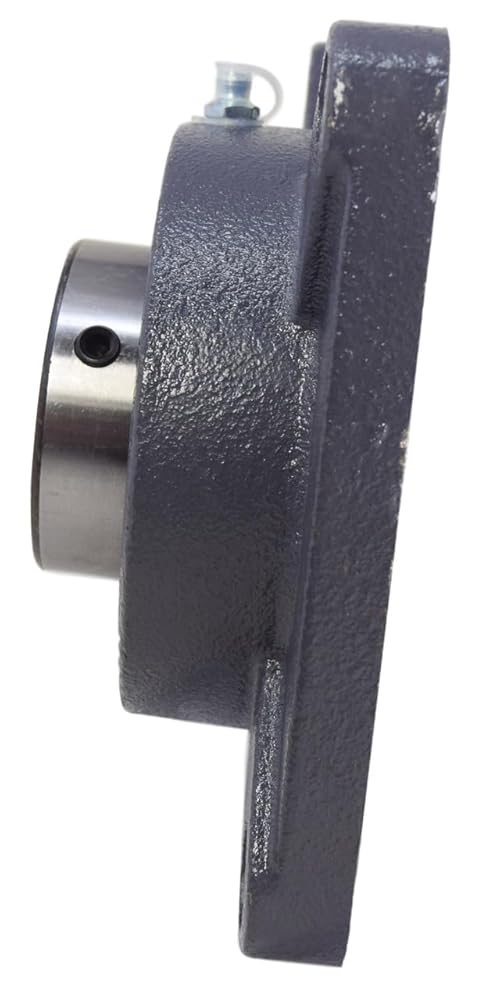

High quality 2-3/8" four bolt flange bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
Dimensions: Bore: 2-3/8"; Bolt hole to bolt hole: 5.629 in. (143mm); Overall length: 6.889 in. (175mm); Overall thickness: 2.704 in. (68.7mm); Bolt hole: .748 in. (19mm)
Interchangeable with or Engineered to fit: AMI: UCF212-38; Browning: VF4S-238; Dodge: F4B-SC-206; Fafnir: RCJC-2-3/8; Fafnir: YCJ-2-3/8; Link-Belt: F3-U238N; NSK: UCF212-38; NTN: UCF212-206T; Peer: FHSFJ212-38G; RHP: SF-2-3/8; Sealmaster: SF-2-3/8; SKF: FY-2-3/8-TM
وصف

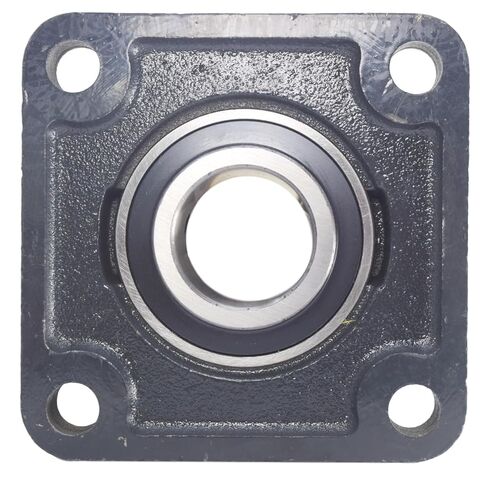

2-3/8" Four Bolt Flange Bearing Set Screws F4B-SC-206, UCF212-38 SpinCo by SpinCo
