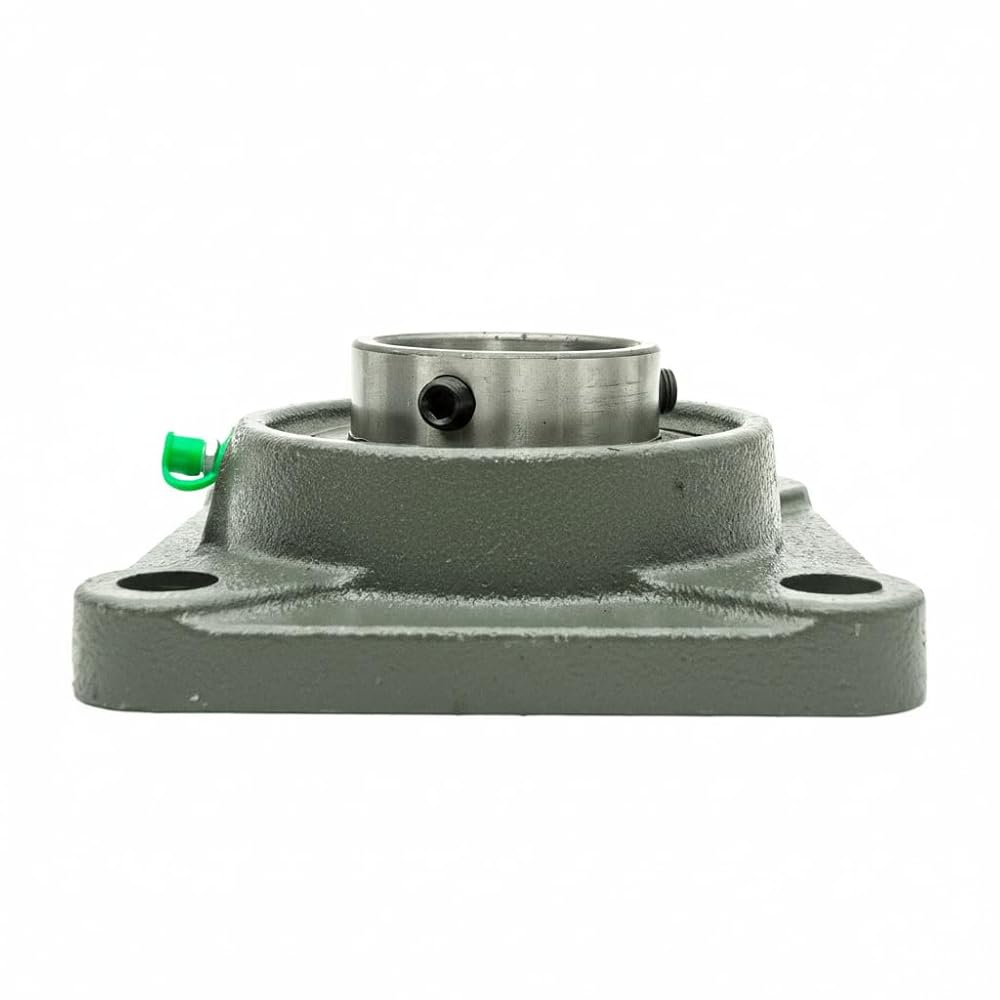

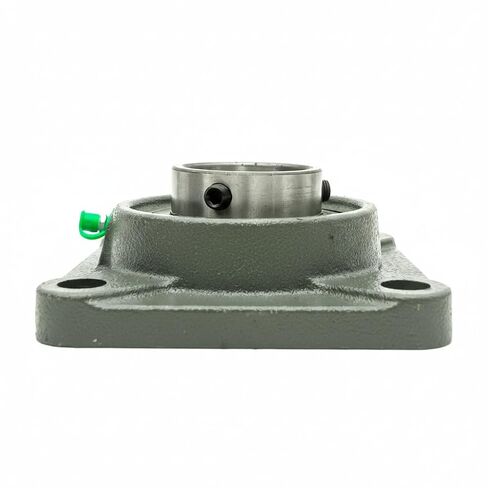

UCF213 (65mm) Bore 4-Bolt Square Flange Bearing Unit, Self-Aligning Mounted Bearing, Cast Iron Housing, Set Screw Lock in Saudi Arabia UCF213 (65mm) Bore 4-Bolt Square Flange Bearing Unit, Self-Aligning Mounted Bearing, Cast Iron Housing, Set Screw Lock in Saudi Arabia UCF213 (65mm) Bore 4-Bolt Square Flange Bearing Unit, Self-Aligning Mounted Bearing, Cast Iron Housing, Set Screw Lock in Saudi Arabia UCF213 (65mm) Bore 4-Bolt Square Flange Bearing Unit, Self-Aligning Mounted Bearing, Cast Iron Housing, Set Screw Lock in Saudi Arabia UCF213 (65mm) Bore 4-Bolt Square Flange Bearing Unit, Self-Aligning Mounted Bearing, Cast Iron Housing, Set Screw Lock in Saudi Arabia UCF213 (65mm) Bore 4-Bolt Square Flange Bearing Unit, Self-Aligning Mounted Bearing, Cast Iron Housing, Set Screw Lock in Saudi Arabia

UCF213-40 (2-1/2") Bore 4-Bolt Square Flange Bearing Unit, Self-Aligning Mounted Bearing, Cast Iron Housing, Set Screw Lock

SAR 343
– 1 +

Special Features

  • Housing Material Cast Iron / Bearing Insert Material Alloy Steel 52100
  • Type: 4-Bolt flange units with set screw lock./Self Aligning flange units Bearings
  • This mounted bearing has a wide number of applications and is used in Agriculture, Automotive, Pump, Construction, Manufacturing Equipment, Conveyor, Fan Assemblies, Farm Machinery, and Feed Mill
  • These general-purpose pillow block ball bearings are suitable for environments where corrosion is not a concern. They are often used in material handling, packaging, and dry-goods processing.
  • Country of origin: Made in China.

Description

Manufacturer Part Number - UCF213-65MM
Bearing Insert Type - Radial Ball
Number of Mount Holes - 4
Housing Material - Cast Iron
Housing Material Finish - Painted
Bearing Insert Material - Alloy Steel
Bearing Material Grade - 52100
Shaft Locking Type - Set Screws
Bore Diameter - 65 mm
Overall Length – 188.1 mm
Overall Width – 69.8 mm
Overall Height – 188.1 mm
Flange Thickness – 21.8 mm
Mount Hole Center-to-Center Length – 148.8 mm
Mount Hole Center-to-Center Height – 148.8 mm
Mounting Bolt Size - M16
Mount Hole Size - 19 mm
Closure - Double Sealed
Seal Material - Rubber
Lubrication Openings - One Zirc Fitting
Rolling Element Rows - 1
Bore Type - Cylindrical
Housing Type - Square
Maximum Temperature - 120 °F
Minimum Temperature – (-40) °F
Static Radial Load Capacity – 40,000 lbf
Dynamic Load Capacity - 50,500 lbf
Features - Anti-Rotation Device; Cast-Iron Housing; Dual Heavy-Duty Slinger Type Contact Seals; Standard Duty Square Flange Unit, Set Screw Locking; Triple Lip Seals (R3 Suffix) Optional; Wide Inner Ring Bearing
