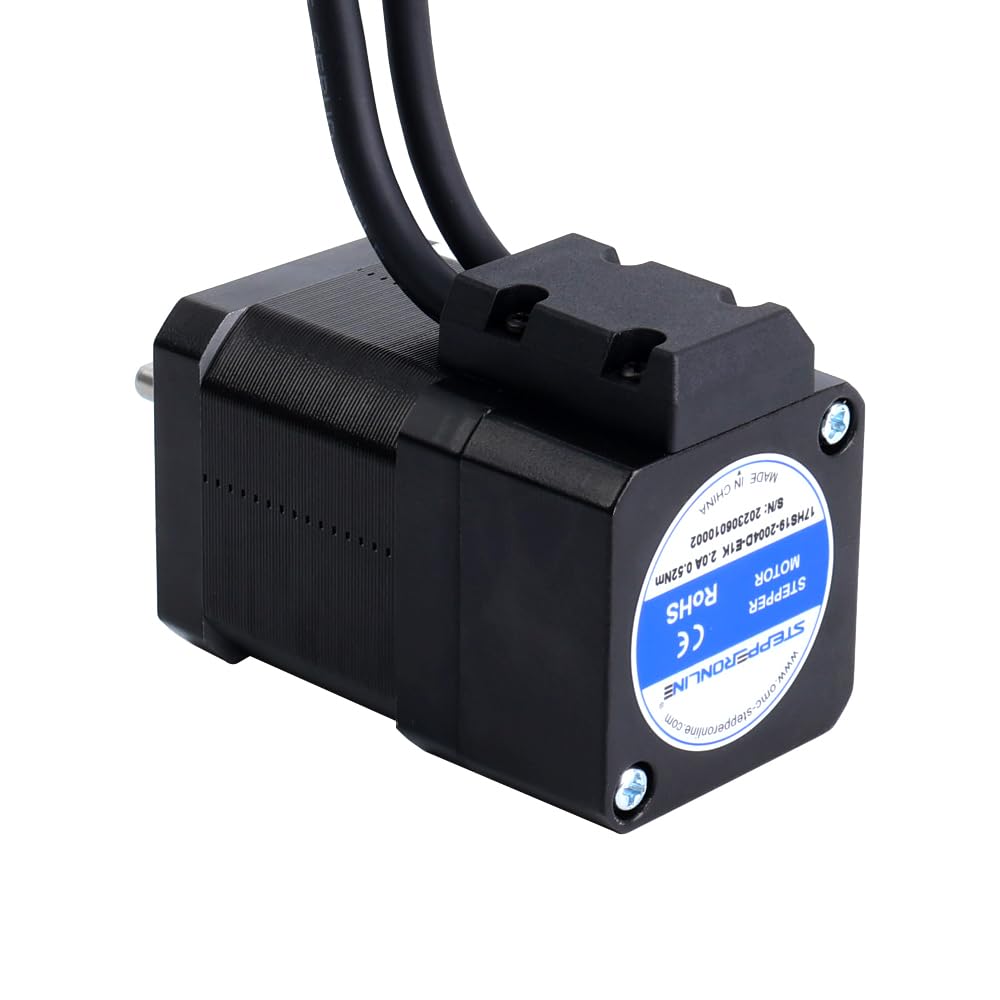

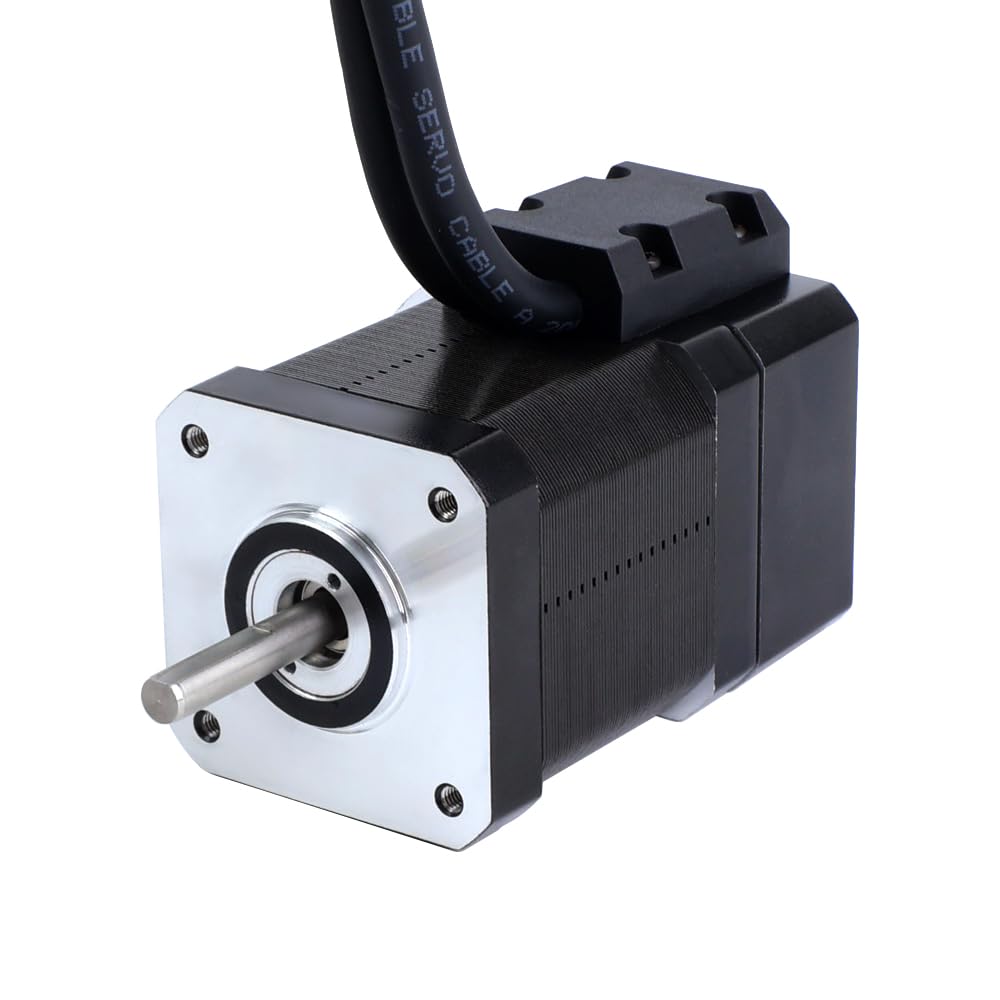

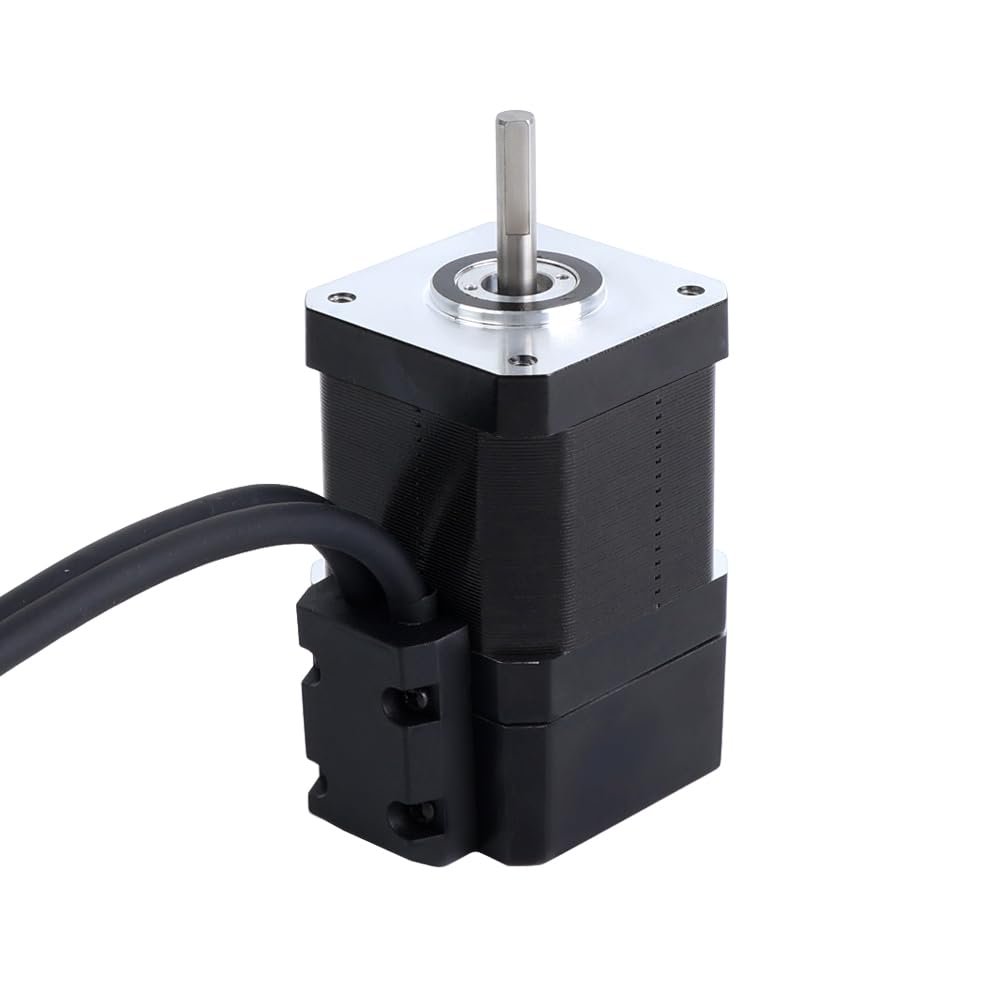

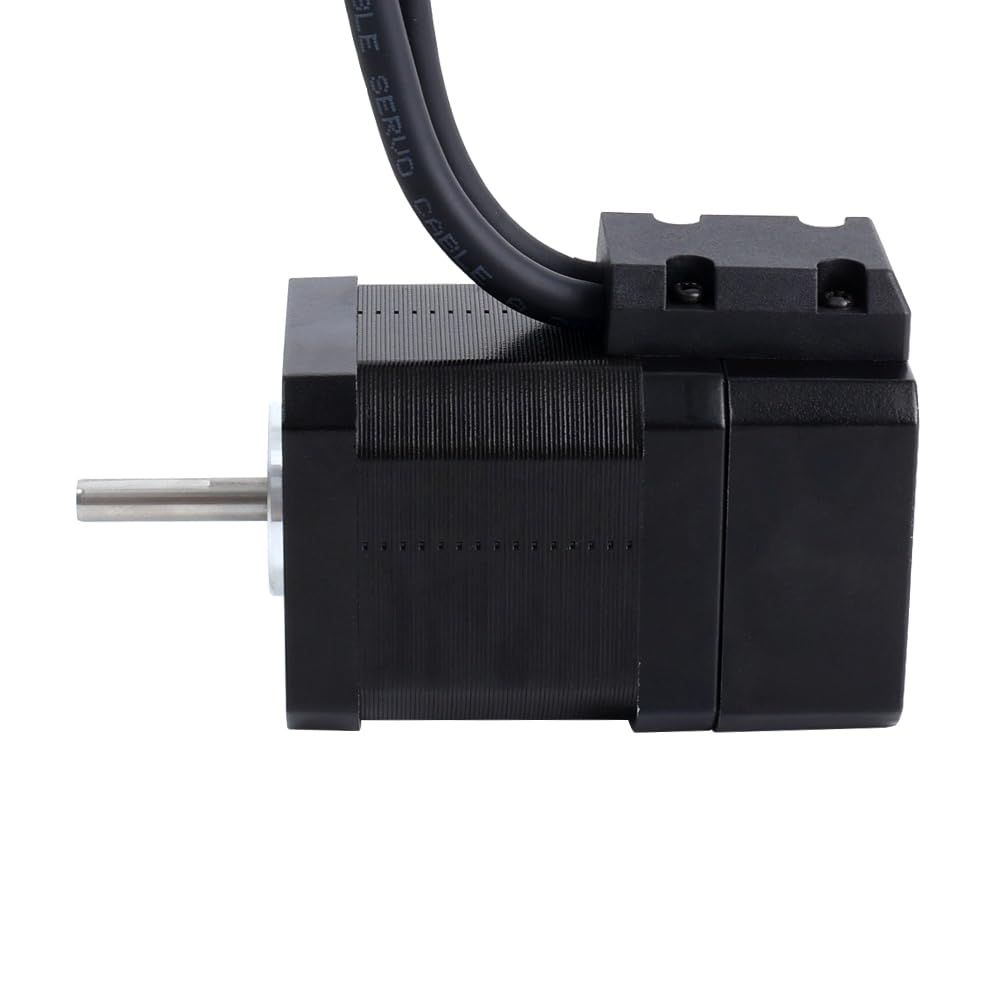

This is a Nema 17 closed-loop stepper motor with a 1000ppr(4000cpr) incremental optical encoder, a rated current of 2.0A, and a holding torque of 52Ncm(73.64oz.in). Compared with open-loop stepper motors, it has higher precision, higher torque, less motor heat, lower power consumption, and better response to external factors.

Electrical Specification

*Manufacturer Part Number: 17HS19-2004D-E1K
*Number of phase: 2
*Step Angle: 1.8deg
*Holding Torque: 52Ncm(73.64oz.in)
*Rated Current/Phase: 2.0A
*Phase Resistance: 1.1ohms
*Inductance: 1.7mH ± 20%(1KHz)

Physical Specification

*Frame Size: 42 x 42mm
*Body Length: 68mm
*Shaft Diameter: φ5mm
*Shaft Length: 24mm
*D-Cut Shaft Length: 15mm
*Lead Length: 500mm
*Weight: 0.43kg

Encoder Specification

*Output Circuit Type: Differential type
*Encoder Type: Optical Incremental
*Encoder Resolution: 1000PPR(4000CPR)
*Output Signal Channels: 2 channels
*Supply Voltage Min: 5V
*Supply Voltage Max: 5V
*Output High Voltage: *Output Low Voltage:
