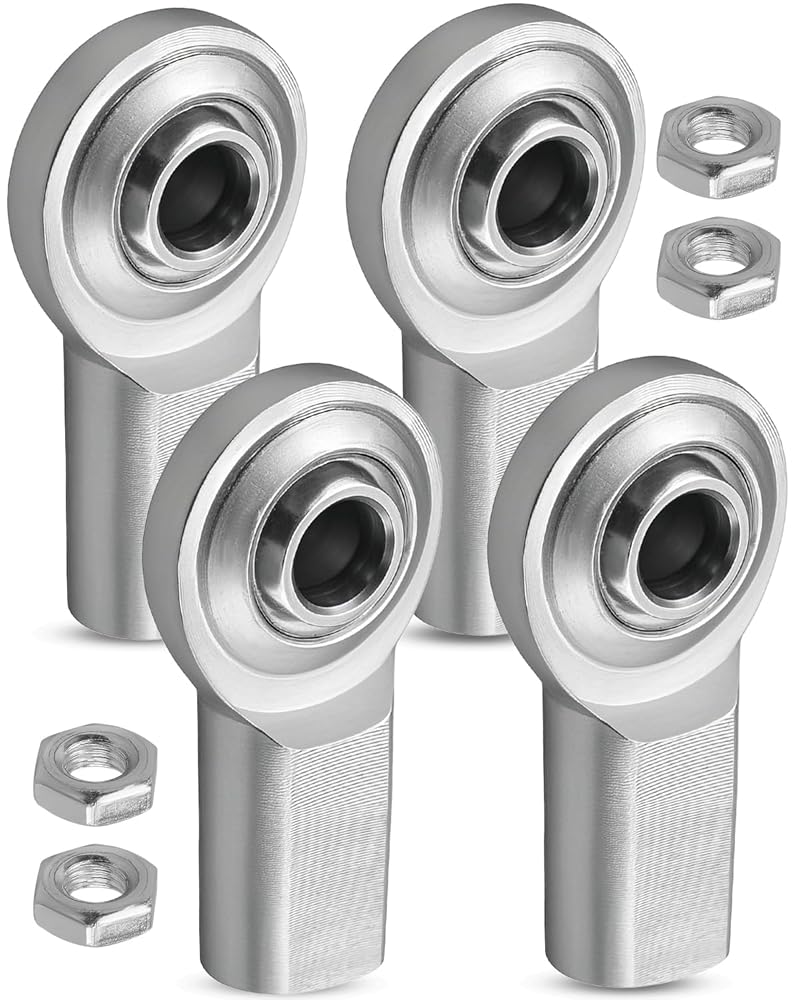

1/4 × 1/4-28 مفاصل هيم لمحمل نهاية القضيب، مفصل هيم أنثى لليد اليمنى، CF7 RH 1/4 بوصة - 28 خيط × 1/4 بوصة، 1/4 × 1/4-28 محمل نهاية قضيب أنثى غير قابل للصدأ مع صواميل المربى، 4 عبوات in Saudi Arabia

5/16 × 5/16-24

SAR 131
مقاس5/16 × 5/16-24
– 1 +

مميزات خاصة

  • High-Precision Manufacturing: After precision grinding and heat treatment, the dimensions are accurate, RH 1/4"-28 thread x 1/4" aperture design, fine thread cutting, smooth bearing operation, reduced mechanical wear and increased service life
  • High-Quality Steel: Precision machined from heat-treated C1045 steel, with high load rating (3820 lbs), corrosion-resistant and wear-resistant, ensuring long-term stable use, suitable for high-intensity industrial and mechanical applications
  • Versatile Application: Applicable to a variety of industrial and vehicle systems such as engineering hydraulic cylinders, forging machines, power tools, automation equipment, machinery, automobiles, motorcycles, CNC equipment, etc., providing stable and reliable mechanical connections
  • Quick Installation: Right-hand thread design, equipped with locking nuts, no additional adjustment or modification, direct installation and use, greatly reducing assembly time and improving work efficiency
  • Super Value 4-Piece Set Combination: Each set contains 4PCS stainless steel heim joints + 4PCS screws, providing complete components to meet the needs of various mechanical equipment, economical and practical, and cost-effective

وصف

Size:
Thread Size: RH 1/4"-28
Bore: 1/4"
Ball Diameter: .250
Ball Width: .375
Centerline Length: 1.312
Thread Length: .687
Load Rating: 3820 lbs
Lock Nut: Thread 1/4-28
Thread: Right side thread
Material: The rod end is mainly made of heat-treated C1045 steel

High Performance:
High precision, large fixed load, low noise, anti-corrosion, sturdy and durable

Widely Used:
With extremely high rated load, it is very suitable for various applications, including engineering hydraulic cylinders, forging presses, electric tools, and automated machinery.
The bearing assembly ensures smooth and flexible control in different mechanical systems.
For example, it is widely used in engineering hydraulic cylinders, machinery, automobiles, motorcycles, beach bikes, ships, electric tools, automation equipment, CNC equipment, etc

Easy To Install:
The Haim connector design allows for quick and worry free installation, equipped with manual locking nuts that can be tightened to complete the assembly process smoothly and simply, without any additional adjustments or modifications, saving time and effort during the setup process
