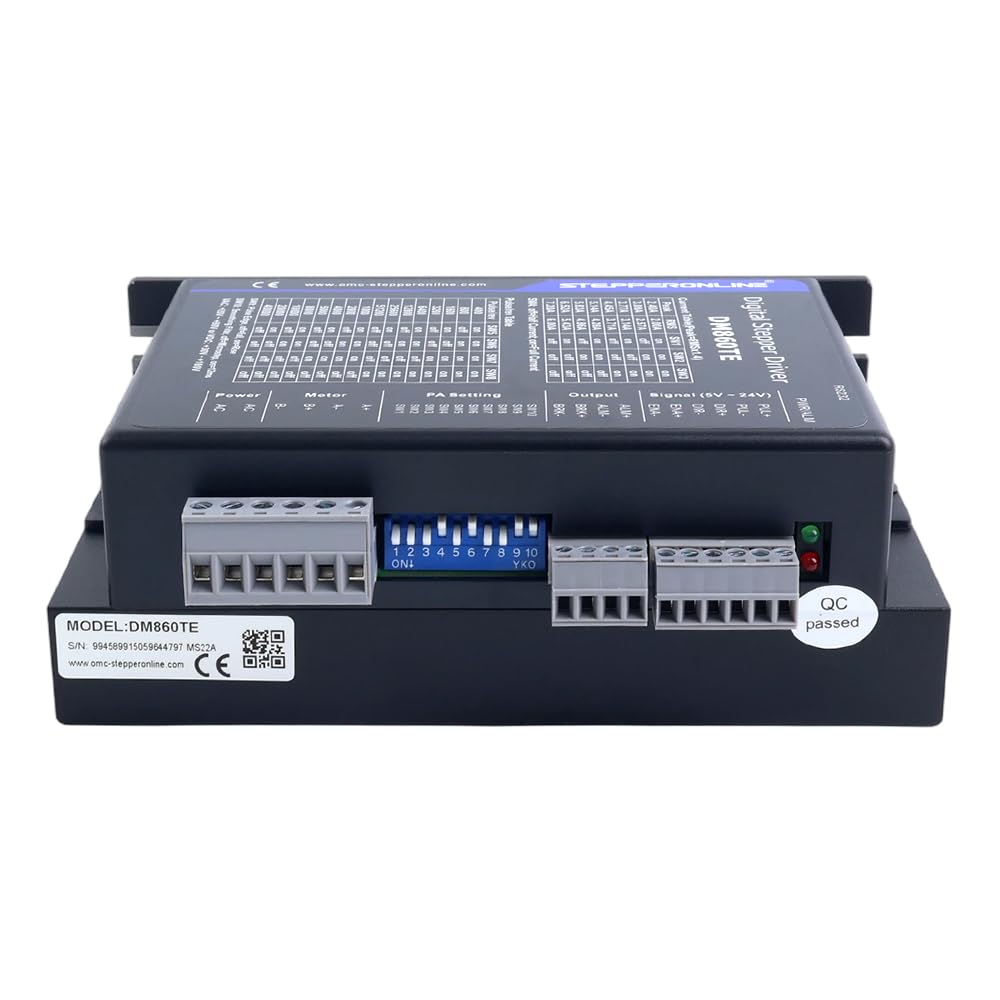

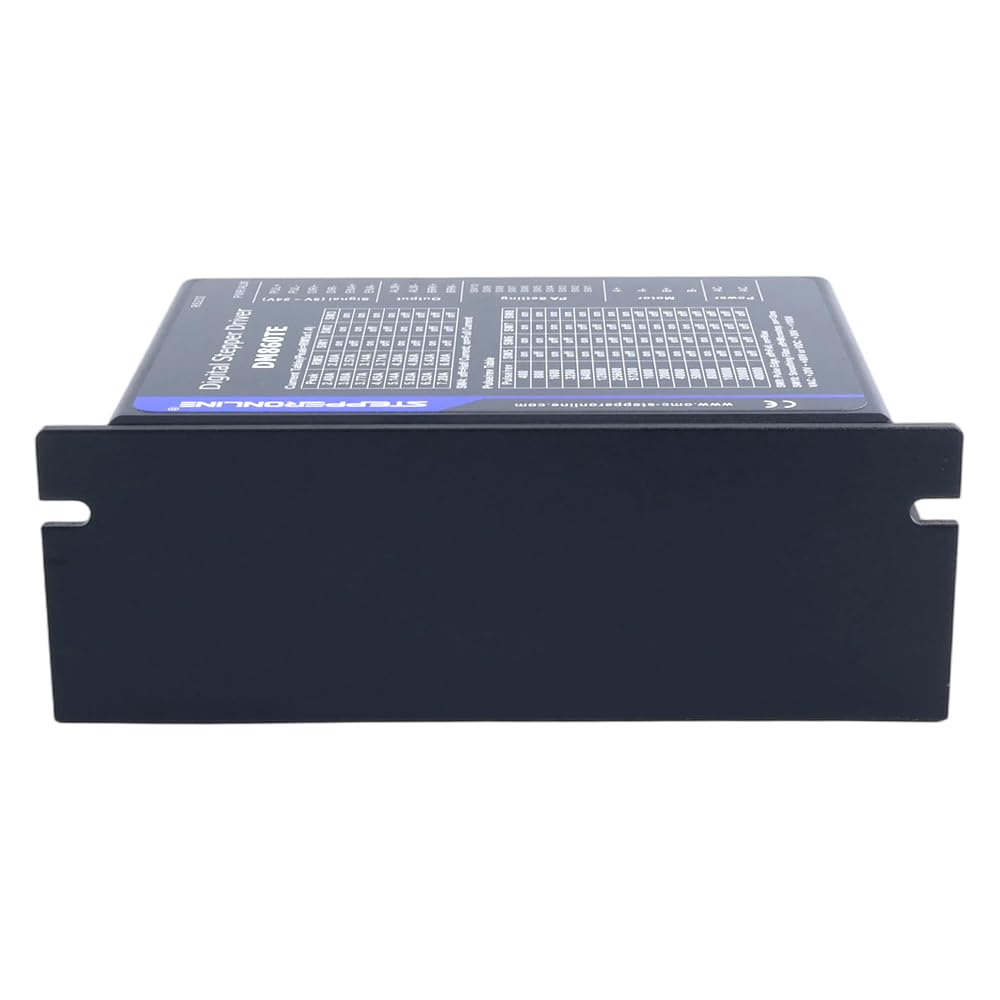

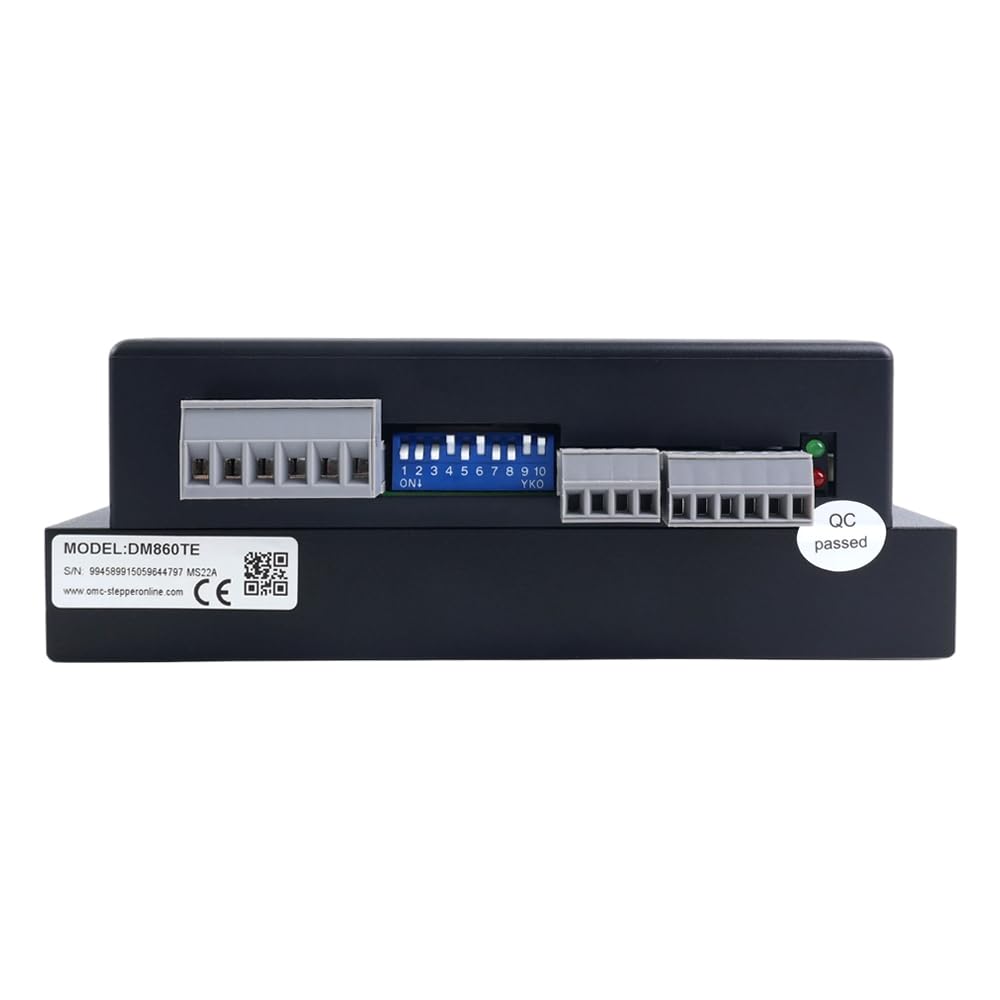

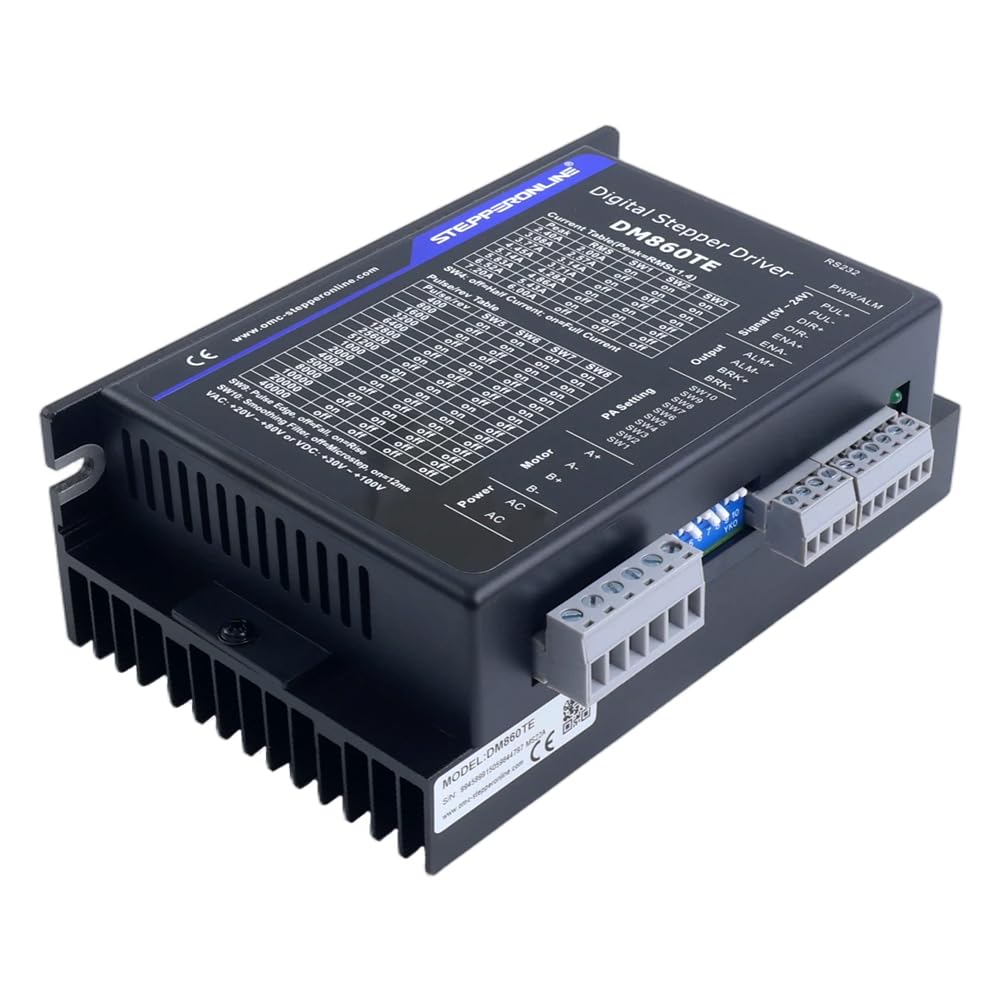

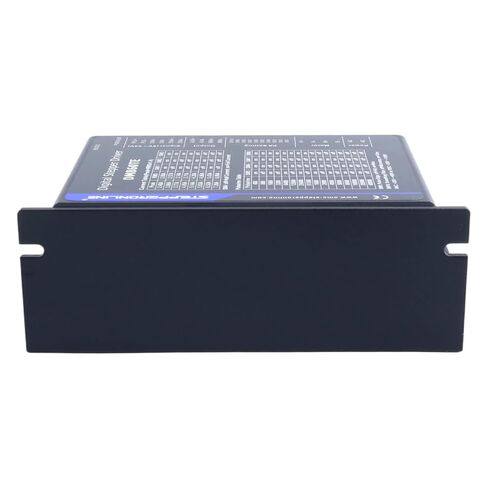

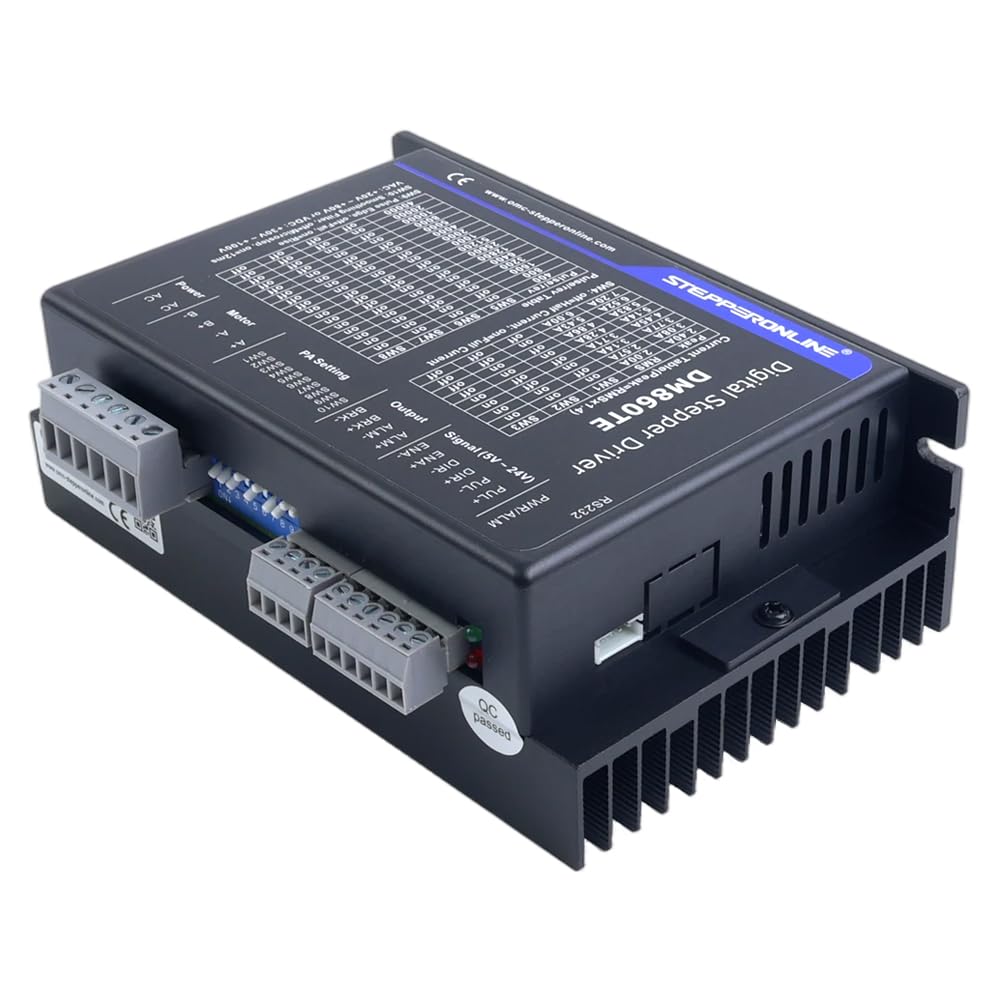

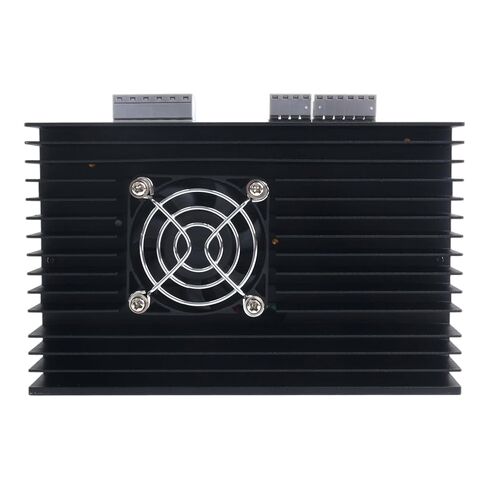

STEPPERONLINE TE Series Digital Stepper Driver 2.4-7.2A 20-80VAC/30-100VDC for Nema 34 Stepper Motor

SAR 199
– 1 +

Special Features

  • The TE Series stepper drivers are upgraded versions based on the T Series, offering exceptional cost-effectiveness. While retaining nearly identical functionality and performance to the T Series, we have significantly reduced the product entry threshold through cost optimization, making high-quality stepper drives more accessible.

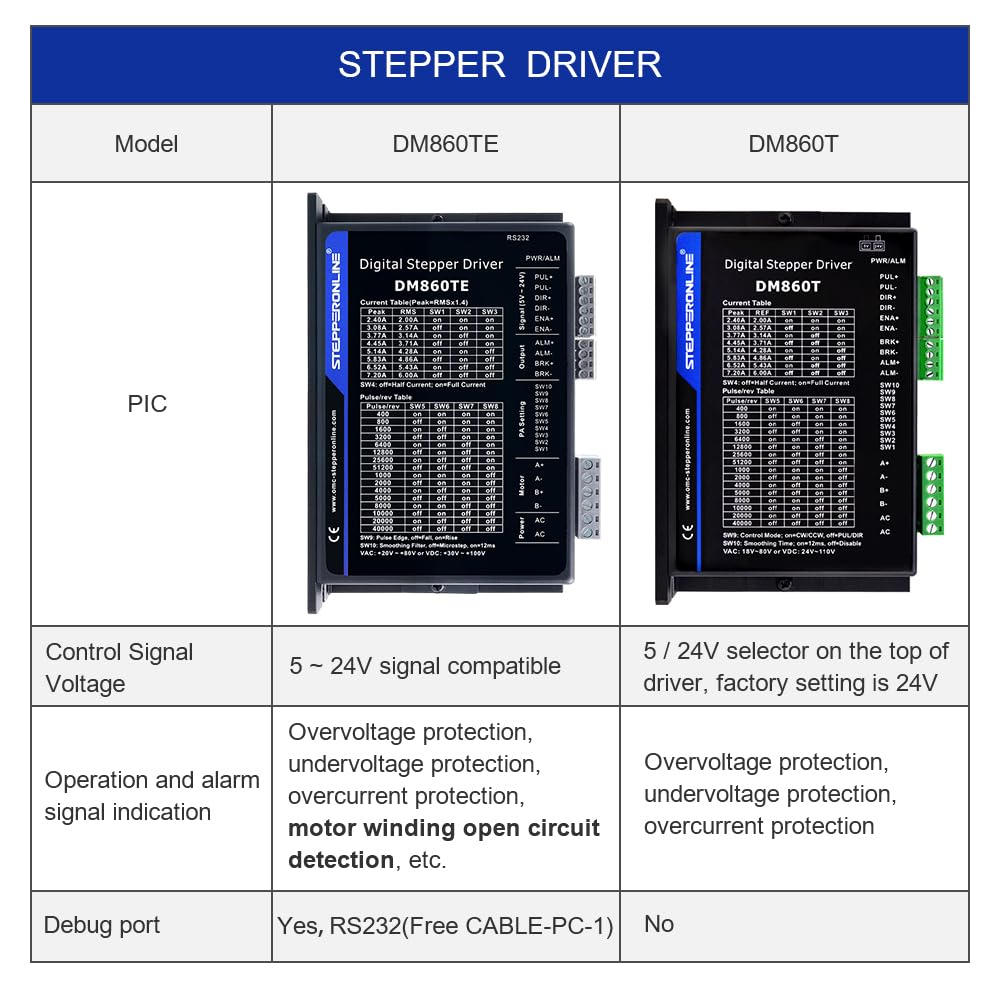

  • This is a TE series digital stepper driver with output peak current of 2.4~7.2A and input voltage of 20~80VAC/30~100VDC. It is designed for Nema 23, 24, 34 stepper motors with more competitive pricing than DM860T.​
  • Functionally, TE has an exclusive "Motor Winding Open Circuit Detection". This real - time monitoring warns of open - circuit risks, cutting equipment damage and downtime, and boosting reliability. Optically isolated inputs with 5V to 24V enables easy integration with more control systems and simplifying setup. Note that TE series drivers only support single - pulse input.​

Description

Key Features

*Motor winding open circuit detection
*Optically isolated inputs with 5V to 24V
*Only supports single pulse
*Automatic idle-current reduction
*Suitable for 2-phase and 4-phase motors
*Support PUL/DIR and CW/CCW modes
*Over-voltage, over-current protection
*Soft-start with no "jump" when powered on
*Anti-Resonance provides optimal torque and nulls mid-range instability
*Pulse input frequency up to 200KHz, TTL compatible and optically isolated input

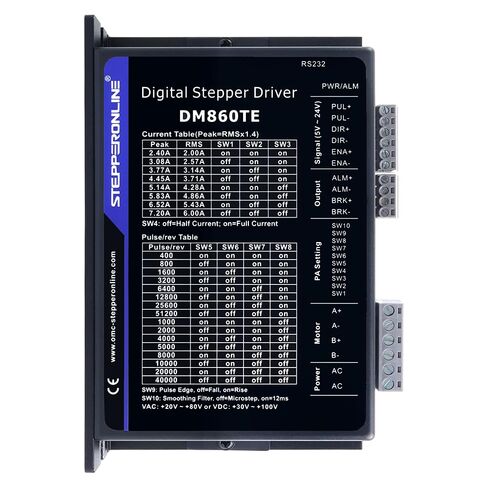

*8 selectable peak current including 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A
*Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors
*Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
*16 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 40000

Electrical Specifications

*Output Peak Current: 2.4~7.2A(2.0~6.0RMS)
*Input Voltage: +20~80VAC/30~100VDC
*Logic Input Voltage: 5~24VDC
*Logic Input Current: 7~20mA
*Pulse Input Frequency: 0~200kHz
*Pulse Width: 2.5μS
*Isolation Resistance: 500MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉)

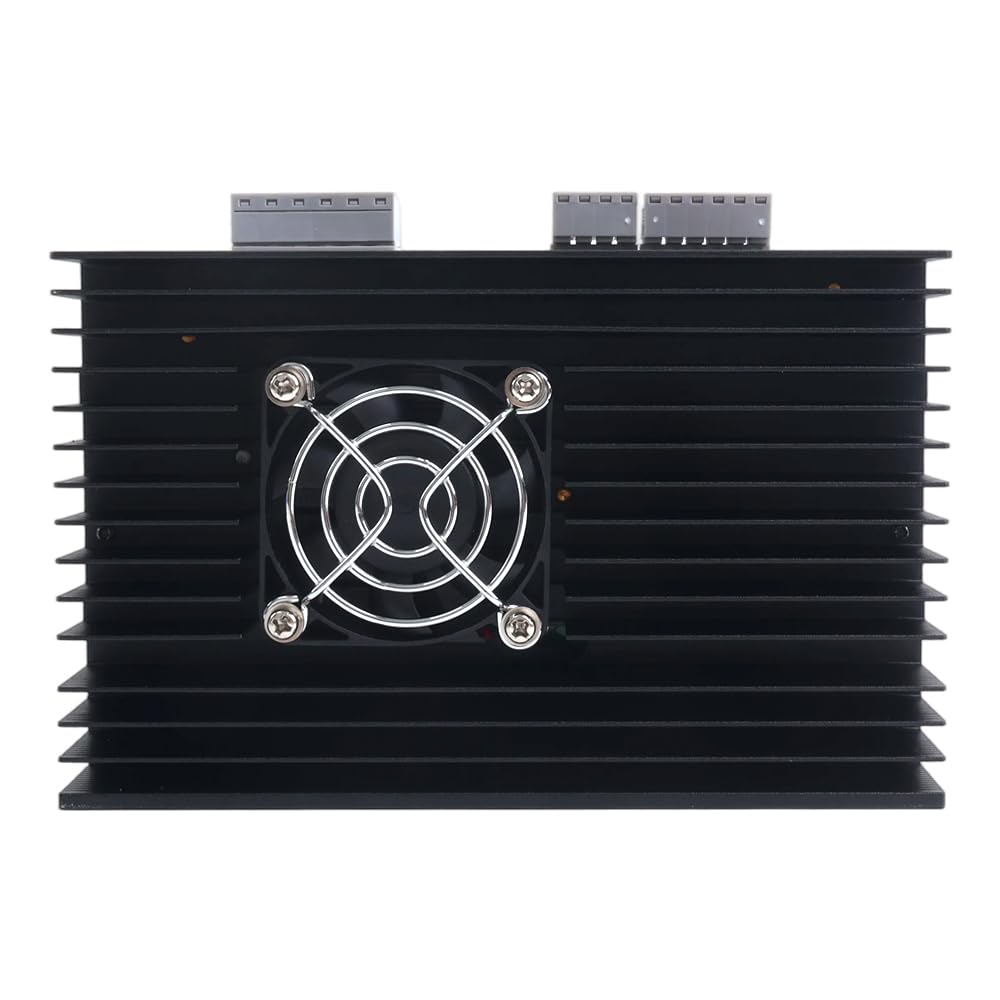

*Cooling: Natural Cooling or Forced cooling
*Environment: Avoid dust, oil fog and corrosive gases
*Humidity: 40%RH－90%RH
*Operating Temperature: 0℃ － 40℃
*Storage Temperature: -20℃ － 65℃

Packing List

*1 x DM860TE: TE Series Digital Stepper Driver 2.4-7.2A 20-80VAC/30-100VDC for Nema 34 Motor
*1 x CABLE-PC-1: RS232 Cable for Driver
