Linear Motion Lead Screws
Product Description
Type: T10 lead screw
Material: Stainless steel
Diameter: 10 mm
Pitch = 2mm, lead = 8mm (the nut moves 8mm per turn)
Pitch = 2mm, lead = 2mm (the nut moves 2mm per turn)
Pitch = 2mm, lead = 4mm (the nut moves 4mm per turn)
Pitch = 2mm, lead = 12mm (the nut moves 12mm per turn)
(Pitch is the distance between threads. Lead is the distance the nut travels after one rotation.)
Length: 100/150/200/250/300/350/400/450/500/600mm
Lead meaning: refers to the axial distance between the corresponding points of two adjacent teeth on the same spiral line
Pitch meaning: refers to the axial distance between two adjacent teeth on the thread

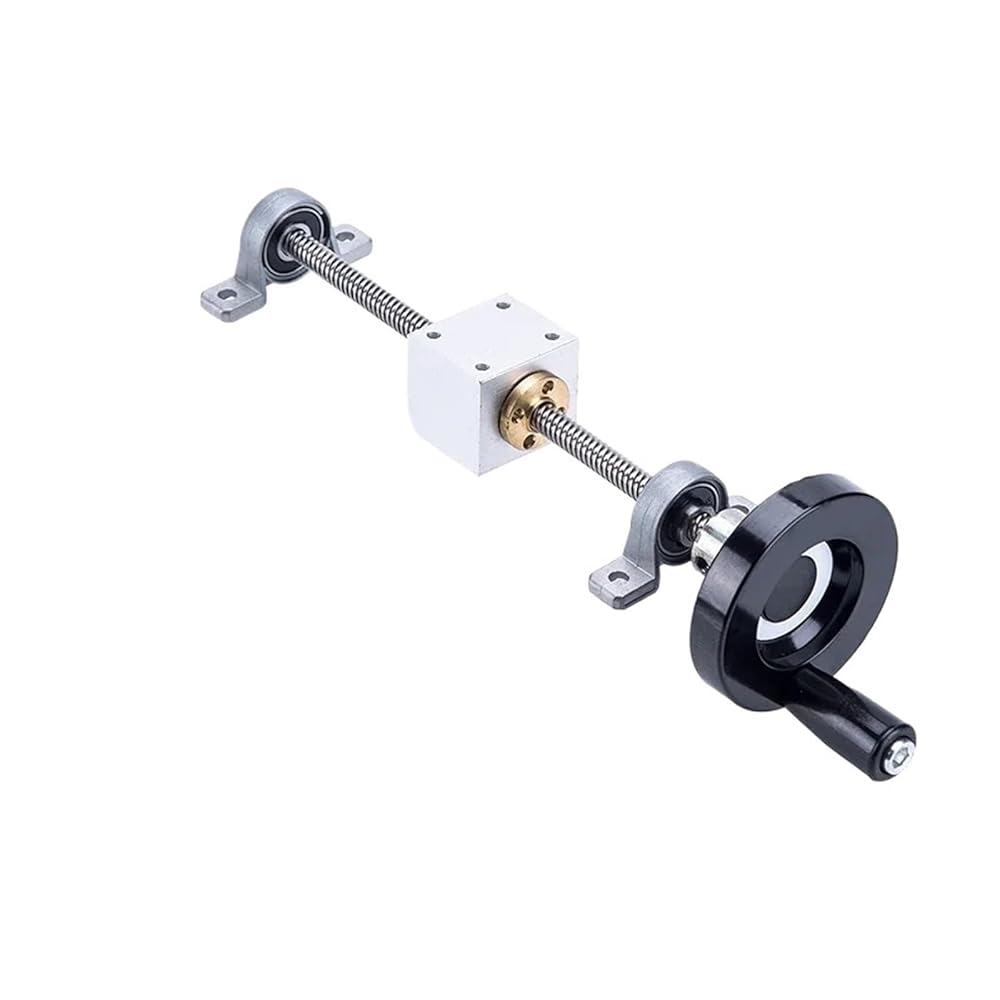

packing list:
1pc T10 lead screw
2 pieces of KP000 or KFL000
1PC copper nut
1PC Nut Housing Bracket
1 hand wheel
==========
Model: T10 lead screw
Rail width or diameter: 10MM
Origin: Mainland China
Certification: No
