[Precision Machined Measurement]Offers precise readings of current up to 10A with a measurement rate of over 200 ms for reliable monitoring.
[Mini Design for Convenience]Compact and lightweight design makes it easy to integrate into various projects and automotive applications.
[Easy Installation]Standard outer size and polarity protection line simplifies installation process for quick setup.
[Versatile Use]Ideal for automotive, DIY electronics, and small gadgets requiring accurate current monitoring.
[Temperature and Humidity Tolerance]Functions effectively at temperatures between 33 to 149 Fahrenheit and humidity levels up to 80%.

Features:
1. Good product stability and high measurement accuracy.
2. The exterior size is standard and easy to install.
3. Uses polarity protection line for Power supply.
4. Mini size, portable and convenient.
5. and durable for long term use.
Specifications:
Technical Parameters:
Supply voltage: DC4.5~30V
Ammeter range: 10A (with overcurrent protection)
Working current:
Weight: 17.5g/0.62oz
Display mode: 3 digits 0.56'
Size: Approx. 48*22*29mm/1.89*0.87*1.14in (length X width X height)
Mounting bore: 45.5*25.5 mm/1.79*1 in
Measuring rate: >200Ms
Measurement accuracy: 1%
Extreme working conditions:
Low operating voltage: 4.5V
Maximum operating voltage: +30V
Maximum current output: 9.99A Operating temperature: 1~+65°C)
Working humidity: 10~80% (no condensation)
Working pressure: 80-106kPa
Sun exposure: no direct irradiation
Color: Red Yellow Green Blue Optional
Package List:

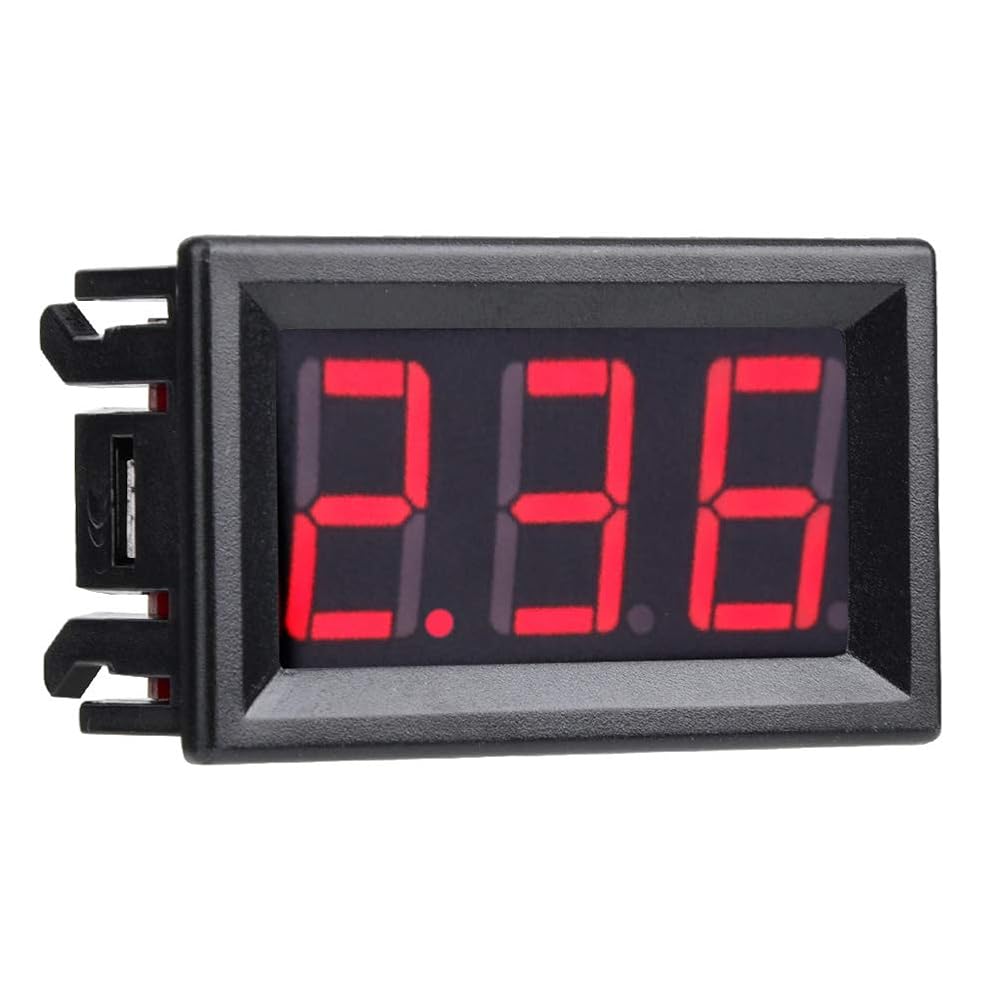

1 * Digital DC current Ammeter
2 * Cable
