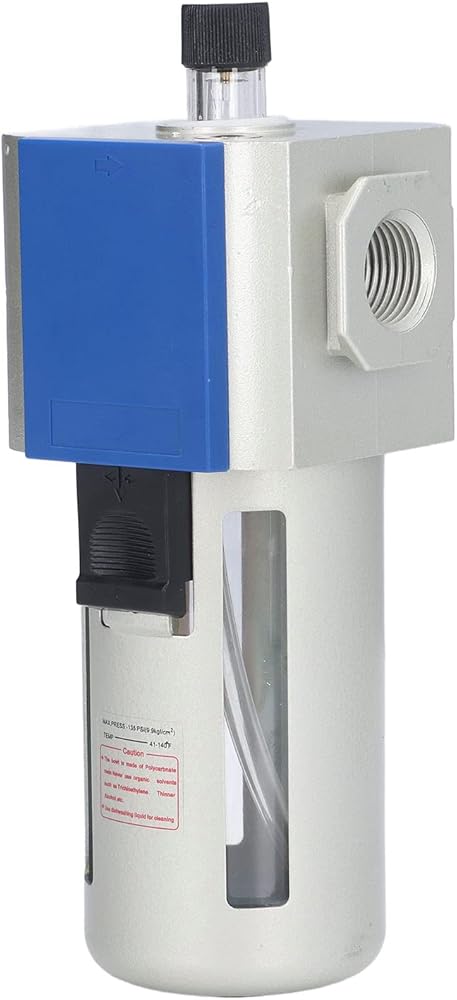

Air Compressor Lubricator Pneumatic Oil Filter Separator 160CC High Capacity Lubrication Device with Adjustable Flow Control for Industrial Air Tools 0.05 0.9Mpa Working Pressure (GL400-10) in Saudi Arabia Air Compressor Lubricator Pneumatic Oil Filter Separator 160CC High Capacity Lubrication Device with Adjustable Flow Control for Industrial Air Tools 0.05 0.9Mpa Working Pressure (GL400-10) in Saudi Arabia

GL400-15 GL400-15

SAR 202
Brand
DANAIXZ
Weight
0.7 kg
SizeGL400-15
StyleGL400-15
– 1 +

Special Features

  • [HIGH CAPACITY DESIGN] The 160CC oil cup provides extended operation without frequent refilling, for continuous industrial use. Made with durable polycarbonate , it allows clear oil level monitoring while resisting from compressed air systems. Supports non-stop operation with easy refilling capability.
  • [PRECISION FLOW CONTROL] Features an innovative oil adjustment ring with clear scale markings for exact lubrication control. The one-rotation limit design ensures precise, repeatable settings while preventing over-adjustment. Calculate exact oil quantity based on scale position for optimal equipment performance.
  • [ADVANCED SEALING TECHNOLOGY] Incorporates gap sealing in the oil drip structure for reliable, leak-operation. This engineering solution maintains consistent oil flow even under varying pressures. The result is stable lubrication that extends tool life and reduces maintenance downtime.
  • [EFFICIENT NOZZLE SYSTEM] Special drip nozzle design creates negative pressure for cleaner, more effective lubrication. Minimizes oil fogging and waste while ensuring complete coverage. The optimized flow pattern delivers lubricant exactly where needed without excess spray or.
  • [VERSATILE PERFORMANCE] Operates across a wide 0.05-0.9Mpa (20-130Psi) range suitable for most industrial applications. Includes sturdy mounting bracket for secure installation in any orientation. Aluminum alloy construction withstands high pressures up to 1.5Mpa (215Psi) for demanding environments.

Description

Item Type: Air Compressor Lubricator
Material: Aluminum Alloy
Working Medium: Air
Operating Pressure Range: 0.05-0.9Mpa (20-130Psi)
Guaranteed Pressure Resistance: 1.5Mpa (215Psi)
Operating Temperature Range: -20℃-70℃
Suggested Lubrication Oil: ISO VG32 or equivalent oil
Oil Cup Capacity: 160CC

Package List：
1 x Air Compressor Lubricator
Note:
1. Keep the pipeline clean and prolong the service life
2. The cup body is made of polycarbonate resin, do not use solvents, such as dilution, etc., use detergent for cleaning
