Gearbox Specifications

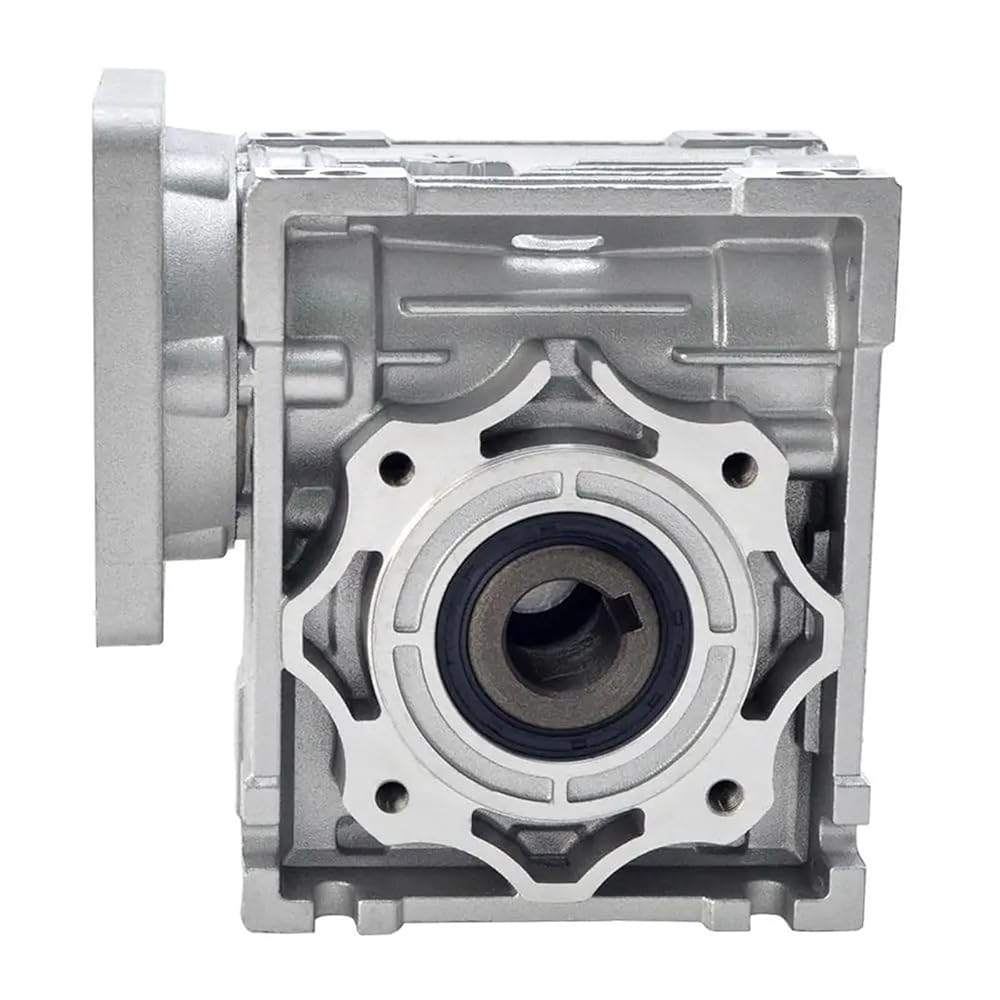

Manufacturer Part Number: NMRV40-G5/7.5/10/20/30/50-D14
Gearbox Type: Worm Gearbox
Efficiency: 83%
Output Max.Permissible Torque: 40Nm(354.03lb-in)
Output Max. Radial Load: 1.44kN
Output Type: Hollow Bore
Output Bore Diameter: 18mm
Input Shaft Type: Key way
Input Shaft Diameter: 14mm
Input Shaft Max. Length: 35mm
Please note:
The output shaft is available, please contact our technical support for your requirements.
The gear ratios available for this gearbox are: 5:1, 7.5:1, 10:1, 15:1, 20:1, 25:1, 30:1 and 40:1.
Due to their relatively high backlash (1°), worm gearboxes are not suitable for positioning applications.
==========
Model Number : NMRV40-G5/7.5/10/20/30/50-D14
Origin : Mainland China
