Product Description
Specifications:

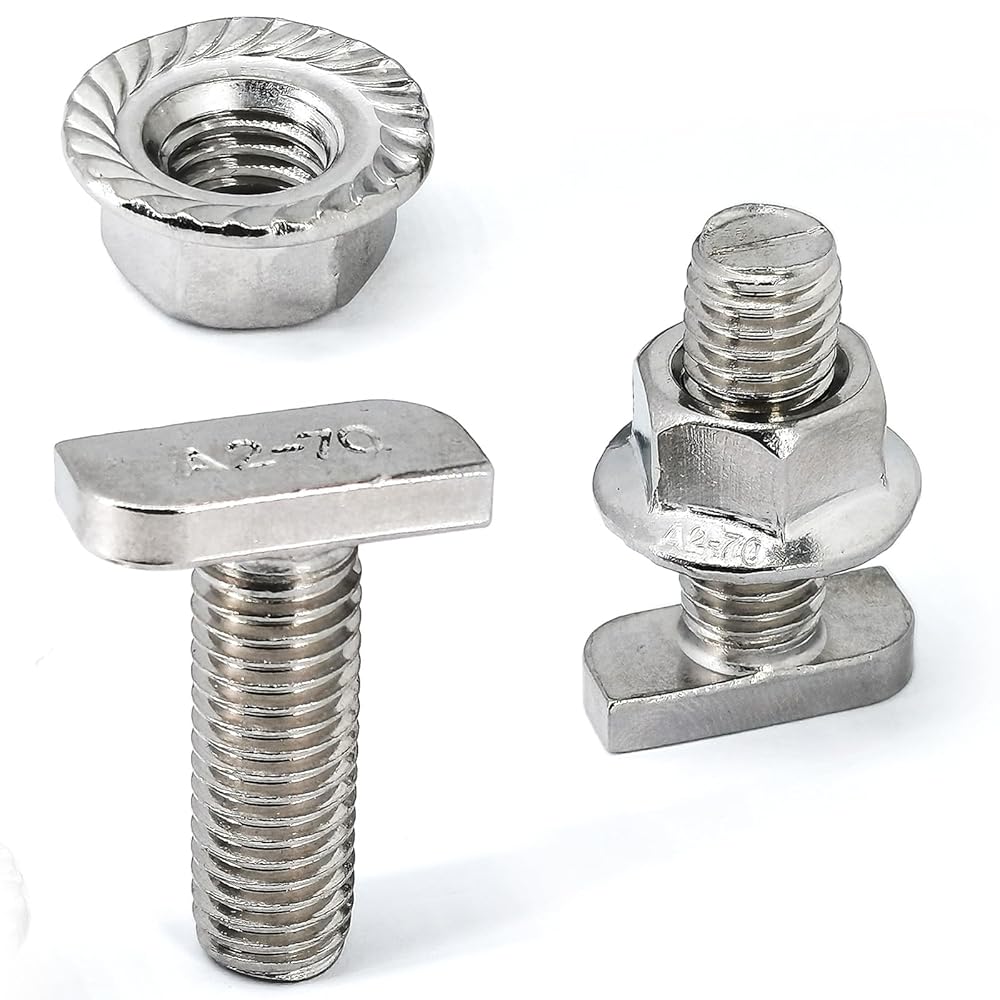

Product name:T slot drop-in bolt with hexagon flange nut set
Material:304 Stainless steel
Color:Silver

Size:
Thread diameter:M8
Thread length:20mm/0.79in
Thread pitch:1.25mm
Hammer head size:23 x 10 x 4mm/0.91 x 0.39 x 0.16in(L x W x T)
Hexagon flange nut:M8

Package included:
10 pcs M8 x 20mm T slot drop-in bolt
10 pcs M8 Hex flange nut

Features:
1.The bolt head adopts a T-shaped structure and can be easily slid into the T-shaped groove of the bracket.
2.304 Stainless steel,corrosion resistance and rust prevention.
3.Flange nuts,which increase the contact area and provide a more uniform force distribution.
4.The threads are neat and clear,and the surface is smooth without burrs.
5.T bolt sets are suitable for a variety of projects such as T-slot rails,solar mounting rails,photovoltaic mounting systems,aluminum profile mounting,solar module connections,etc.
