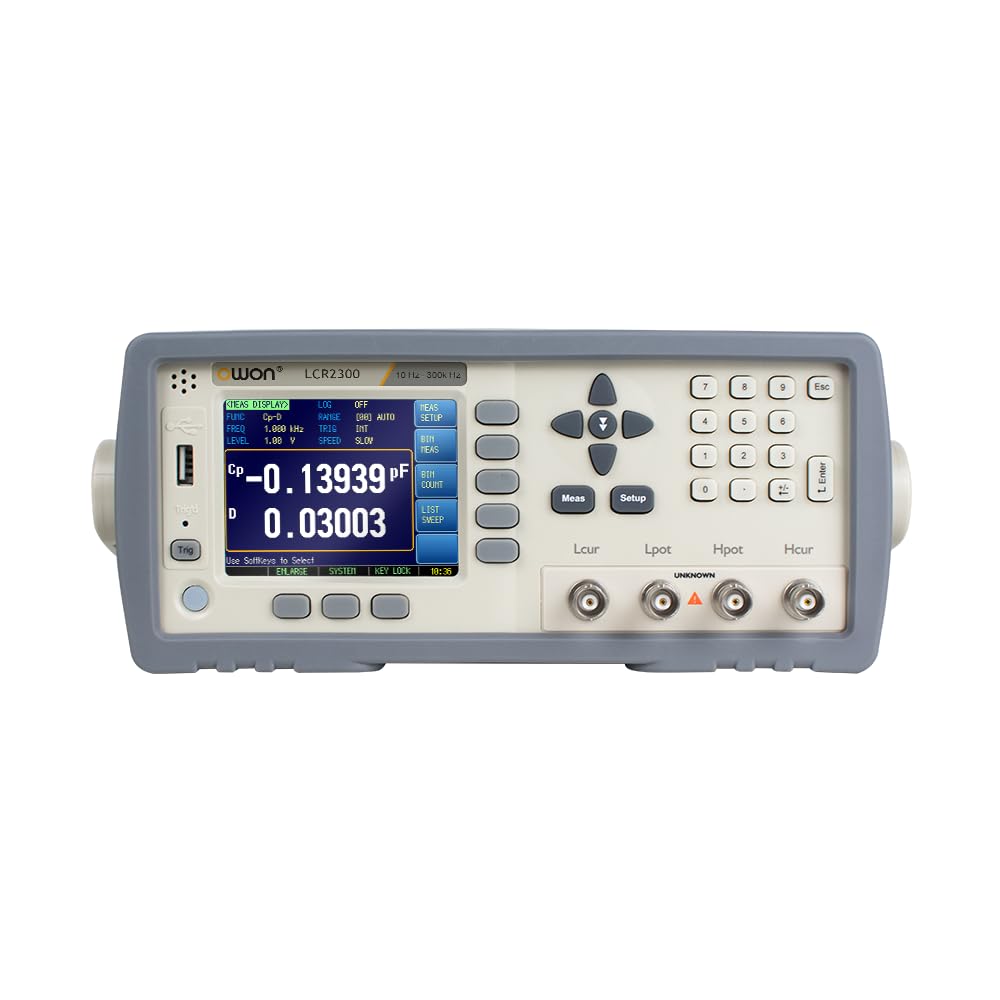

- LCR2000 Series LCR Meter
Model NO. Test Frequency
LCR2300 10Hz～300kHz
LCR2200 10Hz～200kHz
LCR2100 10Hz～100kHz
LCR2020 10Hz～20kHz
+ Consecutive test frequency
+ Basic accuracy : 0.05%
+ Measuring speed up to 40 times per second
+ Use 9-range test, auto, lock and nominal
( the instrument automatically selects the best range based on nominal value)
+ DCR measurement and internal D.C. bias voltage (±2.5V)
+ 3.5”color LCD
+ Interface : RS-232C, Handler, USB Host / Device
+ Support SCPI and ModbusRTU communication protocol
