Flexible and Expandable Off-Road Tracked UGV, Multiple Hosts Support, Optimized Climbing Capability, with External Rails and ESP32 Slave Computer @XYGStudy (UGV01) in Saudi Arabia

Flexible and Expandable Off-Road Tracked UGV, Multiple Hosts Support, Optimized Climbing Capability, with External Rails and ESP32 Slave Computer @XYGStudy (UGV01)

SAR 1,200
Set nameUGV01
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Part Number: UGV01
  • Flexible and Expandable Off-Road Tracked UGV, Multiple Hosts Support, Optimized Climbing Capability, with External Rails and ESP32 Slave Computer

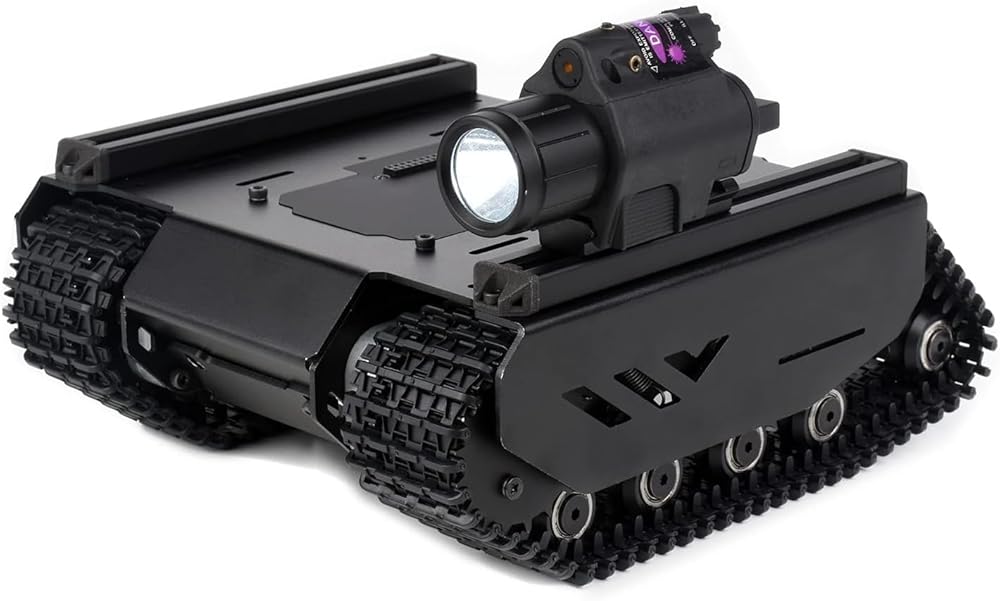

  • The UGV01 series is a tracked mobile robot chassis, which features superb off-road crossing ability and anti-vibration performance, open source all code for secondary development. It supports multiple host computers (Pi, Jetson Nano, etc), the host computer can communicate with the ESP32 slave computer through the serial port.
  • The motor with encoder can obtain the speed feedback for closed-loop speed control. Built in 3S UPS power supply module, supports 3 x 18650 batt (in series, NOT included), which provides uninterruptible power for the robot and supports charging and power output at the same time. Built in multi-functional robot driver board, based on ESP32, with onboard WIFI and Bluetooth, for driving serial bus servos, outputing PWM signal, expanding TF card slot, etc.
  • The UGV01 adopts multiple independent Suspension Systems which greatly reduce the impact of complex terrains, can easily meet the needs of heavy loads, shock absorption, and off-road.
  • Also, it comes with 2x 1020 European standard profile rails, provides more possibilities for secondary development.

Description

Overview
Flexible and Expandable Off-Road Tracked UGV, Multiple Hosts Support, Optimized Climbing Capability, with External Rails and ESP32 Slave Computer

Package Contains :
UGV01

For more user guide resources you may need, pls contact me via Amazon message, i will send you then via attachment.
