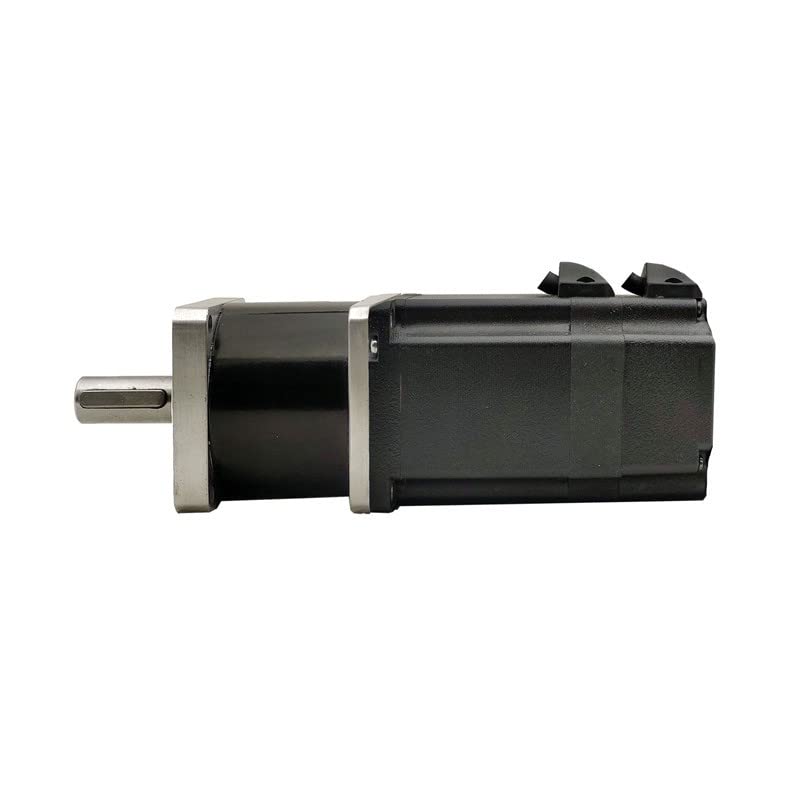

200W60mmBrushlessDCMotor48VwithplanetarygearboxRatio415:1/10:1/16:1/20:1/25:1/40:1/50:1/100:1 reducer BLDCmotor3phase
Technicaldata:
Model
Voltage
(VDC)
MotorRatedParameters
Motor
Peak
Tq
(N.m)
Tq
Constant
(N.m/A)
Back
EMF
(V/kRPM)
Motor
Rotor
Inertia
(kg.mm2)
Length(L:mm)
Weight(kg)
Speed
(rpm)
Tq
(N.m)
Current
(A)
Power
(W)
1-stage
2-stage
1-stage
2-stage
J60BLSPG99-430A
48
3000
0.65
6.5
200
1.95
0.065
4.5
48
152
169
2.05
2.35
J60BLSPG120-430A
3000
0.95
8.8
300
2.85
0.126
9.3
72
173
190
2.45
2.75
J60BLSPG140-430A
3000
1.25
11.5
400
3.81
0.127
9.2
96
193
210
2.85
3.15
PlanetaryGearboxSpecification
TechnicalData
1stage
2stage
Gearratio
4 5 10
16 20 25 40 50 100
LengthL1:
mm
53
70
Ratedload:
Nm
25
40
Efficiency:
% 95
90
Backlash:
arcmin
15
25
Ratedinputspeed:
rpm
3000
3000
Maxinputspeed:
rpm
5000
5000
Safetyclass:
IP
65
65
Lubrication:
Lifegreaselubrication
Noise:
dB
45
45
Servicelife:
h ~20000
~20000
DimensionUnit:mm
WiringDiagram
