Rotating axis rotating platform
Gearboxes Gearheads & Speed Reducers

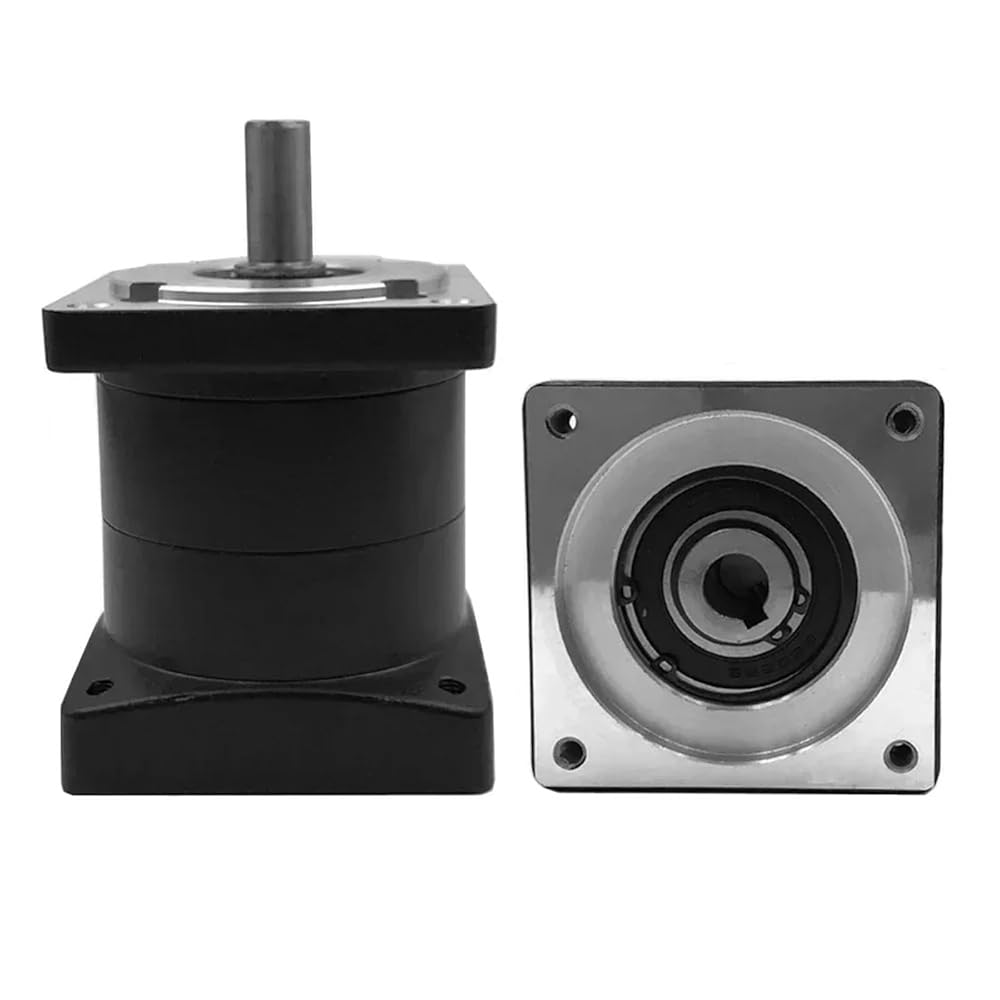

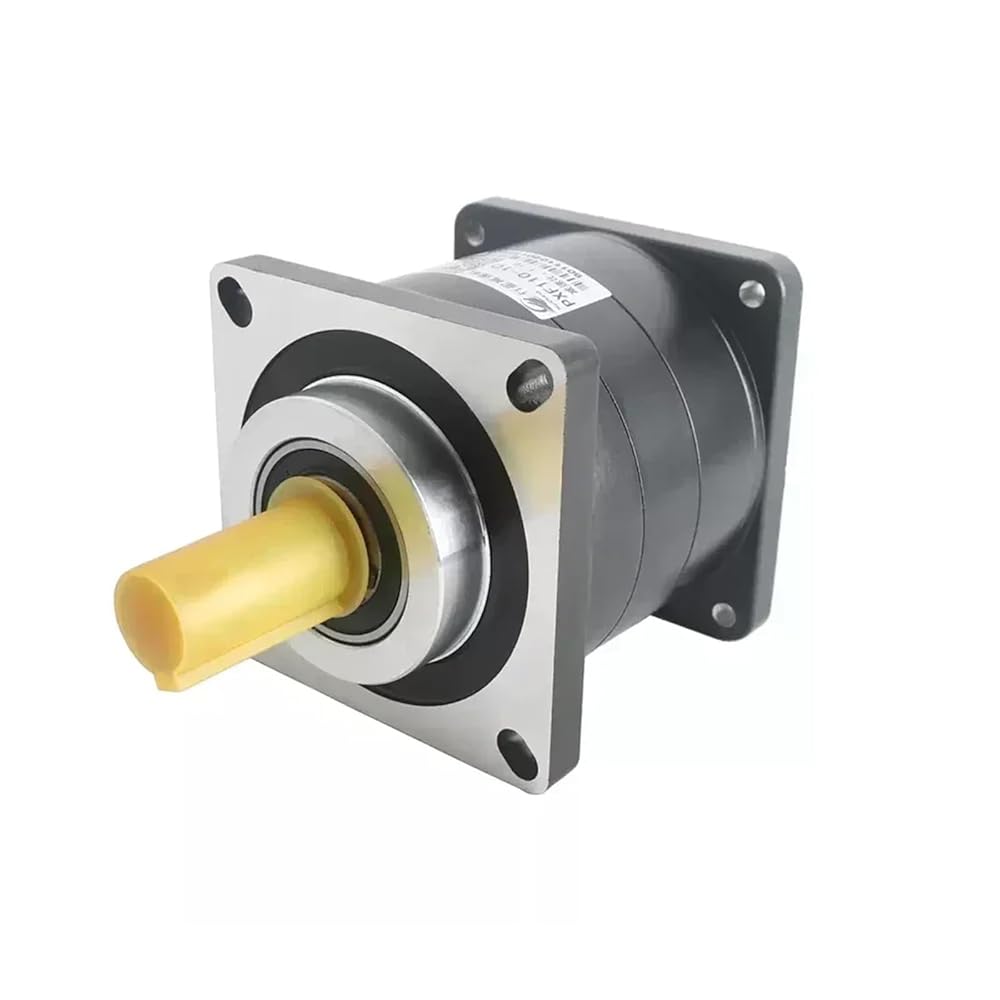

1Pcs Planetary reducer
1Pcs Key
4Pcs* Install screws

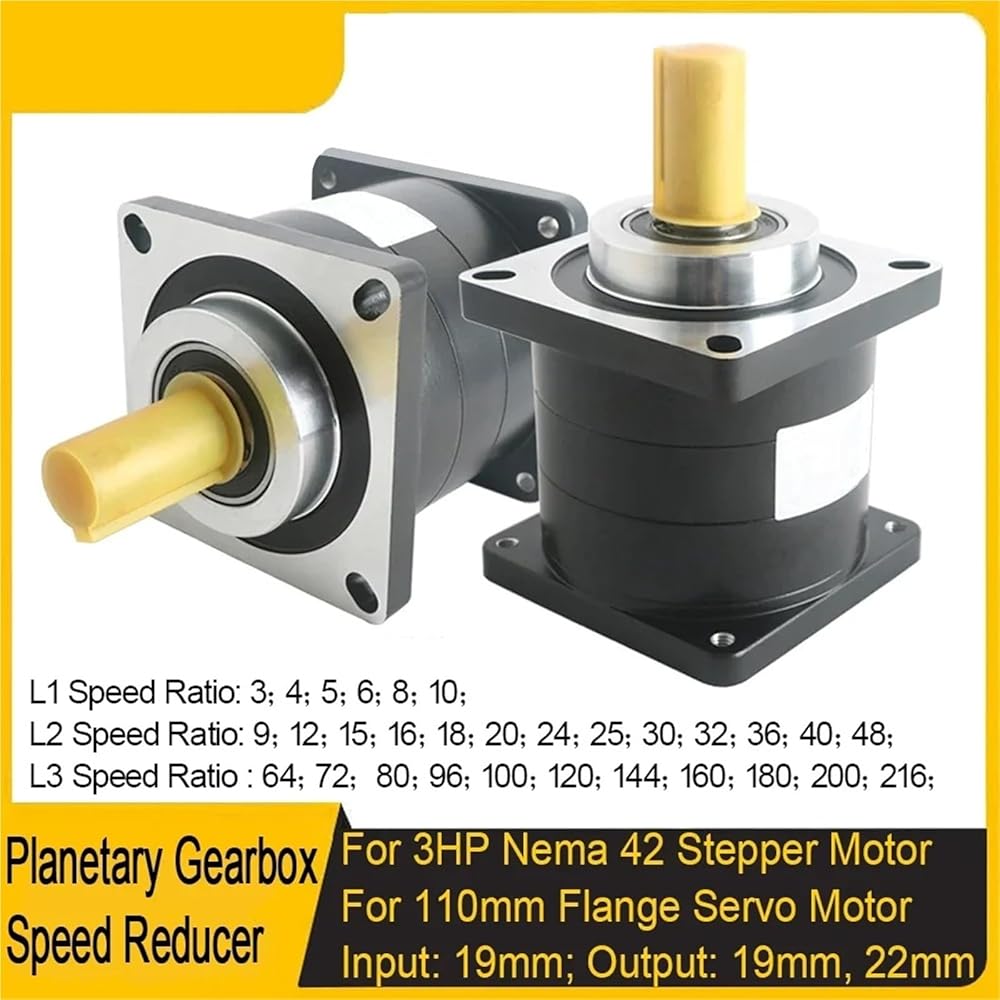

Speed Ratio:
1 Stage (L1)
: 3:1;4:1;5:1;6:1;8:1;10:1
2 Stage (L2)
: 9:1;12:1;15:1;16:1;18:1;20:1;24:1;25:1;30:1;32:1;36:1;40:1;48:1;50:1
3 Stage (L3)
: 64:1;72:1; 80:1;96:1;100:1;120:1;144:1;160:1;180:1;200:1;216:1
Noise: less than 60dB

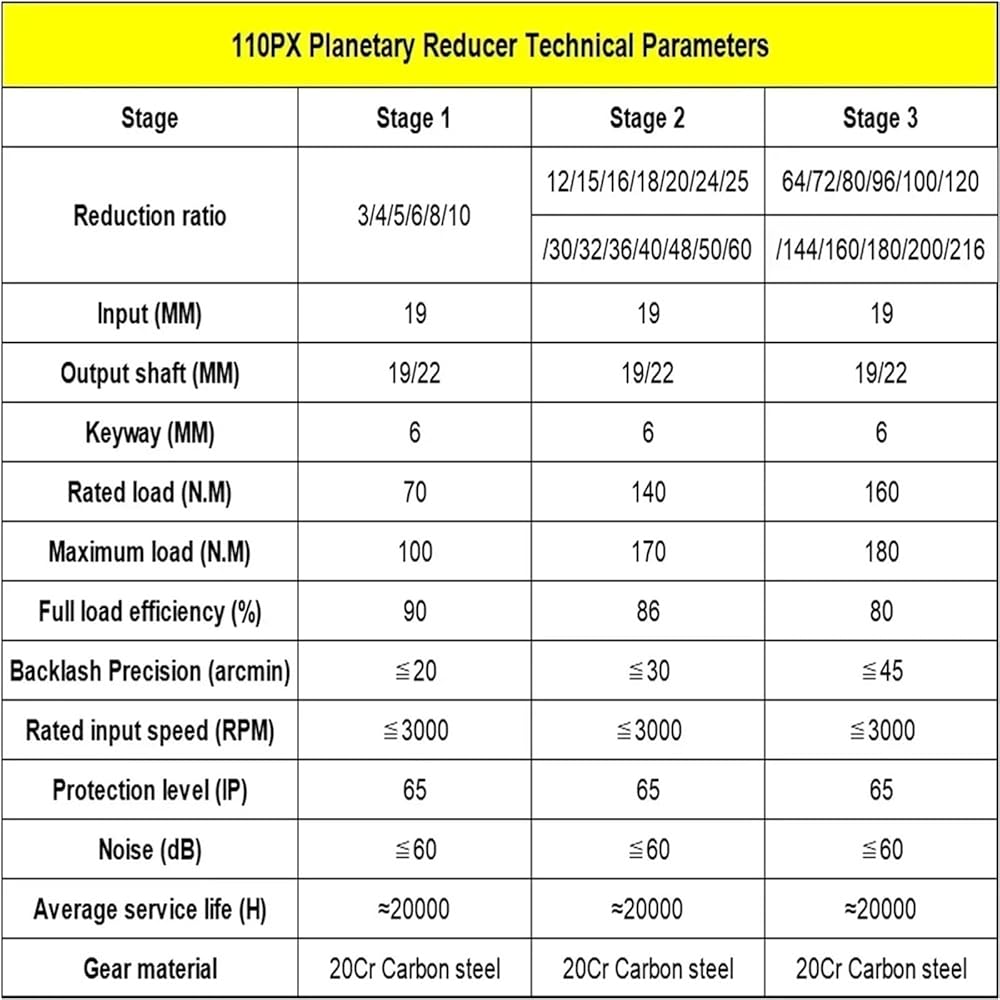

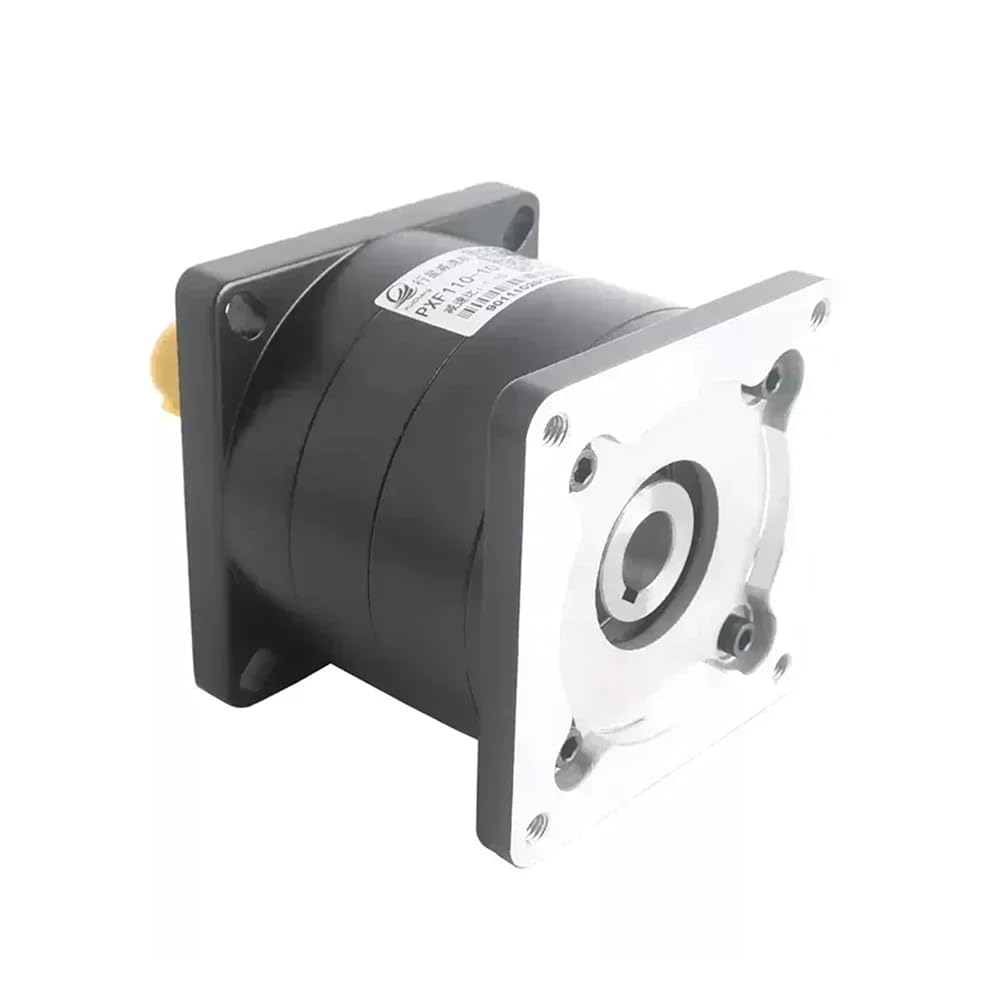

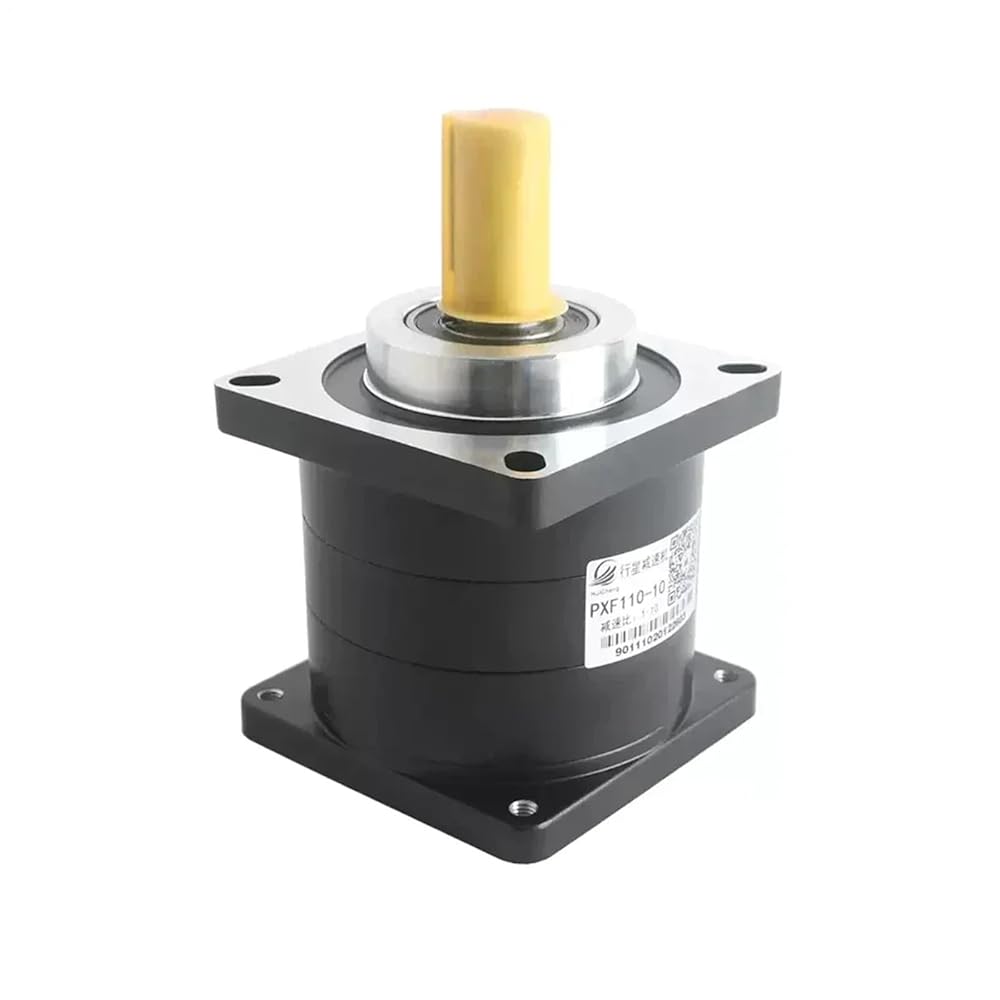

110PX Planetary Reducer Technical Parameters
Stage
Stage 1
Stage 2
Stage 3
Reduction ratio
3/4/5/6/8/10
12/15/16/18/20/24/25
/30/32/36/40/48/50/60
64/72/80/96/100/120
/144/160/180/200/216
Input (MM)
19
19
19
Output shaft (MM)
19/22
19/22
19/22
Keyway (MM)
6
6
6
Rated load (N.M)
70
140
160
Maximum load (N.M)
100
170
180
Full load efficiency (%)
90
86
80
Backlash Precision (arcmin)
20
30
45
Rated input speed (RPM)
3000
3000
3000
Protection level (IP)
65
65
65
Noise (dB)
60
60
60
Average service life (H)
20000
20000
20000
Gear material
20Cr Carbon steel
20Cr Carbon steel
20Cr Carbon steel
