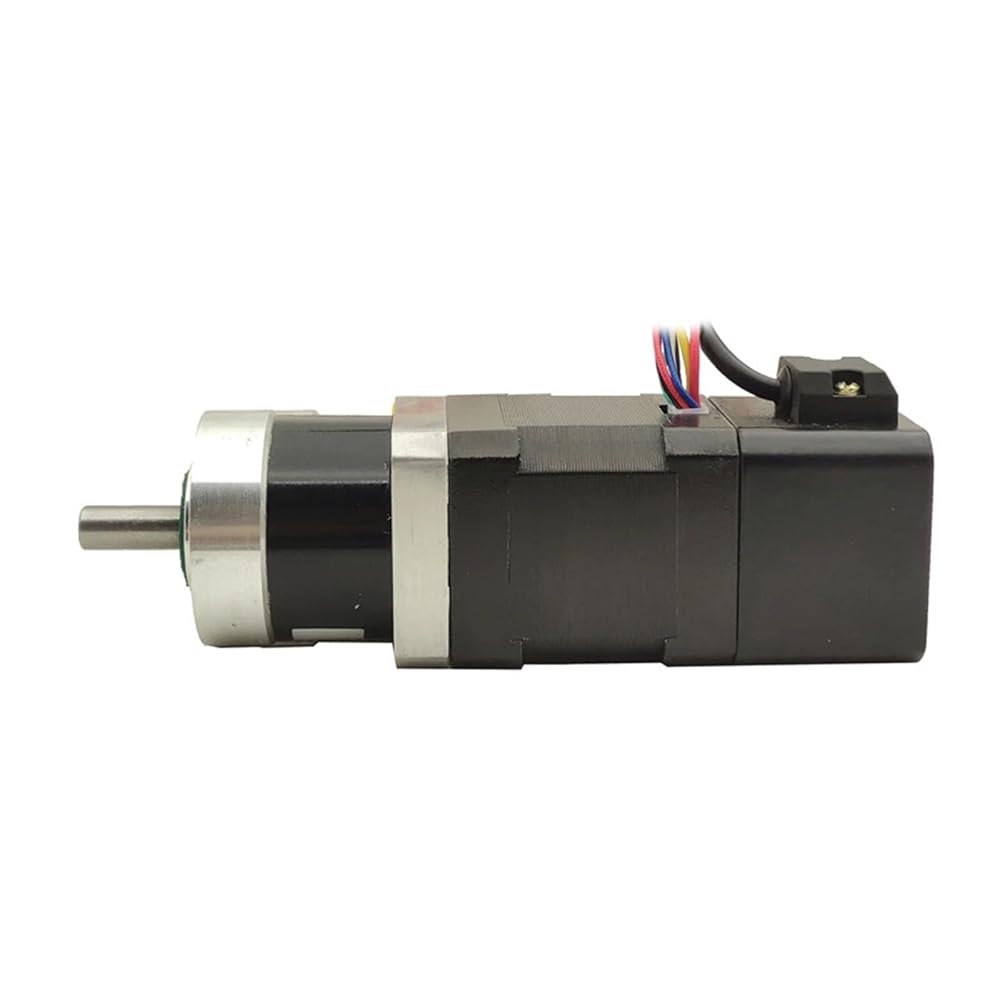

52WBrake and Planetary geared 42mmBrushlessDCMotor24V Ratio415:1/10:1/16:1/20:1/25:1/40:1/50:1/100:1 ReducerBLDCmotor3phase
Technicaldata:
Model
Voltage
(VDC)
MotorRatedParameters
Motor
Peak
Tq
(N.m)
Tq
Constant
(N.m/A)
Back
EMF
(V/kRPM)
Motor
Rotor
Inertia
(kg.mm2)
Length(L:mm)
Weight(kg)
Brake
Tq
(N.m)
Speed
(rpm)
Tq
(N.m)
Current
(A)
Power
(W)
1-stage
2-stage
1-stage
2-stage
J42BLSPGB40-240A
24
4000
0.063
1.65
26
0.185
0.035
3.17
5.2
114
124
1.03
1.23
0.65
J42BLSPGB60-240A
4000
0.125
3.4
52
0.38
0.041
3.13
9.3
134
144
1.18
1.38
J42BLSPGB80-240A
4000
0.165
4.5
69
0.55
0.042
3.28
13.4
154
164
1.33
1.53
J42BLSPGB100-240A
4000
0.25
6.6
105
0.75
0.0376
2.62
9.6
174
184
1.4
1.6
