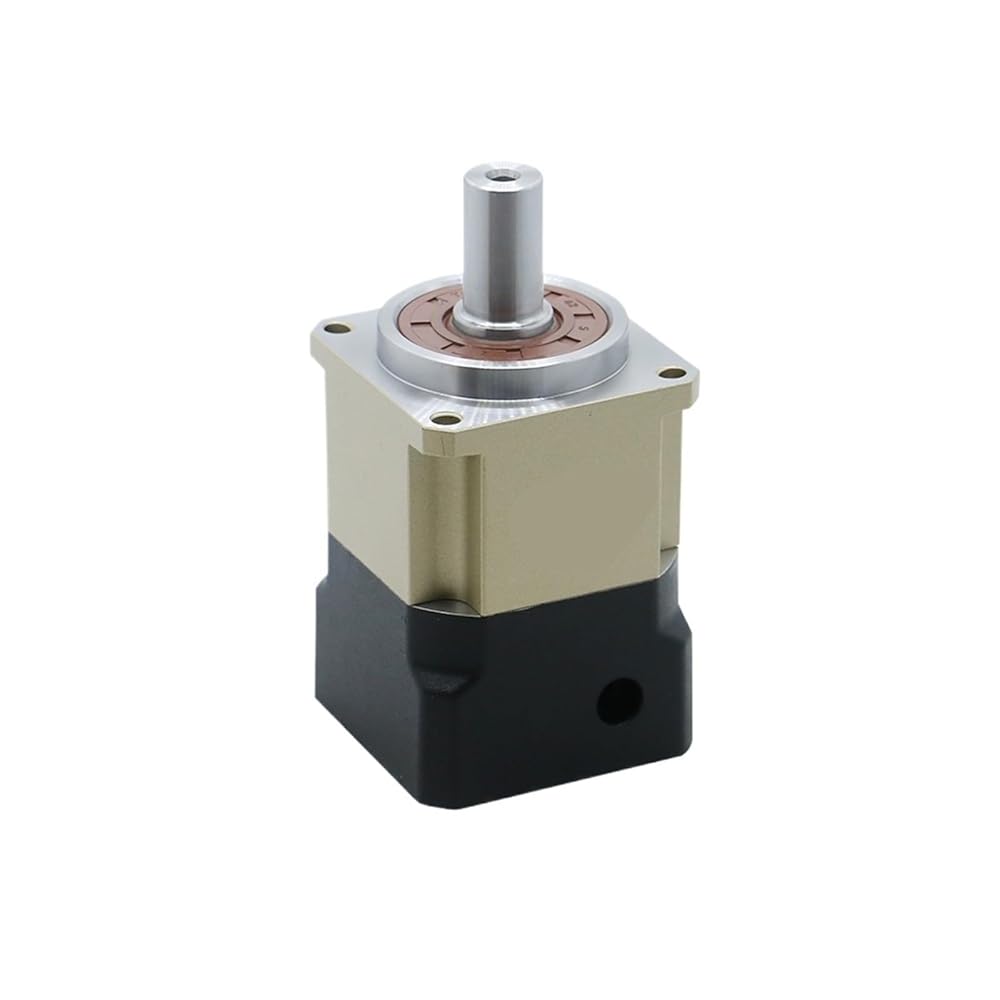

PGH60L1SW FOR 8MM INPUT STEPPER MOTOR WITH 16MM OUTPUT
Model Number
PGH060
Transmission Ratio
34/5/7/10
Full Load Efficiency
98%
Rated Output Tq (Nm)
53/55/54/44/37
Rated Input Speed
3000min^-1
Moment of Inertia (kgcm^2)
0.23/0.18/0.17/0.14/0.14
Maximum Input Speed
6000min^-1
Accuracy
6 arcmin
PGH60-L2SW FOR 8MM INPUT STEPPER MOTOR WITH 16MM OUTPUT
Model Number
PGH060
Transmission Ratio
12/15/20/25/30/35/40/50/70/100
Full Load Efficiency
98%
Rated Output Tq (Nm)
53/53/55/54/54/54/55/54/44/37
Rated Input Speed
3000min^-1
Moment of Inertia (kgcm^2)
0.17/0.17/0.17/0.17/0.14/0.14/0.14
/0.14/0.14/0.14
Maximum Input Speed
6000min^-1
Accuracy
8 arcmin
PGH60-L1SW FOR 14MM INPUT 60SERVO MOTOR WITH 14MM OUTPUT
Model Number
PGH060
Transmission Ratio
3/4/5/7/10
Full Load Efficiency
98%
Rated Output Tq (Nm)
53/55/54/44/37
Rated Input Speed
3000min^-1
Moment of Inertia (kgcm^2)
0.23/0.18/0.17/0.14/0.14
Maximum Input Speed
6000min^-1
Accuracy
6 arcmin
PGH60-L2SW FOR 14MM INPUT 60 SERVO MOTOR WITH 14MM OUTPUT
Model Number
PGH060
Transmission Ratio
12/15/20/25/30/35/40/50/70/100
Full Load Efficiency
98%
Rated Output Tq (Nm)
53/53/55/54/54/54/55/54/44/37
Rated Input Speed
3000min^-1
Moment of Inertia (kgcm^2)
0.17/0.17/0.17/0.17/0.14/0.14/0.14
/0.14/0.14/0.14
Maximum Input Speed
6000min^-1
Accuracy
8 arcmin
