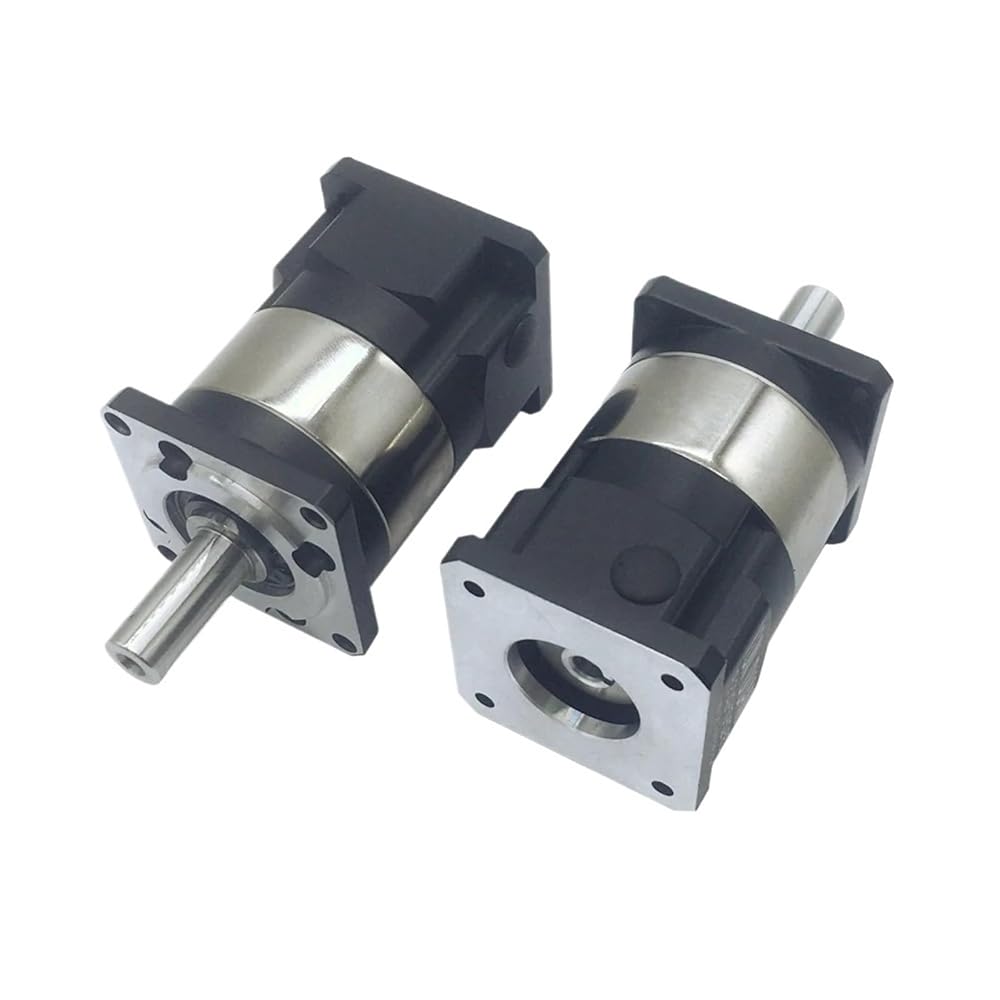

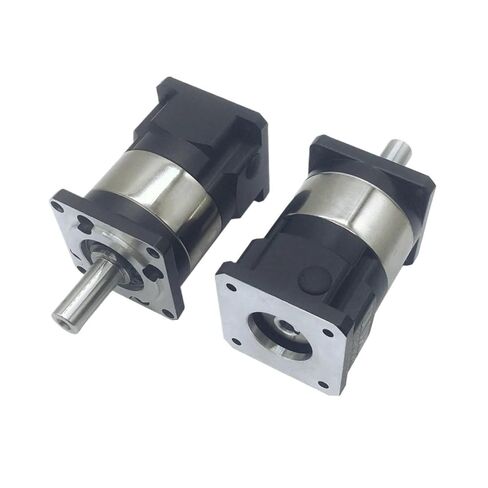

1x Planetary Gearbox
4x Install screws
Speed Ratio
1Stage L1): 3:1 / 4:1 / 5:1 / 7:1 / 10:1
2Stage (L2): 15:1 / 20:1 / 25:1 / 30:1 / 35:1 / 40:1 / 50:1 / 70:1 / 100:1
Product type: Planetary Gearbox
Input Shaft: 5mm / 8mm (Please choose according to your needs)
Output Shaft: 10mm
Rated Tq
10Nm (10:1 / 100:1)
12Nm (7:1 / 35:1/70:1)
16Nm (4:1 / 25:1/40:1)
15Nm (5:1 /20:1/ 50:1)
Maximum Tq: 1.5* Rated Tq
Emergency braking Tq: 2.5* Rated Tq
Body length: L1=80mm L2=97.5mm
Backlash Precision: L1 7 Arcmin L2 12 Arcmin
Max radial force: 185N
Max axial force : 150N
Torsion rigidity: 0.7Nm/arcmin
Max input speed: 8000rpm
Rated input speed: 4000rpm
Noise: less than 58dB
PLF042
PLF060
PLF080
PLF090
PLF120
PLF160
Max. Output Tq
Nm
1.5 Times Rated Output Tq
Instant Braking Tq
Nm
2 Times Rated Output Tq
Max Radial Tq
N
185
240
400
450
1240
2250
Max Axis Tq
N
150
220
420
430
1000
1500
Torsional Stiffness
Nm/arcmin
0.7
1.8
4.7
4.85
11
56
Max Input Speed
rpm
8000
8000
6000
6000
6000
4000
Rated Input Speed
rpm
4400
4000
3500
3500
3500
3000
Noise
dB
55
58
60
60
65
70
Life time
h
20000
Full Load Efficiency
%
L196% L294%
Backlash
PO
L1
arcmin
88
88
88
L2
arcmin
12
12
12
12
12
12
Moment of Inertia
L1
4:1
Kg.cm2
0.10
0.46
0.77
1.73
12.78
36.72
5:1
Kg.cm2
0.10
0.46
0.77
1.73
12.78
36.72
7:1
Kg.cm2
0.06
0.41
0.65
1.42
11.38
34.02
10:1
Kg.cm2
0.06
0.41
0.65
1.42
11.38
34.02
L2
20:1
Kg.cm2
0.08
0.44
0.72
1.49
12.18
34.24
25:1
Kg.cm2
0.08
0.44
0.72
1.49
12.18
34.24
35:1
Kg.cm2
0.08
0.44
0.72
1.49
12.18
34.24
40:1
Kg.cm2
0.08
0.44
0.72
1.49
12.18
34.24
50:1
Kg.cm2
0.08
0.44
0.72
1.49
12.18
34.24
70:1
Kg.cm2
0.05
0.34
0.58
1.25
11.48
34.02
100:1
Kg.cm2
0.05
0.34
0.58
1.25
11.48
34.02
Parameter
Stage
Ratio
PLF042
PLF060
PLF080
PLF090
PLF120
PLF160
Rated Output Tq (Nm)
L1
4:1
16
40
90
122
210
423
5:1
15
40
90
122
210
423
7:1
12
34
48
95
170
358
10:1
10
16
22
56
86
210
L2
20:1
15
40
90
122
210
423
25:1
16
40
90
122
210
423
35:1
12
40
90
122
210
423
40:1
16
40
90
122
210
423
50:1
15
40
90
122
210
423
70:1
12
34
48
95
170
358
100:1
10
16
22
56
86
210
IP Degree
IP65
Operating Temp
-1090
