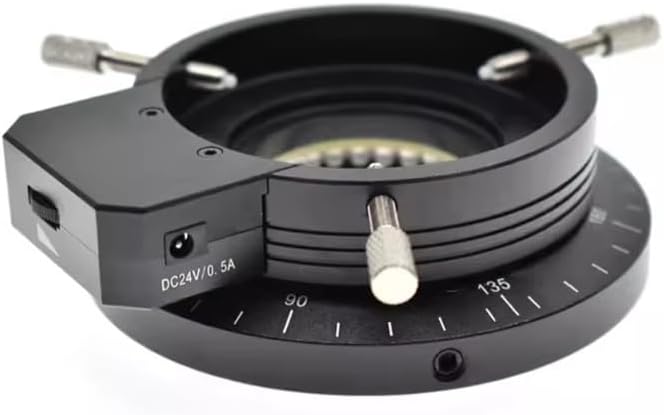

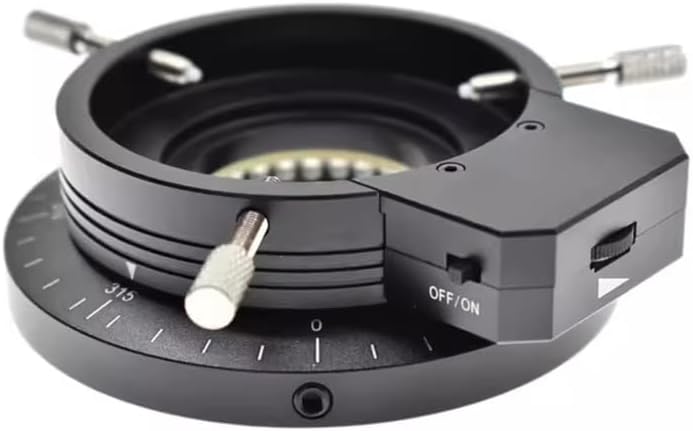

Industrial Microscope Polarizing Ring Light LED Illuminator, Adjustable Angle Polarized Light for Chip Inspection Tool
Description:
This industrial microscope polarizing ring light is specifically designed for chip character inspection and other precision tasks.

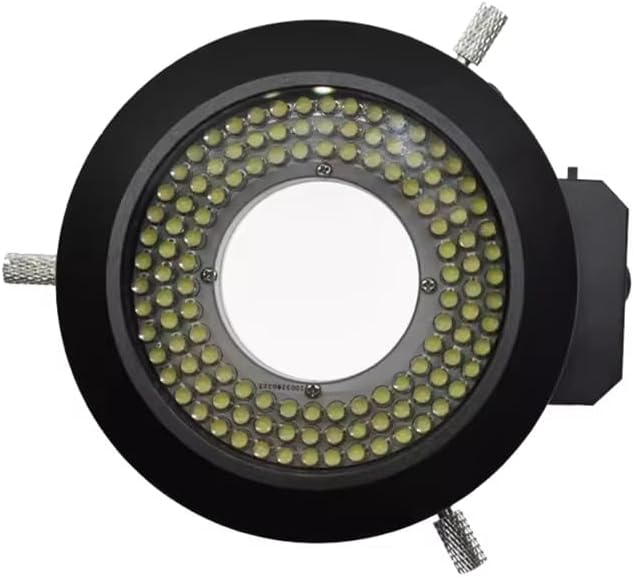

Equipped with 120 high-quality LED beads emitting 6500K white light, it delivers uniform, shadow-free illumination to enhance visibility during detailed inspections.
The brightness can be continuously adjusted from 0% to 100% to accommodate varying lighting requirements.
The integrated polarizer effectively reduces glare and improves contrast, making it ideal for examining reflective surfaces such as chips, PCBs, and electronic components.
With an adjustable working distance and a user-friendly design, this ring light is a versatile solution for microscopy and industrial imaging applications.
Specification:
Product Name: Industrial Microscope Polarizing Ring Light
Input Voltage: AC 100-240V 50/60Hz
Illumination Color: White, 6500K
Brightness Adjustment: 0-100% continuously adjustable
Number of LED Beads: 120

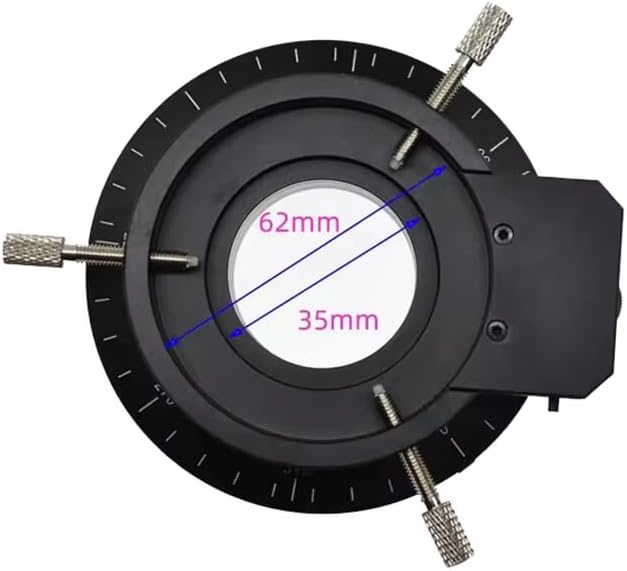

Polarizer Diameter: 35mm
Inner Mounting Diameter: 62mm
Outer Diameter: 90mm
Thickness: 33mm
Working Distance: 40-120mm
Operating Temperature: 0-40℃
Operating Humidity: 20-85%

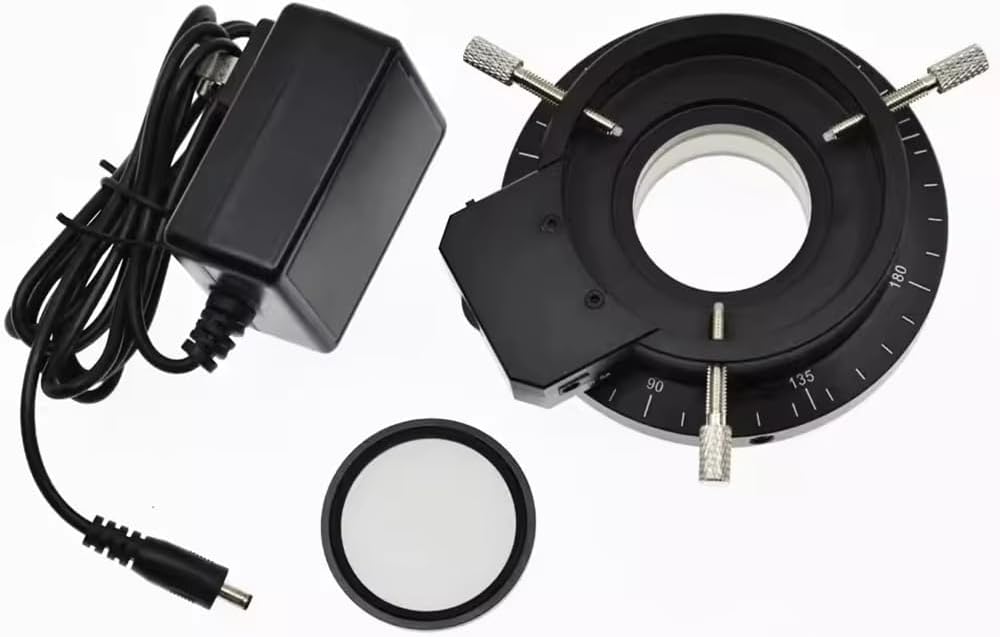

Package included:
1 x Industrial Microscope Polarizing Ring Light
