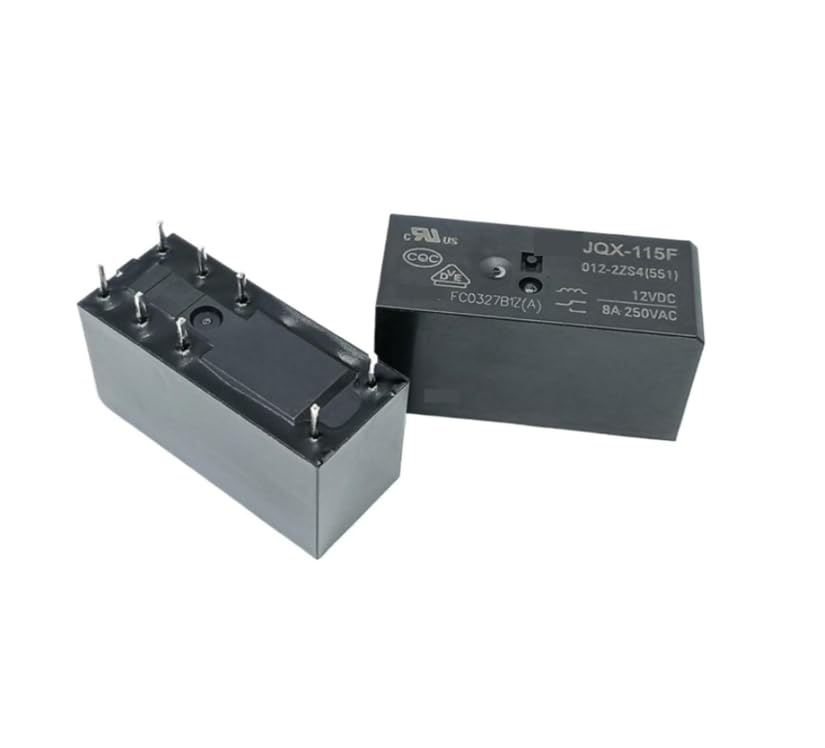

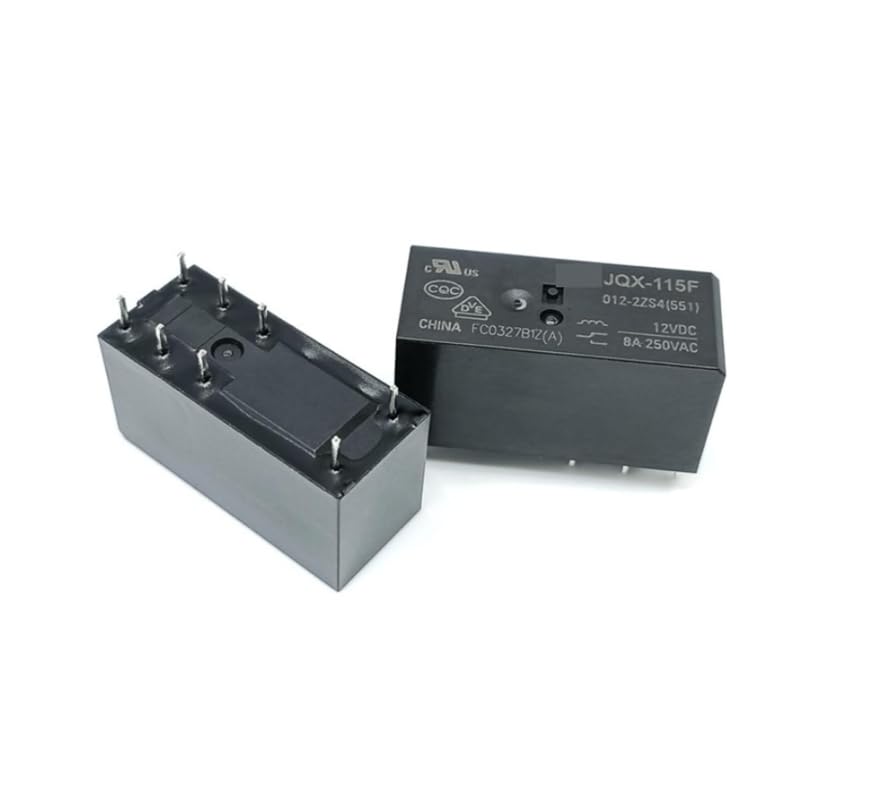

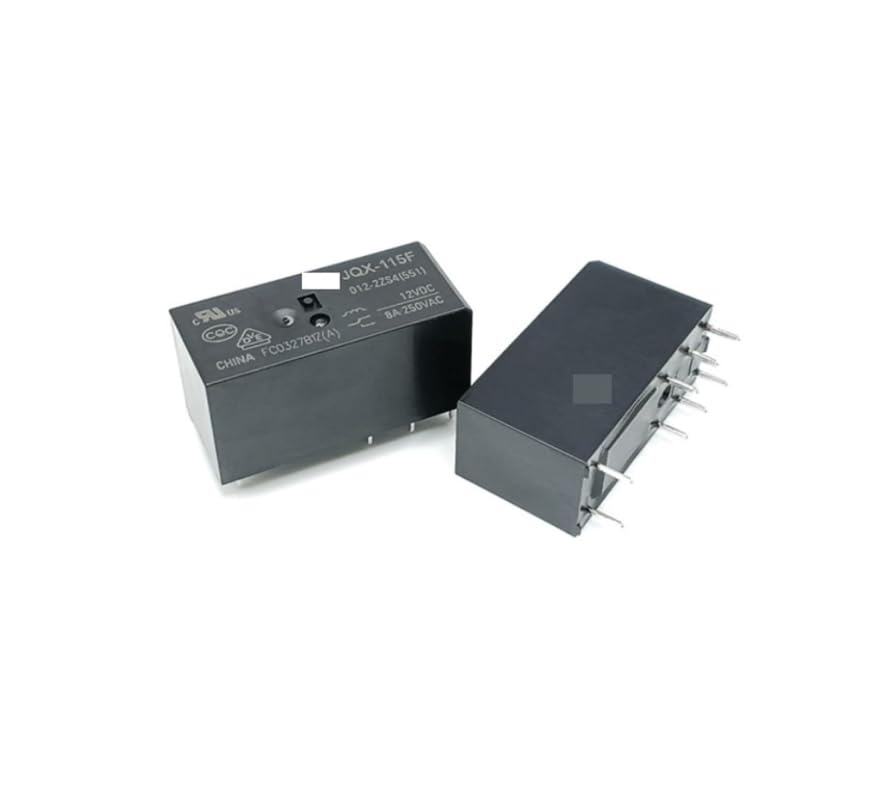

2 Pcs JQX-115F-012-2ZS4 DPDT Power Relay, 8 Pin, 12V DC Coil, 8A 250V AC Contacts, Industrial PCB Mount Installation Power Relay

SAR 90
Brand
Generic
Category
Decade Boxes
– 1 +

Special Features

  • 【Product Specifications】 Model: JQX-115F-012-2ZS4 Coil Voltage: 12 Volts DC Contact Form: DPDT (2 Form C) Terminal Type: 8 Pin Contact Rating: 8 Amps Contact Voltage: 250V AC / 28V DC Package Quantity: 2 Relays
  • 【Physical Structure & Materials】 Features a dust-proof, sealed housing with internal contacts made of silver alloy, ensuring excellent conductivity and arc resistance. The top of the relay is laser-marked with a clear internal circuit diagram, indicating the coil position and corresponding pin numbers for easy identification.
  • 【Electrical Specifications & Performance】 Maximum Switching Power: 2000 VA / 240 W Coil Power Consumption: 0.9 W Insulation Resistance: 100 MΩ min. (at 500 VDC) Dielectric Strength: 1500 VAC between coil and contacts. Engineered for reliable performance under rated loads.
  • 【Installation & Compatibility Guide】 Designed for standard 8-pin plug-in mounting. The pin spacing is compatible with common JQX-115F series relay sockets on the market. Please Note: Verify your circuit board or socket pinout diagram to ensure the coil voltage (12V DC) and contact functions match your specific application requirements before purchasing.
  • 【Reliability & Typical Applications】 Engineered for general-purpose electrical control circuits. Suitable for use in power control cabinets, automation equipment signal transmission, small motor controls, and power management modules. Delivers stable switching performance when operated within rated voltage and load conditions.

Description

Specifications

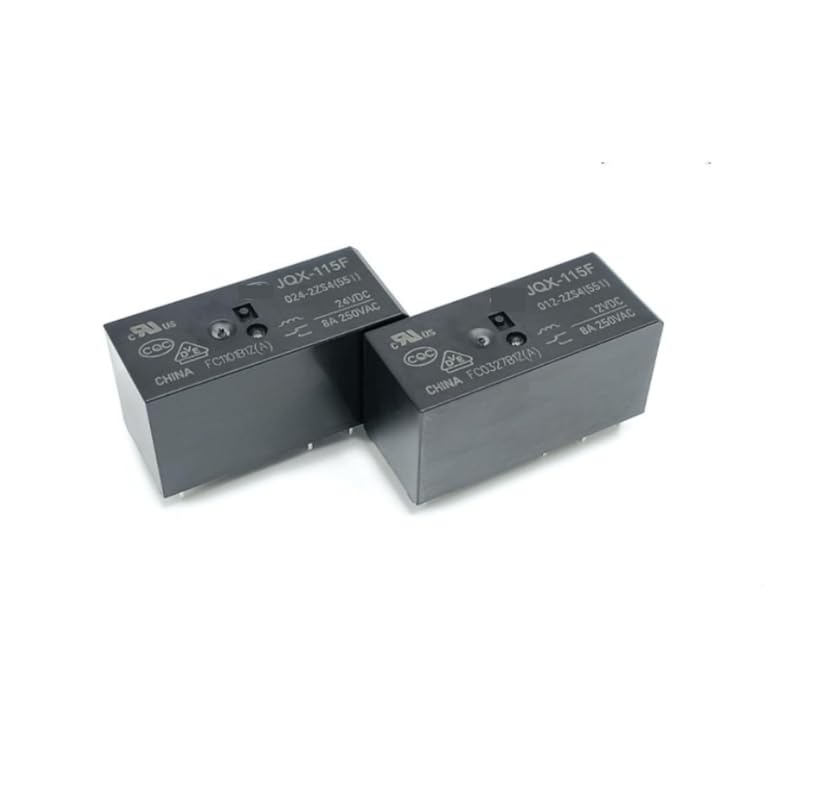

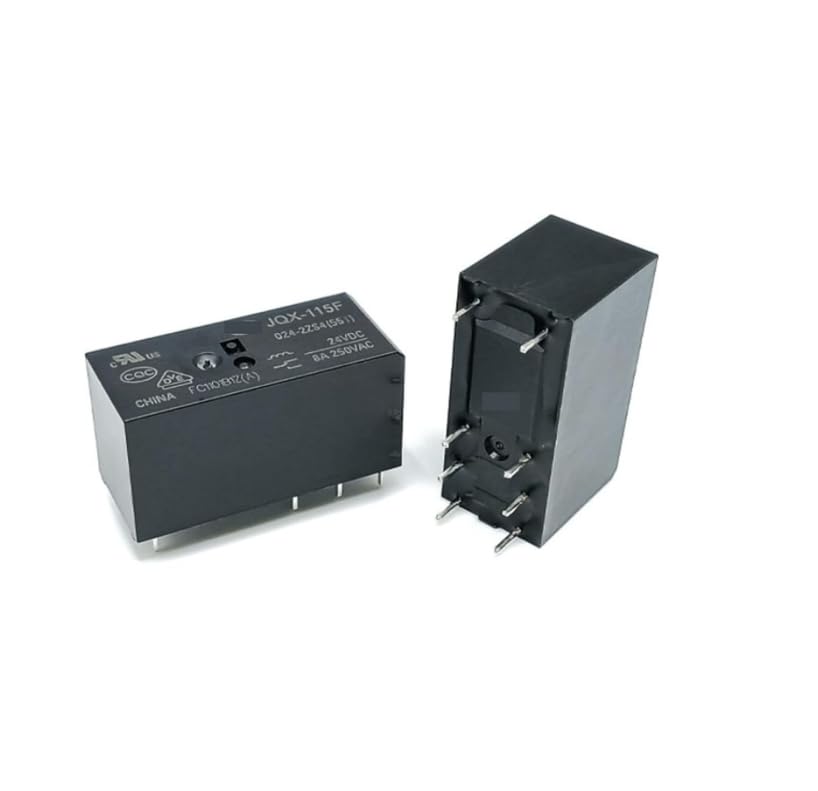

Coil Voltage Options: 5 VDC (Model: JQX-115F-005-2ZS4)
12 VDC (Model: JQX-115F-012-2ZS4)
24 VDC (Model: JQX-115F-024-2ZS4)

Contact Configuration: DPDT (2 Form C — Double Pole Double Throw)
Contact Rating: 8A @ 250VAC / 8A @ 28VDC
Terminal Type: 8-Pin — Standard Industrial Pin Configuration
Mounting Type: PCB Through-Hole or Compatible with 8-Pin Relay Socket (socket not included)
Primary Applications Industrial Control Systems
Power Supply Switching
Signal Isolation
Automation Equipment
HVAC Systems
Multi-Circuit Control in Electrical Panels
