مميزات خاصة

HIGH-SPEED, PRECISE DETECTION: Forget about unreliable detection! Our infrared beam sensor acts like an invisible tripwire. Once the beam is broken, it triggers a signal instantly. Unlike reflective sensors that struggle with dark or shiny objects, this through-beam design guarantees stable performance regardless of the object's color, material, or surface finish.
BUILT TOUGH FOR DEMANDING ENVIRONMENTS: Designed with an optimized modulated infrared beam, this sensor effectively resists interference from ambient light (like sunlight or room lighting), ensuring stable operation in various industrial or workshop settings. Its non-contact detection means no physical wear and tear, promising a long and maintenance-free service life even in high-cycle applications.
UNIVERSAL COMPATIBILITY: With its flexible 3-5V operating range, this sensor draws power directly from your development board's pins—no external power supply or complicated regulators needed. Provides an NPN normally open signal output, making it fully compatible with various mainstream controllers and platforms.
SET UP IN SECONDS: Just add a 1K pull-up resistor between the signal wire and the positive pole to connect directly to a microcontroller's I/O port for quick project integration.
YOUR GO-TO SENSOR FOR COUNTLESS PROJECTS: Whether you're building an automatic product counter for a mini factory, adding safety limits to a 3D printer, creating a laser-tripwire alarm for fun, or monitoring RPMs, this 5V sensor is your ideal component. It seamlessly integrates with Arduino, Raspberry Pi, and most PLCs, turning your innovative ideas into reality with one simple module.

وصف

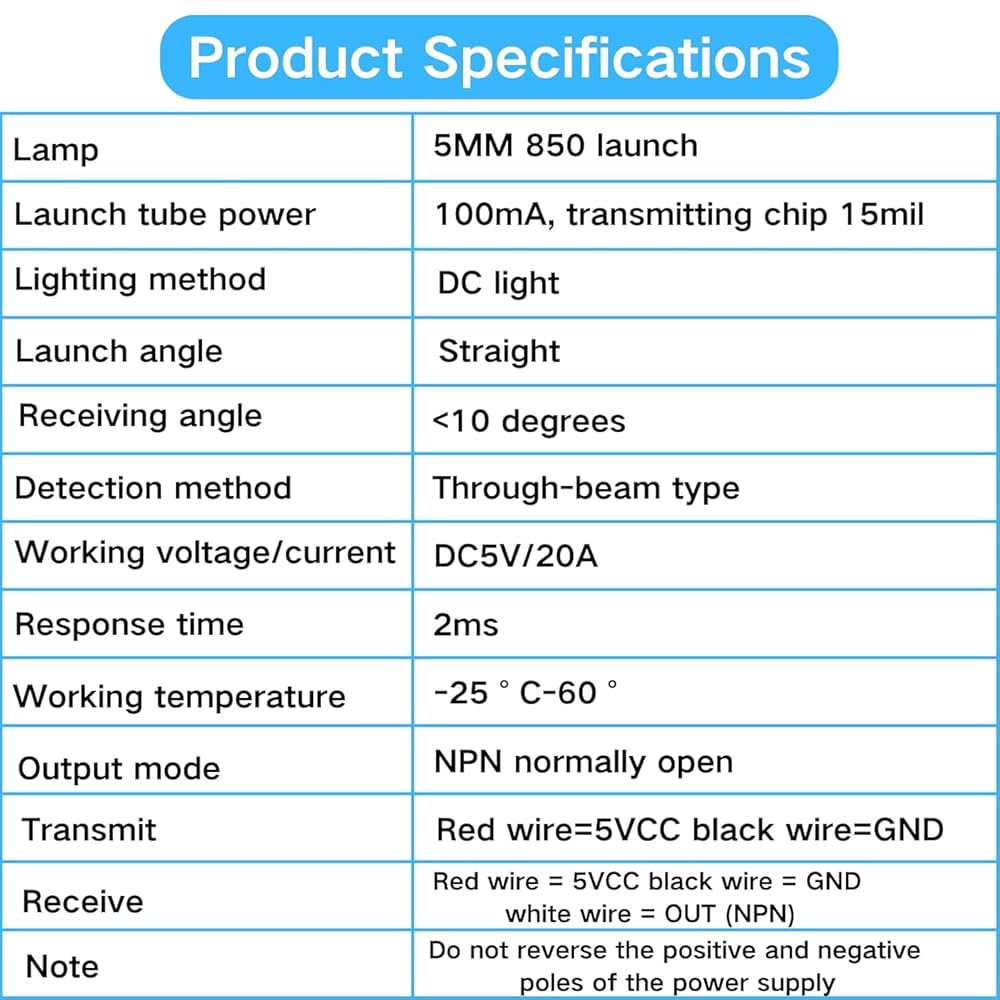

Specification:

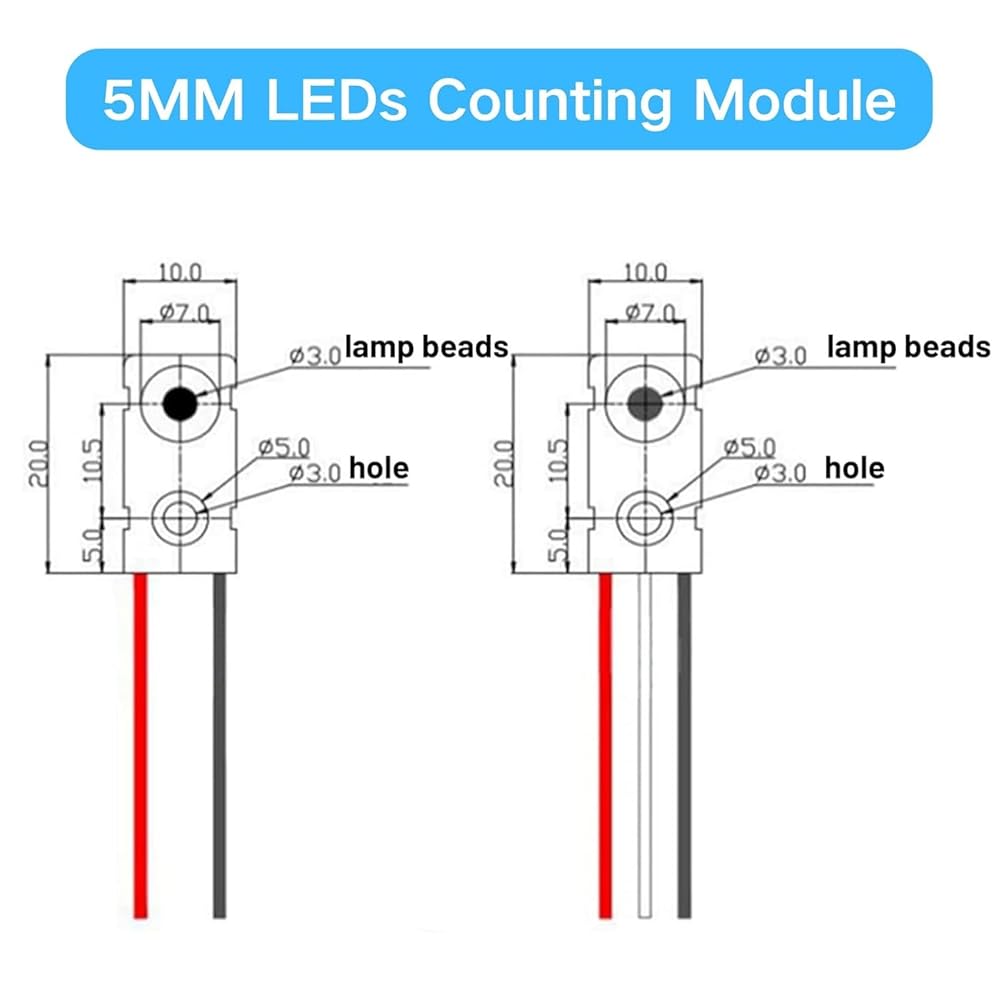

Type: F5 with 2.54 terminal infrared through-beam sensor
Lamp: 5MM 850 launch
Light hole: 5MM
Launch tube power: 100 mA
Detection distance: 1M
Line length: 25cm
Lighting method: DC light
Launch angle: Normally 45 degrees, the angle varies with distance
Receiving angle:
Detection method: through-beam type
Working voltage: DC5V
Working current: 20A
Response time: 2ms
Transmitter/Receiver LED Angle
Working temperature:-25℃-60℃

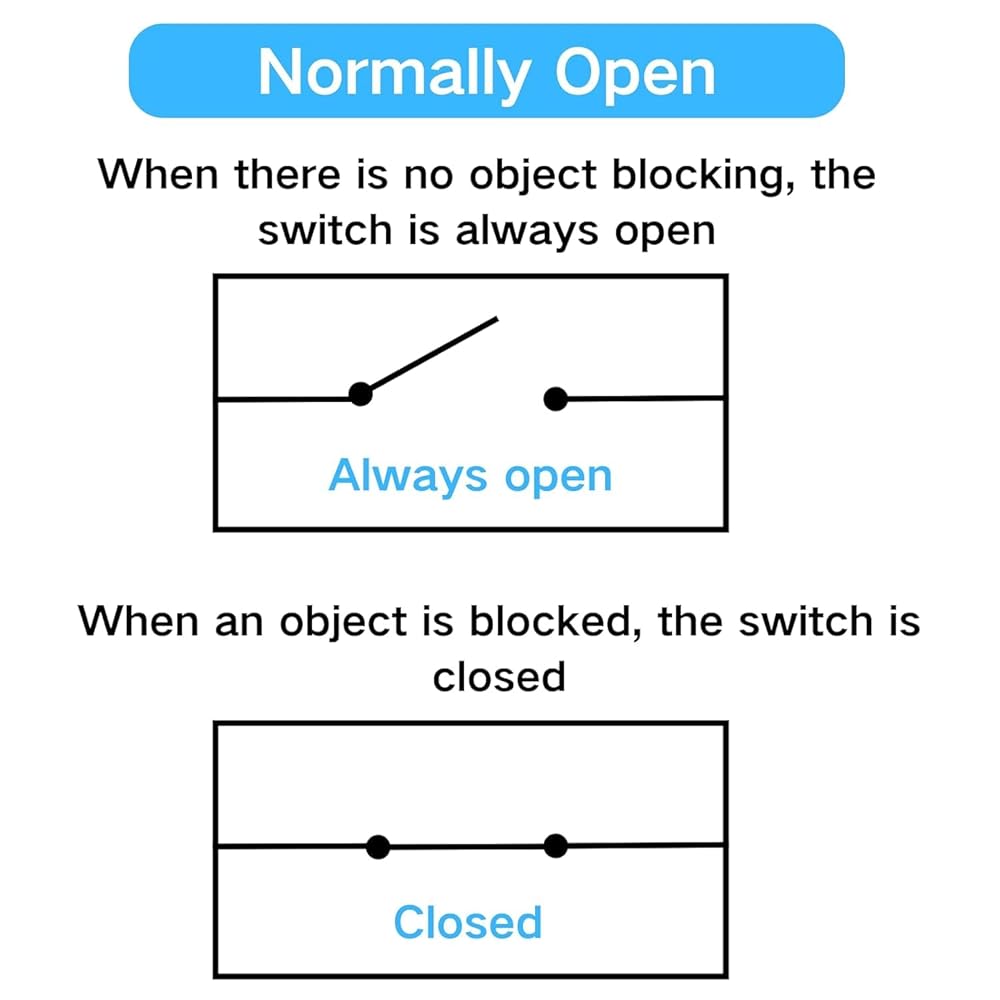

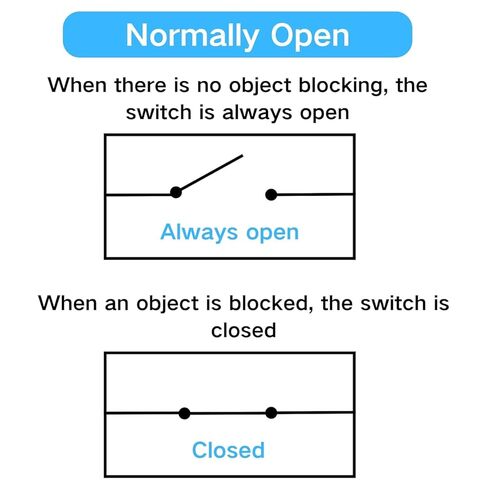

Output mode: NPN normally open

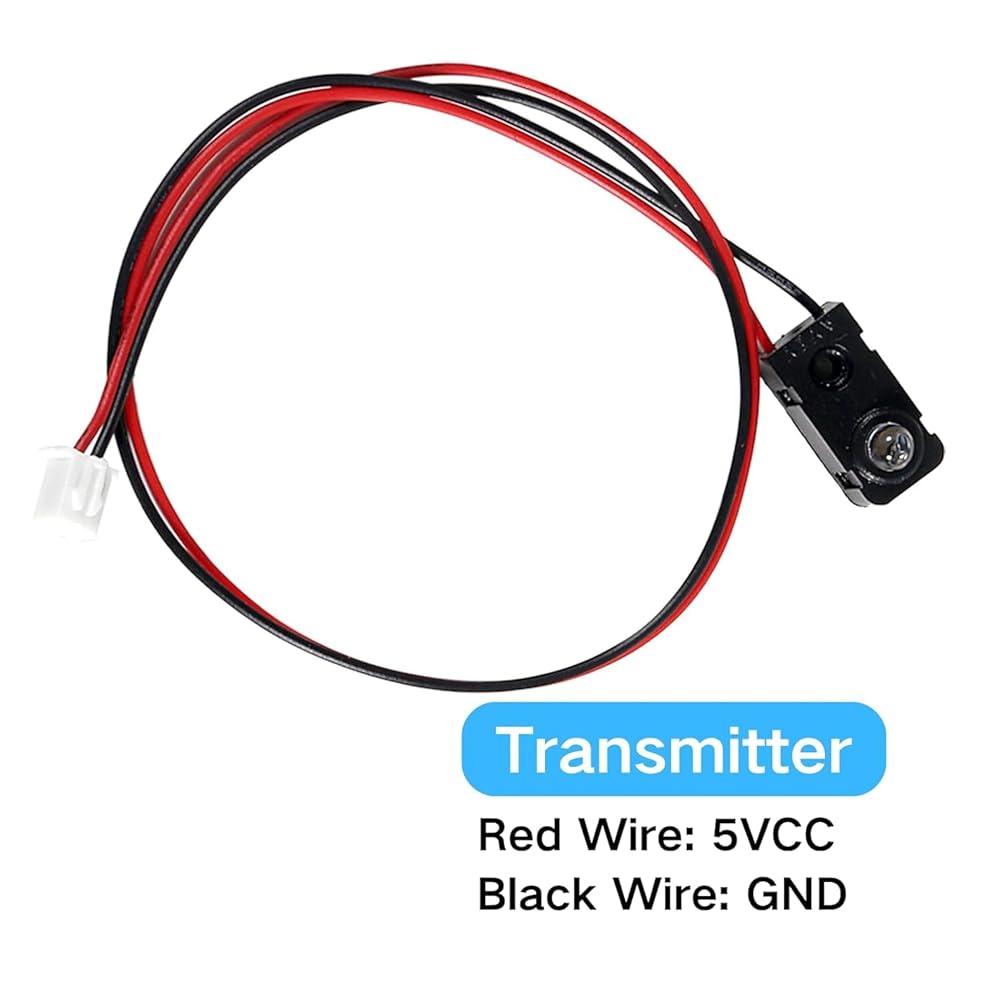

Transmit: red wire=5VCC black wire=GND

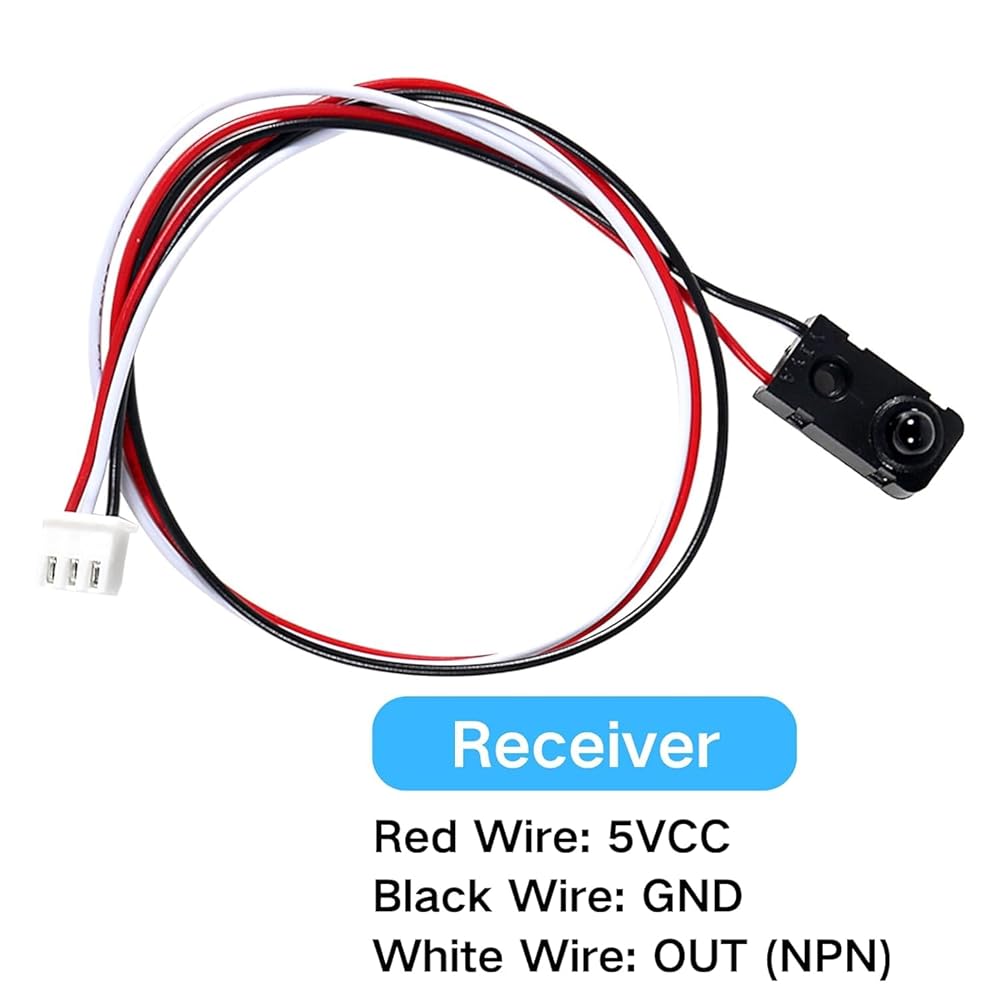

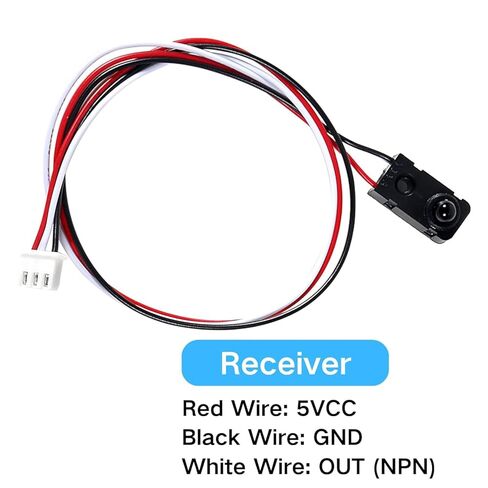

Receive: red wire = 5VCC black wire = GND white wire = OUT (NPN)
Note: Do not reverse the positive and negative poles of the power supply

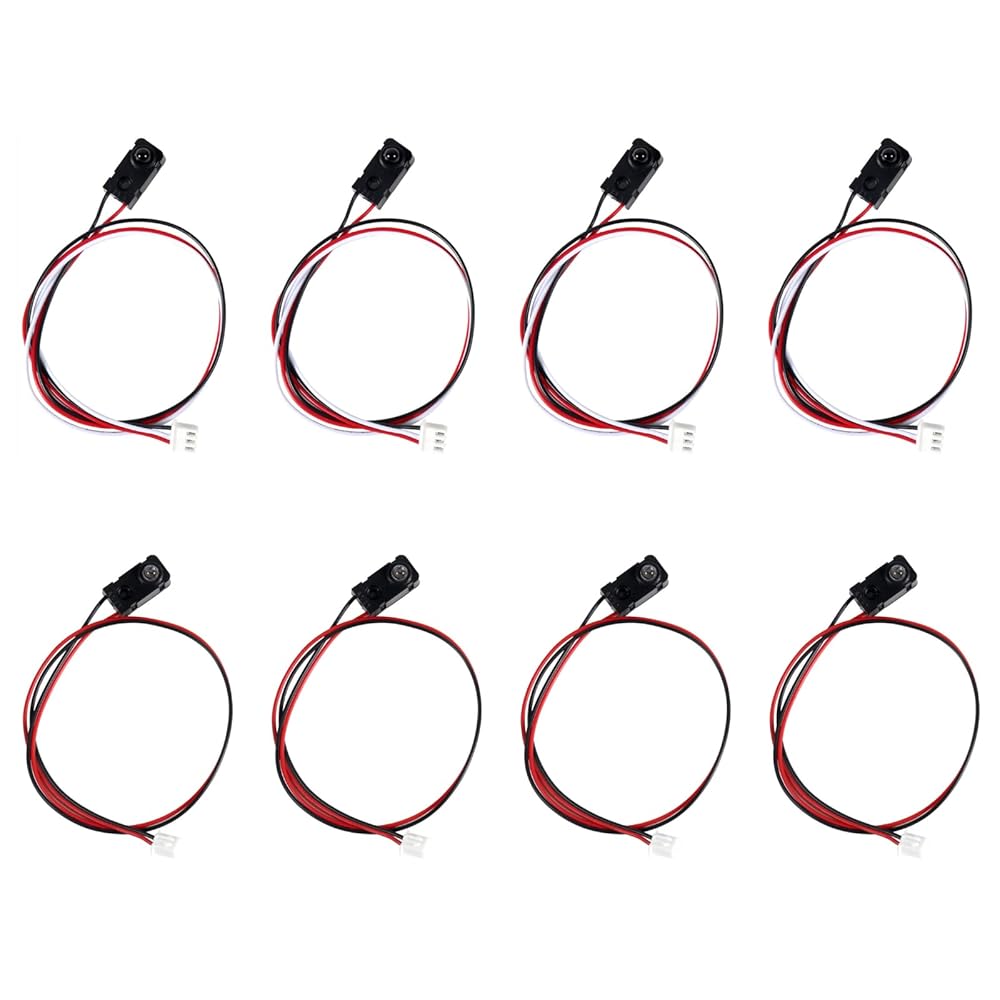

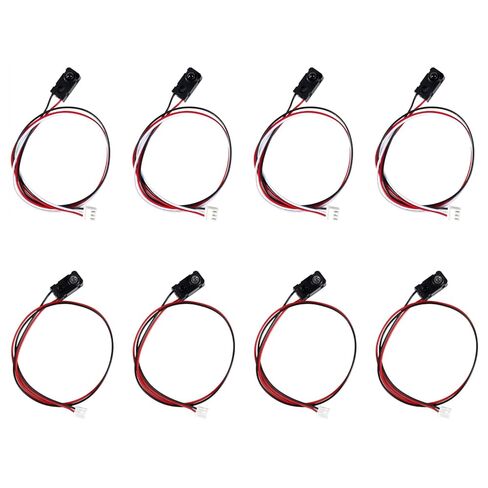

The package includes:
2X IR Break Beam Sensor -Receiver
2X IR Break Beam Sensor -Transmitter
