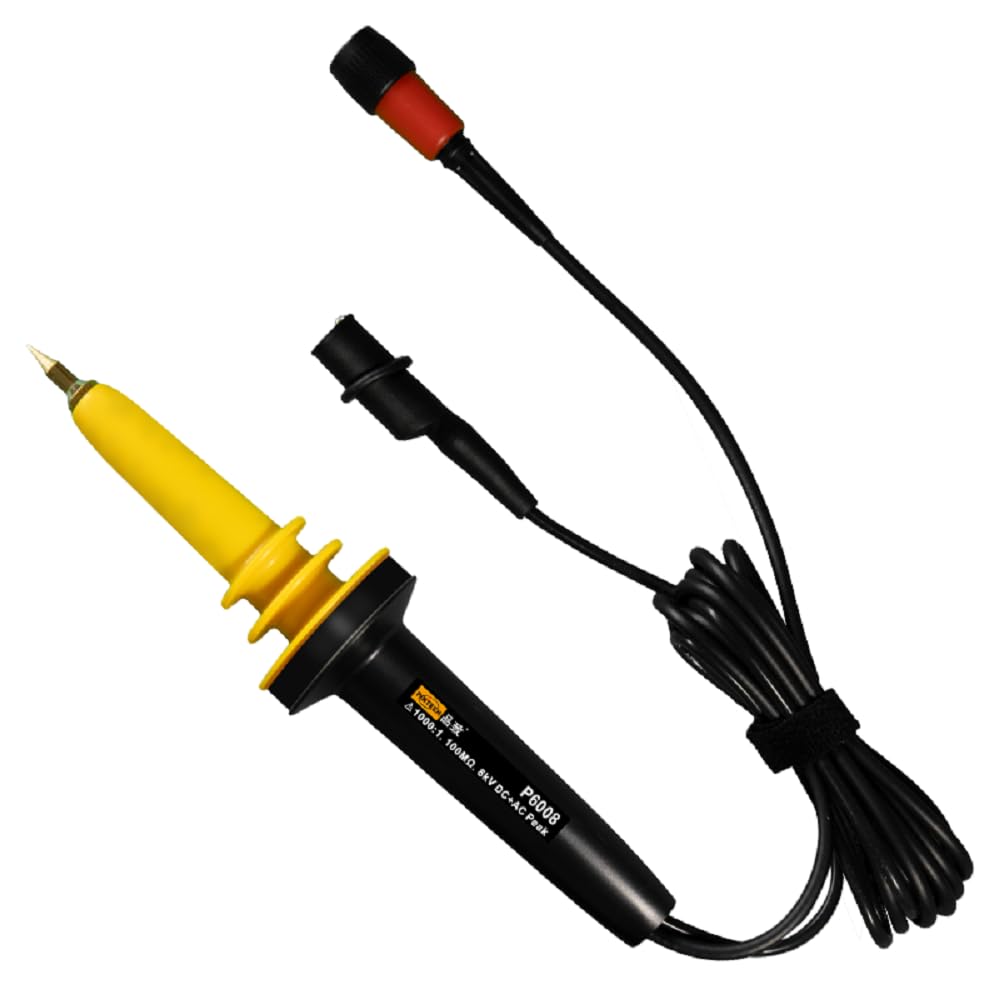

PINTECH High Voltage Probe for Oscilloscope, 8kV Max DC, 8kV Max AC, 40MHz, 1000:1 Attenuation Rate, Oscope Probe with BNC Connector, P6008 in Saudi Arabia

PINTECH High Voltage Probe for Oscilloscope, 8kV Max DC, 8kV Max AC, 40MHz, 1000:1 Attenuation Rate, Oscope Probe with BNC Connector, P6008

SAR 2,335
Brand
PINTECH
– 1 +

Special Features

  • Test Range: PINTECH P6008 high voltage probe measure current up to 8kV DC/16kV AC, for testing high voltage signals.
  • Accuracy DC：±2%(DC to 5kV),±3%(＞5kV); AC: ±3%(1kHz/1kV),-3dB:40MHz.
  • Attenuation Rate: 1000:1, the oscilloscope probe make your test safe.
  • Widely Used: The current probe features with standard BNC interface, compatible with all oscilloscopes.
  • 1,00MΩ input impedance. The high voltage probe is small and exquisite, easy to carry and use.

Description

MODEL: P6008

Input Impedance: 100MΩ

Attenuation Rate: 1000：1

Bandwidth: DC-40MHz(-3dB)

Test Voltage (max): DC:8kV; AC: 16kVp-p; Rms:≤6kV

Single/Noise: DC≥60dB(1kHz), ≥50dB(1MHz)

Rise Time: 9ns

Accuracy: DC:±2%(DC to 5kV),±3%(＞5kV), AC:±3%(1kHz/1kV),-3dB:40MHz

Impedance: 100MΩ±5%

Adjustable Capacitance: 5pF~50pF

Cable Length: 2M/78.74in

Weight: 180g/0.4lb
