Features:
Inputs/outputs independent power supply
Supports RS485 bus speed 0-500KBps, transmission, rate adaptived.
Equipped with power light and data transmission light.
Featuring features such as electrostatic protections,and self-healing diodes.
DIN35mm industrial card installation, with a 120ohm terminals resistance switches at the output end, can be selected according to needs for convenience and speed.
Material:ABS
Inputs interfaces: 1 RS485 interfaces
Outputs interfaces: 2-channel RS485 interfaces
Communication rate: 0-500KBps rate adaptived
Working power supply: DC9-36V 200mA, internal two isolated power supplies
Communication distance: 2000meters (9.6Kbps), 1500meters (19.2Kbps), 800meters (187.5Kbps), 200meters (500Kbps)

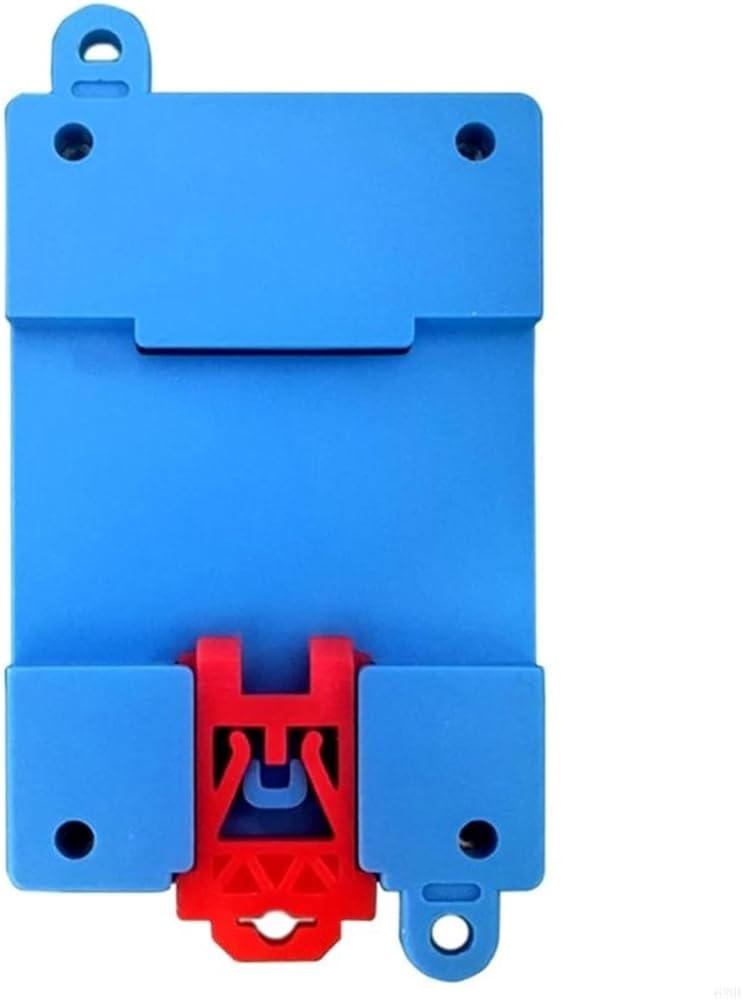

Installation method: DIN35 guide or fixed hole installation
Package Includes:
1Piece RS485 Repeaters
Note:
Please allow 1mm errors due to manual measurement.
Due to the differences between different monitors, the picture may not reflect the actual color.
DIY Supplies : ELECTRICAL
Origin : China
