AYLIFU 0.47×4 Inch Diameter Round Hand Wheel Machine Handle with Rotary Handle Rotary Knobs for Milling Machines Drilling Machines Lathes and Other Industrial Equipment 1Set in Saudi Arabia AYLIFU 0.47×4 Inch Diameter Round Hand Wheel Machine Handle with Rotary Handle Rotary Knobs for Milling Machines Drilling Machines Lathes and Other Industrial Equipment 1Set in Saudi Arabia AYLIFU 0.47×4 Inch Diameter Round Hand Wheel Machine Handle with Rotary Handle Rotary Knobs for Milling Machines Drilling Machines Lathes and Other Industrial Equipment 1Set in Saudi Arabia AYLIFU 0.47×4 Inch Diameter Round Hand Wheel Machine Handle with Rotary Handle Rotary Knobs for Milling Machines Drilling Machines Lathes and Other Industrial Equipment 1Set in Saudi Arabia AYLIFU 0.47×4 Inch Diameter Round Hand Wheel Machine Handle with Rotary Handle Rotary Knobs for Milling Machines Drilling Machines Lathes and Other Industrial Equipment 1Set in Saudi Arabia

AYLIFU 0.47×4 Inch Diameter Round Hand Wheel Machine Handle with Rotary Handle Rotary Knobs for Milling Machines Drilling Machines Lathes and Other Industrial Equipment 1Set

SAR 61
Brand
AYLIFU
Weight
46 g
– 1 +

Special Features

  • Sturdy, strong and reliable: The machine handle is made of high-strength engineering bakelite material and has undergone strict processing techniques, featuring excellent compressive resistance and wear resistance. It can withstand long-term frequent use and large operating torque, is not prone to damage or deformation, ensures the stable operation of the equipment, and reduces maintenance and replacement costs.
  • Convenient and effortless operation: The unique inner corrugation design of the crank increases the friction between the hand and the rim, making it less likely for the hand to slip during operation and allowing for easier force application. In scenarios where frequent adjustments are required, such as the speed and pressure adjustment of mechanical equipment, it can significantly reduce the fatigue of operators and improve work efficiency.
  • Superior anti-slip performance: The corrugated structure inside the revolving handle can still maintain a good anti-slip effect in harsh working environments such as dampness and oil stains. Ensure that operators can stably control the equipment under various working conditions, avoid equipment loss of control due to slip of the hand, and improve operational safety.
  • Excellent temperature resistance: Hand wheels accessories can maintain stable physical properties within a wide temperature range. In special environments such as high-temperature workshops or low-temperature cold storage, handwheels will not deform, crack or soften due to temperature changes, ensuring the normal operation of the equipment.
  • Strong corrosion resistance: The metal handwheels of the milling machine accessories have undergone anti-rust and anti-corrosion treatment, and the plastic ones are also made of anti-aging and corrosion-resistant materials. It can resist the erosion of water vapor, acid and alkali substances in industrial environments, extend service life and reduce the frequency of maintenance and care.

Description

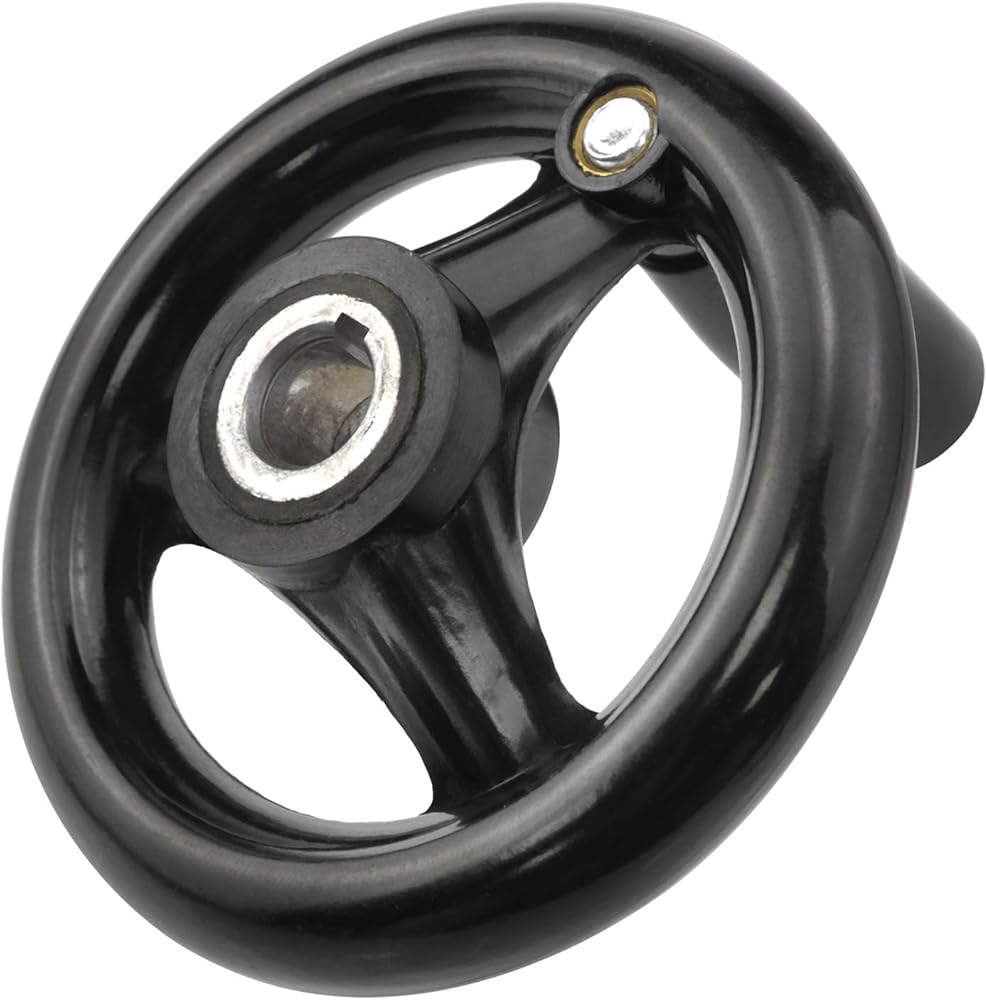

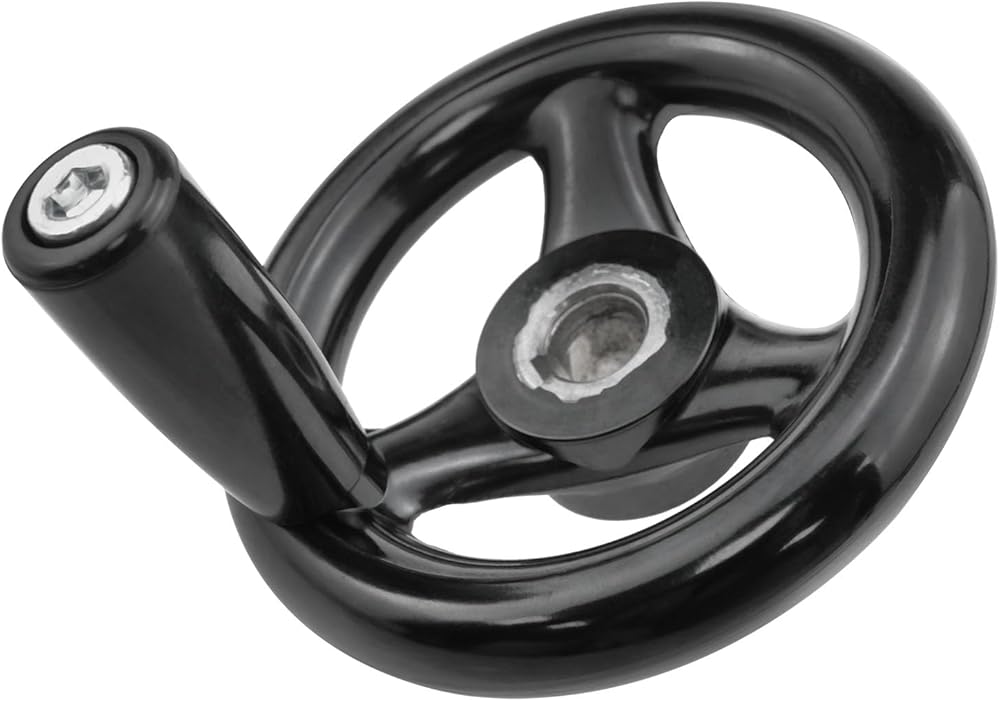

Product Name: Round Hand Wheel
Product material: Metal, Plastic
Product color: Black

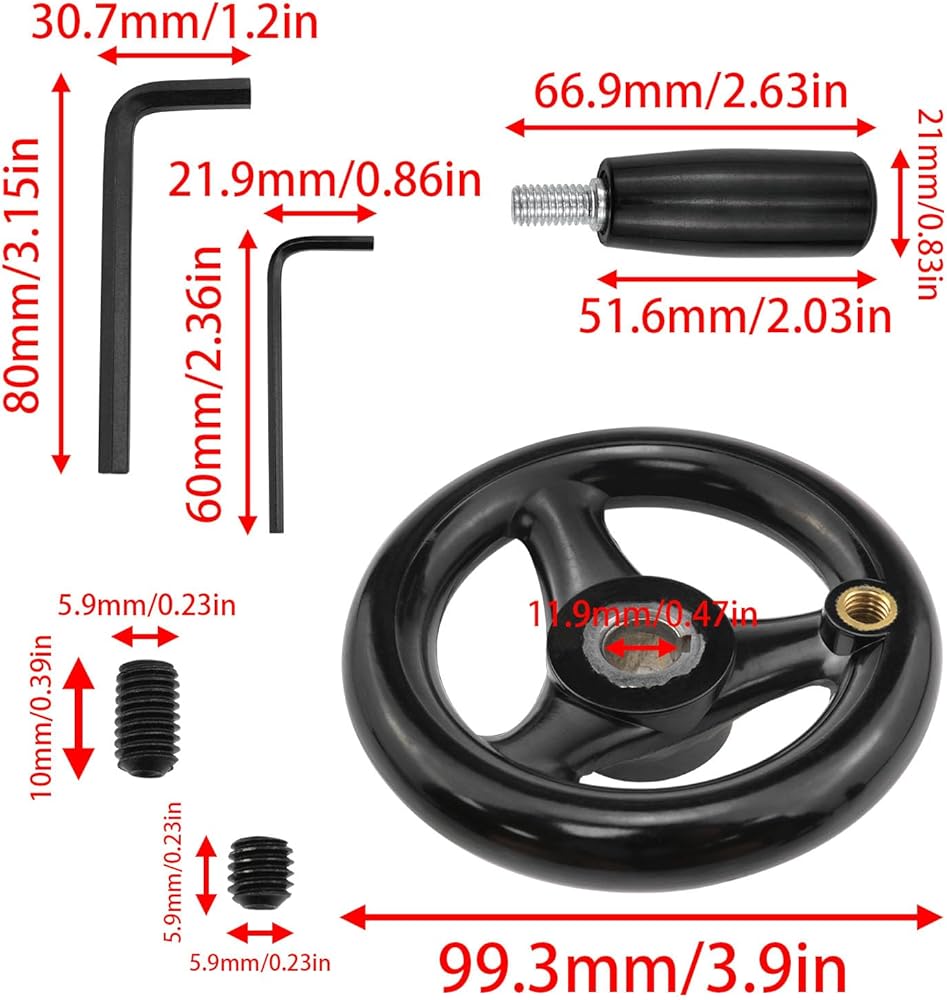

Product dimensions: Tool handle diameter × height 100×47mm/3.93×1.85inch, inner diameter of the center hole of the circular rotating handwheel 12mm/0.47inch, fixed threaded hole M6/0.23inch
The length × width of the handle is 67×21mm/2.63×0.82 inches, and the inner diameter of the handle installation thread is M8/0.31 inches
Installation screws: M6×6mm/0.23×0.23inch, M6×10mm/0.23×0.39inch
Large wrench length × diameter 80×6mm/3.15×0.23inch
The size of the small wrench is 60×3mm in length and 2.36×0.12 inches in diameter
Product application: Handles are widely used in various mechanical equipment for manual control of equipment operation and parameter adjustment, etc. For example, controlling the movement of the worktable and adjusting the feed rate on the machine tool; In the valve device, valves are opened or closed to achieve the on-off and flow control of fluids, facilitating the operation of equipment with convenient operation.
The usage method of the product: First, install the crank handwheel on the equipment shaft through the matching parts and tighten it to fix it. When operating, hold the rim with your hand and use the increased friction force from the inner corrugations to generate force. Rotate the handwheel clockwise or counterclockwise as needed to drive the movement of the equipment components, thereby adjusting parameters such as speed, position, and pressure.

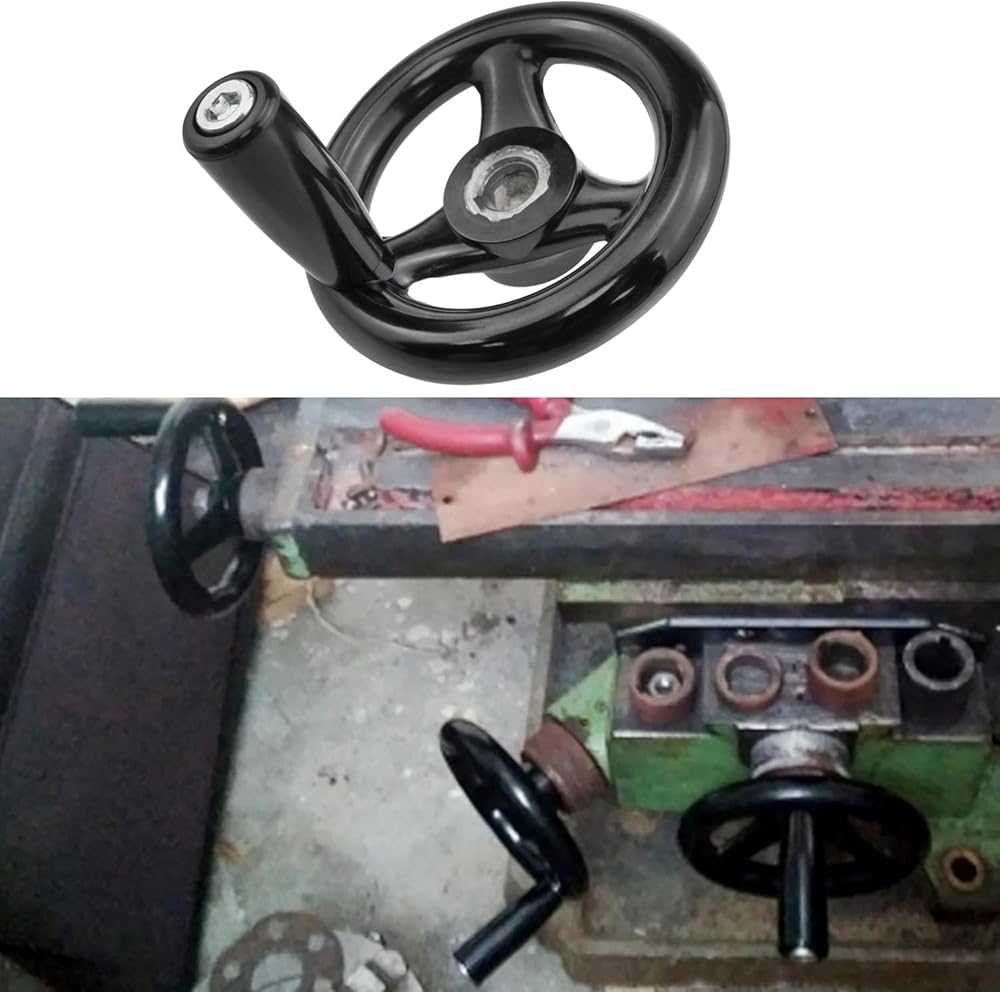

Product application scope: Machine handles are suitable for various mechanical equipment such as machine tools, printing machinery, textile machinery, chemical equipment, and valves. Whether it is large-scale equipment in the industrial production field or small instruments in scientific research and testing, as long as manual control and adjustment are required and there are requirements for control feel and stability, they can be used.

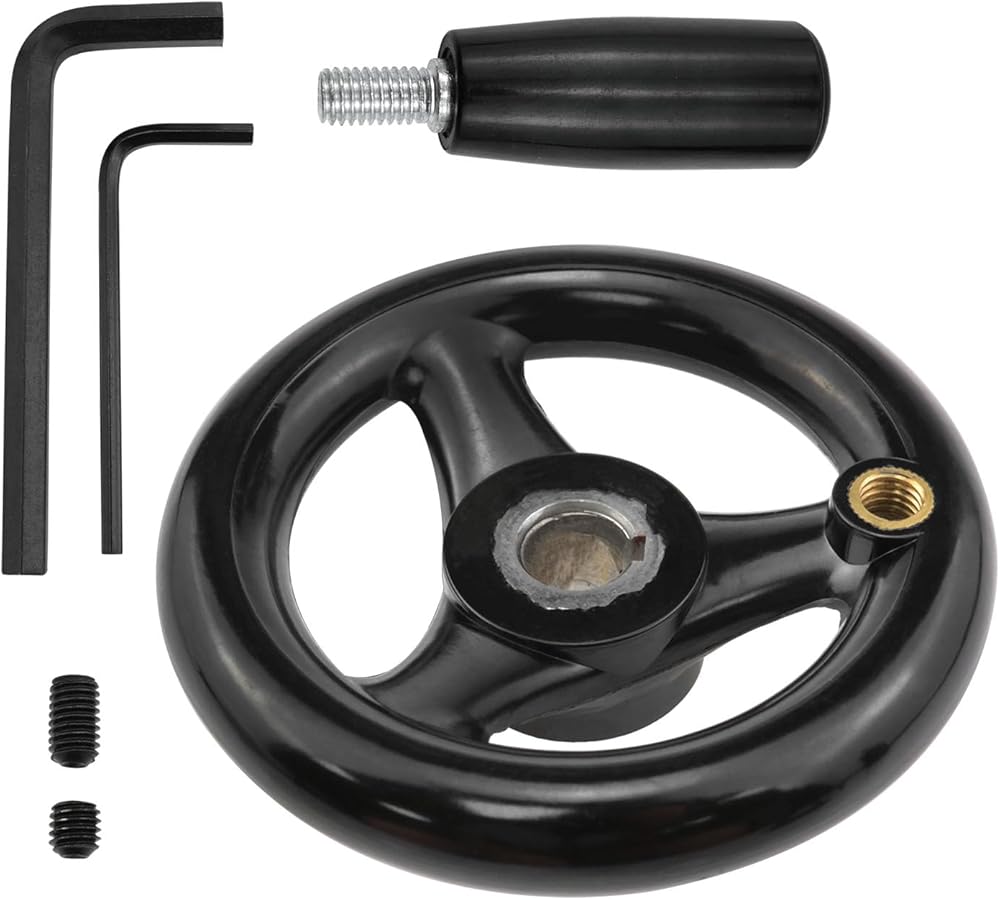

Product contents: 1PCS Main Revolving Handwheel 1PCS Handle (Knob) 2PCS M6 Installation Screws 2PCS Wrenches
Note:
Keep the parts out of reach of children.
For manual measurement, please allow for minor dimensional errors of the items.
Due to different screen displays, the actual color may vary slightly.
