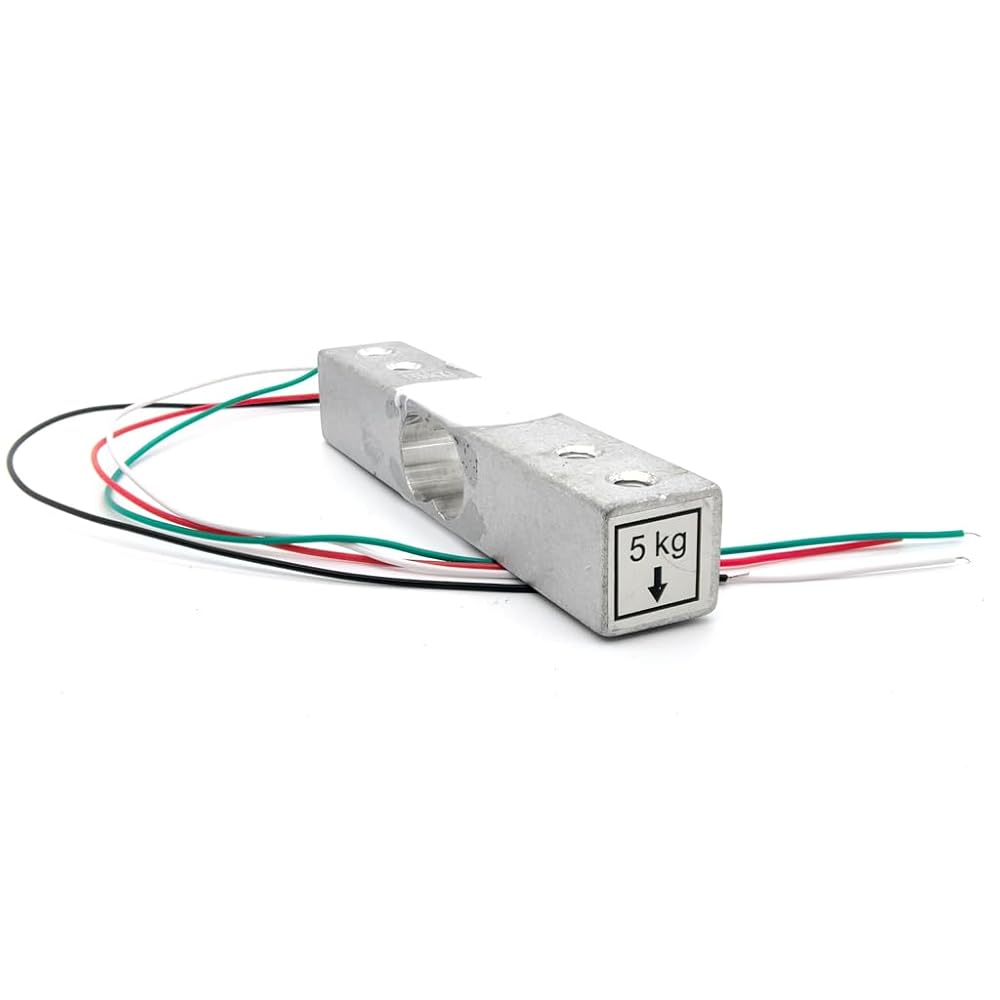

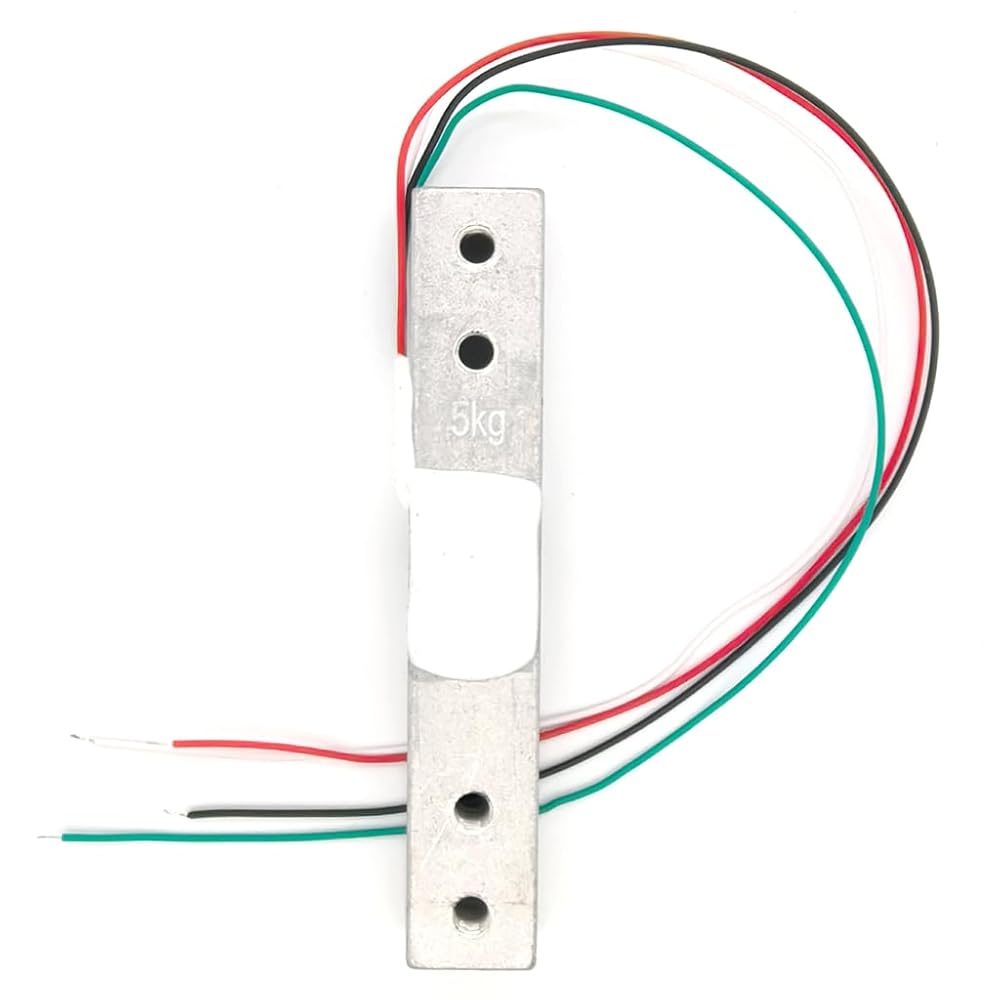

This straight bar load cell is a strain gauge sensor, can translate up to 5kg of pressure (force) into an electrical signal, made from an aluminum-alloy. The resistance of a strain gauge changes when force is applied and the object is deformed along with the foil and this change will give a different electrical output. With this gauge you will be able to tell just how heavy an object is, if an object's weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.

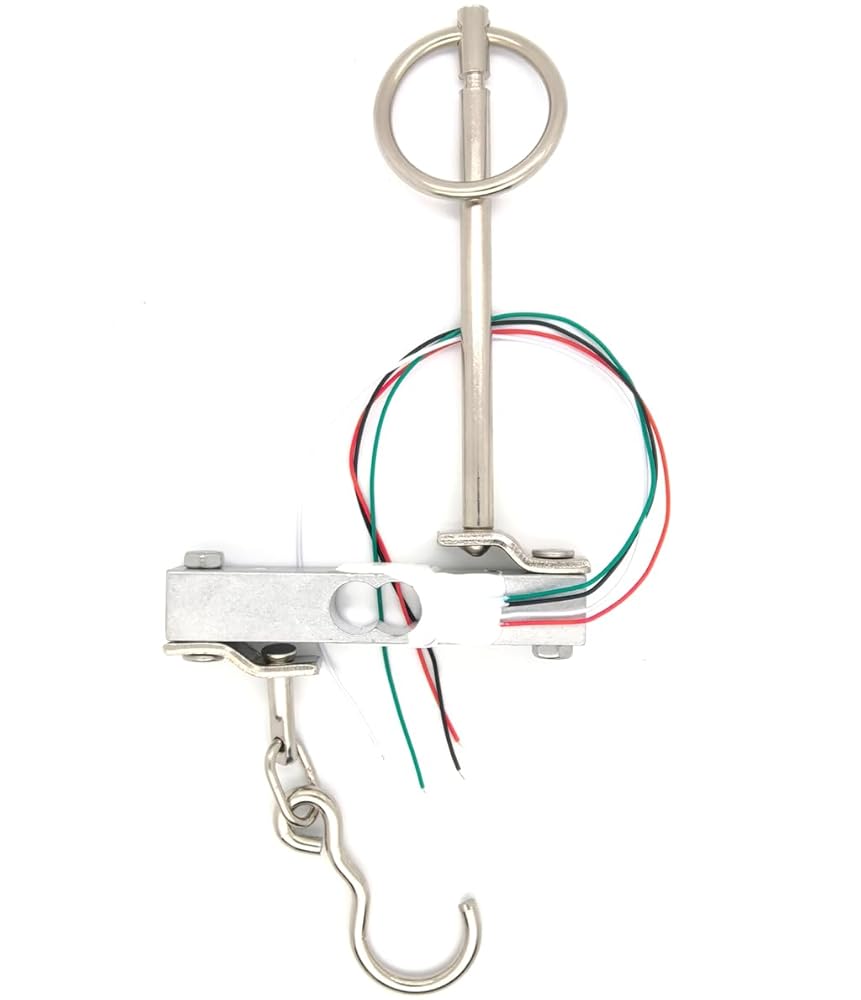

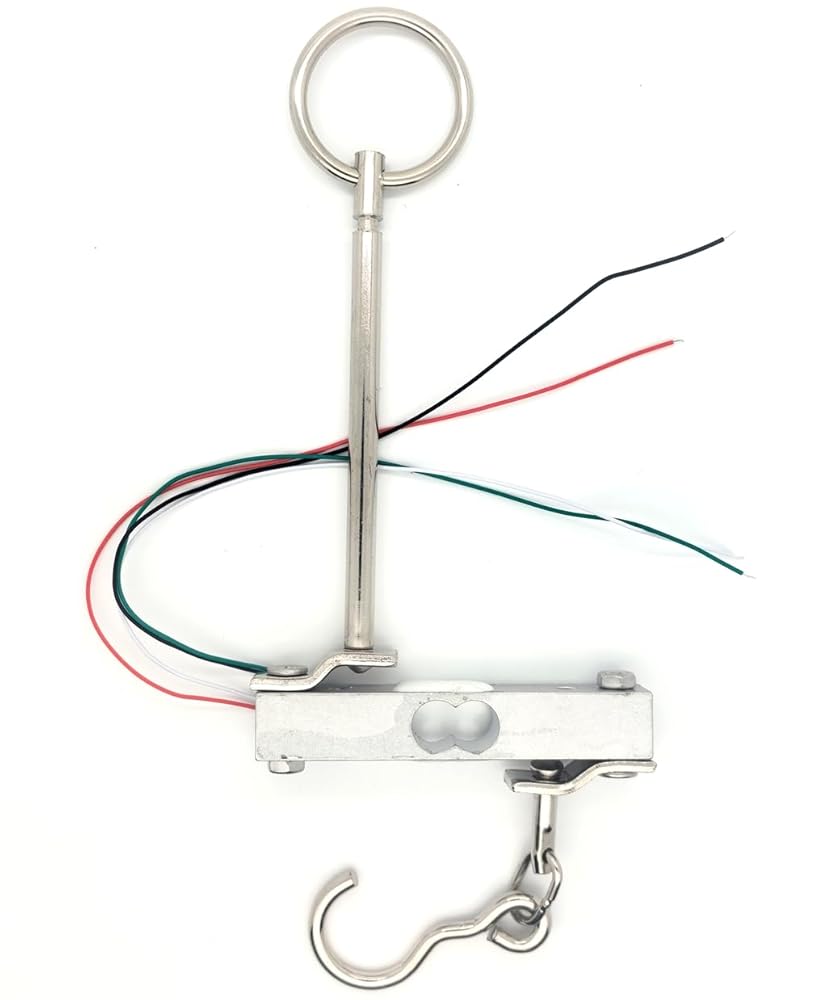

This 5kg straight bar load cell comes attached to hardware that ends with a hook. This allows you to easily install and hang your load cell. Strain gauges are useful for projects when you need to measure pressure, force, weight, and tension.
Color code: Red (Excitation+), Green (Signal-), Black (Excitation-), and White (Signal+)
NOTE: This is the load cell only—no converter or ADC(like HX711) included. Must be calibrated using known weights after installation for accurate readings.
Specifications:
Maximum capacity (E)max: 5KG
Sensitivity(Cn): 1.0±0.1mV/V
Zero balance: -0.15±0.05mV/V
Non-linearity(dlin): 0.03%F.S
Hysteresis error(dhy): 0.03%F.S
Repeatability: 0.03%F.S
Creep(3min): 0.05 %F.S
Ouput resistance (RO): 1000±10Ω
Temperature effect on zero balance （TK0）: 0.3%F.S/10°C
Temperature effect on sensitivity （TKC）: 0.3%F.S/10°C
Reference excitation voltage (Uref): 3---9VDC
Safe load limit (EL): 150 %F.S
wiring: excitation(+):Red signal(+):Green excitation(-):Black signal(-):White
Dimensions: 75mm x 12.7mm x 12.7mm
